Summary of Contents for Sante4Life TFT-001

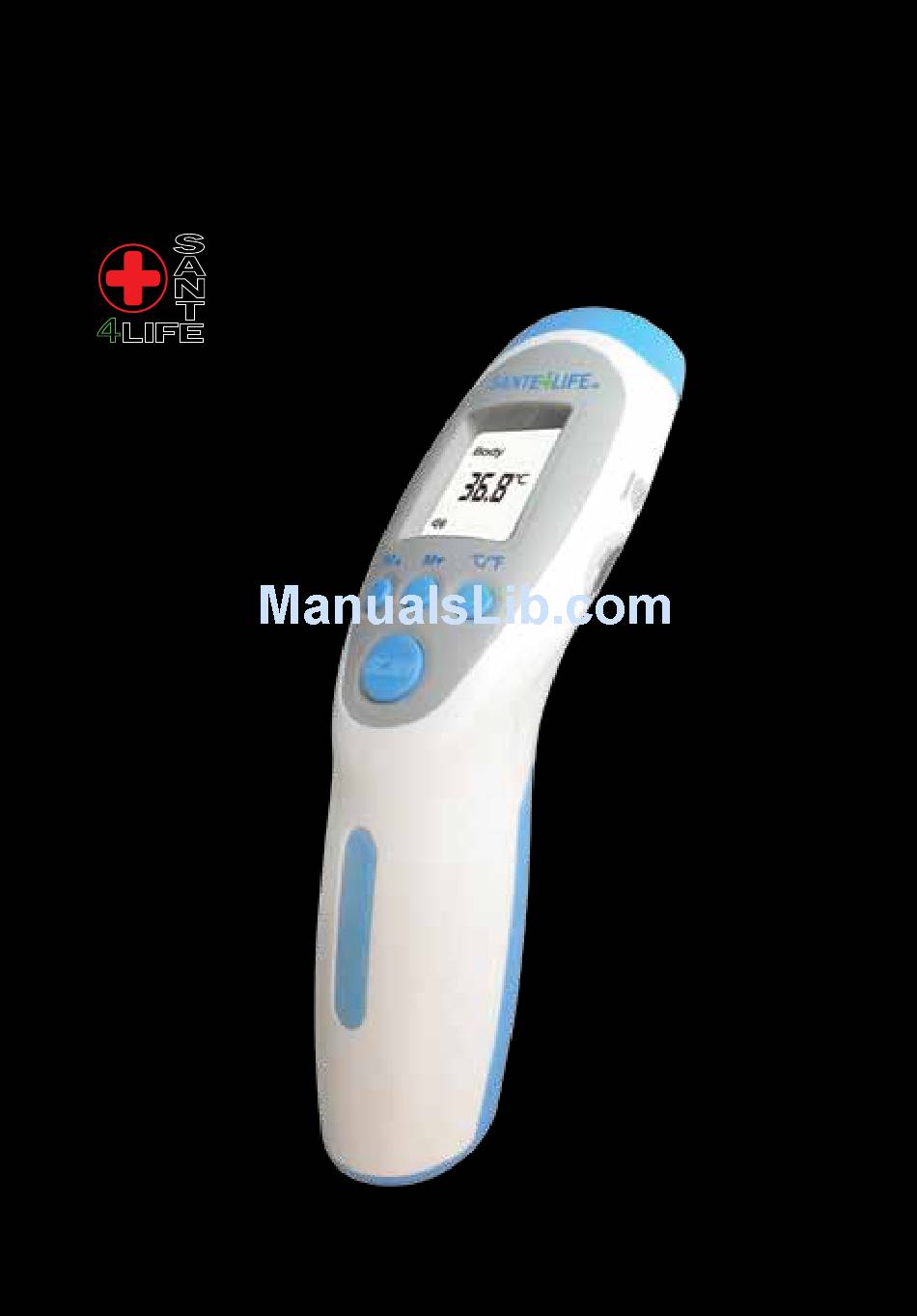

- Page 1 Touchless Forehead Thermometer Model TFT-001...
-
Page 2: Table Of Contents
Contents Safety Precautions ..............1 Sante4Life Touchless Forehead Thermometer ..2 Body Temperature ..............3 Product Description ............. 5 Using the S4L Touchless Forehead Thermometer ..6 Key Features ................8 Battery Replacement ............10 Care and Cleaning ..............11 Limited Lifetime Warranty .......... -
Page 3: Safety Precautions
Safety Precautions READ THIS USER MANUAL CAREFULLY BEFORE USING THIS DEVICE This device must only be used for the purpose described in this user manual This device must be used within its operational temperature range (10 - 40 C / 50 -104 This device must always be kept and operated in a clean and dry environment DO NOT expose this device to electric shocks... -
Page 4: Sante4Life Touchless Forehead Thermometer
Audio alarm indicating the end of the temperature scan Temperatures scale displayed in either Fahrenheit or Celsius Automatic shut-off The Sante4Life Touchless Forehead Thermometer offers safe, fast and hygienic scanning. It is accurate, environmentally friendly, easy to use, and also comes with limited lifetime warranty. -
Page 5: Body Temperature
95.9 – 99.5 Rectal 36.6 – 38.0 97.9 – 100.4 Tympanic 35.8 – 38.0 96.4 – 100.4 Temporal (Sante4Life) 35.8 – 37.8 96.4 – 100.0 Normal temperature according to age: Celsius ( Fahrenheit ( 36.4 – 38.0 97.5 – 100.4 3-10 36.1 –... - Page 6 Note: As a person grows older, his or her normal temperature range tends to decrease. Take consideration of physiological variations when evaluat- ing the results: body temperature increases by 0.5 C / 0.9 between 6 a.m. and 3 p.m. Women, on average, have higher temperatures of around 0.2 C / 0.36 F.
-
Page 7: Product Description
Product Description Infrared sensor protective glass 9 Speaker Large LCD display Battery compartment Memory recall buttons Temperature F selection button Celsius indicator Scan button Fahrenheit indicator Audio alarm button Memory icon Lable (Model No.) Battery icon Serial number Sound icon... -
Page 8: Using The S4L Touchless Forehead Thermometer
Using the S4L Touchless Forehead Thermometer Push back hair and wipe away any perspiration or cosmetics from forehead Avoid any drafts in the area (e.g. from nasal specs, air condi- tioning, hot air flow, etc.) Position the thermometer in front of the forehead over the temporal site, from a distance of about 3-5 centimetres or 1.2-2 inches... - Page 9 High, prolonged fever requires medical attention, especially in young children. Contact your physician should this occur. Temperature scans must not be taken after vigorous physical activity, such as immediately after exercise or bathing, and the room temperature must be moderate. Health Canada issued an advisory that the use of infrared thermometer in children under two years is not recomended.
-
Page 10: Key Features
Key Features Abnormal Body Temperature Alarms For scanned body temperature over 42.9 C or 109.2 F, the LCD displays “Hi” with 5 audio beeps. For scanned body temperature under 32 C or 89.6 F, the LCD dis- plays “Lo” with 1 audio beep. Audio Alarm Pressing the side button of the thermometer can... -
Page 11: Memory Recall
Memory Recall The thermometer comes with a memory capacity able to store up to 32 scanned temperatures. Once the memory is full, the memory will automatically cycle. Pressing button displays the most recent stored temperature. Pressing it again will display the second most recent scanned temperature, and so on. -
Page 12: Battery Replacement
Battery Replacement If LCD displays the low battery icon, or there is no response or dis- play on the LCD, the battery must be replaced: Open the battery cover at the bottom of the thermometer Remove the old batteries for disposal Replace with 2 new AA alkaline batteries Slide battery cover back until it snaps in place Wait 10 minutes before using thermometer... -
Page 13: Care And Cleaning
Care and Cleaning The protective glass is the most fragile part of the thermometer, and great care must be taken when cleaning the glass. With normal use, it is not required to be clean regularly unless it is contaminated by touching or spilling. If this is the case, following the cleaning procedure: Very gently wipe the glass with cotton cloth or swab, mois- tened with alcohol (95% isopropyl) -
Page 14: Limited Lifetime Warranty
Limited Lifetime Warranty Sante4Life (S4L) warrants this product to be free from defects in workmanship and material, under normal household use, for the life of the original owner. A purchase receipt or other proof of date of original purchase is required before warranty service is per- formed. - Page 15 Consult with the store that you purchased your product Visit our website to obtain more information of the product: http://www.sante4life.com Email our technical support team at techsupport@sante4life. com or write a letter explaining the problem with the following information - your name, address, contact telephone number,...
-
Page 16: Technical Specifications
Technical Specifications Display Range Body 32.0 - 42.9 89.6 - 109.2 Display resolution Precision 32.0 - 35.9 ±0.3 ± 0.6 89.6 - 96.7 36.0 - 39.0 ±0.2 ± 0.4 96.8 -102.2 39.1 - 42.9 ±0.3 ± 0.6 102.4 -109.2 Operating ambient 10 - 40 50 - 104 temperature range... - Page 17 Physical 175 x 50 x 52 6.9 x 2.0 x 2.0 Size (L x W x H) Weight (with batteries) 148 g 5.2 oz Weight (without batteries) 100 g 3.5 oz • ISO 13485:2003 CMDCAS • International standards • ASTM Standard 1965-1998 (Certified or Approved) (2009) •...
-
Page 18: Ownership Registration
Ownership Registration Please register online at: http://sante4life.com/register/ The registration will enable Sante4Life to inform you in the unlikely event of a product safety notification, to update you with addi- tional product information, and to provide a warranty service. By registering online, you acknowledge that you have read and understood the instructions for use, and warnings set forth in the accompanying instructions.
