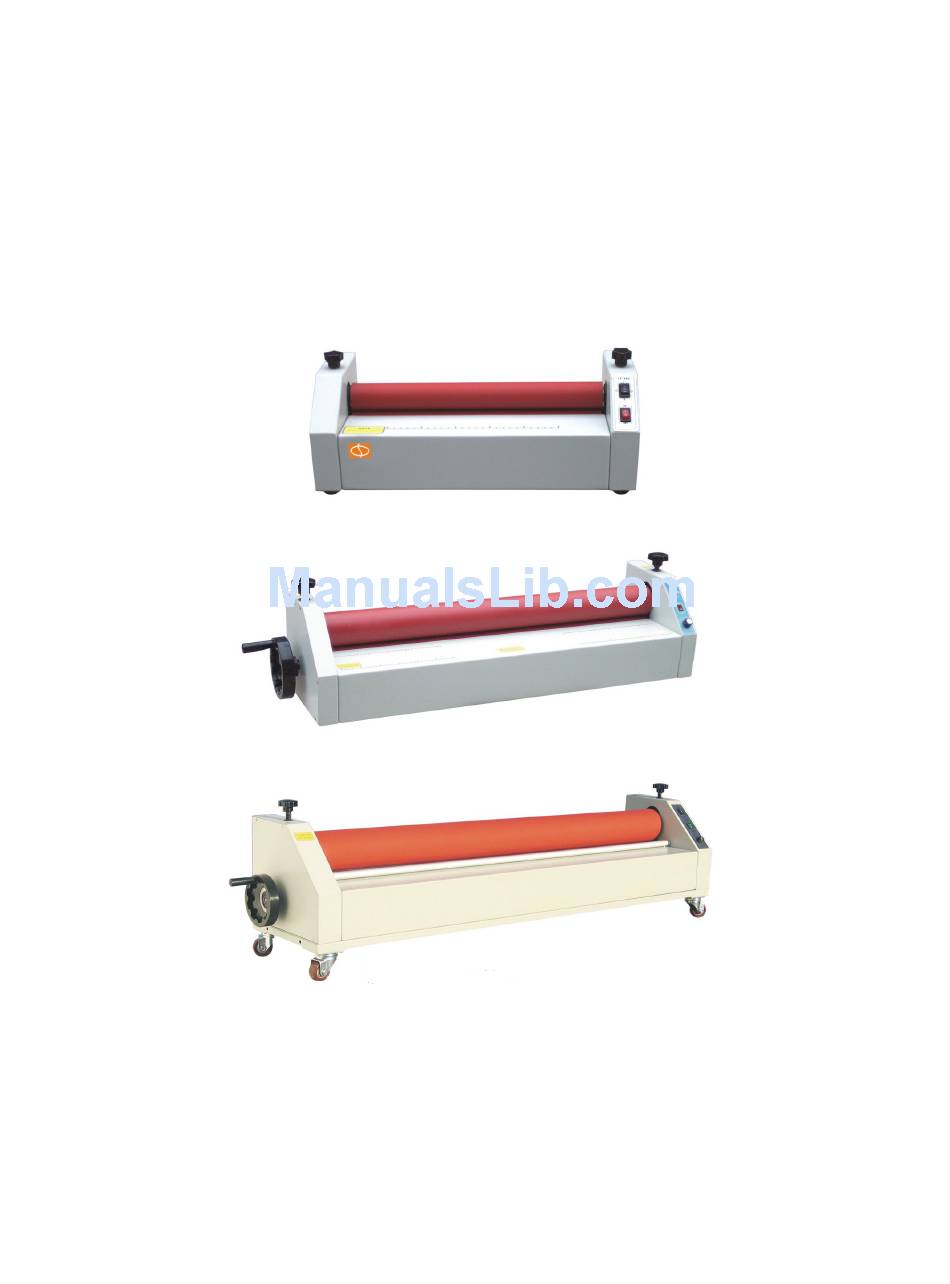

- Page 1 DingTec® Laminators BU-360 to BU-2040 BU-380II to BU-2040II User’s Manual Version 1.0 Eastsign International Ltd Rm 1406, 14/F., Shatin Galleria 18-24 Shan Mei Street, Fotan, Shatin, N.T. Hong Kong http://www.eastsign.com...
-
Page 2: Main Specifications
User’s Manual of DingTec® Laminators – BU-380 to 2040 Cold Laminator Series PREFACE DingTec® BU-360 to 2040 series laminators are low-cost, cold laminators with either manual or automatic operating mode. They are easy to use and install. Users must read this manual thoroughly in order to maximize the capacity of the laminators and avoid damage. - Page 3 User’s Manual of DingTec® Laminators – BU-380 to 2040 Cold Laminator Series II. Manual Cold Laminator Figure 1 A BU-380 to 2040 series manual cold laminator consists of following parts: 1. The upper and lower rubber rollers 2. The front and back working platforms 3.
- Page 4 User’s Manual of DingTec® Laminators – BU-380 to 2040 Cold Laminator Series Figure 2 3. Turn the handle and let the film go without picture. Check whether the film is flat. If there are bubbles, it means the pressure is too high, the user needs to raise the rollers to reduce the pressure, then turn the knobs until upper limit of idling or proper position.
- Page 5 User’s Manual of DingTec® Laminators – BU-380 to 2040 Cold Laminator Series Press the picture under the rollers, align it and flattening and secure the picture with hands. If pressing roller is available, you can use it to pressing the picture on its head.
- Page 6 User’s Manual of DingTec® Laminators – BU-380 to 2040 Cold Laminator Series One person should put the film under the roller and let the folded padding paper show up, then secure the padding paper by hands (you can also put the pressing roller on the picture).
- Page 7 User’s Manual of DingTec® Laminators – BU-380 to 2040 Cold Laminator Series If you want to change the spinning direction of the rollers during the operation, you should stop the machine first, then restart to avoid the damages due to suddenly changing directions.
- Page 8 User’s Manual of DingTec® Laminators – BU-380 to 2040 Cold Laminator Series Notes: 1. When the upper roller is lying over the lower roller by gravity, the knobs can be turned easily at the idling position. Idling position has upper and lower limits. While the knobs is at the idling position, by continuously turn it clockwise, you will reach the lower limit till it is hard to move further;...
- Page 9 User’s Manual of DingTec® Laminators – BU-380 to 2040 Cold Laminator Series Guarantee Ex-work serial No. Model User Purchase Date Sales Agent Phone No. Notes The guarantee should be filled in by the sales agent and kept by the user;...
