Endura FSTL1000 Operator's Manual

Endura tower light
Hide thumbs

Advertisement

Quick Links

Enlarged version
FSTL1000

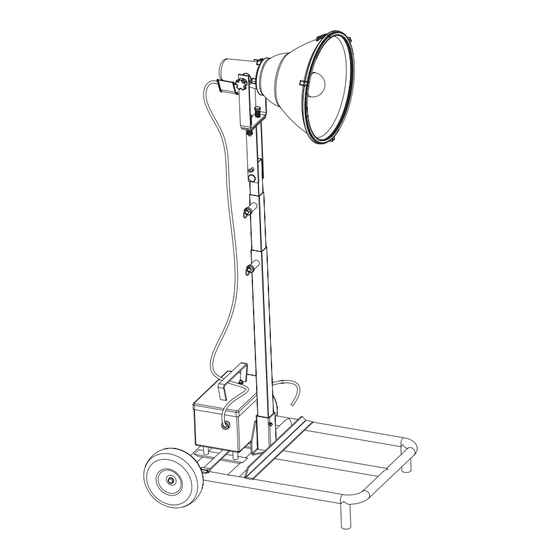

Endura Tower Light
Operator's Manual
DO NOT operate this equipment until you have
read and understood all the enclosed Operator's
Manual.
READ ALL the sections in this manual PRIOR to
attempting to service, maintain or operate this
equipment.
Copyright Uniquip Canada 2004. All rights reserved.
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the FSTL1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Endura FSTL1000

  • Page 1 ® FSTL1000 Endura Tower Light Operator's Manual DO NOT operate this equipment until you have read and understood all the enclosed Operator's Manual. READ ALL the sections in this manual PRIOR to attempting to service, maintain or operate this equipment.
  • Page 2 . This warranty is exclusive of any normal wear and For warranty service of your Endura product, you will need to provide a copy of this tear and/or consumable parts, such as the lamp, fuse, and wheels. All normal wear document to confirm your warranty status.

  • Page 3: Table Of Contents

    Machine Overview ..................4 Parts List ....................... 5 Key Components Overview ............6, 7, 8, 9, 10 Contents List ....................11 Setting up the FSTL1000 ................12, 13 Pre-Operation Procedures ................14 Operation Procedures ................. 15 DO NOT operate this equipment until you have read and understood all the enclosed Operator's Manual.

  • Page 4: Pre-Operation Note

    Pre-Operation Notes Safety Precautions 1. READ AND UNDERSTAND OPERATOR'S MANUAL PRIOR TO USE Thank you for your purchase of the Uniquip Endura FSTL1000 Portable OF TOWER LIGHT. Tower Light. This tower light has been designed and manufactured to our 2. THE LIGHTED LAMP IS HOT. DO NOT TOUCH LIGHT FIXTURE, highest quality demands for durability and performance.

  • Page 5: Guide To Machine Overview

    This guide aims to serve as a representational guide to the FSTL1000. Any other uses or application beyond the scope of this document are strictly prohibited.

  • Page 6: Parts List

    FSTL1000-14 Cord B. Ballast Assembly Many of the parts making up each section of the FSTL1000 Tower Light have been packaged into kits for your convenience! Refer to the "Key Components Overview" section for further details. If you have any questions concerning the maintenance and operations of this unit, please do not hesitate to contact Uniquip Canada.
  • Page 7 Components of Fixture FSTL1000-01 FSTL1000-22 E. Brake Assembly FSTL1000-23 FSTL1000-24 FSTL1000-25 Silicone Rubber Ring FSTL1000-26 Metal Ring FSTL1000-27** Security Chain **Components of Lens Kit FSTL1000-LENS B. Ballast Assembly Legend Part Number Description F. Cart Kit FSTL1000-12 Ballast Lid FSTL1000-13 Ballast Box FSTL1000-28...
  • Page 8 Security Cable (available separately) FSTL1000-44 Adjustment Pin FSTL1000-27 Security Chain FSTL1000-45 Spring FSTL1000-BALLAST : Ballast Assembly **Components of Adjustment Pin Kit FSTL1000-APK FSTL1000-BRAKE : Brake Kit FSTL1000-11 Ballast (available separately) FSTL1000-42** Screw Cap FSTL1000-46 Right Brake Arm FSTL1000-12 Ballast Lid...

  • Page 9: Setting Up The Fstl1000

    Setting up the FSTL1000 Contents List 1. Place Ballast Assembly on floor. Prior to setting up the FSTL1000 Tilt it such that the base of the assembly Tower Light, check that the faces the operator. Remove and put aside following items are enclosed: washers from metal feet and brake.
  • Page 10 Pre-Operation Procedures Maintenance Procedures cont'd 8. Unpack Lens Kit and attach Before using the Endura FSTL1000 Tower Light, please perform security chain on reflector to the following procedures for the personal and property safety of the operator lens. Let lens hang from and jobsite.

  • Page 11: Operation Procedures

    www.uniquip.ca www.uniquip.ca Notes Operation Procedures 1. Plug cord into any 15 amps or greater 120 volt 60 Hz power source. 2. Turn tower light on. As the light bulb is being energized, there will be a slight humming noise issuing from the ballast. 3.
  • Page 12 www.uniquip.ca Notes ® Technical Support Hotline Ontario, Quebec Western Canada, and USA and Eastern Canada T : 1-888-332-4012 T : 1-800-332-4012 F : 1-866-567-0956 F : 1-866-825-2221 email your technical questions and comments to: service@uniquip.ca visit our website: www.uniquip.ca Copyright Uniquip Canada 2004. All rights reserved.
  • Page 13 FSTL1000-08: Cart Wheel Base FSTL1000-41: Cart Wheel Base FSTL1000-10: FSTL1000-BRAKE: Brake Kit Wheel (with bolt and washer)
  • Page 14 FSTL1000-BALLAST: Ballast Assembly FSTL1000-14: 4m Electrical Connection Cord FSTL1000-58: Power Cord FSTL1000-31: FSTL1000-CAPACITOR: Electrical Switch (includes boot Capacitor and ON/OFF plate)
  • Page 15 FSTL1000-01: Fizture Casing FSTL1000-01A: Electrical Components for Fixture FSTL1000-23: Ceramic Element...
  • Page 16 FSTL1000-02: Refl ector FSTL1000-02A: Spacer Kit for Refl ector FSTL1000-03: Lens Clip (sold individually) FSTL1000-LENS: Complete Lens Kit (Includes glass FSTL1000-27: lens, silicone ring & aluminum frame Safety Chain & Clip FSTL1000-41: Knobs FSTL1000-18: Security Cable...
  • Page 17 FSTL1000-33: FSTL1000-06: Bracket Mount U-Bracket FSTL1000-37: Nut FSTL1000-39: O-Pin FSTL1000-38: FSTL1000-39: Bracket Pin FSTL1000-35: O-Pin Shock Absorber (sold individually) FSTL1000-36: Washer...
  • Page 18 FSTL1000-APK-Y: Mast Adjustment Pin for FSTL1000Y ONLY FSTL1000-APK: Mast Adjustment Pin for FSTL1000 ONLY FSTL1000-07: Mast for FSTL1000 ONLY FSTL1000-07-Y: Mast for FSTL1000Y ONLY...
