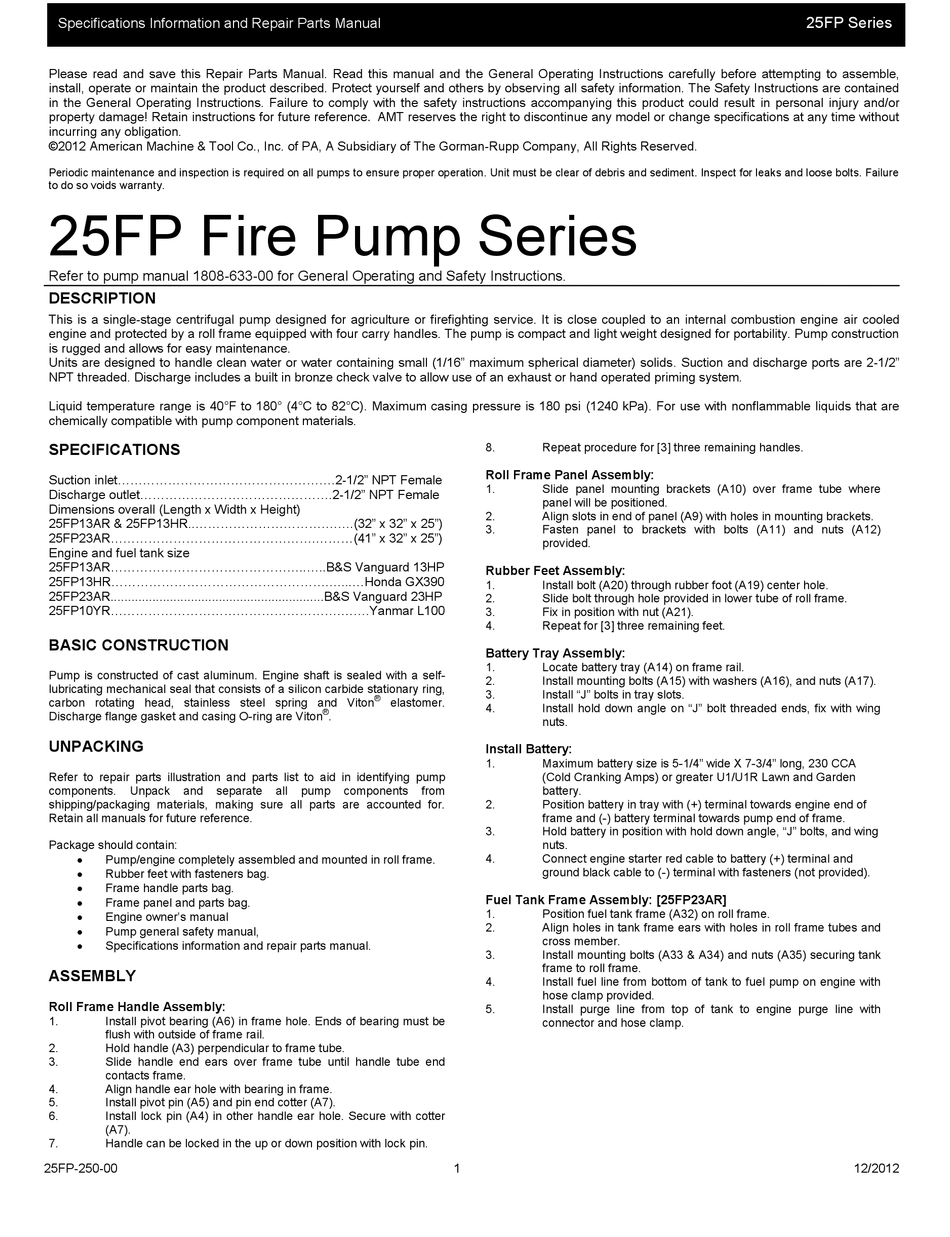

25FP Fire Pump Series
Refer to pump manual 1808-633-00 for General Operating and Safety Instructions.
DESCRIPTION
This is a single-stage centrifugal pump designed for agriculture or firefighting service. It is close coupled to an internal combustion engine air cooled
engine and protected by a roll frame equipped with four carry handles. The pump is compact and light weight designed for portability. Pump construction
is rugged and allows for easy maintenance.
Units are designed to handle clean water or water containing small (1/16" maximum spherical diameter) solids. Suction and discharge ports are 2-1/2"
NPT threaded. Discharge includes a built in bronze check valve to allow use of an exhaust or hand operated priming system.
Liquid temperature range is 40°F to 180° (4°C to 82°C). Maximum casing pressure is 180 psi (1240 kPa). For use with nonflammable liquids that are
chemically compatible with pump component materials.

SPECIFICATIONS

Suction inlet....................................................2-1/2" NPT Female
Discharge outlet..............................................2-1/2" NPT Female
Dimensions overall (Length x Width x Height)
25FP13AR & 25FP13HR........................................(32" x 32" x 25")
25FP23AR..........................................................(41" x 32" x 25")
Engine and fuel tank size
25FP13AR....................................................B&S Vanguard 13HP
25FP13HR.............................................................Honda GX390
25FP23AR.............................................................B&S Vanguard 23HP
25FP10YR..............................................................Yanmar L100
BASIC CONSTRUCTION
Pump is constructed of cast aluminum. Engine shaft is sealed with a self-
lubricating mechanical seal that consists of a silicon carbide stationary ring,
carbon rotating head, stainless steel spring and Viton
Discharge flange gasket and casing O-ring are Viton
UNPACKING
Refer to repair parts illustration and parts list to aid in identifying pump
components. Unpack and separate
shipping/packaging materials, making sure all parts are accounted for.
Retain all manuals for future reference.
Package should contain:
 Pump/engine completely assembled and mounted in roll frame.
 Rubber feet with fasteners bag.
 Frame handle parts bag.
 Frame panel and parts bag.
 Engine owner's manual
 Pump general safety manual,
 Specifications information and repair parts manual.
ASSEMBLY
Roll Frame Handle Assembly:
1. Install pivot bearing (A6) in frame hole. Ends of bearing must be
flush with outside of frame rail.
2. Hold handle (A3) perpendicular to frame tube.
3. Slide handle end ears over frame tube until handle tube end
contacts frame.
4. Align handle ear hole with bearing in frame.
5. Install pivot pin (A5) and pin end cotter (A7).
6. Install lock pin (A4) in other handle ear hole. Secure with cotter
(A7).
7. Handle can be locked in the up or down position with lock pin.
25FP-250-00
®
elastomer.
®
.
all pump components from
1
8. Repeat procedure for [3] three remaining handles.
Roll Frame Panel Assembly:
1. Slide panel mounting brackets (A10) over frame tube where
panel will be positioned.
2. Align slots in end of panel (A9) with holes in mounting brackets.
3. Fasten panel to brackets with bolts (A11) and nuts (A12)
provided.
Rubber Feet Assembly:
1. Install bolt (A20) through rubber foot (A19) center hole.
2. Slide bolt through hole provided in lower tube of roll frame.
3. Fix in position with nut (A21).
4. Repeat for [3] three remaining feet.
Battery Tray Assembly:
1. Locate battery tray (A14) on frame rail.
2. Install mounting bolts (A15) with washers (A16), and nuts (A17).
3. Install "J" bolts in tray slots.
4. Install hold down angle on "J" bolt threaded ends, fix with wing
nuts.
Install Battery:
1. Maximum battery size is 5-1/4" wide X 7-3/4" long, 230 CCA
(Cold Cranking Amps) or greater U1/U1R Lawn and Garden
battery.
2. Position battery in tray with (+) terminal towards engine end of
frame and (-) battery terminal towards pump end of frame.
3. Hold battery in position with hold down angle, "J" bolts, and wing
nuts.
4. Connect engine starter red cable to battery (+) terminal and
ground black cable to (-) terminal with fasteners (not provided).
Fuel Tank Frame Assembly: [25FP23AR]
1. Position fuel tank frame (A32) on roll frame.
2. Align holes in tank frame ears with holes in roll frame tubes and
cross member.
3. Install mounting bolts (A33 & A34) and nuts (A35) securing tank
frame to roll frame.
4. Install fuel line from bottom of tank to fuel pump on engine with
hose clamp provided.
5. Install purge line from top of tank to engine purge line with
connector and hose clamp.
25FP Series
