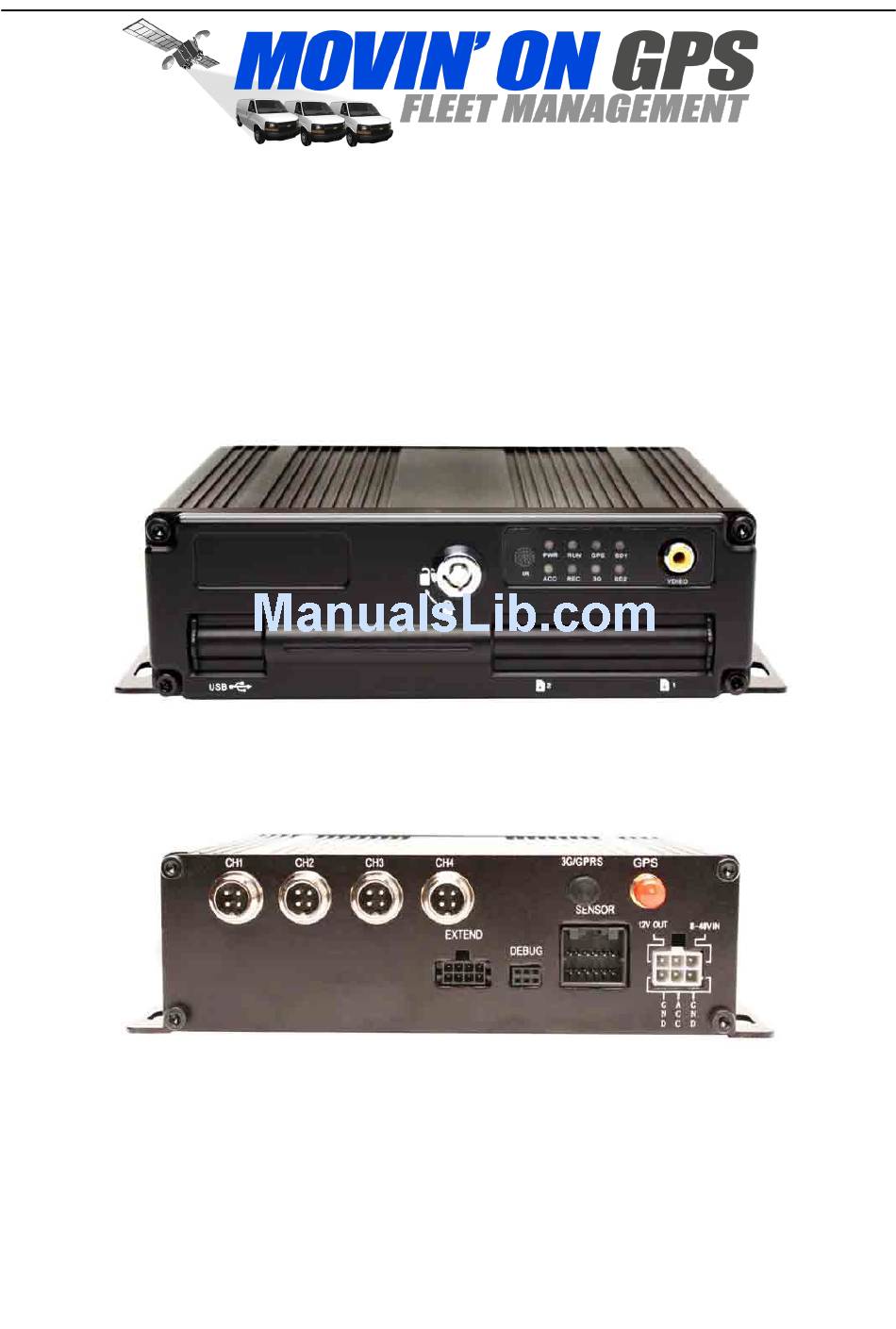

MOSS-DVR-810 Mobile Digital SD Recorder User Manual Before installing and using, be sure to read this Manual for best performance. -
Page 2: Installation Environment
ATTENTION This product is to be used within the vehicle interior. In order to prevent short- circuit or the risk of electrical shock, do not use this product within a wet environment. In the event of any foreign solid or liquid entering the DVR, please disconnect the power immediately, and have a qualified technician confirm safe operation. -
Page 3: Table Of Contents
Contents Installation Environment ....................2 Packing List ........................2 Product Overview ......................3 Features ..........................4 Operating System ..................4 Video Compression Standard ................. 4 Surveillance and Video Processing ..............4 Playback and Search ..................4 SD Card and Backup ..................4 Control ...................... -
Page 4: Features
Features Operating System Embedded Linux operating system for stability Simple Menu User-Interface. Graphical on-screen display. Video Compression Standard H.264 Video Format: Excellent images, and the most efficient bit stream. Surveillance and Video Processing Surveillance: 4 channels D1 video (PAL: 720 * 576, NTSC: 720 * 480) Recorder: Total resources 100 PAL, 120 NTSC. -
Page 5: Technical Parameters
Technical Parameters Items Item Name 4 Channel Mobile DVR (HDD Storage) Item Number TS-810 Solutions H.264 Main Profile System Operation Interface Graphical Interfaces Password control User Password Video Video Input 4 ch Independent Input: 1.0Vp-p, 750. -
Page 6: Optional Features
Optional Features GPS module Ports (one RS-232, one RS-485, cradle head control, PELCO-D, Baud rate 9600, address code 0x01) 3G module Intercom function Installation Instructions External Interface Wiring Audio Input RS 232 (RX) RS 232 (TX) ... -
Page 7: 4-Pin Connector Layout
4-pin Connector Layout 3G/GPRS SENSOR EXTEND DEBUG ... -
Page 8: Using The Dvr
Using the DVR Front Panel VIDEO PWR LED: Lit when system is active. Power LED on. RUN LED: LED flashes when during normal operation. -
Page 9: Remote Control Operation
Remote Control Operation Select Camera 2 Select Camera 1 (REC/PLAY) (REC/PLAY) Select Camera 3 (REC/PLAY) Select Camera 4 (REC/PLAY) pqrs wxyz Display all (REC/PLAY) ... -
Page 10: Menu Setup
Menu Setup In Live (non-recording) mode, press MENU. If this the first time entering the MENU, the system will display “ENTER THE PASSWORD” (The default password is 6666). When finished, press OK to exit the MENU interface. In Record mode, please press STOP to stop recording, then press MENU to enter the MENU interface. -
Page 11: Video Data Capacity
Video download: Connect USB Flash Drives or HDD to USB interface in front of the DVR Shift to “Playback menu”, select target video for download by Remote control, press “OK” to start copy. Repeat for each section. Alarm: ...
