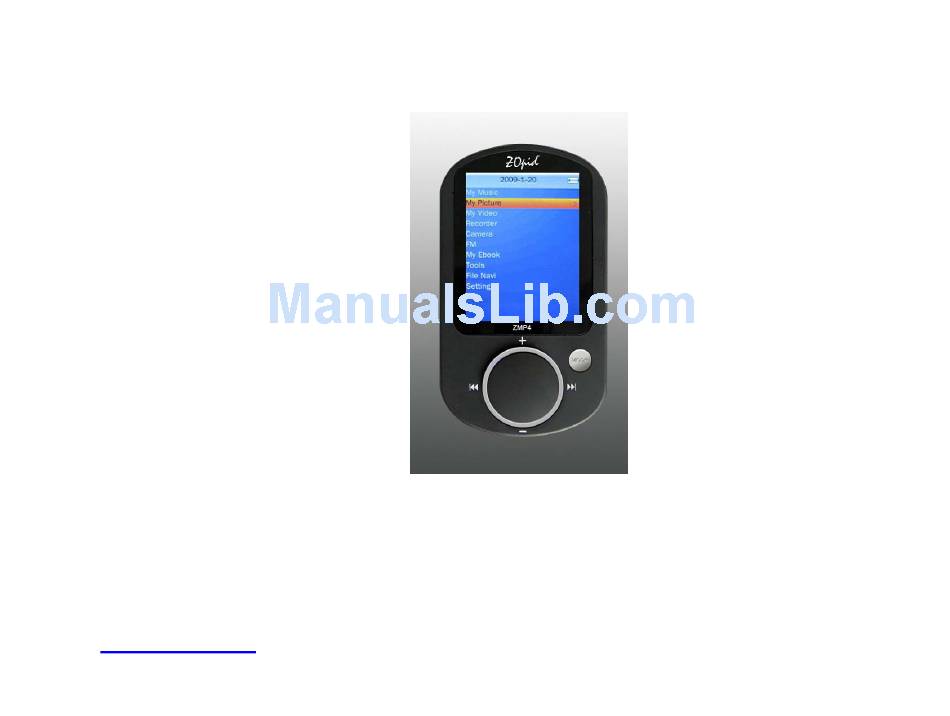

2.4" TFT DIGITAL MEDIA PLAYER

HE-ZMP4

The pictures, diagrams and certain functions described in this manual may differ from the actual

product due to different models

USER MANUAL

Visit

www.hittusa.com

to check if an updated user manual is available

Table of Contents

Summary of Contents for Hi-Tech Trading HE-ZMP4

Page 1: User Manual
2.4” TFT DIGITAL MEDIA PLAYER HE-ZMP4 The pictures, diagrams and certain functions described in this manual may differ from the actual product due to different models USER MANUAL Visit www.hittusa.com to check if an updated user manual is available...
Page 2 PREFACE We express our sincere thanks for purchasing our Media Player! (MP) Before operating this MP, be sure to read this user manual carefully. After reading it, please keep it in a safe place for future reference. We reserve the right to make changes to this MP and/or this user manual without notice. Please visit our company’s website listed on the product packaging for additional product information and/or updates.
Page 3 Do not scrub this MP with a hard thing; it may result in scratches on the screen and/or damage to the hardware. Use a damp cotton cloth to gently wipe the shell of the player. Using other chemical cleaning solutions is strictly prohibited. Keep this MP and all accessories out of children’s reach under 3 years old.
Page 4 manufacturer. Using other accessories or charger may be a safety hazard or affect product performance and/or void product warranty. Please properly dispose off the obsolete player and its accessories following your local environment laws. If you have any problem using this player, please email help@hittusa.com or contact our customer service center –...
Page 5: Table Of Contents
TABLE OF CONTENT PRODUCT OVERVIEW ................7 BUTTONS & INTERFACE: ..............10 MAIN MENU ..................... 14 MUSIC PLAY ................... 16 PICTURE BROWSE ................22 VIDEO PLAY .................... 27 RECORD (Voice Recording) ..............29 FM RADIO....................30 eBOOK ....................33 TOOLS ..................... 35...
Page 6 FILE NAVIGATION .................. 37 SETTINGS ....................37 CAMERA....................43 FAQ ......................48 SPECIFICATIONS: .................. 49...
Page 7: Product Overview
PRODUCT OVERVIEW  2.4 inch TFT screen，QVGA 320×240  Music Play: MP3, WMA, OGG, APE, FLAC and WAV file formats  Video Play: RMVB /AVI in 320*240 resolution  Picture Browse: JPEG, BMP and GIF file formats  Digital Camera: Shoot Pictures & Videos (1.3 Mega Pixels) ...
Page 8 SYSTEM REQUIREMENTS: Operating system: Windows XP, 2000, ME, Vista, Linux 9 and above or Mac 0S 10. CONNECTING TO A COMPUTER Connect Media Player (MP) to the computer using USB cable. Player will show the following screen: Choose〈U Disk〉to copy or delete files to/from the player and press【MODE】 to complete selection NOTE: If 〈...
Page 9 player will display the Main Menu. Choose〈USB Charging〉and press【MODE】to charge the player. NOTE: If you use USB charging, please make sure POWER】switch is in ON position for optimum charging. To use the player while it’s getting charged long press 【MODE】 to display Main Menu.
Page 11 ON/OFF Switch: Turn POWER ON or OFF (To turn on the player long press 【PLAY】 button) PLAY: Use to Play or Pause and Turn Player ON or OFF MODE: Confirm Menu Selection, Enter Submenu; Enter File Navigation; Enter Explorer Interface and Return to previous Folder - When using Menus use 【MODE】 to return to the Previous Menu VOL+: Increase Volume or used as navigation key during Menu operations VOL-: Decrease Volume or used as navigation key during Menu operations...
Page 12 NOTE: if not specified in the manual, it means Short Press. SWITCH POWER ON/OFF and TURN PLAYER ON/OFF ◆ Switch Power ON / OFF Switch 【POWRE】 to OFF, the player is cut off power; and switch 【POWRE】 to ON, the player is supplied with power. ◆...
Page 13 PICTURE folder, video file under VIDEO folder, text file under TXT folder. If you do not follow the file storage rules, the player won’t be able to find the files. NOTE: In case player’s memory has to be reformatted the player automatically creates the default folders to save different types of media files.
Page 14: Main Menu
MAIN MENU From the Main interface, press 【VOL+】, 【VOL-】 to browse different submenus, and press 【MODE】 to choose one. Press 【MODE】 to display the explorer interface, and...
Page 15 press 【MODE】again to return to main interface. VOLUME CONTROL ◆ Volume Control Short press【VOL-】to decrease volume. Short press【VOL+】to increase volume. FILE NAVIGATION Use this option to browse all the files and folders on the player, and choose and play any recognizable files.
Page 16: Music Play
and press 【MODE】 again to enter 〈current play〉and choose the current picture. 4. Read Text File Choose text file from the main folder, press【MODE】to enter <folder list>, press 【MODE】 again to enter main folder, and choose the current file. MUSIC PLAY From the main menu, choose〈Music〉, then you can choose music file by different catalogue.
Page 17 her songs. Album: it lists songs from the same album. Genre: it lists songs from the same genre. Playing list: it lists all the songs under each playing lists, and there are totally five playing lists. Folder List: it lists the main folder and Music folder. You can search from the main folder to Music folder and the next sub-folder till you find it.
Page 18 NOTE: From the above submenu, press 【VOL+】 or 【VOL-】 to browse the options and press【PLAY】to return to previous menu. Playing interface instruction After you choose a song, press 【MODE】to enter playing interface. If AB repeat mode is not chosen, the repeat icon will not show. If there is no lyric for the current song, the lyric icon will not show.
Page 19 options including sequence, repeat one, repeat all, random, and intro. Press 【VOL+】 or 【VOL-】 to browse the options, and press 【MODE】 to choose one and return to previous menu.。 ◆ EQ mode From the Submenu, choose “EQ mode” and press 【MODE】 to see the options. Press 【NEXT】, PRE or move the rolling button to see different options.
Page 20 ◆ Repeat mode From the Submenu, choose “Repeat mode” and press 【MODE】 to enter the setting which means A waiting point; press 【NEXT】 , interface, you can will the icon 1 which means B waiting point; press 【NEXT】 and you will see the icon 2 again, you will see the icon 3 which means AB repeat begins.
Page 21 ◆ Add to play list From the Submenu, choose “Add to play list” and press 【MODE】 to enter its interface. Press 【NEXT】 or 【PRE】 or move the rolling button to browse the lists, and return to previous menu. Then, the song will be added to the list. ◆...
Page 22: Picture Browse
place where shows playing progress turns into five starts, press 【NEXT】 or 【PRE】 to adjust the song level, and press 【MODE】 to save the setting. ◆ Lyric synchronization From the playing interface, press 【MODE】 to shift to lyric mode, then Song Lyrics will be displayed where the song information is displayed.
Page 23 pictures. Folder list: search the file under main folder -->PICTURE folder, press 【MODE】 to confirm. Protection list: it lists the files in the encrypted disk, if there is no encrypted disk in the player, it will be a blank list. Choose this item and choose a file and press 【MODE】...
Page 24 Thumbnail: it displays pictures in the form of thumbnail, press 【MODE】 to return to previous menu. Press 【NEXT】 or 【PRE】 to browse the pictures in landscape mode, press 【VOL+】 or 【VOL-】 to display pictures in portrait mode. See the picture below:...
Page 25 ◆ Playing mode Manual mode: choose manual mode and press 【VOL+】 or 【VOL-】 to switch files when playing in full-screen. The default setting is manual mode. PPT mode (Slide Show): choose PPT mode and it will shift pictures automatically when playing in full-screen. ◆...
Page 26 From the browse mode, press 【MODE】 to play pictures, long press【MODE】 to exit. ◆ Remove Please refer to “Remove” under music mode. ◆ Rotation From the Submenu, choose “Rotation” and press 【MODE】 to enter submenu. Choose the rotation angle and press 【MODE】 to return to playing interface and rotate the picture.
Page 27: Video Play
VIDEO PLAY Main menu introduction From the main menu, choose〈Video〉, then you can choose video file by different catalogue. Press 【VOL+】 or【VOL-】to browse different options, and press 【MODE】 to enter submenu. Current play: it lists the video you played last time and stops on it, press【MODE】to play it full screen.
Page 28 options, press 【PLAY】to return to previous menu. Basic operation ◆ Play and pause From the video-playing interface, press 【PLAY】to shift between play and pause. NOTE: multitask function is not available under this mode. ◆ Fast forwards and fast reverse From the playing interface, when the file is playing or paused, long press 【NEXT】 or 【PRE】...
Page 29: Record (Voice Recording)
From the Submenu, choose “Detailed information” and press 【MODE】 to enter file information display interface. Press 【MODE】 or 【PLAY】 to return to playing interface. ◆ Volume From the Submenu, choose “Volume” and press 【MODE】 to enter volume display interface, press 【NEXT】 or 【PRE】 to adjust the volume from 0 to 31, and press 【MODE】...
Page 30: Fm Radio
NOTE: multitask function is not available under this mode. ◆ Recording format It supports to set the recording formats. The default format is WAV. Press 【VOL+】 or 【VOL-】 to browse different options and press 【MODE】 to confirm. ◆ Line in It supports to record by the line-in cable.
Page 31 time. If it is the first time you enter the interface, the default frequency is 87MHz. ◆ Channel list It lists all the channels you have saved before, choose one from them and press 【MODE】 to enter FM interface to listen to it. It can save 20 channels for each wave band at most.
Page 32 NOTE: under this mode, the player cannot support music and FM functions concurrently. Basic operation ◆ Auto search From the Submenu, choose “Auto search”, press 【MODE】 to begin searching. After searching, it will update the channel list and broadcast the first channel in the channel list.
Page 33: Ebook
The format is MP3 format, and “low”, “Medium” and “High” refer to 64kbps/128kbps/256kbps respectively. ◆ FM recording From the Submenu, choose “FM recording”, press 【MODE】 to enter the recording interface. Please follow the voice recording operation. NOTE: under this interface, press 【MODE】 to save the recording file and return to FM main interface.
Page 34 the last time you stopped. Folder list: search the file under main folder -->TXT folder, press 【MODE】 to confirm. Label list: it lists all the text files with page labels. Choose a file and press 【MODE】 to enter reading interface, and continue to read from the pre-saved pages. Auto-reading interval: press 【NEXT】...
Page 35: Tools
From the text-reading interface, press 【PLAY】 to shift between manual mode and auto mode. ◆ Add label Please follow the “Add to label” instruction under music play. TOOLS From the Main Menu, choose “Game and tools”. Press 【VOL+】 or 【VOL-】 to browse different items.
Page 36 Basic function MODE Confirm the selection VOL- Next line VOL+ Last line NEXT Move right Move left MODE Exit ◆ Calendar Enter the calendar interface and follow the instruction below: Calendar main interface Confirm interface MODE Flip out confirm interface Confirm input NEXT/PRE Adjust to move left or right...
Page 37: File Navigation
FILE NAVIGATION From the Main menu, choose “File Navi” to enter. You can see the number of files under different folders listed by file type. You can select and play the files through this interface. SETTINGS From the main menu, choose “Setting”, press 【VOL+】 or 【VOL-】 to browse different options, and press 【MODE】...
Page 38 From the main menu, choose “Detailed information” to enter the next interface to display system information. Long press 【MODE】 to return to previous menu. ◆ Main configuration menu From the main menu, choose “Main configuration menu” to enter next interface, press 【VOL+】...
Page 39 Long press 【MODE】 to return to previous menu. See the operation instruction below: MODE Confirm input MODE Delete VOL-VOL+ Next line / last NEXT/PRE Move right / move line left ◆ Date and time From the main menu, choose “Date and time” to enter submenu, press 【VOL+】 or 【VOL-】...
Page 40 Under main menu, choose “Player setting” and enter submenu, press 【VOL+】 or 【VOL-】 to browse different options, and long press 【MODE】 to return to previous menu. 1. Owner It displays the owner information. Press 【MODE】 to enter digital keypad to change the name.
Page 41 ◆ Encrypted disk From the main menu, choose 〈Encrypted disk〉 to enter submenu. If the space of the encrypted disk is 0MB, it will display “Space adjustment”, “File protection setting” and “Change password”. Press 【VOL+】 or 【 VOL-】 to browse different options, and press 【MODE】to return to previous menu.
Page 42: Firmware Upgrade
Press 【MODE】 to display whether you want to resort to default settings, choose to confirm, and the application will resort to default setting. NOTE: From the “Setting”, if you play music or broadcast FM radio, you can press 【PLAY】 to pause. FIRMWARE UPGRADE Connect the player to the Computer, choose “U disk”, press 【MODE】...
Page 43: Camera
CAMERA CAPTURE (Snapshot):  Select Camera from the Main Menu and Press 【MODE】to confirm the selection.  Select Capture from the sub-menu and press 【MODE】 to confirm the selection and to activate the camera  Press【PLAY】to take a snapshot.  Long Press【MODE】to exit from Capture mode.
Page 44  During Camera/Capture mode press【MODE】 to display the photo-taking submenu  Press 【NEXT】 or 【PRE】 to make a selection and press 【MODE】 to confirm selection  Long press【MODE】to exit from the submenu. 1．White balance Options: auto, indoor, outdoor. The default setting is auto. 2．Brightness Options: ranging from -3 to +3.
Page 45 6．Resolution The default setting is 640*480 (max resolution is 1280x960). 7．Free Space To show the spare space of the currently used equipment. The unit is MB. 8. Self-timer Options: off, 5 seconds, 10 seconds, 15 seconds and 20 seconds. The default setting is off.
Page 46 to activate the camera  Press【PLAY】to start making the video.  Long Press【PLAY】to stop and save the video.  Long Press【MODE】to exit from DV mode. The movie-shooting mode does not support multitask function. Press 【MODE】, 【NEXT】 or 【PRE】 to begin shoot the movie. Press 【NEXT】 or 【PRE】...
Page 47 Options: auto, indoor, outdoor. The default setting is auto. 2．Brightness Options: ranging from -3 to +3. The default setting is 0. 3．Exposure Mode Options: auto, indoor, outdoor. The default setting is auto. 4．Special Effect Options: none, black-and-white, Retro and negative. The default setting is none. 5．Save Path Options: main equipment.
Page 48: Faq
The player does not work or LCD cannot Check the battery. display. Check your shutdown setting. Failure in data exchange. There is no such equipment, or you haven’t formatted the disk. No enough spare space. Forget the password of the encrypted Set the space of the encrypted disk to disk.
Page 49: Specifications
Recording format Frequency 87MHz Wave band European and American Auto reading interval 5 seconds Backlit time 0 second Backlit brightness Owner Unknown Idle shutdown time 0 second Hibernation shutdown time 0 minute Document protection setting Hidden SPECIFICATIONS: Functional Feature Item Description Remarks System...
Page 50 requirement Vista, Linux 9 and above or Mac 0S 10 Size 2.4〞TFT display Resolution 320 X240 Display 16-bit （262.144K colors）, Color LCD backlit adjustable Built-in Flash 1 GB ~8GB FLASH Built-in 32MB~128MB SDRAM SDRAM E-BOOK Format MP3, WMA, OGG, APE, FLAC, WAV and ASF Music play Bit rate...
Page 51 Measurement 100*60*13mm Weight Capacity 650mAh rechargeable Battery Li battery Playing time About 5 hours Input AC100V-240V AC adapter Output DC5V/550mA...
Page 52 Limited 90-Day Warranty Coverage: Hi-Tech Trading (USA), Inc. (“HiTT”) warrants this product (“product”) against defects in materials and workmanship under normal consumer use for 90 days from the date of purchase. HiTT, at its option, will at no charge repair, replace or refund the purchase price of this product should it not conform to this warranty.
Page 53 ZOpid and the Stylized Logo are registered in the US Patent & Trademark Office. All other product or service names are the property of their respective owners. © 2009 Hi-Tech Trading (USA); Inc. The information contained in this User Manual is believed to be correct at the time of printing.
