Page 2: Product Overview

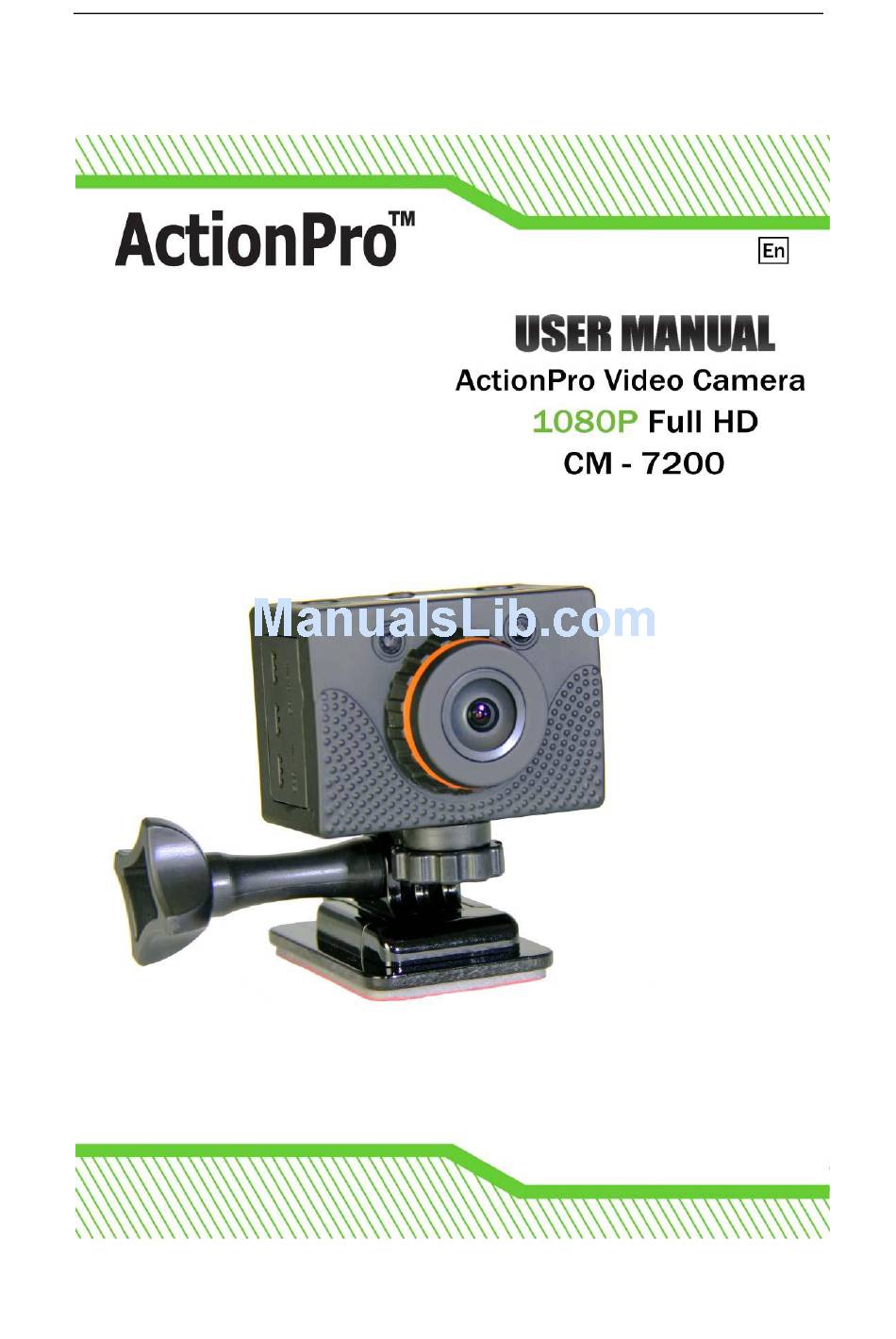

Product Overview ActionPro video camera is a wearable camera that has numerous functions and it features the latest technology, such as video recording in 1080p HD resolution, 170 degree ultra wide angle lens, continuous photo shooting, wireless remote control, detachable LCD screen, laser pointer, HDMI output and rechargeable Li-Ion battery, etc. -
Page 3: Table Of Contents
Table of Contents Product Layout…………………………………………………..………………………………….2 Function & Features…………………………………..…………………………………………….3 Installation………………………………………………..…………………………………………3 Operation Instructions…………………………………..…...……………………………….5 Camera Set up …….………………………………..…...……………………… ……….6 Camera Operations…………………………………………..……………………………………...8 Package Contents………………………………………………………………………………….13 Optional Accessories………………………………………….…………………………………...14 Specifications………………………………………………….…………………………………..15... -
Page 4: Product Layout
Product Layout 1. A/V Out 9. OK 2. LCD screen 10. Right 3. Heat dispensing hole 11. Up 4. HDMI 12. Menu 5. Left 13. Shutter 6. Playback 14. Power indicator 7. Speaker 15. Power 8. Down 16. LCM... -
Page 5: Function & Features
Wide selection of sports accessories. Installation 1. Camera Installation ActionPro video camera can be used as a wearable camera which can be mounted by using different mounting accessories. The camera can also be used underwater if a waterproof housing is installed. - Page 6 (2) Waterproof Case Installation Camera Waterproof case Place camera into the waterproof case Note: to use waterproof case * Handle with care to avoid damage to waterproof case by dropping or physical laceration. * Clean with clear water after use to avoid rusting. 2.
-
Page 7: Operating Instructions
Operating Instructions: Preparations before use: 1. Start Up To power on the camera, press the power switch a few seconds to turn on the camera. In preview mode, the LCM segment screen will display the following items: A. Record mode: The current record mode can be viewed on the top left corner of the LCM segment screen, “... -
Page 8: Camera Set Up
and out in the preview mode F. Camera can be charged with the included power supply or by USB cable. The red indicator of Working/Charging on the top of the camera will be on slowly but will be off when fully charged. - Page 9 pressed. The continuous shooting will also stop when battery or storage capacity runs out. D. Self-timer: Select the self-timer duration time (5s or 10s). Press “Menu” key to return to “Preview” mode after selection and then press “Shutter” once, the system will start the timer and the indicator flashes when duration time is approaching.
-
Page 10: Camera Operations
Camera Operations: 1. Insert the Micro SD Card Note: a) Please use the included Micro SD card or your own high speed Micro SD card. b) When no Micro SD card is inserted, the Micro SD card icon “ ” will be displayed on the LCD screen. - Page 11 In preview mode, press “Shutter” once to shoot a photo with a “Clicking” sound, and the front red indicator will flash once (the photo shooting icon on LCM segment screen will flash once also) after the photo was taken the camera will return to the preview mode. B.
- Page 12 “+”: Increase the volume. “-”: Decrease the volume. “<”: Rewind. “>”: Fast forward. “ ”: Pause/Resume. “OK” key: Start/stop playing video file. Note: Fast Forward and Rewind can be accelerated as 2x or 4x. B.
- Page 13 In preview mode, all functions can still be operated on the camera after the camera is connected to an AV cable. Note: After connecting to a display device, the LCD screen on the camera will not turn off. 8. Connecting HDMI Output In preview mode, all camera functions can still be operated on the camera after connecting the camera with HDMI cable.
- Page 14 them directly from camera storage. Note: You may need appropriate media player to view the files. 11. Using Laser Pointer a) After turn on the camera, press “Record” key on the remote control for 3 seconds, to turn on/off the laser pointer. b) The laser pointer can be turned on/off in both preview and playback modes.
-
Page 15: Package Contents
Package Contents: Camera LCD display screen Remote control Waterproof housing Rechargeable Tray Mount Helmet Mount Helmet Front Mount Battery Flat Mount Power Adapter AV Cable USB Cable Note: a) The specific items may be different from the pictures. Package is subject to change without prior notice. -
Page 16: Optional Accessories
Optional Accessories HDMI cable Bicycle mount accessory Additional Battery Windshield Mount... -
Page 17: Specifications
Specifications View Angle 170° (Photo only) Camera Sensor 5.0 MP CMOS Sensor (2592*1944) Battery Capacity 900mAH Lithium Battery Power Consumption 350mA@ 3.7V (Max.) Battery Recording Time Battery lasts up to 2 hours (without LCD screen; about 1 hour 20 minutes with LCD screen) Storage Temperature -4°F ~ 140°F Operating Temperature...
