Hardware Installation Guide

1. Install SIM Card

To install the SIM card:

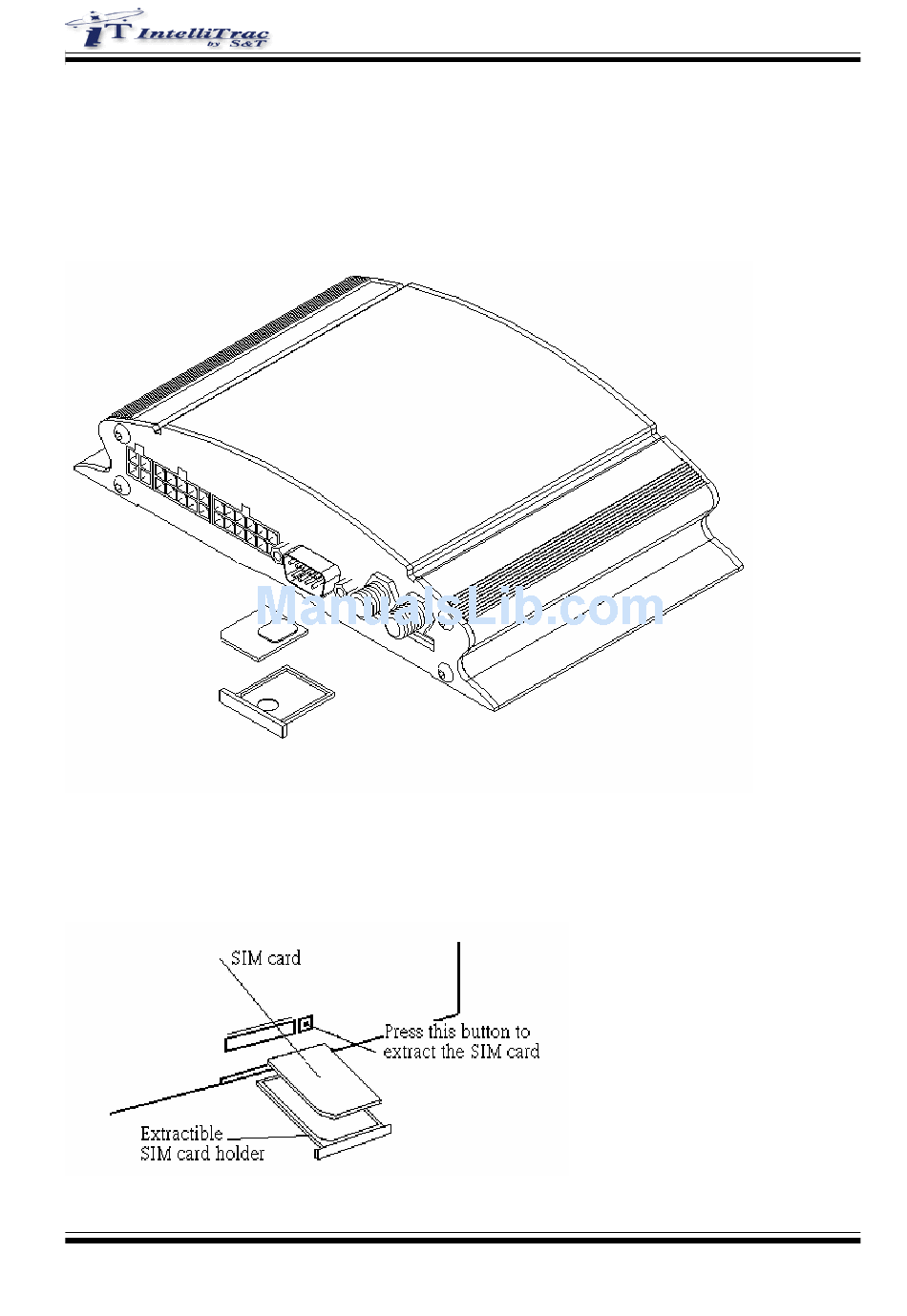

Press the yellow button to eject the SIM card holder.

Insert the SIM card.

Check that it fit into place correctly.

IntelliTrac

X Series

Need help?

Do you have a question about the X Series and is the answer not in the manual?

Questions and answers

Summary of Contents for IntelliTrac X Series

Page 1: Hardware Installation Guide
IntelliTrac X Series ® Hardware Installation Guide 1. Install SIM Card To install the SIM card: Press the yellow button to eject the SIM card holder. Insert the SIM card. Check that it fit into place correctly. Copyright © 2003 Systems & Technology Corporation...
Page 2 2. Install GPS and GSM Antennas Connect GPS antenna to the GPS connector. The optimum location for the GPS antenna is on the roof of the vehicle. The covert and GPS antenna are directional, make sure they are facing up and laying as flat as possible.
Page 3 (1) General Installation (Without immobilizer installed) Connect Ground(-Black) and BAT(+Red) wires to the battery of vehicle. Ignition Key (Pink) is no use for general installation. (2) With immobilizer installed Caution: Immobilizer only works for 12V Connect Ground (-Black) and BAT (+Red) to the battery of vehicle. Connect Ignition Key (Pink) to the IGNITION wire.
Page 4 (2) For security reason, it is better do NOT install the wireless relay at IGNITION key lock area. May install the wireless relay in the hood or near the fuel pump or any confidential place for engine disable cutting. Copyright © 2003 Systems & Technology Corporation...
Page 5 5. Install Input Cable Power Input Output Input Connector 1 : Input1 2 : Input2/ACC 3 : Input3 4 : Input4 5 : Input5 6 : Input6 7 : Input7 8 : Input8 9 : Analog Input1 10 : Analog Input2 11 : Vout +5V 12 : Ground The Input number 1, 2 are positive triggered inputs and Input number 3, 4, 5, 6, 7, 8 are negative triggered...
Page 7 6. Install Output Cable Power Input Output Output Connector 1 : Output1 2 : Output2 3 : Output3 4 : Output4 5 : Output5 6 : Output6 7 : Output7 8 : Output7 (via relay) 9 : External Output Power 10 : Ground The output number 1, 2, 7 are positive triggered outputs and output number 3, 4, 5, 6 are negative triggered outputs.
Page 8 There are 4 LEDs in front panel. When you power on the unit, these 4 LEDs will become blinking. After blinking several times, IntelliTrac X8 will start the modem which is inside the unit. In this time, the ERR led light is still bright.
Page 9 PWR LED Status Function Power off 90 ms On / 2 secs Off The device is running in power saving mode. 500ms On / 500ms Off Reset procedure is in progress Power on GPS LED Status Function The GPS is off or running in power saving mode. 1 sec On / 1 sec Off No GPS satellites signal received GPS Ready...
Page 10: Unit Configuration
8. Unit Configuration Connect the download cable between IntelliTrac unit and PC serial interface and use IntelliTrac InstallWizard program to configure a new IntelliTrac unit. Please refer to the InstallWizard User Manual for more detail information. Copyright © 2003 Systems & Technology Corporation...
