Installation
The FMT24-SUPER-2S-FP-PROG is designed for flush mounting in the room
to be controlled. It should be located where the occupant can easily read the
LCD display and use the controls. If the built in temperature sensor is being
used to measure room temperature, the module should be placed in such
location which represents the room general conditions. Cold or warm air
draughts; radiant heat and direct sunlight should be avoided.
General points to follow:
- Disconnect power to the main board before installing the unit.
- The unit MUST be fitted into a standard electrical box (Carlon – B114R or similar)
- The unit should not be installed on an outside wall or where there is an air draft.
- The unit must not be exposed to a direct sunlight.
- The standard height to install this unit is 1.5 meter (5 feet) from the floor.
Installation procedure:
A.
Connect the wires as shown in the wiring diagram section of this manual.
All terminals accept 1x0.5 mm
B.

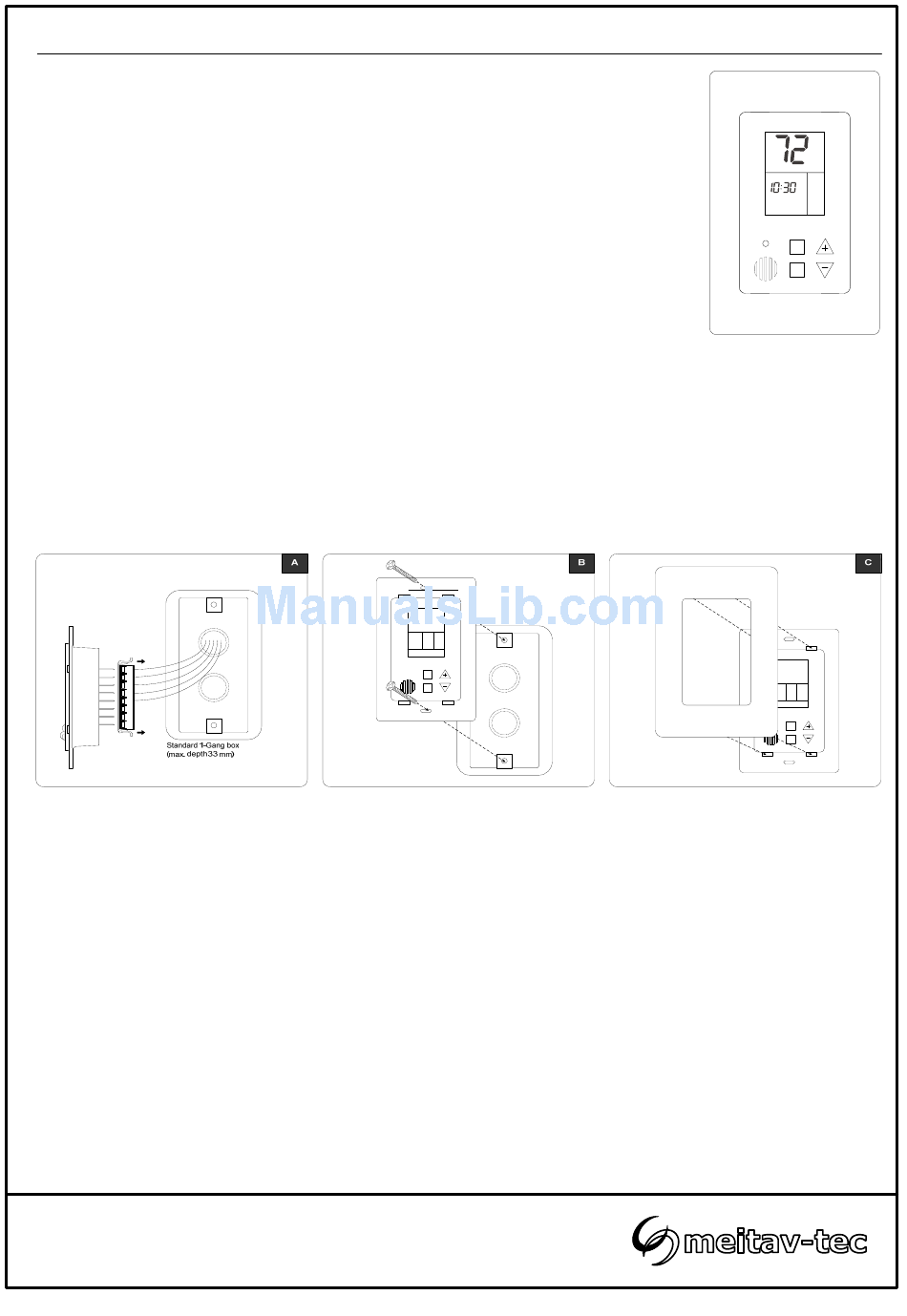

Place the thermostat in the electrical box and tighten up the 2 screws.
C.
Adapt the front frame-panel into its place, by pushing it towards the wall.
FMT24-SUPER-2S-FP-PROG-F
Owner's manual & Technician Settings
2
/24 AWG.
Tel: (856) 2882882
Tel: +972-3-9626462
Fax: +972-3-9626620
support@meitavtec.com

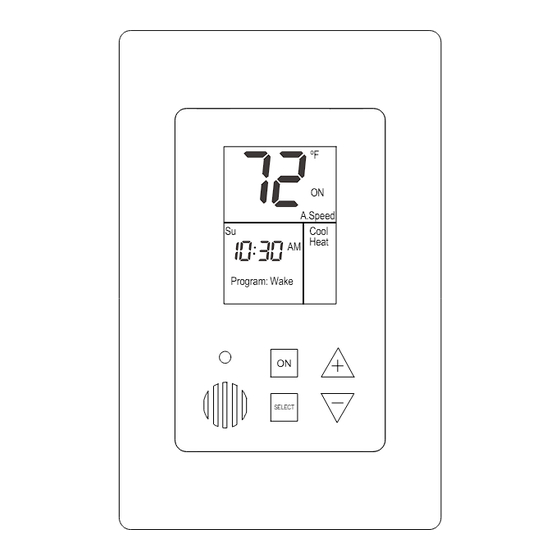

ºF
ON
A.Speed
Su
Cool
Heat
AM
Program: Wake
ON
SELECT
Advertisement
Table of Contents
Summary of Contents for Mietav-tec PARTS AND OPERATION MANUAL
- Page 1 Installation The FMT24-SUPER-2S-FP-PROG is designed for flush mounting in the room to be controlled. It should be located where the occupant can easily read the LCD display and use the controls. If the built in temperature sensor is being ºF used to measure room temperature, the module should be placed in such A.Speed location which represents the room general conditions.
- Page 2 Wiring Before connecting or disconnecting any wires, ensure that all power supplies have been switched off and all wires are potential-free to prevent equipment damage and avoid electrical shock. All wiring to the thermostat is low (safe) voltage and must be separated from power line voltage wiring. Do not run wiring close to transformers or high frequency generating equipment.
-
Page 3: Dip Switch Settings
DIP switch settings The DIP Dwitch is located on the top of the back side of the thermostat (above the connectors). Internal/External sensor Use DIP Switches S1, S5 and S6 to select Internal/External sensor Internal sensor.……………………….. S1, S6 – ON S5 –... -
Page 4: Operating Instructions
Operating instructions On/Off Press the [ON] button to turn the thermostat ON or OFF – “ON” or ”OFF” will appear on display. Set point In Cool mode: Press the [+] or [-] buttons - "COOL" will appear on display and the set-point °F temperature for cooling will flash. - Page 5 Operating instructions (Cont’) Modes / Auto fan / Fan speeds Press the [SELECT] button once to enter Modes selection: Use the [+] and [-] buttons to switch between modes: Cool Cool “Cool”………………… Cooling Heat Heat “Heat”………………… Heating Cool Heat Auto mode Fan only “Cool”...
-
Page 6: Weekly Program
Weekly Program The thermostat can be programmed with up to 12 different programs: 4 different programs for the weekdays (Monday to Friday); 4 different programs for Saturday and 4 different programs for Sunday. The daily programs are named: Wake, Day, Return and Sleep. Programming defaults 1 (Wake) 2 (Day) -
Page 7: Technician Settings
Technician Settings Enter technician settings mode ºF Switch to heating or auto mode and adjust the set point temperature for heating to 50°F. Wait until display stops flashing. Press and hold the [SELECT] button (5 sec.) to enter technician settings. Enter tech. - Page 8 Tel: (856) 2882882 Tel: +972-3-9626462 Fax: +972-3-9626620 support@meitavtec.com www.meitavtec.com...
