MaxStream XPress Ethernet Bridge XEB09-I User Manual

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

XPress Ethernet Bridge
Product Manual - Industrial/Outdoor XEB09-I
Create long range wireless links in minutes!
Connect any Ethernet device to the XPress Ethernet Bridge
RF Modems and the bridge will function in place of
an Ethernet cable. The Ethernet bridge provides a
transparent wireless point-to-point cable replacement.
www.maxstream.net
© 2006 MaxStream, Inc. All rights reserved.

Introduction

This manual provides step-by-step instruction on how to setup a wireless link and test the
Ethernet Bridge's ability to transport data over varying ranges and conditions.
Included with the XPress Ethernet Bridge (Industrial)
(2) XPress Ethernet Bridge RF Modems
(2) 6 VDC/80-240 VAC power adapters (not included w/ version XEB09-I-AU (Australia))
(2) Power over Ethernet Injectors
(2) 30' CAT5e Outdoor Cables
(2) CAT5e outdoor cables, 30' (9m)

Quick Setup

Hardware Setup
1. Using the power adaptors, plug in each of the XPress RF Modems to an outlet.
2. Connect an Ethernet cable from each XPress RF Modem to a network device.
3. Send Ethernet traffic through the wireless Ethernet Bridge [for troubleshooting, refer to
the following page].
Each RF Modem automatically selects the best radio channel, encrypts the Ethernet traffic and
transports the data wirelessly to its matched pair. Cross-over cables are not necessary since the
RF modems automatically sense the device (client vs. switch).

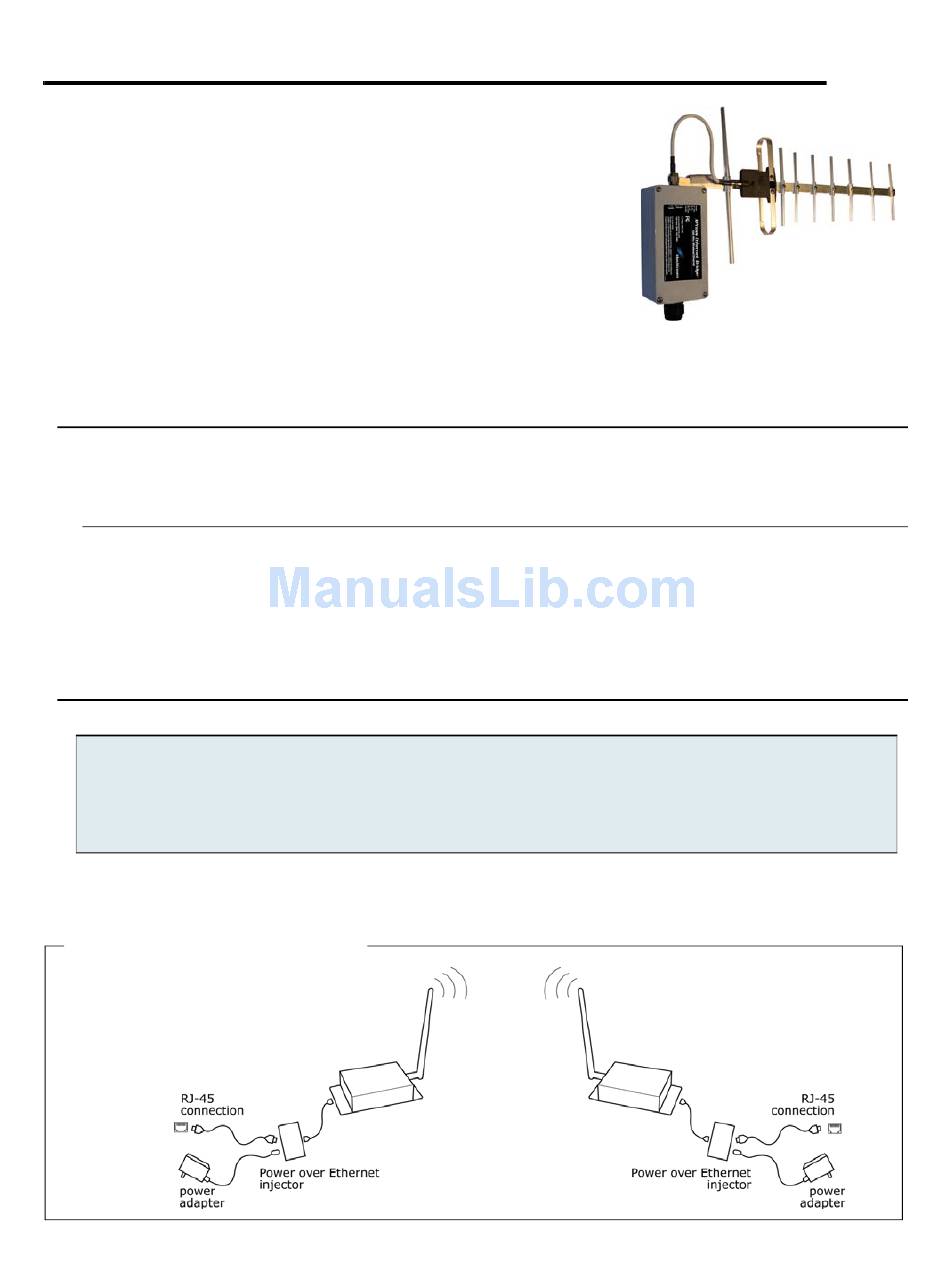

Figure 1.
Ethernet Bridge Setup
™
M100258

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XPress Ethernet Bridge XEB09-I and is the answer not in the manual?

Questions and answers

Related Manuals for MaxStream XPress Ethernet Bridge XEB09-I

Summary of Contents for MaxStream XPress Ethernet Bridge XEB09-I

  • Page 1 RF Modems and the bridge will function in place of an Ethernet cable. The Ethernet bridge provides a transparent wireless point-to-point cable replacement. www.maxstream.net © 2006 MaxStream, Inc. All rights reserved. M100258 Introduction This manual provides step-by-step instruction on how to setup a wireless link and test the Ethernet Bridge’s ability to transport data over varying ranges and conditions.

  • Page 2: Led Display

    This product is warranted to the original purchaser for normal use for a period of 30 days from the date of purchase. If a defect covered under this warranty occurs, MaxStream will repair or replace the defective part, at its option, at no cost. This warranty does not cover defects result-...

  • Page 3: Advanced Settings

    Advanced Settings Automatic Frequency Selection Mode (All DIP Switches OFF (up)) <Default Configuration> The RF modem is designed to automatically select and continuously optimize the performance of its radio channel. The radio channel is monitored to ensure it is providing low error rates necessary for successful radio transmission. In the event that the error rate rises, the RF modem will autonomously change to a new channel.

  • Page 4: Technical Specifications

    This product should be installed ONLY by experienced, professional installers who are familiar with local building and safety codes, and wherever applicable, are licensed by the appropriate authorities. Failure to do so may void the warranty and may expose the user or the service provider to legal and financial liabilities. Contact MaxStream Phone: (801) 765-9885 OnLine Chat: www.maxstream.net...
