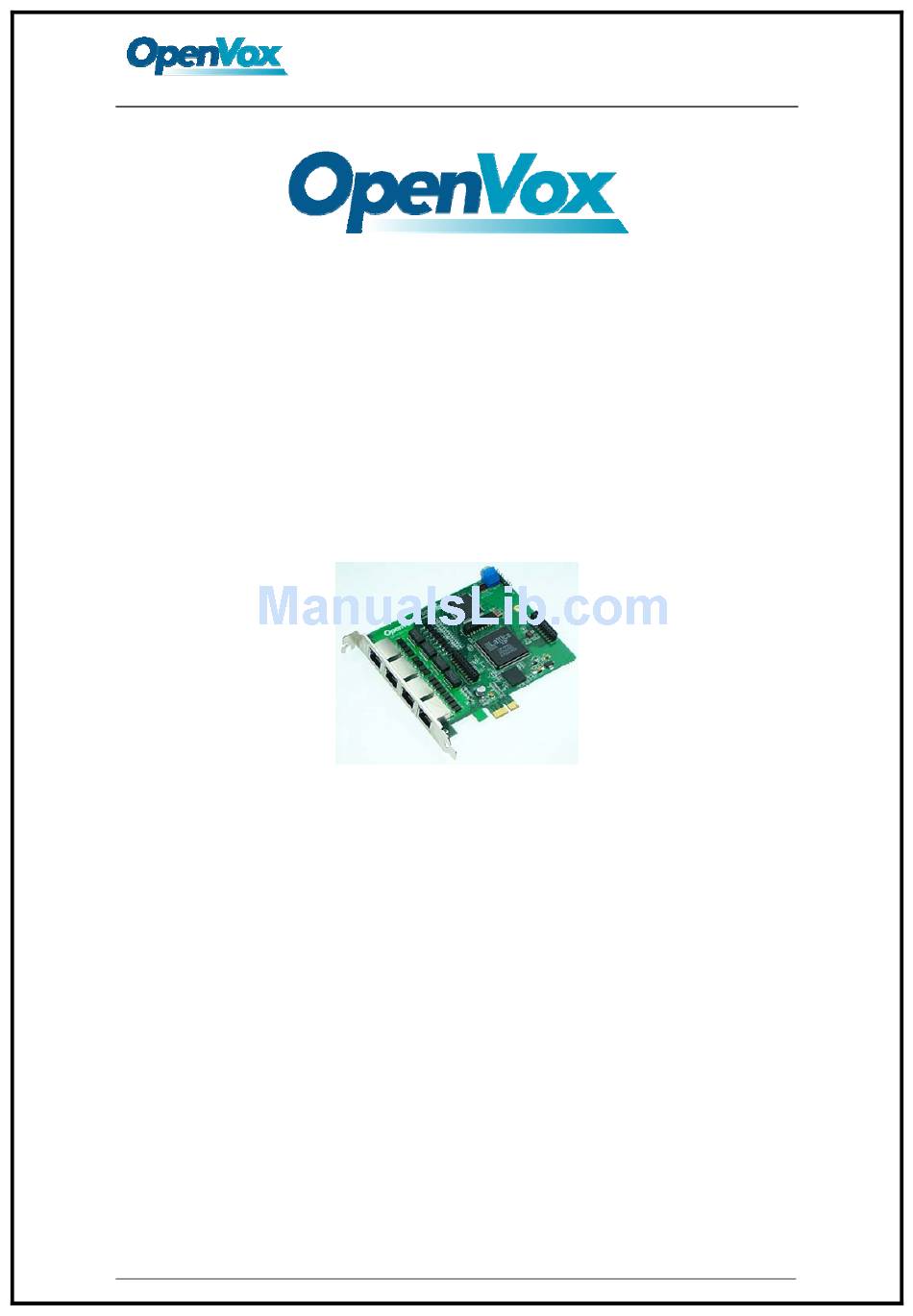

- Page 1 User Manual 深圳开源通信有限公司 OpenVox-Best Cost Effective Asterisk Cards OpenVox D210E D410E User Manual Written by: James.zhu Email:james.zhu@openvox.cn,zhulizhong@gmail.com Date:21/12/2007 Version: 0.01 VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 2 No.9283,Binhe Road, Futian District,ShenZhen ,Guangdong 518048,China Tel:+86-755-82535095,82535461,Fax:+86-755-82535174 E-Mail：sales@openvox.com.cn support@openvox.com.cn IM for Sales: betty_yljiang@hotmail.com rubyzhang1217@hotmail.com IM for Technical Support: support@openvox.com.cn,zhulizhong@gmail.com,zhulizhongum@hotmail.com Business Hours: 9:30AM-17:30PM from Monday-Friday URL：www.openvox.com.cn Thank You for Choosing OpenVox’s Products! VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 3 User Manual Table of Contents Chapter 1 Overview………………………………………………………………… 4 Chapter 2 Card Installation and Configuration……………………………… 5 Chapter 3 R e f e r e n c e … … … … … … … … … … … … … … … … … … … … … 12 Chapter 4 Hardware Setting………………………………………………………...
-
Page 4: Chapter 1 Overview
Chapter 1 Overview 1. What is D410E/D210E The D410E/D210E series supports E1, T1 and J1 environments and is selectable on a per-card or per-port basis. This feature enables signaling translation between E1 and T1 equipment and allows inexpensive T1 channel banks to connect with E1 circuits. - Page 5 User Manual Figure 1: Asterisk Setup Source (http://www.siriusit.co.uk/uploads/images/consulting/asteriskSetup.gif) Asterisk provides Voicemail services with Directory, Call Conferencing, Interactive Voice Response, Call Queuing. It has support for three-way calling, caller ID services, ADSI, IAX, SIP, H.323 (as both client and gateway), MGCP (call manager only) and SCCP/Skinny(voip-info.org).
-
Page 6: Card Installation And Configuration
Chapter 2 Card Installation and Configuration 1. Hardware Installation and Setup Before inserting the D410E/D210E card in to PC, customer should set the jumpers correctly. If customers can not sure the difference of the PCI and PCI Express, please check that from below: （Source：http://www.geeks.com/techtips/2006/Images/motherboard.gif... - Page 7 User Manual 2) Downloading and compiling Before installing libpri, zaptel and asterisk, make sure that all supporting packages have been installed in system. Note that if there is no kernel source in the system, user should install yum install kernel-devel them.
- Page 8 User Manual make clean make make install 2. Installing zaptel cd /usr/src/zaptel make clean make make install 3. Installing asterisk cd /usr/src/asterisk make clean make make install make samples 3) Configuration for zaptel.conf and zapata.conf 1) Modify the zaptel.conf by vi /etc/zaptel.conf # Span 1: TE4/0/1 "T4XXP (PCI) Card 0 Span 1"...
-
Page 9: R E F E R E N C E
=> 1-15,17-31 group=2 signalling=pri_cpe channel => 32-46,48-62 group=3 signalling=pri_cpe channel => 63-77,79-93 group=4 signalling=pri_cpe channel => 94-108,110-124 5) Loading wct4xxp driver for D410E/D210E: modprobe zaptel modprobe wct4xxp ztcfg –vvvvvvvv VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299... - Page 10 User Manual dmesg VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 11 User Manual 6) Starting asterisk by asterisk –vvvvvvvgc and run: zap show channels: VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
- Page 12 Trademarks and Copyrights in this user manual: Asterisk® and Digium® are registered trademarks of Digium, Inc. OpenVox® is a registered trademark of ShenZhen OpenVox Technologies LTD. VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
-
Page 13: Hardware Setting
User Manual Chapter 4 Hardware Setting VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299...
