Fast and dependable satellite communications at sea (33 pages)

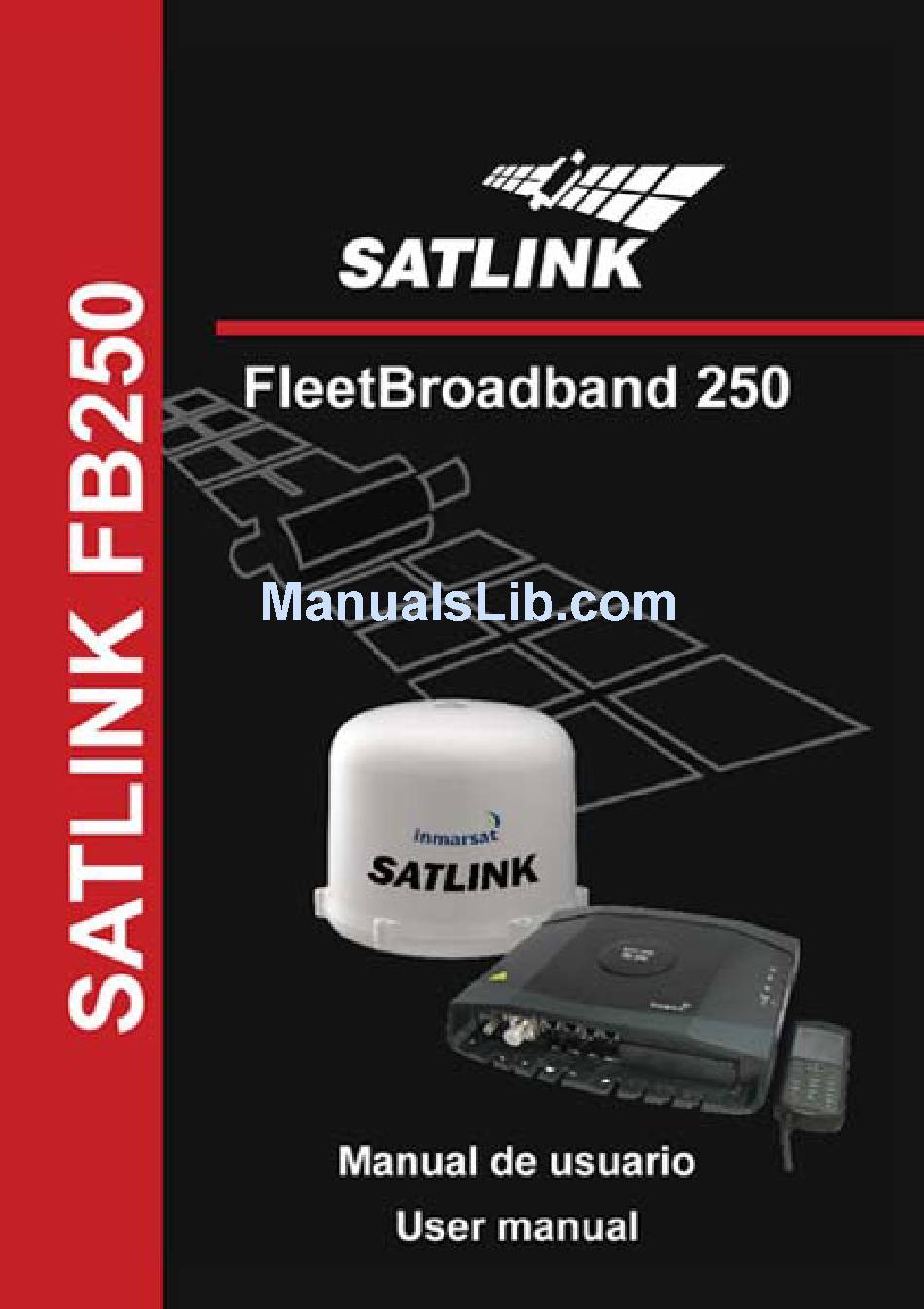

Summary of Contents for Satlink FleetBroadband 250
Page 2
ÍNDICE E S P A Ñ O L Página INTRODUCCIÓN APÍTULO ..................INICIO APÍTULO ......................USAR EL TELÉFONO PRINCIPAL APÍTULO ............USAR LA CONSOLA WEB APÍTULO ..............CONECTAR DISPOSITIVOS AL FB250 APÍTULO ......... INDEX E N G L I S H Pages INTRODUCTION HAPTER...
Page 4
Lista de los servicios disponibles para el Equipo de Usuario FB250: Acceso a Intranet e Internet. Comunicaciones seguras. Correo electrónico y webmail. Servicios de teléfono y fax. SMS y mensajería instantánea. Transferencias de archivos de gran tamaño. Vídeo conferencia y Streaming. ww.satlink.es...
Page 5
Entrada de potencia: +12VDC (10%) a +24VDC (30%) (10.8VDC - 31.2VDC) Conector de tierra. Certificación de la UE. Certificación de la Comisión Federal de las Comunicaciones (EEUU). UNIDADES PRINCIPALES El equipo FB250 incluye las unidades principales siguientes: info@satlink.es...
Page 6
La cubierta que protege los componentes de la antena está com- puesta de: Antena RF y circuito GPS Articulación rotatoria Pedestal Todas las señales (y la alimentación) pasan a través de un cable co- axial simple, que conecta la unidad sobre cubierta a la bajo cubierta. ww.satlink.es...
Page 7
4. 2 puertos LAN (RJ45 con PoE). 5. 2 puertos LAN (RJ45). 6. Ranura tarjeta SIM. 7. Puerto para fax (RJ11). 8. Puerto para el teléfono (RJ11). 9. Puerto GPS I/O. 10. Puerto para el teléfono principal. 11. Ranura (slot) de expansión. info@satlink.es...
Page 8
El teléfono principal está conectado a la unidad bajo cubierta por medio del interfaz dedicado del mismo (Handset interface), y se alimenta directa- mente de dicha unidad. Para más información sobre cómo usar el teléfono, ver Capítulo 3, Usar el telé- fono principal. ww.satlink.es...
Page 9
7. Tecla Seleccionar (derecha). 8. Tecla Llamada/Enviar. 9. Tecla Fin. 10. Teclado (alfanumérico). 11. Tecla de encendido. 12. Tecla Borrar. 13. Micrófono. 14. Puerto de servicio. 15. Altavoz. * El altavoz está situado en la parte trasera del teléfono princi- pal. info@satlink.es...
3. Mantenga la tarjeta SIM, la cubierta y el tornillo en una posición segura. 4. Con los contactos dora- dos cara arriba, situar la tarjeta SIM tal y como se indica y colocar la SIM dentro de la ranura. ww.satlink.es...
Page 11
Para conectar el cable de la antena a la unidad bajo cubierta, seguir los siguientes pasos: 1. Insertar el cable de antena al conector. 2. Apretar el mando del cable de la antena para asegurarlo en la unidad bajo cubierta. info@satlink.es...
Page 12
El teléfono principal recibe alimentación del equipo bajo cubierta, por medio de su propio interfaz (Primary Handset interface). Para conectar el teléfono principal, seguir los pasos siguientes: Conectar el teléfono principal a su interfaz, en el panel de co- nexiones trasero. ww.satlink.es...
Page 13
PIN ó Número de identificación personal que cons- tará de 4 a 8 dígitos). En caso de que el FB250 haya sido apagado, será necesario introducir el PIN en el momento de encenderlo. Seguir estos pasos para introducir el SIM PIN: info@satlink.es...
Page 14
Para hacer una llamada desde un analógico (opcional) conectado al puerto telefónico del equipo FB250, descolgar y marcar: 00 <código del país> <nº de teléfono> seguido de la tecla #. ENVIAR EL PRIMER SMS (MENSAJE) Seguir los pasos siguientes: ww.satlink.es...
Page 15
2. Usar el anillo de navegación para ir al icono Mensajes 3. Pulsar para confirmar selección. El editor de SMS aparecerá en la pantalla del teléfono principal. 4. Teclear el mensaje SMS usando el teclado alfanumérico del te- léfono principal. info@satlink.es...
Page 16
IP y una dirección de servidor DNS automáticamente. Cómo conectar un ordenador al equipo bajo cubierta FB250: Conectar el cable LAN entre el conector de red del ordenador y el primer puerto LAN de la unidad bajo cubierta FB250. ww.satlink.es...
Page 17
Teclear http://192.168.1.35 en el campo “Address” (Dirección) y pulsar Enter. Aparece la pantalla de registro. Teclear admin en el campo “Username” y satlink en el campo “Password”. Clic en OK. Aparece en pantalla la Consola Web SATLINK FB250. Clic en el icono Settings (Ajustes) Clic en Activate Default Profile.
Page 18
Al estar conectado, van a aparecer los detalles de las direcciones APN e IP. El usuario puede seguir usando las funciones de Internet. Para desconectar la conexión de datos hacer lo siguiente: Clic en “Disconnect”. El contexto PDP queda desactivado. ww.satlink.es...
Page 20
13. Micrófono. 5. Anillo de navegación: 4 direcciones. 14. Puerto de servicio. 6. Tecla Seleccionar (izquierda). 15. Altavoz. 7. Tecla Seleccionar (derecha). 8. Tecla Llamada/Enviar. * El altavoz está situado en la parte trasera 9. Tecla Fin. del teléfono principal. ww.satlink.es...
Page 21
– Pulsar la tecla “Almohadilla” # . En pantalla aparece: #. – Cambia de manera rápida la inserción de texto al escribir. Pulsarla repetidamente (#) y observar el indicador en la parte superior de la pantalla. – En Modo En espera, mantenerla pulsada para silenciar el teléfono principal. info@satlink.es...
Page 22
El menú principal del teléfono incluye 9 opciones de menú, tal y como aparece más abajo. Cada opción del menú tiene sus correspon- dientes submenús. Se puede usar el anillo para ir hasta la opción de menú que se desee y a continuación, pulsar para confirmar la selección. ww.satlink.es...
Page 23
Contactos y mensajes SMS. Línea de selección La línea de selección funciona usando las teclas de selección iz- quierda y la derecha , y con la tecla para acceder a menús y controles. INDICADORES DE ESTADO DEL TELÉFONO info@satlink.es...
, seguida de Este icono mostrará que el teclado del teléfono principal está blo- queado: HACER LLAMADAS Para hacer una llamada, el usuario deberá asegurarse de que el equipo está conectado a una red, y que hay una señal satelitaria adecuada. ww.satlink.es...
Si el número está guardado en los Contactos, aparecerá el nom- bre del contacto que llama. Para contestar a una llamada entrante, pulsar MENSAJERÍA (SMS) Crear un nuevo mensaje Para crear un nuevo mensaje, habrá que seguir estos pasos: info@satlink.es...
Page 26
Para obtener una lista de símbolos especiales, pulsar Usar el anillo de navegación para ir al símbolo deseado. Pulsar para confirmar selección. Borrar texto Para borrar texto, pulsar una vez (un carácter de cada vez). Para borrar una entrada de texto entera, mantener pulsada la tecla ww.satlink.es...
6. Escoger “Reply” (Responder). 7. Teclear el mensaje SMS con el teclado alfanumérico del telé- fono. 8. Escoger “Send” (Enviar) y pulsar la tecla ESTRUCTURA DEL MENÚ Esta sección describe la Estructura del menú y sus submenús aso- ciados: info@satlink.es...
Page 28
Settings Terminal Security Settings Phone Manager MENÚ “CONTACTS” (Contactos) Lista de Contacto nuevo contactos Búsqueda Terminal Borrar Contacto Terminal SIM a Terminal/ Copiar Terminal a SIM Ver número Contacto SIM Asignar Marcado rápido Recargar contactos Estado de la memoria ww.satlink.es...
Page 29
Editar un contacto Para hacerlo, seguir los pasos siguientes: 1. Escoger el contacto a editar. 2. Pulsar para ver el menú de opciones. 3. Escoger “Edit contact” (Editar contacto). 4. Editar la información del contacto. info@satlink.es...
Page 30
1. Seleccionar el contacto que se quiere ver. 2. Pulsar para ver el menú de opciones. 3. Escoger “View number” (Ver número). 4. La información de contacto aparece en la pantalla. 5. Pulsar para cerrar la información. Llamar a un contacto Seguir estos pasos: ww.satlink.es...
Page 31
2. Pulsar para ver el menú de opciones. 3. Escoger “Options”. 4. Pulsar para ver la información del contacto. 5. Escoge “Forward message”. 6. Pulsar para ver el menú de opciones. 7. Escoger “Send” para reenviar los detalles del contacto. info@satlink.es...
Page 32
Clear call listings (Borrar listas de llamadas) Check call/data usage (Comprobar llamada / Gestión de datos) El usuario podrá filtrar el registro para ver un solo tipo de evento, y crear un nuevo contacto basándose en la información del registro. ww.satlink.es...
Page 33
Missed calls Llamadas perdidas call lists Received Recibidas Dialled calls Números marcados All calls Todas las llamadas Llamadas/Gestión de datos Call/Date Last calls Última llamada usage Total calls Total de llamadas Last Data Últimos datos Total Data Total de datos info@satlink.es...
Page 34
• Total call: Muestra la duración todas las llamadas. Comprobar la cantidad aproximada de datos enviados y recibidos. • Last data: Muestra el total de datos transmitidos durante la úl- tima conexión. • Total data: Muestra el total de datos transmitidos. ww.satlink.es...
Page 35
El menú “Telephony” da las siguientes opciones para configurar los ajustes de llamada para el equipo FB250: Caller ID (Identidad del llamante) Port settings (Valores del puerto) Speed Dial (Velocidad de marcado) Caller ID Se podrá escoger entre “USA standard caller ID” ó “Europe stan- dard caller ID”. info@satlink.es...
Page 36
Manejo del equipo de Voz / Fax conectado al Terminal Cuando todos los puertos de voz/fax (puerto PHONE, puerto FAX, puerto RJ45 para el teléfono principal y el puerto EXTENSIÓN PHONE) estén conectados con un equipo de voz/fax adecuado, el comporta- ww.satlink.es...
Page 37
3,1KHz que está insertado en el Terminal FB250. Al usar este número, la red iniciará automáticamente una lla- mada de audio a 3,1Khz al Satlink FB250. Al usar este número la red hará automáticamente una llamada de audio a 3,1KHz al Satlink FB250.
Page 38
Opciones de fax Incoming High Quality Permite llamadas de voz/Fax Alta Calidad (Alta Calidad) Entrantes None No se permiten llamadas de voz (Ninguna) Outgoing High Quality Permite llamadas de voz/Fax Alta Calidad Salientes None No se permiten llamadas de voz ww.satlink.es...
Page 39
Después, pulsar la tecla . Por ejemplo, si el “2” está asignado para marcación rápida a un nombre, (por ejemplo, Andrés) en el listín del teléfono, al marcar “2” seguido de , el usuario marcará el nú- mero del contacto llamado “Andrés”. info@satlink.es...
Page 40
(perfiles PDP) para el FB250: Primary Secondary Status Contexto PDP El nombre de “contexto PDP” hace referencia a Packet Data Proto- col (Protocolo de paquetes de datos), que es una conexión lógica de asociación de paquetes de datos. ww.satlink.es...
Page 41
• Los contextos PDP secundarios pueden tener distintos valores en la calidad del servicio. El equipo Satlink FB250 admite 1 contexto PDP primario y como máximo 10 contextos PDP secundarios. El contexto PDP Primario ó se- cundario puede ser ó bien un tipo de conexión IP estándar ó de tipo IP Streaming.
Page 42
Por ello, se recomienda no tenerla conectada cuando no se esté usando. El Satlink FB250 admite las siguientes conexiones Streaming: al menos 1 conexión de 128kbps, 2 de 64kbps cada una, 4 de 32kbps cada una ó...
Page 43
5. Escoger la opción deseada [Standard/32, 64 o 128 Streaming]. 6. Escoger “Edit” para editar el perfil escogido. Borrar un perfil Seguir estos pasos: 1. Escoger “Managing profiles”. 2. Pulsar para confirmar selección. 3. Escoger opción: “Primary” ó “Secondary”. info@satlink.es...
Page 44
(Carpeta de mensajes enviados) Manage Draft folder (Carpeta borrador) Configure Message service number (Configurar el número de servicio del mensaje) Configure message validity (Configurar la validez del mensaje) Check memory status (Comprobar el estado de la memoria) Delete (Borrar) ww.satlink.es...
Page 45
Añadir a contactos Save Guardar Details Detalles Respuesta Reply Send Enviar Save Guardar Borrar Clear screen Borrar pantalla Delete Send Forward Enviar Save Guardar Clear screen Borrar pantalla Call Add to contact Añadir contacto Terminal Save Guardar Details Detalles info@satlink.es...
Page 46
Guardar Delete Borrar Send Enviar Add to contact Terminal Guardar Borrador Save Delete Draft Open Borrar Abrir Clear screen Borrar pantalla Send Enviar Add to contact Terminal Save Guardar Delete Borrar Send Enviar Add to contact Terminal Save Guardar ww.satlink.es...
Page 47
Para cambiar rápidamente el método de entrada de texto al es- cribir, pulsar repetidamente y comprobar el indicador en la parte superior de pantalla: • <ABC >: Mayúsculas • <123>: Números • <abc>: Minúsculas • <Abc>: Mayúscula inicial seguida de minúsculas info@satlink.es...
Page 48
1. Escoger “New message”. 2. Pulsar para confirmar la selección. 3. Teclear el SMS usando teclado alfanumérico del teléfono principal. 4. Escoger “Save” para guardar el mensaje. 5. Pulsar para confirmar el guardado del mensaje. Mostrar un mensaje Seguir los pasos siguientes: ww.satlink.es...
Page 49
Añade el contacto al listín telefónico. (Añadir contacto) Save Guarda el mensaje en la tarjeta SIM. (Guardar) Details Proporciona detalles del emisor y la fecha de envío. (Detalles) Open Abre el mensaje. (Abrir) 4. Pulsar para confirmar la opción elegida. info@satlink.es...
Page 50
Abre el mensaje. (Abrir) Delete Borrar el mensaje. (Borrar) Sent Envia el mensaje. (Enviar) Add to contact Añade el contacto al listín telefónico. (Añadir contacto) Save Guarda el mensaje en la tarjeta SIM. (Guardar) 4. Pulsa para confirmar la opción seleccionada. ww.satlink.es...
Page 51
7. Escoger la fecha de validez. 8. Pulsar para confirmar. Comprobar el estado de la memoria La capacidad de la memoria depende de la tarjeta SIM que haya dado el Proveedor. Varíará de un proveedor a otro. info@satlink.es...
Page 52
Se usa tanto para servicios CS como para PS. “Terminal IP Address” • El equipo Satlink FB250 puede programarse con una dirección IP privada (“Terminal IP address”) , que se usa para enviar ór- denes y controlar por encima de la IP del equipo. Esta dirección IP privada, se usará...
Page 53
DNS primario DNS secundario Secondary DNS Lease time Tiempo de asignación Satélite Selección de satélite Satellite selection AUTO Satellite I-4 Asia Pacific Satellite status I-4 EMEA Estado del satélite I-4 Americas Mapa de cobertura BGAN BGAN Satellite Coverage Areas info@satlink.es...
Page 54
El servicio BGAN mundial está cubierto por tres satélites Inmarsat “I- 4”: I-4 Americas, I-4 EMEA y I-4 Asia Pacific. “Satellite Selection” es una opción del terminal Satlink FB250, que permite al usuario escoger su satélite preferido para el manejo de su Terminal.
Page 55
Reinicio del terminal Terminal restart Factory Enter password Introducir contraseña reset Valores de fabricante Fuerza de señal El concepto se refiere al nivel de recepción de la señal RF procedente del satélite. En diferentes estadios, el terminal estará recibiendo señales info@satlink.es...
Page 56
En esta opción se dispondrá de información sobre: Nombre del fabricante Versión del software del teléfono Modelo del terminal (por ejemplo, Satlink FB250) Número IMEI (nº de identificación internacional del equipo) Número IMSI (nº de identificación internacional del abonado) Número propio (El nº del Terminal para llamadas de voz estándar) Nº...
Page 57
Enable – Activa el uso del PIN y de los ajustes de la seguridad. Disable – Desactiva el uso del PIN y de los ajustes de la seguri- dad. Change – Cambia el PIN y los ajustes de seguridad. info@satlink.es...
Page 58
Sim lock Disable Change Proveedor servicios Service Enable provider Disable Change Enable Corporate Disable Change Ajustes de seguridad Hay un número de ajustes de seguridad disponibles para proteger el Terminal de un mal uso causado por personal no autorizado. ww.satlink.es...
Page 59
BLOQUEO de la SIM Se usa para unir el Terminal Satlink FB250 con una tarjeta SIM. Una vez que el terminal tiene un bloqueo (SIM LOCK) ligado a una tarjeta SIM por medio de un código PIN de 6 dígitos, el Terminal sólo funcio-...
Page 60
El usuario debería ponerse en contacto con su distribuidor en caso de que tuviera algún problema con el manejo de los PINs. MENÚ “PHONE MANAGER” (Gestor del teléfono) El menu “Phone Manager” tiene estas opciones para configurar y personalizar el teléfono principal: ww.satlink.es...
Page 61
Tono de llamada Ring tone Standard 1 Tone Standard 2 Volume Volumen Idioma Language English Spanish Valores de fábrica Factory reset Software version Versión de software About Hardware version Versión de hardware Ayuda técnica Technical Support Acerca de… Copyright info@satlink.es...
Page 62
–que reiniciará toda la configuración del sis- tema y los datos de usuario a sus valores por defecto–, esta función de “Factory Reset” del teléfono principal reiniciará toda la configuración del sistema y los datos de usuario excepto los siguientes: ww.satlink.es...
Page 63
Índice de evaluación 2.3.4.5.6. (Este rango no usarse con ninguna otra TFT de precedencia activa en el mismo APN) Protocolos RTSP sobre TCP RTSP sobre UDP MMS sobre TCP MMS sobre UDP HTTP (normalmente desactivado. Se puede activar si fuera necesario) Puertos RTSP sobre TCP (554) info@satlink.es...
Page 64
Índice de evaluación 22.23 (Este rango no usarse con ninguna otra TFT de precedencia activa en el mismo APN) 24.25.26.27 (rango extra por si se necesitara. Este rango no usarse con ninguna otra TFT activa en el mismo APN) Protocolos Puertos Rango UDP (1700.4199) ww.satlink.es...
Page 66
3. Teclear http://192.168.1.35 en el campo “Address” y pulsar Enter. Se abre la pantalla “Login” (Registro). 4. Teclear admin en el campo “Username” (Nombre de usuario) y satlink en el campo “Password” (contraseña). Clic en OK. 5. Aparece en pantalla la Consola Web del equipo FB250. ww.satlink.es...
Perfiles Enviados Ethernet secundarios Borrador Puerto Telefonía Ajustes Admin Ayuda Indicadores de estado Estos iconos indican el estado del equipo FB250. Al hacer clic en estos iconos se da un atajo al menú deseado. info@satlink.es...
Page 68
Icono Ethernet: hacer clic para abrir la página de configuración LAN. MENÚ “SETUP” (Configuración) Ver la información del terminal Clic en: Clic en “Terminal Info” para ver la información del equipo FB250. La información se presenta de acuerdo con el Modo de Rastreo del satélite. ww.satlink.es...
Page 69
Para cambiar la selección del satélite: Clic en: Clic en “Satellite Selection” para ver los satélites que estén visi- bles. Éstos aparecerán en pantalla para ser seleccionados. Tam- bién se presenta la información del satélite al que la antena de la ADU esté vinculada. info@satlink.es...
Page 70
Para ver, añadir, editar y borrar entradas del Listín telefónico. El usuario puede enviar SMSs directamente desde las entradas del listín. Éstas se pueden guardar en la tarjeta SIM del equipo FB250. Call History (Historial de llamadas) Para comprobar en el registro las llamadas enviadas y las reci- bidas. ww.satlink.es...
Page 71
Nº total de entradas utilizadas = 3 Nº total de entradas disponibles = 150 Añadir una entrada nueva al Listín Seguir estos pasos: 1. Clic en “Add”. 2. Introducir Nombre y Nº de teléfono. 3. Escoger dónde guardar y clic en “Save”. info@satlink.es...
Page 72
4. Proceder al cambio del Nombre ó del número de teléfono. 5. Clic en “Apply”. Borrar una entrada del Listín Para borrar una entrada: 1. Escoger la entrada del Listín. 2. Clic en “Delete”. 3. Clic en “Ok” para confirmar el borrado. Clic en “Cancel” para abortarlo. ww.satlink.es...
Page 73
2. Clic en “Send SMS”. La pantalla del Listín cambia para poder pasar a la redacción del mensaje. 3. Teclear el texto del mensaje y clic en “Send”. 4. Clic en “Refresh” para actualizar el Listín. Historial de llamadas info@satlink.es...
Page 74
Seguir los siguientes pasos: 1. Escoger una entrada del Historial de llamadas. 2. Clic en “Delete”. 3. Clic en “Ok” para confirmar ó clic en “Cancel” para abortar el borrado. 4. Clic en ”Refresh” para actualizar la lista del Historial de llamadas. ww.satlink.es...
Page 75
1. Introducir el nº de teléfono en el campo “Phone no.”. Hacer clic en el icono del Listín telefónico , en caso de que el número del receptor esté dentro del Listín. 2. Teclear el mensaje en el editor de texto. info@satlink.es...
Page 76
Para guardar un SMS no enviado, clic en ”Save” para guardarlo en ”Draft” (Borrador). Para borrar el mensaje tecleado en el editor, hacer clic en ”Clear”. Buzón de entrada Muestra los detalles (información del emisor, Mensaje, Fecha y Hora) de todos los SMS recibidos. ww.satlink.es...
Page 77
Se enviará la respuesta al destinatario. Reenviar un SMS Seguir estos pasos: 1. Hacer clic en un SMS para seleccionarlo. Aparecerá resaltado en azul claro. 2. Clic en ”Forward”. Del Buzón se cambia de pantalla para redactar el mensaje. info@satlink.es...
Page 78
1. Escoger el mensaje marcando el espacio al lado de cada SMS. 2. Clic en ”Delete”. 3. Clic en ”OK” para confirmar el borrado, ó ”Cancel” para abor- tar el borrado. Clic en ”Refresh” para actualizar el Buzón de entrada. ww.satlink.es...
Page 79
El SMS será enviado al destinatario. Reenviar un SMS ya enviado Seguir estos pasos para enviar un SMS ya enviado a otro destinatario: 1. Clic en un SMS para seleccionarlo. 2. Clic en ”Forward”. De “Enviados” se cambia de pantalla para redactar el mensaje. info@satlink.es...
Page 80
Hacer lo siguiente: 1. Escoger el mensaje marcando el espacio al lado de cada SMS. 2. Click Delete. 3. Clic en ”OK” para confirmar el borrado, ó ”Cancel” para abortarlo. Clic en ”Refresh” para actualizar la carpeta de Enviados. ww.satlink.es...
Page 81
2. Clic en ”Forward”. De la consola Borrador se pasa a la de redacción de mensajes. 3. Introducir el número del receptor en el campo ”Phone No.”. 4. Clic en ”Send” para reenviar el SMS. El SMS será enviado al destinatario. info@satlink.es...
Page 82
Hacer lo siguiente: 1. Escoger el mensaje marcando el espacio al lado de cada SMS. 2. Clic en ”Delete”. 3. Clic en ”OK” para confirmar el borrado ó clic en ”Cancel” para abortarlo. Clic en ”Refresh” para actualizar la carpeta Borrador. ww.satlink.es...
Page 83
Este menú tiene las opciones siguientes: Connection (Conexión) Primary Profiles (Perfiles primarios) Secondary Profiles (Perfiles secundarios) Port Forwarding (Reenviar puerto) Settings (Ajustes) Conexión Para activar el perfil por defecto, hacer clic en ”Activate Default Profile”. (Activar perfil por defecto). Se activará el contexto PDP. info@satlink.es...
Page 84
• Los contextos PDP secundarios pueden tener distintos valores en la calidad del servicio. El equipo Satlink FB250 admite 1 contexto PDP primario y como máximo 10 contextos PDP secundarios. El contexto PDP Primario ó se- cundario puede ser ó bien un tipo de conexión IP estándar ó de tipo IP Streaming.
Page 85
Por ello, se recomienda no tenerla conectada cuando no se esté usando. El Satlink FB250 admite las siguientes conexiones Streaming: al menos 1 conexión de 128kbps, 2 de 64kbps cada una, 4 de 32kbps cada una ó...
Page 86
Seguir estos pasos para cambiar el APN: 1. Escoger ”User Defined”. 2. Introducir el Nuevo APN en el campo al efecto. Por ejemplo: bgan inmarsat.com. 3. Introducir el nombre de usuario (username) y la contraseña (password) si así se pide. ww.satlink.es...
Page 87
32k, 64k ó 128k. 3. Comprobar el recuadro “Error Correction” si se necesita utilizar corrección de errores. La corrección de errores sólo debería activarse en ambiente con grandes interferencias. info@satlink.es...
Page 88
1. Escoger la velocidad deseada (Desired Rate): 32k, 64k ó 128k. 2. Escoger la velocidad mínima (Minimum rate) (el mínimo que el usuario puede aceptar, en caso de que la red no tenga la ve- locidad deseada): 32k, 64k ó 128k. ww.satlink.es...
Page 89
“Port Forwarding” es una función para modo de enrutamiento (Rou- ter mode) para usuarios múltiples. Esta función configura el equipo FB250 para dirigir el tráfico entrante en un puerto TCP/UDP concreto hacia un puerto específico en un PC local (dirección IP). info@satlink.es...
Page 90
3. Introducir la dirección de destino IP (Destination IP Address). (Por ejemplo, la dirección IP del PC al que el FB250 esté conec- tado). 4. Escoger el tipo de protocolo (Protocol type): TCP (por ejemplo, para HTTP, será TCP) ww.satlink.es...
Page 91
IP estándar sea reconectada automáticamente en caso de que la conexión sea desconectada sin intervención previa del usuario. 3. Clic en “Update” para que los cambios se lleven a efecto. Clic en “Refresh” to query the current mode. info@satlink.es...
Page 92
MENÚ “SETTINGS” (Ajustes) Clic los siguientes apartados para ver y editar los ajustes de confi- guración para el FB250: Language (Idioma) Terminal Info (Información del terminal) Terminal Ethernet Telephony Misc (Variado) Support (Ayuda técnica) ww.satlink.es...
Page 93
IMEI, nº IMSI (sólo cuando hay una tarjeta SIM insertada), nº de suscriptor, y el nº de serie de la uni- dad sobre cubierta (ADU). Registros (Logs) Presenta los registros de eventos y de errores del equipo. info@satlink.es...
Page 94
Ethernet Ethernet 1. Clic en ”Ethernet” par aver y editar Ethernet. 2. Clic en “Update” para hacer que los cambios se lleven a efecto. ww.satlink.es...
Page 95
Allow List (Lista de permitidos) Se le denegará el acceso al equipo a todos, a excepción de aque- llos (direcciones Mac) que estén en la Lista de permitidos. Al se- leccionar esta lista, deberá al menos haber una entrada para acceder al equipo. info@satlink.es...
Page 96
RJ11, podrán recibir y mostrar esta identidad de llamante Tipo I. (type-I Caller-ID). 4. Clic en “Update” para permitir que los ajustes se lleven a efecto. Port Configuration Consultar el capítulo 5 sobre cómo usar los diferentes dispositivos. ww.satlink.es...
Page 97
Para configurar los puertos usando la Web Console, seguir los pasos siguientes: 1. Iniciar Web Console. 2. Clic en el menú “Settings” 3. Clic en el submenú “Telephony” submenú. 4. En la zona de información del submenú, hacer clic en “Port con- figuration”. info@satlink.es...
Page 98
Si el usuario configura el puerto “Incoming Call’ (Llamada entrante) como de llamada de alta calidad de voz/fax a 3,1 Khz, el fax entrante hará que suene el teléfono. Satlink recomienda el uso de la opción de llamada de voz/fax de alta calidad a 3.1 kHz sólo para comunicaciones de FAX.
Page 99
SIM LOCK (BLOQUEO de la SIM) Se usa para unir el Terminal Satlink FB250 con una tarjeta SIM. Una vez que el terminal tiene un bloqueo (SIM LOCK) ligado a una tarjeta SIM por medio de un código PIN de 6 dígitos, el Terminal sólo funcio- nará...
Page 100
Terminal. 2. Escoger “Disabled” si no se necesita activar el PIN del Terminal. 3. Escoger “Enabled” para activar el PIN del terminal. 4. Introducir el nº PIN en el campo “Enter PIN”, y hacer clic en “Update PIN”. ww.satlink.es...
Page 101
2. Escoger Disabled si no es necesario activar el SIM PIN 2. 3. Escoger Enabled para activar el SIM PIN2. 4. Introducir el nº de PIN en el espacio para ello, y clic en “Up- date PIN”. Para cambiar la contraseña del PIN (PIN Password), seguir estos pasos: info@satlink.es...
Page 102
2. Escoger Disabled si no es necesario activar el PIN del pro- veedor. 3. Escoger Enabled para activar el PIN del proveedor. 4. Introducir el nº PIN en el espacio apropiado, y hacer clic en “Update PIN”. ww.satlink.es...
Page 103
4. Introducir el nº PIN en el espacio para ello, y hacer clic en “Update PIN”. Para cambiar el nº de la dirección de Centro de Servicios SMS (SMS service Center Address), introducir el Nuevo número y hacer clic para actualizar en “Update”. info@satlink.es...
Page 104
NO cancele el proceso de actualización ni desconecte la alimentación del equipo FB250 mientras dure el proceso. Si se hiciera, el software que se esté cargando en el FB250, se corrompería. Antes de actualizar el FB250 con el nuevo software, leer las notas que acompañan a este último. ww.satlink.es...
Page 105
INTO SAFE MODE • Escoger el Nuevo software descargado y hacer clic en “Start”. La actualización del software del fabricante llevará apro- ximadamente de 10 a 12 minutos. Aparecerá el mensaje siguiente: “Result: Firmware Up- grade Completed” (Resultado: Actualización comple- tada). info@satlink.es...
Page 106
• Clic en “Reboot Terminal” para reiniciar el FB250. • Reboot Terminal (Reiniciar el Terminal) Si se desea reiniciar el FB250, hacer clic en “Reboot Ter- minal”. Clic en “Reboot” y, a continuación, esperar unos ww.satlink.es...
Page 107
Para hacer esto, clic en “Save Now” (Guardar ahora). • Ayuda técnica (Support) Presenta información como: teléfono de ayuda técnica, di- rección de correo electrónico, Ayuda URL y servicios URL. (The information shown are for sample purpose only.) {Sa- tlink to Provide the information}. info@satlink.es...
Page 110
El teléfono principal solo podrá estar conectado a su conector especial (Handset) en la unidad bajo cubierta (BDU). 4. Puertos Ethernet (LAN): 4 conectores RJ45 para datos. La BDU tiene 4 conectores Ethernet (LAN) RJ45. Dos de ellos admiten Power over Ethernet (PoE). ww.satlink.es...
Page 111
“llamada entrante” como para “llamada de de voz/fax de alta calidad”, sonarán, independientemente de si el dispositivo conectado sea un fax ó un teléfono analógico es- tándar. El puerto “FAX” se detina exclusivamente para conectar un fax. info@satlink.es...
Page 112
4. En la zona de información del submenú, clic en “port configu- ration”. 5. Clic en la lista “Service Type” del puerto que se desee modificar. 6. Clic en “Update” (Actualización). 7. Para llevar a cabo cambios adicionales, repetir los pasos 5 y 6. ww.satlink.es...
Page 113
Si el puerto para “Llamada entrante” se configura para llamadas de voz/fax de alta calidad a 3,1Khz , cuando entre un fax, el teléfono sonará. Satlink recomienda el uso de la opción de llamada de voz/fax de alta calidad a 3,1 Khz sólo para comunicaciones de fax.
Page 114
Rumbo sobre Tierra y Velocidad Información de rumbo y sobre tierra. velocidad referida a tierra. Datos mínimos GNSS Hora, fecha, posición, rumbo y recomendados datos de velocidad. Fecha y hora Hora UTC, día, mes, año y zona horaria local. ww.satlink.es...
Page 116
Listed is the range of services available for the FB250 User Equip- ment: Intranet and Internet access. Secure communication. E-mail and Web-mail. Phone and fax services. SMS and instant messaging. Large file transfers. Video conferencing and Streaming. ww.satlink.es...
Built-in Web Console allowing you to manage your phone book, messages and calls, and customize the terminal to your specific needs Input power: +12VDC 10% to +24VDC 30% (10.8VDC - 31.2VDC) Grounding connector CE certified FCC certified MAIN UNITS The FB250 UE includes the following main units: info@satlink.es...
Page 118
The radome covers the antenna equipments, which is composed of: Antenna Unit RF and GPS circuit Rotary joint Antenna pedestal All signals (and power) pass through a single coaxial cable, which connects the ADU to the BDU. ww.satlink.es...
Page 119
1. DC Power Connector 2. Earth Grounding Stud. 3. Antenna Cable (Co-Axial) Connector 4. 2 x LAN Port (RJ45 with PoE). 5. 2 x LAN Port (RJ45). 6. SIM Card Slot. 7. Fax Port (RJ11). 8. Phone Port (RJ11). 9. GPS I/O Port. 10. Primary Handset Port. 11. Expansion Slot. info@satlink.es...
Page 120
BDU. The Primary Handset is connected to the BDU using the dedicated Handset interface and is pow- ered directly from the BDU. For information on how to use the handset, see Chapter 3, Using the Primary Handset. ww.satlink.es...
Page 121
7. Select key (Right). 8. Call/Send key. 9. End key. 10. Keypad (Alpha-numeric). 11. Power key. 12. Clear key. 13. Microphone. 14. Service Port. 15. Speaker. * The speaker is located at the back of the Primary Hand- set. info@satlink.es...
1. Remove SIM card cover. SIM Card Cover Screw 3. Keep SIM card cover and screw in a safe loca- tion. 4. With the gold-contacts facing up, position the SIM card as indicated and slide the SIM card into the slot. ww.satlink.es...
Page 123
BDU is provided with the user equipment. Follow these steps to connect the antenna cable to the BDU: 1. Insert antenna cable to the antenna cable connector. Atenna Cable (Co-Axial) Conector 2. Tighten the antenna cable knob to secure the antenna cable to the BDU. info@satlink.es...
Turn on the ship’s DC power supply to the FB250 UE. CONNECTING THE PRIMARY HANDSET The Primary Handset is powered from the BDU through the Primary Handset interface. Follow these steps to connect the Primary Handset: Connect the Primary Handset to the Handset interface on the rear connection panel. ww.satlink.es...
PIN (Personal Identification Number : 4 to 8 digits) is provided to- gether with it. You will need to enter the PIN at start-up if the FB250 UE has been powered down. Follow these steps to enter the SIM PIN: info@satlink.es...
Page 126
To make a call from an analog phone (optional) connected to the FB250 UE Phone port, off-hook the phone and dial, 00 <country code> <phone number> followed by the # key SENDING THE FIRST SMS (MESSAGE) Follow these steps to send the first SMS: ww.satlink.es...
Page 127
2. Using the 4-way navigation ring, navigate to the Messaging icon. 3. Press to confirm selection. The SMS editor will be displayed on the Primary Handset screen. 4. Type in your SMS message using the Primary Handset alpha-nu- meric keypad. info@satlink.es...
Page 128
DNS server address automatically. Follow these steps to connect a computer to the FB250 UE BDU: Connect your LAN cable between the network connector on your computer and the first LAN port on the FB250 UE BDU. ww.satlink.es...
Page 129
Start your Internet browser. Type http://192.168.1.35 in the Address field and press Enter. The Login screen appears. Type in admin in the Username field and satlink in the Password field. Click OK. The SATLINK FB250 Ranger Web Console will appear on your screen.
Page 130
The PDP context will be activated. When connected, APN and IP Address details will be displayed. You can proceed to use the Internet features. Follow these steps to disconnect the data connection: Click Disconnect. The PDP context will be deactivated. ww.satlink.es...
Page 132
4. OK key. 13. Microphone. 5. 4-way navigation ring. 14. Service Port. 6. Select key (Left). 15. Speaker. 7. Select key (Right). 8. Call/Send key. * The speaker is located at the back of 9. End key. the Primary Handset. ww.satlink.es...
Page 133
– To quickly change the text input method when writing text, press the Hash # key repeatedly and check the indicator at the top of the display – In standby mode, press and hold Hash # key to put the Primary Handset to silent mode. info@satlink.es...
Page 134
Each menu option has their respective sub- menus. You can use the 4-way navigation ring to navigate to the desired menu option and press to confirm your selection. Messaging Contacts Telephony Settings Data Phone Terminal Manager Security Settings ww.satlink.es...
Page 135
Con- tacts and SMS messages. Selection Key line The Selection key line operates using the Left and Right selection keys with the to access menus and controls. PRIMARY HANDSET STATUS INDICATORS info@satlink.es...
To lock or unlock the keypad you have to press followed by This icon shows that primary handset keypad is locked MAKING CALLS To make a call, make sure the UE is connected to a network and there is adequate SAT signal. ww.satlink.es...
The caller’s number will be displayed on the screen. If the number is stored in the contacts, the corresponding name of contact will be displayed. To answer an incoming call, press the key. MESSAGING (SMS) Creating a New Message Follow these steps to create a new message: info@satlink.es...
Page 138
Using the 4-way navigation ring, navigate to the desired symbol. Press to confirm selection. Clearing text To clear text, press once to clear one character at a time. To clear the whole text entry, press and hold to clear the whole text entry. ww.satlink.es...
, scroll to the desired message. 6. Select Reply. 7. Type in your SMS message using the Primary Handset alpha-nu- meric keypad. 8. Select Send and press the key. MENU STRUCTURE This section describes the Menu Structure associated with each sub menu: info@satlink.es...
Telephony Data Messaging Settings Terminal Security Settings Phone Manager CONTACTS MENU New contact List of contacts Search Terminal Delete Terminal contact SIM to Terminal/ Copy Terminal to SIM View number SIM contact Assign Speed Dial Reload contacts Memory status ww.satlink.es...
Page 141
“00”. Press to save the contact. Editing a Contact Follow these steps to edit a contact: 1. Select the contact to be edited. 2. Press to view the options menu. 3. Select Edit contact. 4. Edit the contact information. info@satlink.es...
Page 142
1. Select the contact to be viewed. 2. Press to view the options menu. 3. Select View number. 4. The contact information is displayed on the display. 5. Press to close the displayed information. Calling a Contact Follow these steps to copy a contact: ww.satlink.es...
Page 143
1. Select the desired contact. 2. Press to view the options menu. 3. Select Options. 4. Press to display the contact information. 5. Select Forward message. 6. Press to view the options menu. 7. Select Send to forward contact details. info@satlink.es...
Page 144
The Log menu allow you to monitor information about phone calls and data usage: Missed calls Received calls Dialed calls Clear call listings Check call/data usage You can filter the log to view just one type of event and create new contact based on the log information. ww.satlink.es...
Page 145
Delete calls Save Terminal Call Send Send Save Clear Dialled Delete calls Save Terminal Call Send Send Save Clear Clear Missed calls call lists Received Dialled calls All calls Call/Date Last calls usage Total calls Last Data Total Data info@satlink.es...
Page 146
• Total call: Shows the total duration of all the calls. Check the approximate amount of data sent and received. • Last data: Show total data transmitted during the last data con- nection. • Total data: Shows the combined total of data transmitted. ww.satlink.es...
Page 147
Speed Dial The Telephony menu provide the following options to configure the call settings for the FB250 UE: Caller ID Port settings Speed Dial Caller ID You can select between USA standard caller ID or Europe standard caller ID. info@satlink.es...
Page 148
3.1KHz audio is expected to be significantly higher than that of the standard voice call. Operation of multiple Voice/Fax equipment connected to the Terminal When all the voice/fax ports (PHONE port, FAX port, RJ45 port for Primary Handset and the Extension PHONE port) are connected with ww.satlink.es...
Page 149
FB250, then all the equipment connected to the ports which are configured to receive incoming calls using 3.1KHz/fax will ring. If a fax machine is connected to the FAX port of Satlink FB250 and if the port is enabled for incoming call, then it will connect and receive the incoming fax.
Page 150
No voice calls allowed Fax Options High Quality Allow only High Quality voice/fax calls Incoming None No voice call is allowed through this port High Quality Allow only High Quality voice/fax calls Outgoing None No voice call is allowed through this port ww.satlink.es...
Page 151
For ex- ample, if “2” is assigned for speed dial to a name (e.g., John) from the phone book, then dialing “2” followed by will dial the contact John. info@satlink.es...
Page 152
The Data menu provide the following options to manage and con- figure data connections (PDP profiles) for the FB250 UE: Primary Secondary Status PDP Context PDP Context refers to Packet Data Protocol context, which is a log- ical association of packet data connection. ww.satlink.es...
Page 153
• Secondary PDP contexts may have different quality of service set- tings Satlink FB250 supports 1 Primary PDP context and at most 10 sec- ondary PDP contexts. Primary or Secondary PDP context can be either Standard IP connection type or Streaming IP connection type.
Page 154
So, it is recommended not to keep it connected when it is not in use. Satlink FB250 supports at most 1 streaming connection of 128kbps, 2 streaming connections of 64kbps each or 4 streaming connections of 32kbps each or any other combinations which add up to a maximum of 128kbps.
Page 155
5. Select the desired option [Standard/32, 64 o 128 Streaming]. 6. Select Edit to edit the selected profile. Deleting a profile Follow these steps to delete a profile: 1. Select Managing profiles. 2. Press to confirm your selection. 3. Select either Primary or Secondary option. info@satlink.es...
4. Press to confirm your selection. MESSAGING MENU The Messaging menu provide the following options: Create new SMS Manage Inbox folder Manage Sent folder Manage Draft folder Configure Message service number Configure message validity Check memory status Delete ww.satlink.es...
Page 157
Messaging Sub-Menu Structure (1) Send message Save Clear Inbox Open Reply Delete Forward Call Add to contact Save Details Reply Send Save Clear screen Delete Send Forward Save Clear screen Call Add to contact Terminal Save Details info@satlink.es...
Page 158
Messaging Sub-Menu Structure (2) Open Delete Sent Send Add to contact Terminal Save Delete Send Add to contact Terminal Save Delete Draft Open Clear screen Send Add to contact Terminal Save Delete Send Add to contact Terminal Save ww.satlink.es...
Page 159
• <ABC>: Capital letters • <123>: Numbers • <abc>: Small letters • <Abc>: Initial Capital letter followed by small letters To add a number, press and hold the desired number key. info@satlink.es...
Page 160
3. Type your SMS message using the Primary Handset alpha-nu- meric keypad. 4. Select Save to save the message. 5. Press to confirm saving the message. Displaying a message Follow these steps to display a message: ww.satlink.es...
Page 161
Add to contact Adds the contact to your phone book. Save Saves the message in the SIM card. Details Gives detail about the sender and date time it was sent. Open Opens the message. 4. Press to confirm your selected option. info@satlink.es...
Page 162
The following options are available for you to manage your Draft folder: Open Opens the message. Delete Delete the message. Sent Sends the message. Add to contact Adds the number to the phone book. Save Saves the message in the SIM card. 4. Press to confirm your selected option. ww.satlink.es...
Page 163
5. Select Message validity. 6. Press to confirm your selection. 7. Select the validity time. 8. Press to confirm. Check Memory status Memory capacity depends on the SIM card provided by the Service Provider It varies from one SP to other. info@satlink.es...
It is used for both CS and PS services. Terminal IP Address: • Satlink FB250 User Equipment (UE) can be programmed with a Private IP address (called as “Terminal IP address”), which is used to send command/control over IP terminated to the UE.
Page 165
Terminal IP Terminal IP address Addr DHCP DHCP server configuration Start IP End IP Primary DNS Secondary DNS Lease time Satellite selection AUTO Satellite I-4 Asia Pacific Satellite status I-4 EMEA I-4 Americas BGAN Coverage MAP BGAN Satellite Coverage Areas info@satlink.es...
BGAN service across the globe is covered by three of Inmarsat’s “I4” satellites namely, I-4 Americas, I-4 EMEA and I-4 Asia Pacific. “Satellite Selection” in an option in the Satlink FB250 terminal, which allows user to select his/her preferred satellite for terminal op- eration.
Page 167
Hardware version Manufacturer Own number ADU serial number Info Terminal restart Factory Enter password reset Signal Strength Signal Strength here refers to the Received RF signal power level from the Satellite. At different stages, the terminal will be receiving dif- info@satlink.es...
Page 168
GPS fix (2D or 3D). Terminal Info Following information will be available under this Terminal Info option: Manufacturer Name. Handset Software Version. Terminal Model (e.g., Satlink FB250). IMEI Number. IMSI Number. Own Number (Terminal’s own number for standard voice call). Terminal’s Serial Number.
There are three options available for selection to manage the PIN and security settings for the FB250 UE: Enable – Activates PIN/security settings use. Disable – Disables PIN/security settings use. Change – Changes the PIN/security settings to a new one. info@satlink.es...
Page 170
Sim PIN2 Enable Disable Change Enable Sim lock Disable Change Service Enable provider Disable Change Enable Corporate Disable Change Security Settings There are a number of security settings available to protect the ter- minal from mis-use by unauthorized people. ww.satlink.es...
Page 171
SIM LOCK This is used to pair the Satlink FB250 terminal with a SIM card. Once the terminal is “SIM LOCK”ed to a particular SIM card using a six digit PIN, then the terminal will work only with this particular SIM card.
Page 172
Personalization” using the same PIN used to lock it. Please contact your Distributer if you encounter any problem associated with PIN handlings. PHONE MANAGER MENU The Phone Manager menu provide the following options to config- ure and customize the Primary Handset: ww.satlink.es...
Page 173
15 seconds 30 seconds 45 seconds 1 minute Tone Standard tone Keytone Enable Disable Message tone Enable Disable Volume Ring tone Tone Standard 1 Standard 2 Volume Language English Spanish Factory reset Software version About Hardware version Technical Support Copyright info@satlink.es...
Page 174
Unlike the Factory Reset option available on the WebConsole which will reset all the system configurations and user data to default values, the Factory Reset option on the Primary Handset will reset all the sys- tem configurations and user data except the following: ww.satlink.es...
Page 175
RTSP over TCP RTSP over UDP MMS over TCP MMS over UDP HTTP (Currently disabled. If required, can be enabled) Ports RTSP sobre TCP (554) RTSP over UDP (5004.5005) Range MMS over TCP (1755) MMS over UDP (1024.5000) Range HTTP (80) info@satlink.es...
Page 176
TFT on the same APN) Protocols RTSP over TCP RTSP over UDP HTTP (currently disabled. If required, can be enables Ports TCP (21.22) Range RTSP over TCP (7070.7071) Range RTSP over TCP (8000.8050) Range RTSP over UDP (7070.7071) Range HTTP (80) ww.satlink.es...
Page 177
22.23 (This range must not be used with any Precedence Index other active TFT on the same APN) 24.25.26.27 (Extra range for further requirements. This range must not be used with any other active TFT on the same APN) Protocols Ports UDP (1700.4199) Range info@satlink.es...
3. Type http://192.168.1.35 in the Address field and press Enter. The Login screen appears. 4. Type in admin in the Username field and satlink in the password field. Click OK. 5. The FB250 UE Web Console will appear on your screen.
Terminal Inbox Selection Histoy Profiles Info Secondary Sent Ethernet Profiles Draft Port Forwarding Telephony Settings Admin Support Status Indicators These icons indicate the status of FB250 UE. Clicking on these icons gives you a shortcut to the desired menu. info@satlink.es...
Ethernet icon: Click on this icon to launch the LAN configura- tion page. SETUP MENU Viewing Terminal Information Clic Click Terminal Info to view the FB250 UE terminal information. The terminal information is displayed according to the Satellite Tracking mode. ww.satlink.es...
Page 181
Follow these steps to change your satellite selection: Clic Click Satellite Selection to view the visible satellites. The visible satellites will be displayed for your selection. It also displays the satellite information that your ADU antenna is locked on to. info@satlink.es...
Page 182
You can make send SMS directly from your Phonebook entries. The Phonebook entries can be stored on the SIM card or the FB250 UE. Call History To check on the history log of calls made and received. ww.satlink.es...
Page 183
Total number of entries available = 150 Adding a new Phonebook entry Follow these steps to add a new Phonebook entry: 1. Click Add. 2. Enter the Name and Phone number. 3. Select the storage location and click Save. info@satlink.es...
Page 184
4. Click Apply. Deleting a Phonebook entry Follow these steps to delete a Phonebook entry: 1. Select the entry from the Phonebook list. 2. Click Delete. 3. Click Ok to confirm to delete the entry. Click Cancel to abort delete. ww.satlink.es...
Page 185
1. Select the entry from the Phonebook list. 2. Click Send SMS. The Phonebook console switches over to the Compose SMS con- sole. 3. Type in the text message and click Send. 4. Click Refresh to refresh the Phonebook list. Call History info@satlink.es...
Page 186
Follow these steps to delete a Call History entry: 1. Select the entry from the Call History list. 2. Click Delete. 3. Click Ok to confirm or click Cancel to abort deleting the entry. 4. Click Refresh to refresh the Call History list. ww.satlink.es...
Page 187
Follow these steps to compose a new SMS: 1. Enter the receiver’s phone number in the Phone no. field or click the Phonebook icon if the receiver’s number is listed in the Phonebook 2. Type the message in the text editor box. info@satlink.es...
Page 188
To save an unsent SMS, click Save and the unsent SMS will be saved in Draft. To clear the typed message on the text editor, click Clear. Inbox Shows the details (Sender information, Message, Date and Time stamp) of all SMS received. ww.satlink.es...
Page 189
Forwarding an SMS Follow these steps to forward an SMS: 1. Click on a SMS to select it. The selected SMS will be highlighted in light blue. 2. Click Forward. The Inbox console switches over to the Compose console. info@satlink.es...
Page 190
Follow these steps to delete multiple SMS from the Inbox list: 1. Select the message by checking the checkboxes beside each SMS. 2. Click Delete. 3. Click OK to confirm the delete, or Cancel to abort the delete. Click Refresh to refresh the Inbox list. ww.satlink.es...
Page 191
2. Click Resend. The SMS will be sent to the recipient. Forwarding a sent SMS Follow these steps to forward a sent SMS to another recipient: 1. Click on a SMS to select it. 2. Click Forward. The Sent console switches over to the Compose console. info@satlink.es...
Page 192
Follow these steps to delete multiple SMS from the from the Sent list: 1. Select the message by checking the checkboxes beside each SMS. 2. Click Delete. 3. Click OK to confirm the delete, or Cancel to abort the delete. Click Refresh to refresh the Sent list. ww.satlink.es...
Page 193
1. Click on a SMS to select it. 2. Click Forward. The Draft console switches over to the Compose console. 3. Enter the receiver’s number in the Phone No. field. 4. Click Send to forward the SMS. The SMS will be forwarded to the recipient. info@satlink.es...
Page 194
Follow these steps to delete multiple SMS from the Draft list: 1. Select the message by checking the checkboxes beside each SMS. 2. Click Delete. 3. Click OK to confirm the delete, or Cancel to abort the delete. Click Refresh to refresh the Draft list. ww.satlink.es...
Page 195
DATA MENU Data menu provide the following options: Connection Primary Profiles Secondary Profiles Port Forwarding Settings Connection To activate the default profile, click Activate Default Profile. The PDP context will be activated. info@satlink.es...
Page 196
• Secondary PDP contexts may have different quality of service settings Satlink FB250 supports 1 Primary PDP context and at most 10 sec- ondary PDP contexts. Primary or Secondary PDP context can be either Standard IP connection type or Streaming IP connection type.
Page 197
So, it is recommended not to keep it connected when it is not in use. Satlink FB250 supports at most 1 streaming connection of 128kbps, 2 streaming connections of 64kbps each or 4 streaming connections of 32kbps each or any other combinations which add up to a maximum of 128kbps.
Page 198
By default, the APN from the SIM will be selected. Follow these steps to change the Access Point Name (APN): 1. Select User Defined. 2. Enter the new APN in the field space provided (e.g. bgan in- marsat.com). 3. Enter the username and password if required. ww.satlink.es...
Page 199
2. Select the Minimum Rate(minimum that user can accept;if de- sired rate cannot be allocated by network): 32k, 64k or 128k. 3. Check the Error Correction checkbox if it is required to use Error Correction. Enabling error correction should only be enabled under high interference environments. info@satlink.es...
Page 200
Follow these steps to set the Streaming Parameters: 1. Select the Desired Rate: 32k, 64k or 128k. 2. Select the Minimum rate (minumum that user can accept; if desired rate cannot be allocated by network): 32k, 64k ó 128k. ww.satlink.es...
Page 201
Click Activate Profile to activate the selected profile. Port Forwarding Port Forwarding is a feature for Router (multiple-user) mode. This feature sets the FB250 UE to direct incoming traffic on certain TCP/UDP port to a specific port on a local PC (IP Address). info@satlink.es...
Page 202
(For example, the user expecting HTTP traffic, the port is 80). 3. Enter the Destination IP Address. (For example, the IP Address of the PC that is connected to the FB250 UE). 4. Select the Protocol type: TCP (e.g. for HTTP, it will be TCP) ww.satlink.es...
Page 203
2. Check the Auto Reconnect checkbox if it is required to get the standard IP primary connection to be reconnected automatically in the event the connection is disconnected without user inter- vention. 3. Click Update to allow the selection to take effect. Click Refresh to query the current mode. info@satlink.es...
Page 204
This feature only works with standard connection to prevent streaming connections opened without user been alerted. SETTINGS MENU Click the following tabs to view and edit the configuration settings for the FB250 UE: Language Terminal Info Terminal Ethernet Telephony Misc Support ww.satlink.es...
Page 205
Call Logs. Information Displays information about the Manufacture ID, Software ver- sion, Model ID, IMEI number, IMSI number (only when a SIM card is inserted), Subscriber number and ADU serial Number. Logs Displays event and error logs of the UE. info@satlink.es...
Page 206
Displays the call history including standard voice calls, high- quality/fax calls, standard data sessions and streaming data ses- sions. Ethernet Ethernet 1. Click Ethernet to view and edit the Ethernet settings. 2. Click Update to allow the settings to take effect. ww.satlink.es...
Page 207
(MAC addresses) listed in the Reject List. Allow List All PCs/Laptops will be denied access to the UE except for those (MAC addresses) listed in the Allow List. When selecting this list, at least one entry should be there to access the UE. info@satlink.es...
Page 208
All analog phones, compliant to ETSI standard, connected to the RJ11 ports, will be able to receive and display Type-I Caller- 4. Click Update to allow the settings to take effect. Port Configuration Refer to Chapter 5 about how using different devices. ww.satlink.es...
Page 209
FAX port is exclusively for connecting to FAX machine. Follow these steps to configure the ports using the Web Console: 1. Start the Web Console. 2. Click on Settings icon. 3. Click on Telephony submenu. 4. Click on port configuration on submenu information area. info@satlink.es...
Page 210
If you configure ‘Incoming Call’ port as 3.1 kHz high quality voice/fax call then incoming fax will make that telephone ring. Satlink recommends using 3.1 kHz high quality voice/fax call option only for FAX communications. The Security Settings menu provide the following options to man- age the PIN and security settings for the FB250 UE: 1.
Page 211
SIM LOCK This is used to pair the Satlink FB250 terminal with a SIM card. Once the terminal is “SIM LOCK”ed to a particular SIM card using a six digit PIN, then the terminal will work only with this particular SIM card.
Page 212
1. Click Terminal PIN to configure the Terminal PIN settings. 2. Select Disabled if you do not need to set the Terminal PIN. 3. Select Enabled to set the terminal PIN. 4. Enter the PIN number in the Enter PIN filed and click Update PIN. ww.satlink.es...
Page 213
2. Select Disabled if you do not need to set the SIM PIN2. 3. Select Enabled to set the SIM PIN2. 4. Enter the PIN number in the space provided and click Update PIN. Follow these steps to change the PIN Password: info@satlink.es...
Page 214
1. Click Service Provider PIN to configure the Service Provider PIN settings. 2. Select Disabled if you do not need to set the Service Provider PIN. 3. Select Enabled to set the Service Provider PIN. 4. Enter the PIN number in the space provided and click Update PIN. ww.satlink.es...
Page 215
3. Select Enabled to set the Corporate PIN. 4. Enter the PIN number in the space provided and click Update PIN. To change the SMS service Center Address number, enter the new number in the space provided and click Update. info@satlink.es...
Page 216
Doing so will corrupt the existing firmware loaded onto the FB250 UE. Before upgrading the FB250 with the new firmware, please read through the release notes that is provided with the new firmware. ww.satlink.es...
Page 217
WAITING FOR TERMINAL TO REBOOT INTO SAFE MODE • Select the downloaded new firmware and click Start. Firmware upgrade will take approximately 10 to 12 min- utes to complete. You will be prompted with the Result: Firmware Upgrade Completed message. info@satlink.es...
Page 218
• Click Reboot Terminal to reboot the FB250 UE. • Reboot Terminal If you wish to reboot the FB250 UE, click Reboot Termi- nal. Click Reboot and wait for a few minutes to allow the ww.satlink.es...
Page 219
To save the recent changes, click Save Now. • Support Display information of the support telephone number, sup- port email address, Support URL and Services URL. (The information shown are for sample purpose only.) {Satlink to Provide the information}. info@satlink.es...
The Primary Handset must only be connected to the dedicated HANDSET connector on the BDU. 4. Ethernet (LAN) Ports: 4 x RJ45 connectors for DATA. The BDU has four Ethernet (LAN) connectors (RJ45) with 2 of them supporting the Power over Ethernet (PoE). ww.satlink.es...
Similarly, for an incoming fax/high quality voice call, all ports con- figured for ‘Incoming call’ as “3.1 kHz high quality voice/fax call” will ring, regardless of whether the connected device is a fax machine or a standard analog phone. FAX port is exclusively for connecting to FAX machine. info@satlink.es...
Page 224
3. Click on Telephony submenu. 4. Click on port configuration on submenu information area. 5. Click on the Service Type list of the port you want to modify. 6. Click on Update. 7. To perform additional changes, repeat steps 5 and 6. ww.satlink.es...
If you configure ‘Incoming Call’ port as 3.1 kHz high quality voice/fax call then incoming fax will make that telephone ring. Satlink recommends using 3.1 kHz high quality voice/fax call option only for FAX communications. USING A FAX MACHINE FAX in the FB-250 UE works in the same way as they do through a telephone line.
Course Over Ground and Course and speed information Ground Speed relative to the ground. Recommended Minimum Time, date, position, course Specific GNSS Data and speed data. Time & Date UTC, day, month, year and local time zone. ww.satlink.es...
