Summary of Contents for Evido EAD-B1000

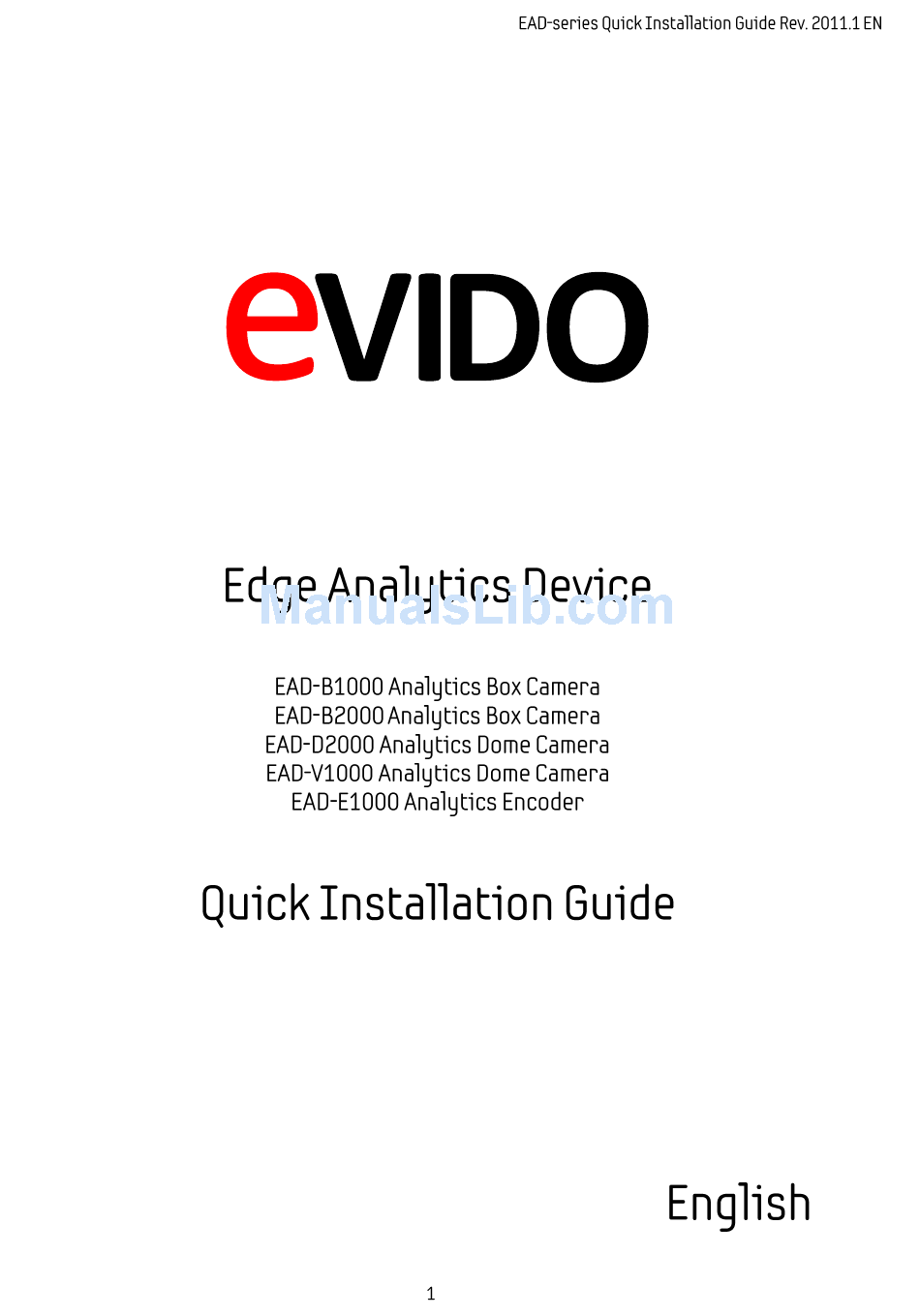

- Page 1 Video Surveillance Systems...
- Page 2 Connect each cable to the device. To see the correct positions of all connectors, refer to the following image: LOOP OUT RESET RS-485 DO AUDIO C 1 C 1 Out In RESET Button Micro SD ETHERNET DC 12V (For IRIS LENS) Power Adaptor Connector (DC 12V) SET SCREW Set Screw...
- Page 3 Connect each cable to the device. To see the correct positions of all connectors, refer to the following image: RESET Button DC 12V Power Adaptor Connector (DC 12V) SET SCREW Make sure the polarity is correct. Incorrect connection may cause malfunction or damage to the device.
- Page 4 Manual adjustment for 3-axis movements Before installation, make a manual adjustment on the inner liner. Perform 3-axis movements manually by turning the inner liner to different directions as above, and check if it moves properly. Connect the LAN cable and power supply cable with the camera.
- Page 5 Connect each cable to the device. To see the correct positions of all connectors, refer to the following image below. DC 12V Reset Button * Models herein and their appearance are subject to change without any prior notice. Power Adaptor Connector (DC 12V) Make sure the polarity is correct.
- Page 6 Connect required cables to the device including the power cable, LAN cable, and other optional cables. To see the correct positions of all connectors, refer to the following image below. LAN Cable Power Cable (DC 12V) Reset Button LEDs Make sure the polarity is correct. Incorrect connection may Power Adaptor Connector (DC 12V) cause malfunction or damage to the IP device.
- Page 7 Place the installation template that is provided in the package on the desired position of installation. Attach the waterproof silicon band on the bottom plate of the device. Drill three holes on the template and insert anchor blocks into the holes. Fasten the camera with screws.
- Page 8 1) Remove the dome cover. 2) Adjust the lens to the desired position by manually moving its body in the following directions. After adjustment, fasten the screw of the rotation axis. B. Left or right movement of A. Clockwise movement of C.
- Page 9 Connect each cable to the device. To see the correct positions of all connectors, refer to the image below. VIN a VIN LA LAN RESET Button DC 12V * Models herein and their appearance are subject to change without any prior notice.
- Page 10 The default IP address of your EAD-device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation. If the network segment is different between your PC and the device, change your PC’s settings as below.
- Page 11 View the live video on a web page using your EAD-device and its IP address. To have the correct IP address ready and use it on a web page: Convert a MAC address to an IP address. Refer to the Hexadecimal-Decimal Conversion Chart at the end of this manual.
- Page 12 To change the IP address, please make sure to check and have the correct Subnet mask and Gateway ready. To use DHCP, select Obtain an IP address via DHCP. To learn how to set up the web page for advanced configuration, refer to the User's Manual, which can be downloaded from www.evido.info.
- Page 13 Documentation for how to connect the EAD-device in the VMS is available on www.evido.info. To learn more about the different detection licenses available, or to learn more about using other features and detection triggers of your device, refer to the manual, which is available at www.evido.info.
- Page 14 Refer to the following table when you convert the MAC address of your device to IP address.
- Page 16 Shows network related information such as MAC address Updates firmware Reboots the device IPAdminTool is available for download at www.evido.info. Reset can be carried out as follows: 1. While the device is in use, press and hold the Reset.
