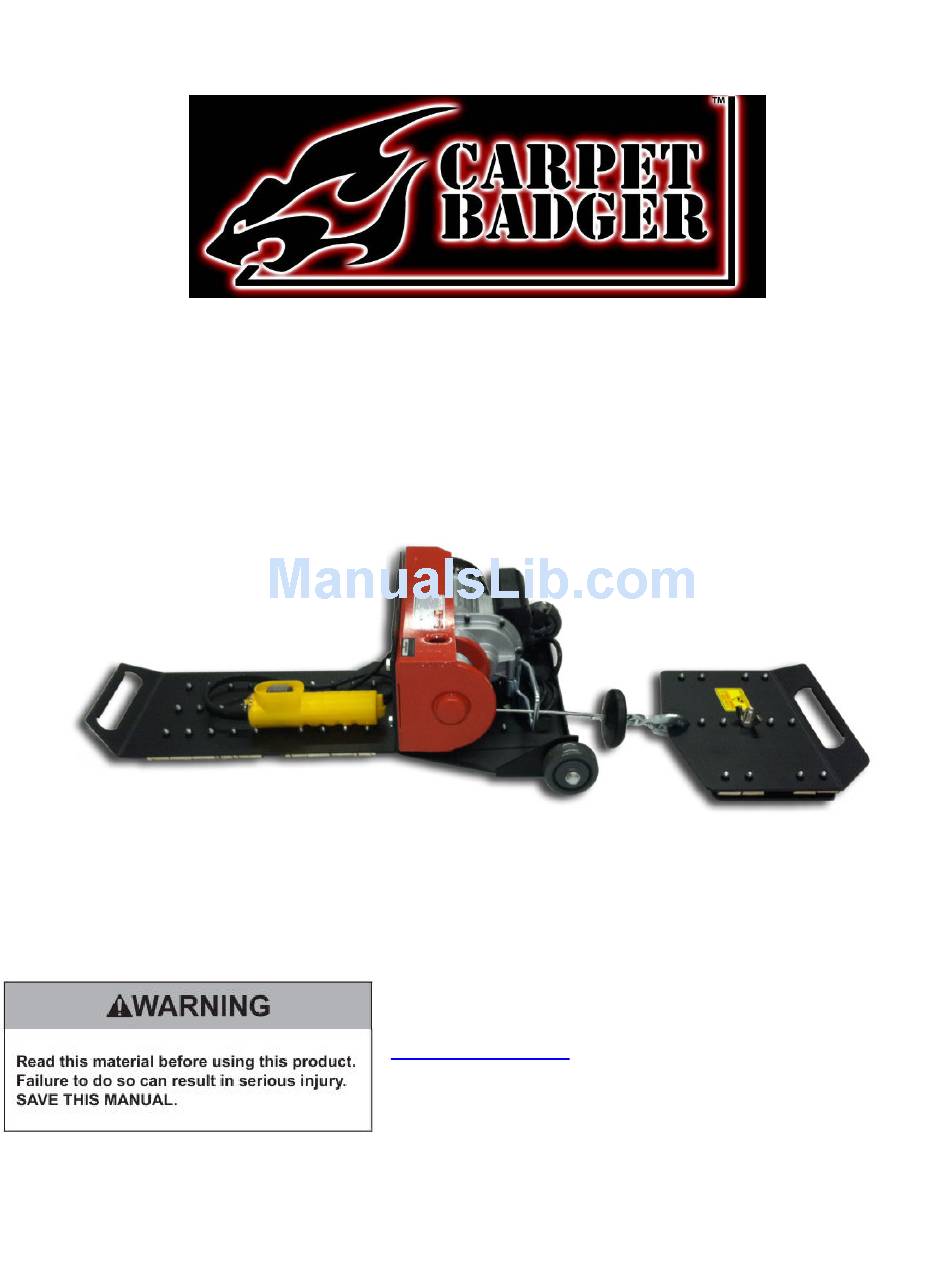

User Manual
Flooring Removal Machine
(
Patent Pending)
Maintenance and Operating Instructions
Copyright 2012 by Carpet Concepts LLC. All Rights Reserved. For
technical
questions
or
replacement
parts
please
visit
www.carpetbadger.com
No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without
the express written consent of Carpet Concepts LLC.
1
Advertisement
Table of Contents
Summary of Contents for Carpet Badger Flooring Removal Machine
- Page 1 User Manual Flooring Removal Machine Patent Pending) Maintenance and Operating Instructions Copyright 2012 by Carpet Concepts LLC. All Rights Reserved. For technical questions replacement parts please visit www.carpetbadger.com No portion of this manual or any artwork contained herein may be reproduced in any shape or form without...
- Page 2 Work Area 1. Keep work area clean and well lit. 2. Do not operate power tools in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. 3. Keep bystanders and visitors away when operating machine. Distractions can cause you to lose control. Protect others by using common sense.
- Page 3 Operating Instructions Remove pull plate and restrictor plate from base of machine. Put rubber mat aside for later use. FIG 1 • Setup base in corner of room being removed, and plug unit into a grounded wall outlet. • Cut carpet into 3 foot widths across the room. •...
- Page 4 Use hand control switch to extend line out to pull plate assembly and put hook through small hole on pull plate. (This is easily achieved by having an assistant walk hook out to pull plate as another person is controlling machine.) ALWAYS us hook hole and NEVER use handle side for hooking onto.
- Page 5 If machine is pulling load and stops, due to heavier adhesives on carpet, IMMEDIATELY stop machine and allow for tension in the line and cut carpet into smaller strips. Some adhesives are stronger than others. Do not overwork the motor by trying to take up carpet with strips wider than machine will pull. Cut into manageable strips according to strength of adhesive on carpet.
- Page 6 Limited 90 Day Warranty Carpet Concepts, LLC warrants, to the original purchaser, that product is free from defects in materials and workmanship for the period of 90 days from date of purchase. This warranty does not apply to damage due, directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations performed outside our facilities, normal wear and tear, or to lack of maintenance.
