USERMANUAL
SCB-12
Version 1.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCB-12 and is the answer not in the manual?

Questions and answers

Related Manuals for WolfVision SCB-12

Summary of Contents for WolfVision SCB-12

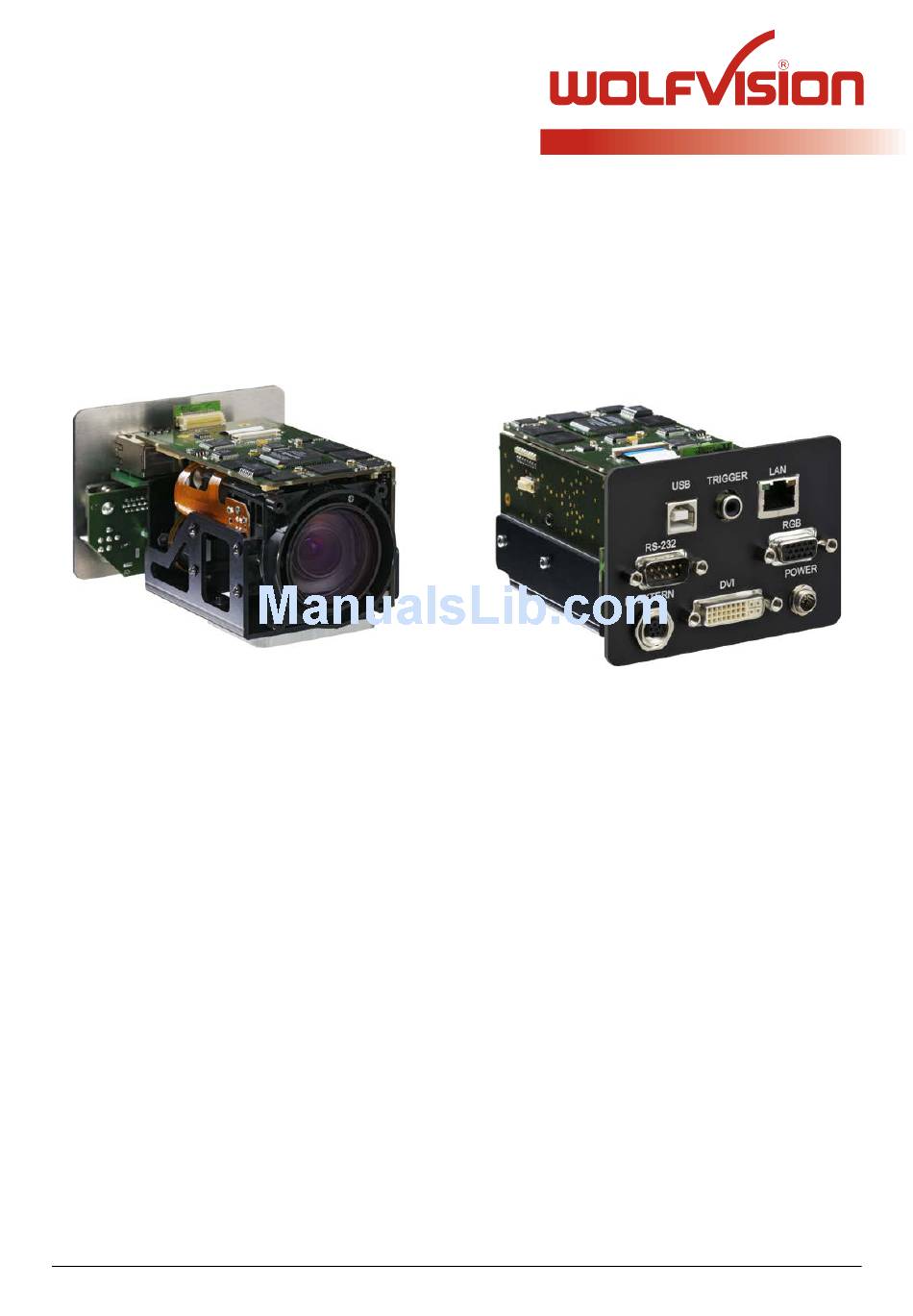

  • Page 1 USERMANUAL SCB-12 Version 1.5...

  • Page 2: Table Of Contents

    Preset Function ......................... 19 White Balance ........................... 20 Image Memory for 9 images ...................... 21 Freeze ............................21 Image Turn Mode ........................22 Working with the SCB-12 ......................23 Connections ..........................24 DVI-I ............................24 RGB ............................24 Power Plug ..........................24 RS-232 ............................
  • Page 3 Dead on arrival (DOA) ......................70 16.3 Not covered by warranty ......................70 16.4 Transit damage or loss: ......................71 Disposal of old WolfVision units ................... 72 17.1 In the European Union ......................72 17.2 Outside of the European Union ....................72...

  • Page 4: Copyright Information

    Date of printing October 2011 About this user manual This user manual explains the SCB-12 and all of its contents. Please keep this user manual for later reading. When selling the SCB-12 please give this user manual to the next owner.

  • Page 5: Symbols In This Manual

    Information Marks in this manual Symbols in this manual Position numbers are written in bold, italic characters and marked with the symbol "#", i.e. #1 for connections. Safety information is marked with corresponding pictographs and the instruction sequences are marked with the symbol "". The word Danger indicates possible serious personal injury.

  • Page 6: Precaution

     If there is any abnormality (abnormal noise, smell, smoke etc.) disconnect the unit from mains immediately and contact your WolfVision dealer!  Avoid installing the unit in environments where there is radiation.  Avoid installing the unit in locations exposed to strong magnetic fields or electrical currents.

  • Page 7: Labels On The Remote Control (Optional)

    λ = 635 - 680nm P < 1mW Θ ≤ 2mrad Approval marks on the unit As the SCB-12 is a camera module for OEM-customers it has no FCC or CE approvals. The customer is responsible for FCC, CE and other necessary ap- provals.

  • Page 8: Contents Of Packaging

    • SCB-12 • Quick manual all signals will be provided through JST and Molex-connectors. SCB-12 Test set Following accessories are included with the SCB-12 Test set: • Interfacing board for SCB-12 • Lockable power connector • BNC-RCA adapter for trigger input •...

  • Page 9: Features

    The SCB-12 has a high quality lens with 12x optical zoom and 4x digital zoom. The camera module has an auto focus and manual focus, auto iris and manual iris and motorized zoom.
  • Page 10 Pin assignment Camera 3.1.2 Picture Size / Distance Camera to Object (examples) Measurements in mm Length x Wide smallest smallest Distance picture with largest picture with in mm 2x digital picture optical zoom zoom 22 x 30 44 x 59 392 x 522 28 x 37 55 x 73...
  • Page 11 Camera Pin assignment 3.1.3 Online Calculation Program (Java) A very easy method to calculate the exact positioning and the pos- sible image sizes of the SCB-12 is the dedicated calculation pro- gram on WolfVision's homepage: www.wolfvision.com/wolf/indexdistance.html Version 1.5...

  • Page 12: Pin Assignment

    Pin assignment Camera Pin assignment For more details regarding the connectors please contact WolfVision Headquarter at support@wolfvision.com Keep cable connections as short as possible to prevent interfer- ences. Left side Key panel connector (type: ZIF_12_RM1_0) pin1 KYP_AF-LED pin2 KYP_ROW1 pin3...

  • Page 13: Rear

    Camera Pin assignment Rear Signal connector (type: 60PS-JMDSS-G-1-TF) pin1 pin2 IR_Data pin3 LED- pin4 LED+ pin5 RS232_RX pin6 RS-232_TX pin7 pin8 DVI_HP_DETECT pin9 DVI_I2C_D pin10 DVI_I2C_C pin11 pin12 VGA_I2C_D pin13 VGA_I2C_C pin14 pin15 VGA_R pin16 DVI_R pin17 pin18 VGA_G pin19 DVI_G pin20 pin21...

  • Page 14: Bottom

    Pin assignment Camera Bottom Infrared receiver connector (type: S5B-ZR) pin1 +5VDC pin2 pin3 pin4 LED_C pin5 LED_A Keep cable connections as short as possible. IR-receiver Vishay TSOP 38xx will be preferred. Version 1.5...

  • Page 15: Interface Board (Optional)

    Test set Pin assignment - Interfacing board Interface Board (optional) The interface board is included in the SCB-12 Test set or optional available. RS-232 for controlling purposes, see page 24 for image transfers to the computer and for controlling, see...

  • Page 16: Infrared Remote Control

    IR Remote Control Test set Infrared Remote Control #12 ZOOM keys Using the ZOOM keys also switches auto iris on again. #13 PRESET keys (user programmable presets) For storing a preset, press one of the PRESET keys for more than 2 seconds. For recalling a preset, press the PRESET key quickly (see page 19).
  • Page 17 #24 Manual IRIS keys (brightness adjustment) When the IRIS keys are pressed, the SCB-12 switches off the auto iris function. The next time the ZOOM keys are used the auto iris is switched on again.

  • Page 18: Functions

    The default setting displays a message on-screen when you are in the digital zoom mode. Still pictures in the memory can also be digitally zoomed. You can change the behavior of the SCB-12 in the digital zoom mode in the on-screen menu (see page 29ff). Auto Iris / Manual Iris The SCB-12 is equipped with an auto iris function.

  • Page 19: Preset Function

    Functions Basic functions Preset Function The SCB-12 offers the possibility to store the current settings as a preset and recall them by just pressing the respective PRESET key (#16) on the remote control. Pressing the FREEZE key (#16) for 2 seconds recalls preset 1.

  • Page 20: White Balance

    The correct white balance adjustment is important for exact color reproduction. "Auto Tracking" is the default white balance setting when the SCB-12 is shipped. This means that the white balance is continu- ously adjusted automatically. For an exact white balance, 10% of the recorded image should be white (measurement area is in the center of the image).

  • Page 21: Image Memory For 9 Images

    Functions Special functions Image Memory for 9 images The SCB-12 has an image memory from which a stored image can be output as a still image. You can store up to 9 images in the memory. Code Storing an image: Press one of the MEMORY keys (#26) for 2...

  • Page 22: Image Turn Mode

    Zoom in on it completely, so that approx. 90% of the pixels of the built-in camera are used to pick up the docu- ment. Press the IMAGE TURN key (#22). The SCB-12 turns the picture electronically at an angle at 90º and outputs it correctly with a much higher resolution than in normal mode.

  • Page 23: Working With The Scb-12

    Note the hints in the manual of the connected display device regarding resolution and refresh rate. • Switch on the SCB-12 by pressing the power key or sending a power-on command. • By default, the SCB-12 performs the power-on preset...

  • Page 24: Connections

    The power source equipment shall comply with all applicable local (front view) and national codes related to safety. RS-232 The serial port (#4) can be used to control the SCB-12 through an external device, such as a room control system Pins: 2: RX...

  • Page 25: External Infrared (Ir) Sensor

    The fast USB 2.0 port can also output live motion. WolfVision‘s Connectivity Software can store AVI files and includes a video cap- ture driver. You can view and save the live image from the SCB-12 on your computer in almost every modern video editing software.

  • Page 26: Ethernet / Lan Port

    Ethernet / LAN Port 10BASE-T/100Base-TX The LAN port (#7) makes the SCB-12 a part of the internal com- puter network and it can be used for communication over the Inter- net, if it is assigned an official (WAN) IP address.
  • Page 27 Power over Ethernet is a popular way of saving cables and installa- tion costs. The SCB-12 is compatible with PoE power injectors or PoE switch- es (according to the IEEE 802.3af™-2003 industry standard). The supplied Voltage (in the range between 36 and 57V) will be added to a CAT-5 (or higher) Ethernet cable and the camera can receive power via the Ethernet/LAN-cable.

  • Page 28: Trigger

    7.8.2 TRIGGER MODE The SCB-12 offers a trigger input to determine the moment of im- age readout. When the TRIGGER-function is activated, the sampling time is controlled by receiving trigger-pulses (pulse with 3.3 to 40Vss; pos- itive or negative edge, selectable in the on-screen menu - see page 29ff).

  • Page 29: Osd (On-Screen Menu) Osd Help

    OSD (On-Screen Menu) OSD Help For experienced users only: For regular use of the SCB-12, it is not necessary to go into the unit's menu and change settings. Inexperienced users should not make any adjustments there. To enter the on-screen menu press the MENU key (#19) for one second.

  • Page 30: Structure And Functions Of Osd

    Structure and functions of OSD The structure of the menu depends on the installed firmware ver- sion. The shown structure conforms to the firmware version v1.20b. 8.2.1 Standard Menu SCB-12 MAIN MENU Exposure Settings Color Settings Output Settings Preset Control...

  • Page 31: Exposure Settings

    Factory setting is AUTO Iris Priority Possible settings are: • AUTO: whenever a zoom key is pressed, the SCB-12 switches Auto Iris ON. • MANUAL: Auto Iris stays disabled until the device is switched off/on or a preset with enabled Auto Iris is recalled. When a zoom key is pressed, Auto Iris stays off.
  • Page 32 • MED: compensation of back light up to 50% of the image area • HIGH: compensation of back light up to 80% of the image area Trigger function of the SCB-12 (see page 28) Extern Trigger Factory setting is OFF Possible settings are: •...
  • Page 33 Color Settings SCB-12 COLOR SETTINGS White Balance AUTO-TRACKING Color Mode PRESENTATION Mode Gamma Saturation 105% Pos/Neg/Blue POSITIVE Return Factory setting is AUTO-TRACKING White Balance Possible settings are: • AUTO-TRACKING: the white balance will be tracked permanent- ly to the picked up object/document. This can lead to wrong col- ors on some critical objects •...

  • Page 34: Output Settings

    Factory setting is POSITIVE Possible settings are: • COLOR: colored image reproduction • BLACK/WHITE: black/white image reproduction Returns to previous menu page. Return Output Settings SCB-12 OUTPUT SETTINGS Detail HIGH DVI/RGB Resolution AUTO Return DVI is: SXGA-/60Hz Sharpness / Aperture / Contrast of the displayed image.
  • Page 35 Possible settings are: • HIGH: highest contour sharpness of image with most details • MEDIUM: average contour sharpness • OFF: contour sharpness is de-activated for soft contours with fewer details. Resolution Change Output SCB-12 CHANGE OUTPUT DVI/RGB Resolution AUTO Resolution Test Cancel...

  • Page 36: Preset Control

    Preset Control SCB-12 PRESET CONTROL Recall Default Presets PRESET 1: PRESET 1 PRESET 2: PRESET 2 PRESET 3: PRESET 3 Return To set back all presets to factory default. Recall Default Presets PRESET 1, 2, 3 User definable adjustments 1, 2 and 3...

  • Page 37: Advanced Settings

    Ethernet Settings Adjusts settings of LAN interface like IP address, shows MAC ad- dress, etc. Device Info Shows details of the SCB-12 like serial number and version num- ber of the installed firmware. Date/Time Settings Adjusts date and time. Return Returns to previous menu page.
  • Page 38 Display Logo Factory setting is ON Possible settings: • ON: WolfVision-Logo "WolfVision SCB-12" will be displayed shortly when switching on the SCB-12 • OFF: the unit will start without showing the logo. Defines the behavior of the unit when connecting the power...

  • Page 39: Miscellaneous Settings

    Dig. Zoom Warning STOP Return IR remote code: Helpful when there are IR interferences in the IR Code same room as the SCB-12. Factory setting is A Possible settings: • A: IR code A • B: IR code B • C: IR code C •...

  • Page 40: Osd Settings

    • STOP: the zoom stops when reaching the digital zoom exten- sion. For further zooming in press the ZOOM TELE key again. • NONE: no action when reaching digital zoom extension. Returns to previous menu page. Return OSD Settings SCB-12 OSD SETTINGS OSD Level TALK Transparency Size SMALL Menu Hor.
  • Page 41 Transparency Transparency of OSD window background. Factory setting is ON Possible settings: • ON: background of OSD window will be displayed transparent and the image is still visible • OFF: background of OSD window will be displayed in solid color. Changes the size of the OSD window.
  • Page 42 Language SCB-12 CHANGE LANGUAGE Language ENGLISH Cancel Changes language of the on-screen menu. Language Factory setting is ENGLISH Possible settings: • ENGLISH • DEUTSCH • TÜRKÇE Change of the language will restart the on-screen menu. Confirms the selected language and returns to previous page.
  • Page 43 Ethernet Settings SCB-12 ETHERNET SETTINGS DHCP IP Address FROM DHCP-SERVER Subnet Mask FROM DHCP-SERVER Gateway IP FROM DHCP-SERVER Streaming Settings Security Settings Return IP Address 192. 168. Subnet Mask 255. 255. 255. Gateway IP 192. 168. If DHCP-server is available, set it to ON.

  • Page 44: Streaming Settings

    Streaming Settings SCB-12 MULTICAST SETTINGS Multicast IP 232. Multicast Port 8800 Streaming Mode AUTO Streaming Format Frame Rate Return Changes Multicast IP address of camera. Multicast IP Factory setting is 232.1.1.1 Possible settings are: • 225.1.1.1 to 238.255.255.255 Ask your network administrator for more details regarding the in- stalled network.
  • Page 45 26). If DHCP is de-activated, IP-address and Subnet Mask have to match the settings on the computer. Gateway IP of the SCB-12 has to be the IP address of the computer and the computers Gateway has to be the IP address of the SCB-12.

  • Page 46: Security Settings

    • 10 digits Write down the passwords and keep it securely. If you forgot the password or lost it, the access through the Ethernet/LAN port may be denied. Contact your WolfVision dealer in such case www.wolfvision.com To prevent un-authorized access. Guest Password Admin password has to be entered before any changes are possi- ble.

  • Page 47: Device Info

    Serial Number 1031707 Version V2.00d Build Number 20111012083940 Return Shows the serial number of this SCB-12 Serial Number Version Shows the version number of the installed firmware Build Number Shows date / time stamp of the installed firmware (built number). Return Returns to previous menu page.
  • Page 48 Date/Time Settings SCB-12 DATE / TIME SETTINGS Time Source INTERNAL Timezone Date Format DDMMYYYY/24H Date FROM DHCP-SERVER Time Return Select if time is in free running mode or synchronized with a time- Time Source server. Daylight saving time/standard time will be changed auto- matically by selected timezone.
  • Page 49 Returns to previous menu page. Return Recall Default Settings SCB-12 AUTO PRESET Are you sure? Cancel Select YES to reset all Settings to factory default. Settings regard- ing output and communication are not affected (like resolution, IR code, baudrate, IP address).
  • Page 50 Start Quick Setup Guide After first power-on, the Quick Setup Guide will be started automat- ically. SCB-12 QUICK SETUP GUIDE Adjust language used in the OSD menu. Setup Language Next Select “Setup Language” to select the desired language (limited different languages are available). – see page 42 Select Next to skip this point.
  • Page 51 SCB-12 QUICK SETUP GUIDE You have successfully finished the Quick Setup Guide. Go to the OSD menu if you want to start over. Finish and Exit Select “Finish and Exit” to complete the Quick Setup Guide. To abort, press the MENU key and the Quick Setup Guide will ap- pear on next hard-power-on again.
  • Page 52 8.2.2 Extra Menu Enter the extra menu by keeping pressed the MENU key for 4 se- conds. SCB-12 SCB-12 V1.30c Extra Menu Baud Rate 115200 Number of IR codes Mounting Position REGULAR Pixel Calibration Noise Suppression Reset Admin Password Exit Speed of RS-232 port.
  • Page 53 Return Select “Setup Language” to select the desired language (limited different languages are available). – see page 42 Select Next to skip this point. If the Admin password is lost or forgotten, contact your WolfVision Master Password dealer – www.wolfvision.com –...

  • Page 54: Resolution And Refresh Rate

    RGB (#8) and DVI output (#10) and automatically sets the op- timal output mode for each connected device separately. Please note that the SCB-12 cannot check the possible resolution, if the connected units or the cables* are not "Plug and Play" compatible.
  • Page 55 Do NOT set the output of the SCB-12 to a higher standard than the native resolution of your display unit! If you output the SCB-12 image on a CRT monitor or CRT projec- tor, use an output mode with 75 or 85Hz, because 60Hz may show a slight image flickering.

  • Page 56: Maintenance

    12 and the infrared remote control, and weak batteries, interfere with reception. If the SCB-12 can only be controlled from a close distance, or if it cannot be controlled at all with the infrared remote control, you may have to change the batteries.

  • Page 57: Cleaning

    (If need be, use a special optical cleaner only!). 10.5 Transportation WARNING Damaging the unit!  Pack the unit always in the original packaging. Ask your WolfVision dealer or WolfVision office to answer any questions. Version 1.5...

  • Page 58: Technical Specifications

    Technical Specification Technical Specifications Camera / Technology 1-CCD 1/3" Progressive Scan Pictures per second (as picked 30 fps (=full pictures) up by the camera) Effective Pixel 1280 (H) x 960 (V), 2048 x 1536 Total pixels of CCD 1,315,648 Pixels processed per second (=effective pixels x frames per 36,864,000 second)
  • Page 59 Power Requirements with power 12V DC (+/-10%), 10W supply Power Requirements with Power PoE class 0, 36-57V, Auto MDI/MDI-X, (IEEE802.3afTM-2003) over Ethernet (with WolfVision interfacing board only) Operating Temperature 0°C to +40°C Warranty 5 years Made in European Union (EU)

  • Page 60: Dimensions

    Technical Specification Dimension Dimensions Isometric view Version 1.5...

  • Page 61: Installation

    Eclipse Installation Installation 13.1 Eclipse The field of view is dependent on the zoom position of the optic: horizontal 4.4° - 45.7° vertical 3.3° - 35.1° Version 1.5...

  • Page 62: Cooling

    Damaging the unit!  Mount heat sink. For proper function some components of the SCB-12 require a heat sink. In the drawing the relevant components are solid and hatched. The use of a soft silicon gap-pad is necessary to compensate the different height of the components.

  • Page 63: Matrix For Key Panel

    Matrix for Key panel Installation 13.3 Matrix for key panel The drawing shows the matrix of the key panel for connector #1 (see page 12). Version 1.5...

  • Page 64: Recommended Positioning Of Light

    The illustration below shows the recommended position of lighting for the SCB-12. The distance from the center of the unit to the cen- ter of the light should be identical to the MAXIMUM image size (e.g.
  • Page 65 Installation Position of Light 13.4.2 Flash Animation A very easy method to find the ideal light position for the SCB-12 is the dedicated flash animation program on WolfVision's homepage: www.wolfvision.com/wolf/Eye_020.html Version 1.5...

  • Page 66: Optional Wolfvision Accessories

    Weight: Details at: www.wolfvision.com 14.3 Working surface The optional inclined working surface for the SCB-12 has a special crystalline white surface for transparencies. 435 x 325 x 40 (10) mm [17.13 x 12.8" x 1.57" (0.39)] Details at: www.wolfvision.com Version 1.5...

  • Page 67: Troubleshooting

    Troubleshooting Troubleshooting 15.1 Check Description ToDo Check Power check connect the unit to - is the power LED red illumi- mains (check main nated? switch) (depending on power set- tings in the on-screen menu) (depends on customer instal- lation) switch on the unit - is power LED green illumi- with the power key nated?

  • Page 68: Image

    Troubleshooting 15.4 Image SYMPTOM POSSIBLE CAUSE SOLUTION no image unit is in stand-by - switch on the unit by press- mode ing the POWER-key. Power indication LED has to be green. (depends on customer instal- lation) bad wiring to the - check connected cable display device display device...

  • Page 69: Connections

    Troubleshooting SYMPTOM POSSIBLE CAUSE SOLUTION wrong gamma - check gamma setting in the setting on-screen menu (Color set- tings) no color bad wiring to the - check wiring (black/white) display device wrong display set- - check display settings tings Unit is set to - check on-screen menu set- black/white tings (Color Settings)

  • Page 70: Warranty

    WolfVision will account for all spare parts and labour. In such a case all products have to be labelled with a WolfVision "Return- Merchandise-Authorisation Number"...

  • Page 71: Transit Damage Or Loss

    In the event that the receiver detects damage / loss and does not file a claim with the carrier within 48 hours, WolfVision will not be obliged to replace the product, reimburse any damage costs or any other relevant costs incurred. However, WolfVision will co-operate with the purchaser and, if possible, try to recover any incurred costs from their insurer.

  • Page 72: Disposal Of Old Wolfvision Units

    This also applies to SCB-12 electrical accessories e.g. remote control, power supply and signal cables. Dispose of the SCB-12 in accordance with local government regu- lations, contact your local WolfVision dealer or, if applicable, in accordance with a WolfVision agreement.
  • Page 73 Tel. (613) 741-9898, Tollfree 1-877-513-2002, Fax: (613) 741-3747, E-Mail: wolfvision.canada@wolfvision.com Distribution in Asia WolfVision Asia, 27 Woodlands Ind. Park E1, #01-02, Hiang Kie Ind. Bldg. IV, Singapore 757718 Tel. ++65 - 366 9288, Fax: ++65 - 366 9280, E-mail: info@wolfvisionasia.com Distribution in Japan WolfVision Co Ltd., Advance Bldg 2F, 8-1-16 Nishi Shinjuku, Shinjuku, Tokyo 160-0023...
