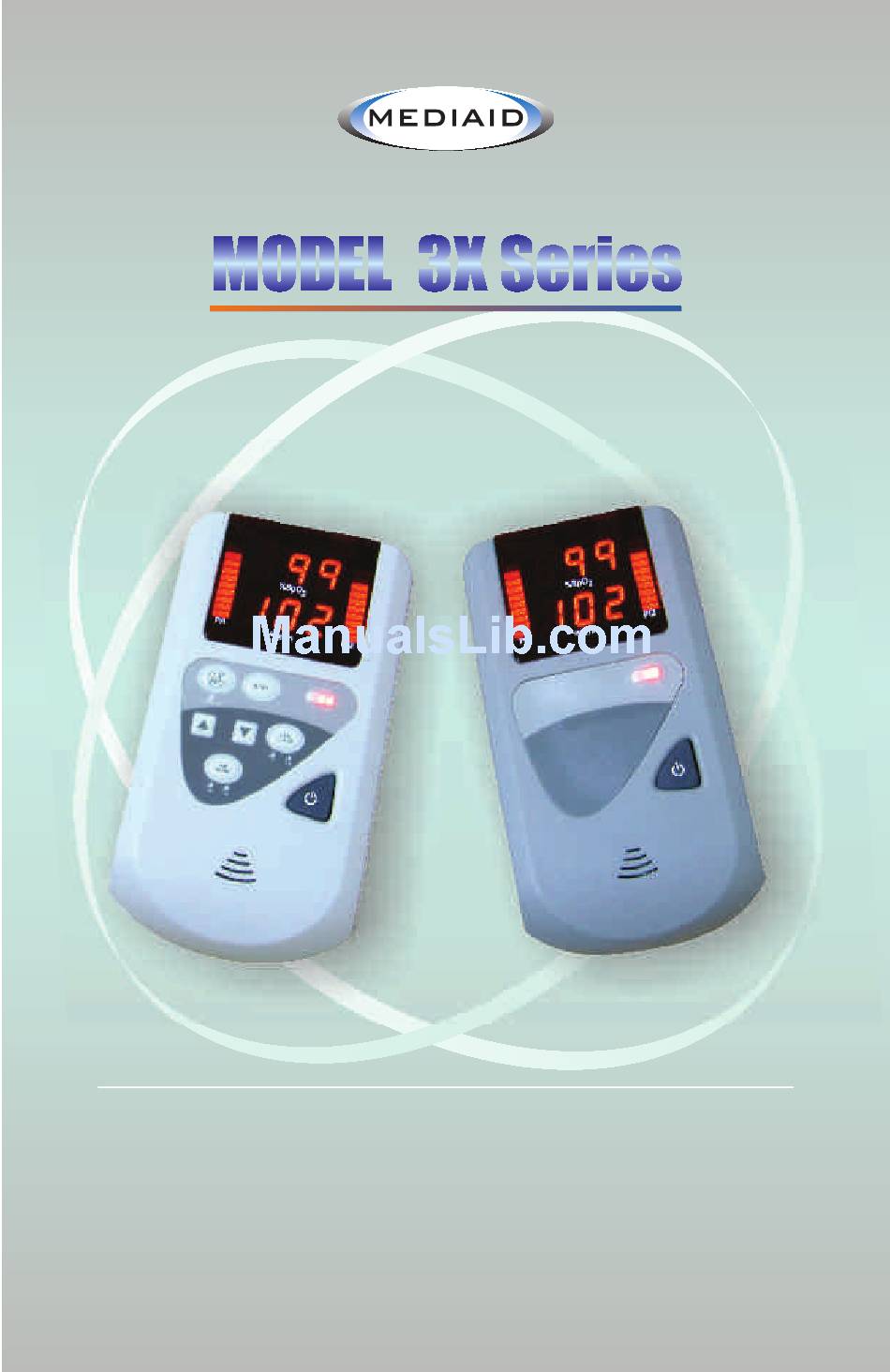

- Page 1 M M ODEL 3X Series User ’s Manual Pulse Oximeter with options for 24 hour Memory, Printer & USB / Infrared Ports MEDIAID INC. 17517 Fabrica Way Suite H Cerritos, CA 90703 USA (Tel) 714-367-2848 (Fax) 714-367-2852 Email: info@mediaidinc.com Website: www.mediaidinc.com...
- Page 3 User’s Manual Model 3X Series Pulse Oximeter with options for 24 hour Memory Printer & USB / Infrared Ports Model © 1002-60056-003 Mediaid Inc. - All rights reserved...
-
Page 5: Table Of Contents
Table of Contents Chapter 1: Principles of Operation …………………………………….. 1 Intended Uses ………………………..………………………………….. 1 Principles of Pulse Oximetry ……….…………………………………... 1 Intrinsic Calibration …….…………..……………………………………. 2 Principal Features ……………………………………………………….. 2 Cautions .…….…………………………………………………………..2 Chapter 2: Features, Indicators, Keys and Symbols ……………….. 6 Pulse Oximeter Front &... - Page 6 Cleaning…………………………………………………………………... 41 LED Display Codes (Model 34 only)………………………..……… 41 Troubleshooting ..…………………………………………………...…... 42 Error Codes………………………………………………………….…… 42 Chapter 13: Mediaid Inc. Limited Warranty ………………………….. 44 Applicability of Warranty ………………….……………………………. 44 Warranty Coverage …………………………………………………….. 44 Mediaid Inc. Problem Correction Plan .……….………………………. 44 Owner’s Registration …………………………………………………..45 Chapter 14: User References …………………………………………...
-
Page 7: Chapter 1: Principles Of Operation
It must be used in conjunction with clinical signs and symptoms. PRINCIPLES OF PULSE OXIMETRY The Mediaid Model 3X pulse oximeter is designed to measure the percentage of functional oxygenated hemoglobin to total hemoglobin. Noninvasive arterial oxygen saturation measurement is obtained by directing red and infra red light through a pulsating vascular bed. -
Page 8: Intrinsic Calibration
LED (light emitting diode) wavelengths are tightly controlled by testing in production. PRINCIPAL FEATURES The Mediaid Model 3X pulse oximeter is a portable, lightweight, pocket-sized instrument that monitors both functional arterial oxygen saturation (SpO ) and pulse rate noninvasively. - Page 9 PRINCIPLES OF OPERATION • Dispose of this instrument and its accessories according to governmental regulations. • Adhere to all cautions, stipulations, and instructions included with the sensors used. • Explosion hazard. Do not use Model 3X in presence of flammable anesthetics or gases.
- Page 10 PRINCIPLES OF OPERATION Battery Cautions • Use only Li-ion batteries specified by Mediaid. Use of any other type of battery not specifically recommended. Use of such batteries could damage the pulse oximeter. • Never dispose of batteries into fire, short-circuit the terminals, or attempt to disassemble or heat the battery.
- Page 11 PRINCIPLES OF OPERATION • Turn off very bright lights, such as surgical, bilirubin, fluorescent, or infrared heating lights if they interfere with sensor functioning. In cases where such lights are unavoidable, cover the sensor site with an opaque material. • Route sensor cords carefully.
-
Page 12: Chapter 2: Features, Indicators, Keys And Symbols
CHAPTER 2: FEATURES, INDICATORS, KEYS AND SYMBOLS PULSE OXIMITER FRONT & BACK VIEW Model 34 Model 30 Fig. 1 Model 30 Model 34 Fig. 2 PAGE... -
Page 13: Pulse Oximeter Side & Top View
FEATURES, INDICATORS, KEYS AND SYMBOLS PULSE OXIMETER SIDE & TOP VIEW DC Inlet / Battery Charger Fig.3 Fig.4 USB Port (Model 34 only) Infrared Port / Window (Model 34 only) Sensor Inlet Fig.5 PULSE OXIMETER VISUAL DISPLAY Reading Pulse Amplitude Perfusion Quality Display Bargraph... -
Page 14: Symbology & Markings
FEATURES, INDICATORS, KEYS AND SYMBOLS SYMBOLOGY & MARKINGS Definition Symbol %SpO Oxygen Saturation Percentage Heart Beats per Minute (BPM) Pulse Amplitude Indicator Perfusion Quality Indicator Power On/Off Alarm Off Key and Indicator Multi Function Key for Communication SEND Increment Key Decrement Key RATE High Pulse Rate Alarm... -
Page 15: Keypads & Definitions
FEATURES, INDICATORS, KEYS AND SYMBOLS KEYPADS & DEFINITIONS Refer respective key number below in the definitions Model 34 Model 30 1. POWER ON/OFF KEY The unit powers ON with a short depression of the POWER ON/OFF KEY. A one-second display and indicator test is performed automatically, and all the segments of Light Emitting Diodes (LEDs) will be illuminated. - Page 16 FEATURES, INDICATORS, KEYS AND SYMBOLS 2. BATTERY LEVEL INDICATOR The Battery level indicator displays the battery level in a scale of 3. If the unit is connected to external power supply for charging (irrespective of whether the unit is ON or OFF), then the level indicator glows Green and displays the charg- ing status.
- Page 17 FEATURES, INDICATORS, KEYS AND SYMBOLS RATE ALARM 6. PULSE RATE ALARM KEY Short depression of the PULSE RATE ALARM KEY toggles the LED display between the high and low alarm settings and respective HI/LO ALARM INDICATOR to glow below the key. These alarm settings can be adjusted using UP ARROW and DOWN ARROW KEYS.
- Page 18 FEATURES, INDICATORS, KEYS AND SYMBOLS SEND 9. PRINT / SEND KEY A long press of the SEND key transmits all the stored data to a computer through USB/IR or a printer through the IR port. In Auto Mode, short press of the SEND key starts storing the data in the memory and in Intermittent Mode, every short press of the SEND key stores the displayed data in the memory.
-
Page 19: Chapter 3: Initial Setup
CHAPTER 3: INITIAL SETUP UNPACKING AND INSPECTION Notify the carrier if the shipping carton is damaged. Unpack the Model 3X and components. If anything is missing or damaged, contact Mediaid Technical Support. TESTING Before using the Model 3X in a clinical setting, verify that the unit functions properly by following the instructions in the section on “Powering ON the Pulse... -
Page 20: Charging The Battery
INITIAL SETUP To replace the battery, complete the following steps. Unscrew the Battery cover on the rear of the oximeter. Disconnect and Remove the battery. Insert the new battery and attach the connector. Put back the rear cover and tighten the screw. CAUTION: While replacing battery, ensure that the proper tools are used to remove/fix the screw. -
Page 21: Powering On The Pulse Oximeter
INITIAL SETUP The Battery level indicator displays the battery level in a scale of 3LEDs. If the unit is connected to external charger for charging, then the LSB LED indicator should glow in Green and display the charging status. LSB & Middle LEDs glow, if the unit is partially charged (about 70%). - Page 22 INITIAL SETUP After the pulse oximeter is powered on, all the segments of 7 segment LED DISPLAY, BARGRAPHS are turned ON and all LEDs in the Keypad are also turned ON for about 1-2 seconds. This is as a part of self test to ensure that all display segments are functional.
-
Page 23: Powering Off The Pulse Oximeter
INITIAL SETUP The LED DISPLAY shows one of the following for 1 second: (MODEL 34 ONLY) • Ato, if the pulse oximeter is in the Automatic Recording mode. • int, and the patient number (from P01 to P 20) if the pulse oximter is in the Intermittent Recording mode. -
Page 24: Chapter 4: Monitoring And Recording
• Ambient light. • Patient movement. CAUTION: Calibration cannot be performed by the user/operator. Please contact Mediaid. CAUTION: Reusing the device/sensor without prior cleaning may result in cross contamination. Loss of pulse signal can occur for the following reasons: •... -
Page 25: Monitoring Pulse Oximetry (Model 30 Only)
MONITORING AND RECORDING MONITORING PULSE OXIMETRY (MODEL 30 ONLY) The Model 30 can be used only for spot checks. It does not have alarm, storing and retrieval of data, IR, USB features. Do not attempt to use for continuous monitoring, as it may endanger the patient. The Monitoring mode is started by placing the finger in the sensor and powering on the monitor. -
Page 26: Recording Data In Memory (Model 34 Only)
MONITORING AND RECORDING To monitor pulse oximetry data without recording the data in memory (possible only in Auto & Intermittent mode without pressing the send key), complete the following steps: After powering on (in Auto or Intermittent mode) the LED DISPLAY shows three dashes (- - -) for SpO and BPM indicators for 1-2 seconds while the pulse oximeter performs the power-on self tests. - Page 27 MONITORING AND RECORDING Selecting the Intermittent Recording Mode If the oximeter is on, Power it off. Press the down arrow key and power ON/OFF key. After 4 seconds of showing “int” , the LED DISPLAY will show (—), indicating that all previously stored data of Auto/Sleep Mode has been erased. Entering Patient Number When the pulse oximeter is in the Intermittent Recording mode, the patient number from P1 to P20 shows on the LED DISPLAY at power-on, unless a patient...
- Page 28 MONITORING AND RECORDING See “Entering a Patient Number” for more information. The data recorded can be retrieved; either by printing or by transmitting to a computer (see Chapter 6). Recording Data Automatically on a Single Patient The following conditions apply to the Automatic Recording mode: Data is recorded every 1 minute for a single patient.
- Page 29 MONITORING AND RECORDING Short press of the SEND/PRINT key would start/stop the recording process. Both the displays will flash once to indicate the commencement of recording. Erasing Stored Data Press SAT ALARM key and RATE ALARM key together at any time when the unit is ON for about 6 seconds.
-
Page 30: Chapter 5: Recording Sleep Screening Data (Model 34 Only)
Patient Sleep Screening Instructions Your health care provider has given you the Mediaid Model 34 pulse oximeter so that you can record your oxygen saturation data while you sleep. Carefully read the following instructions. - Page 31 RECORDING SLEEP SCREENING DATA Tear off a 4-5 inch strip of ¼ or ½ inch paper tape. With the sensor resting comfortably on your finger, wrap the tape around your finger and the sensor. Press the tape against the skin on both sides of your finger. Turn the model 34 on by pressing POWER ON/OFF key.
-
Page 32: Chapter 6: Data Retrieval (Model 34 Only)
CHAPTER 6: DATA RETRIEVAL (MODEL 34 ONLY) VIEWING TREND Data can be viewed on the oximeter itself by switching ON the oximeter in the following manner. Press SAT ALARM key and switch ON the oximeter using the POWER ON/OFF key together. The data is displayed depending on the modes. The arrow keys are used for scrolling between time and patient number (in case of intermittent mode). -
Page 33: Transmitting Data To A Printer
DATA RETRIEVAL TRANSMITTING DATA TO A PRINTER Transmitting pulse oximetry data to a printer requires the Model 34 & compatible printer with IR port. Selecting the Printer Transmission Method The pulse oximeter has two data transmission methods. To transmit data to a printer, the Printer Transmission method must first be selected. -
Page 34: Transmitting Data To A Computer
DATA RETRIEVAL TRANSMITTING DATA TO A COMPUTER Transmitting pulse oximetry data to a computer requires the following: • The Model 34. • Infrared Data Converter. • USB Port and Connector. • A Personal Computer (PC) or Laptop running Windows 2000, ME, XP, or NT 4.0 SP3-SP6. -
Page 35: Transmitting The Stored Data
DATA RETRIEVAL Either Prt (for transmission to a printer) or CO (for transmission to a computer) shows on the LED DISPLAY. If Prt shows on the LED DISPLAY, press the arrow keys to scroll till CO is displayed. Each press of up or down arrow will toggle the pulse oximeter between the Printer and Computer Transmission methods (Prt &... - Page 36 DATA RETRIEVAL NOTE: Data Transmission will be incomplete if the INFRARED PORT on the Model 34 is misaligned with the IR receiver on the IR Data Converter or Laptop or Computer. However, data is not lost and can be retransmitted. PAGE...
-
Page 37: Chapter 7: Changing The Pulse Oximeter's Settings
CHAPTER 7: CHANGING THE PULSE OXIMETER’ SETTINGS (MODEL 34 ONLY) ADJUSTING THE TIME AND DATE SETTINGS To adjust the time and/or date settings, complete the following steps. If the pulse oximeter is on, power it off. Power on the unit while pressing UP ARROW key simultaneously. Adjust the year parameter while it is displayed, to increase/decrease use the arrow keys. - Page 38 CHANGING THE PULSE OXIMETER’ SETTINGS Alarm Off Key A short depression of this key silences the alarm for a period of 60 seconds. The ALARM OFF INDICATOR illuminates and remains on constantly, and the oximeter monitors normally. Silenced alarms shall be reactivated by a short depression of the ALARM OFF KEY.
-
Page 39: Chapter 8: Overview Of The Operating Modes
CHAPTER 8: OVERVIEW OF THE OPERATING MODES MONITORING MODE In the Monitoring mode, the pulse oximeter measures oxygen saturation and pulse rate. The Monitoring mode is entered after the pulse oximeter is powered on and a sensor is applied to the patient. Intermittent Recording Mode (MODEL 34 ONLY) In this mode, data can be manually recorded on up to 20 different patients, and a... -
Page 40: Chapter 9: Special Key Functions (Model 34 Only)
CHAPTER 9: SPECIAL KEY FUNCTIONS (MODEL 34 ONLY) POWER ON FUNCTION OF A KEY Pressing Power ON/OFF key along with other keys • To view the stored trend values Press ON/OFF + SAT ALARM KEY. The unit is in this mode till its switched off. The display of the trend values is as following. - Page 41 SPECIAL KEY FUNCTIONS ii) Then the Hour & Minutes is displayed for 3 seconds. h-represents hour n-represents minutes Then it displays SpO and BPM values in the respective LEDs for 3 seconds. iii) iv) Then it displays the next reading. 3) For Sleep mode trend display, display format is given below Initially the readings of SpO and BPM are displayed for 3 seconds.
- Page 42 SPECIAL KEY FUNCTIONS • To initiate FUNCTIONAL TEST Press ON/OFF KEY + RATE ALARM KEY + SAT ALARM KEY. Turning the unit ON by simultaneously pressing the RATE Alarm key + SAT alarm key will cause the unit to enter the self test mode. Upon entry the SAT Led will show ‘Tst ’and the RATE LED will show the test number “0”...
-
Page 43: Chapter 10: Specifications
CHAPTER 10: SPECIFICATIONS PERFORMANCE Heart Rate • Range: 25 to 255 beats per minute (BPM) • Accuracy: ± 2 BPM or 2% of reading whichever is greater • Resolution: 1 BPM • Response time: 4 heart beats Oxygen Saturation • Range: 0 to 100% saturation (SAT) •... -
Page 44: Environmental
SPECIFICATIONS ENVIRONMENTAL Operating Temperature Instrument 0 to 40ºC Sensor Within physiologic range for specified accuracy. Refer sensor datasheet. Humidity Operating 5-95% non-condensing Storage 5-95% non-condensing over temperature range of -30ºC to 65ºC Atmospheric Pressure 770 to 282.45 mm Hg or 1026 to 377 hPa PHYSICAL Weight Approx. -
Page 45: Chapter 11: Accessories
Testing. The sensors have passed the recommended biocompatibility testing and are therefore in compliance with ISO 10993-1. USB CABLE/CONNECTOR (MODEL 34 ONLY) MEDIAID Male to Male USB Cable can be used to connect the unit to a PC. BATTERY CHARGING/AC-DC ADAPTER Medical Grade charger with the following specifications. Input: 100-230VAC @ 50/60 Hz Output: DC 9V @ 1A, 3.5A pk. -
Page 46: Specifications
INFRARED PRINTER (MODEL 34 ONLY) Mediaid recommends use of ACCESS IR printer for printing the data from model M34. However, any printer with IR capabilities with the following specifications can be use to print the stored data... -
Page 47: Chapter 12: Maintenance And Miscellaneous
Allow the unit to dry before using it again. In case of “Not Functioning” or unit not turn ON, contact local Mediaid technical support. WARNING: If you are uncertain about the accuracy of any measure- ment, check the patient’s vital signs by alternate means;... -
Page 48: Troubleshooting
LED and displays the error code by blinking in BPM LED. CAUTION: There are no user-serviceable parts or adjustments inside the Model 34. Do not attempt to open the instrument voids the Mediaid warranty. Refer to the information in “Mediaid Problem Correction Plan” , in Chapter 13, for service information. - Page 49 MAINTENANCE AND MISCELLANEOUS Inaccurate measurements can be caused by: • Incorrect application of the sensor. • Placement of the sensor on an extremity with a blood pressure cuff, arterial catheter, or intravascular line. • Ambient light. • Patient movement. Loss of pulse signal can occur for the following reasons: •...
-
Page 50: Chapter 13: Mediaid Inc. Limited Warranty
You may have other legal rights which vary from state to state (or country to country). Mediaid Inc. will not be liable to the user for incidental or consequential damage or loss arising out of the user’s inability to use this product. -
Page 51: Owner's Registration
(or equivalent packaging), and include the RAN. Mediaid Inc. will repair any faulty workmanship and will either repair or replace (at our option) any defective part with new or refurbished parts. For non-warranty repairs, the customer will be charged the current repair rate at the time of receipt by Mediaid Inc. -
Page 52: Chapter 14: User References
Chapter 14: User References CONTACT/CUSTOMER SERVICE INFORMATION For information on other Mediaid Inc. products, visit the Mediaid Inc. home page on the web at www.mediaidinc.com, or contact us at: Customer Service & Returns Department Mediaid Inc. 17517 Fabrica Way Suite H... -
Page 53: Product Information
USER REFERENCES PRODUCT INFORMATION To better assist customers, Mediaid Inc. recommends writing down all pertinent product and warranty information in the spaces provided below: Model 30 series Product Number: POX010-30 / POX010-34 __________________________________________________ Serial Number: _________________________________________ Warranty Expiration Date: Universal Hinged Sensor... - Page 54 PAGE...
-
Page 55: Warranty Registration Form
WARRANTY REGISTRATION FORM Please return to Mediaid Inc. / local distributor for validation MEDIAID INC. 17517 Fabrica Way Suite H Cerritos, CA 90703 USA (Tel) 714-367-2848 (Fax) 714-367-2852 Email: info@mediaidinc.com Website: www.mediaidinc.com ______________________ ___________________________ Serial Number Model _____________________________________________________ Date of Purchase...
