Telindus 1132 User Manual

Adsl wireless router 4p
Hide thumbs
Table of Contents

Advertisement

Quick Links

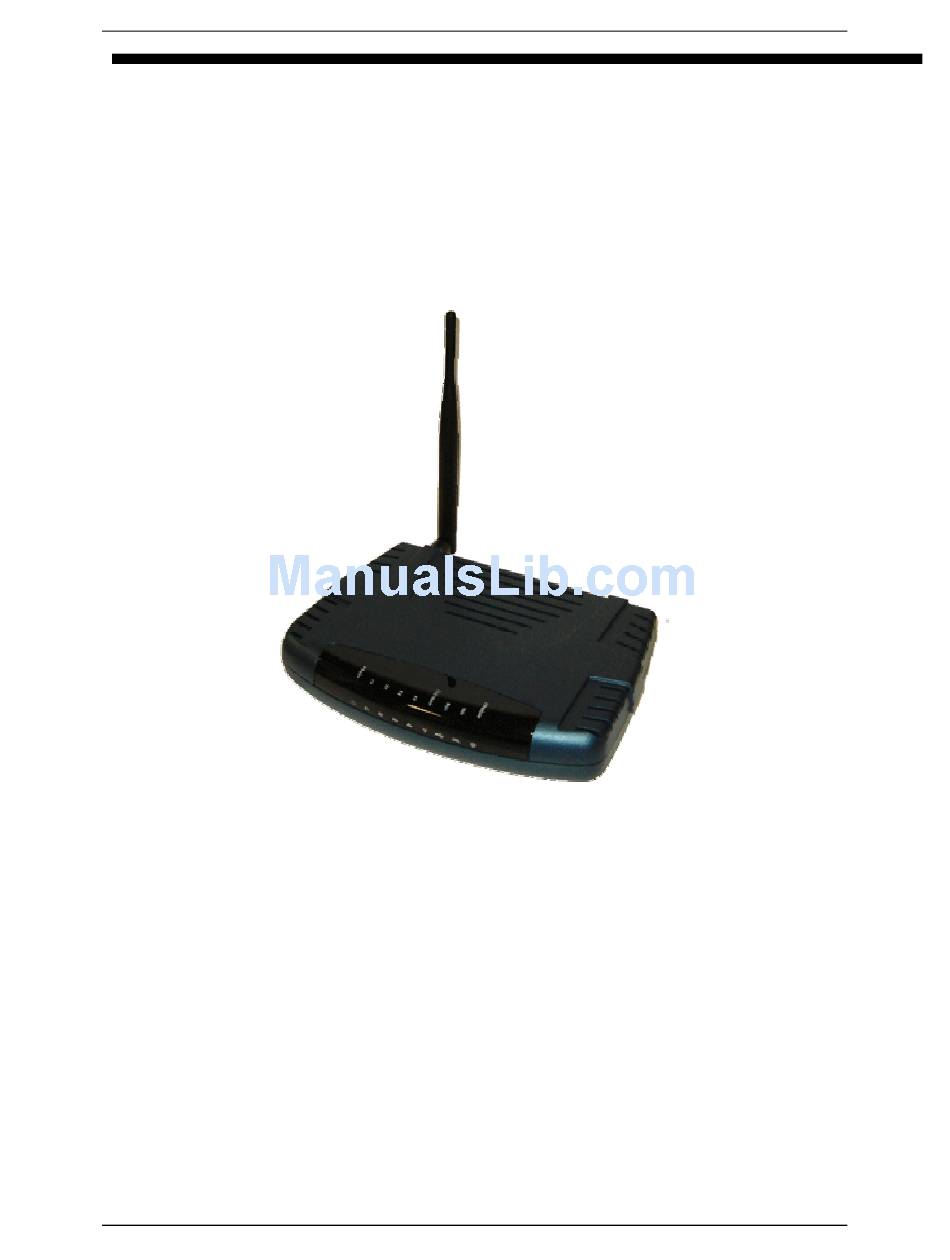

TELINDUS
1132/1133
Web Interface User's Guide
Web Interface User's Guide
TELINDUS 1132/1133 ADSL WIRELESS ROUTER 4P
Version 2.0
Page 1/57
December 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1132 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Telindus 1132

  • Page 1 TELINDUS 1132/1133 Web Interface User’s Guide Web Interface User’s Guide TELINDUS 1132/1133 ADSL WIRELESS ROUTER 4P Version 2.0 Page 1/57 December 2004...

  • Page 2: Table Of Contents

    TELINDUS 1132/1133 Web Interface User’s Guide Table Of Contents INTRODUCTION...................... 4 ......................4 EATURES YOUR GATEWAY AT A GLANCE ............... 6 ................... 6 ORTS AND BUTTONS ....................6 DESCRIPTION INSTALLING YOUR ADSL ROUTER..............8 SETTING UP YOUR ADSL ROUTER (BASIC MODE)........9 ADSL R ................
  • Page 3 TELINDUS 1132/1133 Web Interface User’s Guide TOOLS......................50 4.8.1 System Commands................50 4.8.2 Remote Log..................... 50 4.8.3 User Management.................. 50 4.8.4 Update Firmware..................50 4.8.5 Ping Test....................52 4.8.6 Modem Test .................... 52 STATUS ......................53 4.9.1 Network Statistics................... 53 4.9.2...

  • Page 4: Introduction

    1132/1133 Web Interface User’s Guide Introduction The TELINDUS 1132/1133 ADSL Wireless Router is a cost-efficient high-speed ADSL bridge/router for SOHO or SME users. This full-featured product is specifically designed allow maximum of 4 Ethernet-workstations to be connected to the Internet and directly connect to your local area network via a high speed 10/100 Mbps Ethernet Switch.

  • Page 5: External Connectors

    TELINDUS 1132/1133 Web Interface User’s Guide • PPP Dial on Demand • Universal Plug and Play Support WLAN Support • IEEE 802.11, 802.11B and 802.11G compliant • Conforms to Wireless Ethernet Compatibility Alliance (WECA) Wireless Fidelity (Wi-Fi tm) standard •...

  • Page 6: Your Gateway At A Glance

    TELINDUS 1132/1133 Web Interface User’s Guide Your gateway at a glance The ADSL Ethernet & USB Combo may have different ports and LEDs. Let’s take a look at the different options. Depending upon your model, it may have some or all of the features listed below.
  • Page 7 TELINDUS 1132/1133 Web Interface User’s Guide INTERNET ights up when the PPP connection is established. Version 2.0 Page 7/57 December 2004...

  • Page 8: Installing Your Adsl Router

    TELINDUS 1132/1133 Web Interface User’s Guide Installing your ADSL Router 1. Locate an optimum location for the ADSL Router. 2. For connections to the Ethernet and DSL interfaces, please refer to the Quick Start Guide. 3. Connect the AC Power Adapter. Depending upon the type of network, you may want to put the power supply on an uninterruptible supply.

  • Page 9: Setting Up Your Adsl Router (Basic Mode)

    TELINDUS 1132/1133 Web Interface User’s Guide Setting up your ADSL Router (Basic Mode) This section will guide you through your ADSL Router’s configuration. The ADSL Router is shipped with a standard PPP configuration. Log into your ADSL Router To configure your ADSL Router, open your web browser. You may get an error message at this point;...

  • Page 10: Quick Start

    TELINDUS 1132/1133 Web Interface User’s Guide Quick Start The first screen (Figure 2) that appears (after the log in screen) is the Home Page. This screen gives access to the different configuration and maintenance tools on your ADSL modem: SETUP...
  • Page 11 TELINDUS 1132/1133 Web Interface User’s Guide Figure 3 (Quick Start page) Version 2.0 Page 11/57 December 2004...

  • Page 12: Setup

    TELINDUS 1132/1133 Web Interface User’s Guide SETUP From this screen (Figure 4) the user can setup the ADSL Router (configure the LAN and WAN connection(s), configure the advanced configuration options within the ADSL Router (security, routing, and filtering), access tools that are helpful for debug purposes, obtain the status of the modem, and view the extensive online help.

  • Page 13: Configuring The Wan

    TELINDUS 1132/1133 Web Interface User’s Guide Configuring the WAN Before the gateway will pass any data between the LAN interface(s) and the WAN interface, the WAN side of the modem must be configured. Depending upon your DSL service provider or your...
  • Page 14 TELINDUS 1132/1133 Web Interface User’s Guide Figure 5 (Bridge Connection Setup) To complete the connection you must now click the Apply button. The Apply button will temporarily save this connection. To make the change permanent, you need to click on Save All Settings.
  • Page 15 TELINDUS 1132/1133 Web Interface User’s Guide a. Username: The username for the PPPoA access; this is provided by your DSL service provider or your ISP. b. Password: The password for the PPPoA access; this is provided by your DSL service provider or your ISP.
  • Page 16 TELINDUS 1132/1133 Web Interface User’s Guide To configure the gateway for PPPoE, click on Setup and then click on Connection. The default PPPoE connection setup is displayed. At the Type field select PPPoE and the PPPoE connection setup page is displayed; Figure 7 illustrates a typical PPPoE configuration. Give your PPPoE connection a unique name;...
  • Page 17 TELINDUS 1132/1133 Web Interface User’s Guide To complete the connection you must now click the Apply button. The Apply button will temporarily save this connection. To make the change permanent, you need to click on Save All Settings. At the System Commands page under the TOOLS, click on Save All.
  • Page 18 TELINDUS 1132/1133 Web Interface User’s Guide 4.4.1.5 Static Connection Setup Static is used whenever a known static IP is assigned. The accompanying information such as the Subnet mask and the gateway should also be specified. Up to three Domain Name Server (DNS) addresses can also be specified.

  • Page 19: Modify An Existing Connection

    TELINDUS 1132/1133 Web Interface User’s Guide RFC1577and it utilizes an ATM aware version of the ARP protocol (ATMARP only allows for PVC support; it does not support SVC). To configure the ADSL Router for a CLIP connection, click on Setup and then click on Connection.

  • Page 20: Configuring The Lan

    TELINDUS 1132/1133 Web Interface User’s Guide The Apply button will temporarily save this connection. To make the change permanent, you need to click on Save All Settings. At the System Commands page under the TOOLS, click on Save All. Configuring the LAN By default, your ADSL Router has DHCP server (LAN side) enabled.
  • Page 21 TELINDUS 1132/1133 Web Interface User’s Guide UpnP LAN Clients IP QoS Routing These additional parameters are discussed in the ADVANCED section. Figure 12 (LAN Group 1 Configuration) Static IP address assignment 4.5.1.1 Your ADSL Router’s default IP address and subnet mask are 192.168.1.1/255.255.255.0; this subnet mask will allow the ADSL Router to support 254 users.
  • Page 22 TELINDUS 1132/1133 Web Interface User’s Guide LAN IP address assignment with DHCP 4.5.1.3 The DHCP server can be enabled or disabled. Start IP is the number from which the DHCP server starts issuing IP addresses. This value must be greater than the ADSL Router IP address value.

  • Page 23: Ethernet Switch

    TELINDUS 1132/1133 Web Interface User’s Guide The Apply button will temporarily save these settings. To make the change permanent, you need to click on Save All Settings. At the System Commands page under the TOOLS, click on Save All. 4.5.2 Ethernet Switch...

  • Page 24: Firewall/Nat Services

    TELINDUS 1132/1133 Web Interface User’s Guide 4.5.3 Firewall/NAT Services You can enable or disable Firewall and NAT by clicking on SETUP and under LAN Setup, select Firewall/NAT Services. By unselecting the “Enable Firewall and NAT Services” button the firewall and NAT services is disabled for all WAN connections (Figure 14) Figure 14 (Firewall/NAT Services) The Apply button will temporarily save these settings.

  • Page 25: Advanced (For Advanced Users Only)

    TELINDUS 1132/1133 Web Interface User’s Guide ADVANCED (for advanced users only) The ADSL Router supports a host of advanced features. For basic ADSL Router functionality, the user does not need to utilize these advanced features. The features help with routing, security, port configuration, management and Plug and Play capability.
  • Page 26 TELINDUS 1132/1133 Web Interface User’s Guide Server to get a response. The “system log” will be able to reflect the updated time upon successfully connected the time server. Figure 16 (SNTP) The Apply button will temporarily save these settings. To make the change permanent, you need to click on Save All Settings.

  • Page 27: Snmp

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.3 SNMP The 1130/1131 ADSL Router supports SNMP. It has a local SNMP agent and can send SNMP traps to any other host on the Internet. Configuration of the SNMP functionality is shown in Figure 17 (SNMP Management).

  • Page 28: Dns Proxy

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.4 DNS Proxy This feature allows the user to select the (Domain Name Server) DNS Server Priority as well as enter IP addresses for Primary DNS and secondary DNS. Figure 18 (DNS Proxy) The Apply button will temporarily save these settings. To make the change permanent, you need to click on Save All Settings.

  • Page 29: Dynamic Dns Client

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.5 Dynamic DNS Client Dynamic DNS allows the user to register with a Dynamic DNS Provider as listed. The dynamic DNS will be linked with the WAN IP of the router even after the ISP update the WAN IP to another IP address.

  • Page 30: Ip Qos

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.6 IP QoS IP QoS services from the Network Service Provider (NSP) is applicable to the output device (Egress side). Meaning the IP QoS traffic shaping is associated with any transmitted traffic from the perspective of the NSP. Each output device has 3 priority queues associated with transmit data.
  • Page 31 TELINDUS 1132/1133 Web Interface User’s Guide Figure 20 (QoS Setup Screen) Rule Setup Page 4.6.6.2 This page is invoked when you click on the "Add" button of "QoS Setup Page". See Figure 21 (Rules Setup Page). This page allows you add a Rule or Matching criteria that identifies an Application traffic.
  • Page 32 TELINDUS 1132/1133 Web Interface User’s Guide Figure 21 (IP QoS Traffic Rule) The Apply button will temporarily save these settings. To make the change permanent, you need to click on Save All Settings. At the System Commands page under the TOOLS, click on Save All.

  • Page 33: Port Forwarding

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.7 Port Forwarding Using the Port Forwarding page, you can provide local services (for example web hosting) for people on the Internet or play Internet games. When users send this type of request to your network via the Internet, the ADSL Router will forward those requests to the appropriate PC.

  • Page 34: Ip Filters

    TELINDUS 1132/1133 Web Interface User’s Guide The Apply button will temporarily save these settings. To make the change permanent, you need to click on Save All Settings. At the System Commands page under the TOOLS, click on Save All. 4.6.8 IP Filters IP filters allow to configure the Firewall to block all or specific types of IP traffic.

  • Page 35: Lan Clients

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.9 LAN Clients To add a LAN client, click ADVANCED and select LAN Clients. If DHCP is used, all DHCP clients are automatically assigned. If a fixed IP address server is on the LAN and you want this server to be visible via the WAN, you must add its IP address.

  • Page 36: Lan Isolation

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.10 LAN Isolation Enables or disables Traffic between the different defined LAN groups. This feature can be used to connect two completely independent broadband users over the same ADSL connection. Figure 25 (LAN Isolation) The Apply button will temporarily save these settings.
  • Page 37 TELINDUS 1132/1133 Web Interface User’s Guide To delete filter rule(s), select the filter rule entry to delete in the "Delete" selection box. Note that multiple deletion is possible. Once all the desired filter rule(s) is/are selected for deletion, press the "Apply" button. The "Select All" select box can also be used to delete all the filter rule. It provides a quick method of selecting all filter rules for deletion.

  • Page 38: Web Filters

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.12 Web Filters The Web Filter allows to filter certain types of Web Applications like Cookies, JAVA, AciveX or Pop-Ups. See Figure 27 (Web Filters). Figure 27 (Web Filters) The Apply button will temporarily save these settings. To make the change permanent, you need to click on Save All Settings.

  • Page 39: Url Filter

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.13 URL Filter URL Filtering allows the router to block access to certain websites by examining its URL, a text string describing a unique location on the Internet. If the URL contains a blocked keyword, then access to that website will be denied.

  • Page 40: Multicast

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.14 Multicast Multicasting is a form of limited broadcast. UDP is used to send datagrams to all hosts that belong to what is called a "host group." A host group is a set of zero or more hosts identified by the same destination IP address.

  • Page 41: Static Routing

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.15 Static Routing If the ADSL Router is connected to more than one network, you may need to set up a static route between them. A static route is a pre-defined pathway that network information must travel to reach a specific host or network.

  • Page 42: Dynamic Routing

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.16 Dynamic Routing Dynamic Routing allows the ADSL Router to automatically adjust to physical changes in the network. The ADSL Router, using the RIP protocol, determines the network packets’ route based on the fewest number of hops between the source and the destination. The RIP protocol regularly broadcasts routing information to other ADSL Routers on the network.

  • Page 43: Show Routes

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.17 Show Routes The Sow Routes screen under ADVANCED allows to see both static and dynamic routes in the Router. See Figure 32 (Routing Table DSL Modem). Figure 32 (Routing Table DSL Modem) Version 2.0...

  • Page 44: Access Control

    TELINDUS 1132/1133 Web Interface User’s Guide 4.6.18 Access Control In the presence of the firewall, anonymous Internet traffic is blocked. Using the advanced security features, you can redirect this traffic to a dedicated computer and open the access from the Internet to the ADSL Router's management ports (web, telnet).
  • Page 45 TELINDUS 1132/1133 Web Interface User’s Guide that the telnet server rule that is configurable via the port-forwarding page. In this case, the telnet server is on a different subnet. 4.6.18.3 Enable Incoming ICMP Ping Enabling the Incoming Internet Control Message Protocol (ICMP) Ping will allow Echo requests to come into the gateway.

  • Page 46: Wireless Access Point

    TELINDUS 1132/1133 Web Interface User’s Guide Wireless Access Point 4.7.1 Setup SSID is wireless network name for the Wireless Router, your wireless client will need this name to establish a wireless connection. The wireless setup allows the user to enable or disable the AP (Access Point for the wireless feature).

  • Page 47: Configuration

    TELINDUS 1132/1133 Web Interface User’s Guide 4.7.2 Configuration Advanced configuration options are available in this window: Figure 35 (Wireless Configuration). Figure 35 (Wireless Configuration) The Apply button will temporarily save these settings. To make the change permanent, you need to click on Save All Settings. At the System Commands page under the TOOLS, click on Save All.

  • Page 48: Security

    TELINDUS 1132/1133 Web Interface User’s Guide 4.7.3 Security Wireless Security can be enabled or disabled. The default is no security. The Wired Equivalent Privacy (WEP) is used to protect wireless communication from eavesdropping. Since WEP uses a secret key shared between the communicators, if you enable the WEP feature, entering the WEP key values below is required.

  • Page 49: Management

    TELINDUS 1132/1133 Web Interface User’s Guide 4.7.4 Management The Wireless Management screen (Figure 37) allows to define Access Lists, Associated Stations and Multiple SSIDs. Figure 37 (Wireless Management) Version 2.0 Page 49/57 December 2004...

  • Page 50: Tools

    TELINDUS 1132/1133 Web Interface User’s Guide TOOLS The ADSL Router supports a host of tools that will allow you to customize and debug your ADSL Router. 4.8.1 System Commands To make the changes permanent you need to click on TOOLS (at the top of the page) and select System Commands.
  • Page 51 TELINDUS 1132/1133 Web Interface User’s Guide Figure 38 (Update Firmware) Version 2.0 Page 51/57 December 2004...

  • Page 52: Ping Test

    TELINDUS 1132/1133 Web Interface User’s Guide 4.8.5 Ping Test Once you have your ADSL Router configured, it is a good idea to make sure you can ping the network. You can get to the Ping page under the Tools title, by clicking on Ping Test. Type the target address that you want to ping.

  • Page 53: Status

    TELINDUS 1132/1133 Web Interface User’s Guide STATUS The Status section allows you to view the Status/Statistics of different connections and interfaces 4.9.1 Network Statistics Select to view the Statistics of different interfaces - Ethernet/USB/DSL. 4.9.2 Connection Status Select to view the Status of different connections.

  • Page 54: System Log

    TELINDUS 1132/1133 Web Interface User’s Guide 4.9.6 System Log You can display the ADSL Router’s log by going under the Status title, click System log. From here you can view all logged information. Depending upon the severity level, this logged info will generate log reports to a remote host (if remote logging is enabled).

  • Page 55: Appendix A: Troubleshooting

    TELINDUS 1132/1133 Web Interface User’s Guide Appendix A: Troubleshooting Below is a list of commonly asked questions. Before calling technical support, please look through these issues to see if they help to solve your problem. The ADSL Router is not functional Check to see that the power LED is green and than the network cables are installed correctly.

  • Page 56: The Dsl Link Led Continues To Blink But Does Not Go Solid

    TELINDUS 1132/1133 Web Interface User’s Guide The DSL Link LED continues to blink but does not go solid 1. This means that the DSL line is trying to train but for some reason it cannot establish a valid connection. The main cause of this is that you are too far away from the central office.

  • Page 57: Adsl Router Terms

    TELINDUS 1132/1133 Web Interface User’s Guide ADSL Router terms What is a firewall? A firewall is protection between the Internet and your local network. It acts similarly to the firewall in your car, protecting the interior of the car from the engine. Your car's firewall has very small opening that allow desired connections from the engine into the cabin (gas pedal connection, etc), but if something happens to your engine, you are protected.

This manual is also suitable for:

1133
