Summary of Contents for ApexCCTV AP-MPF01

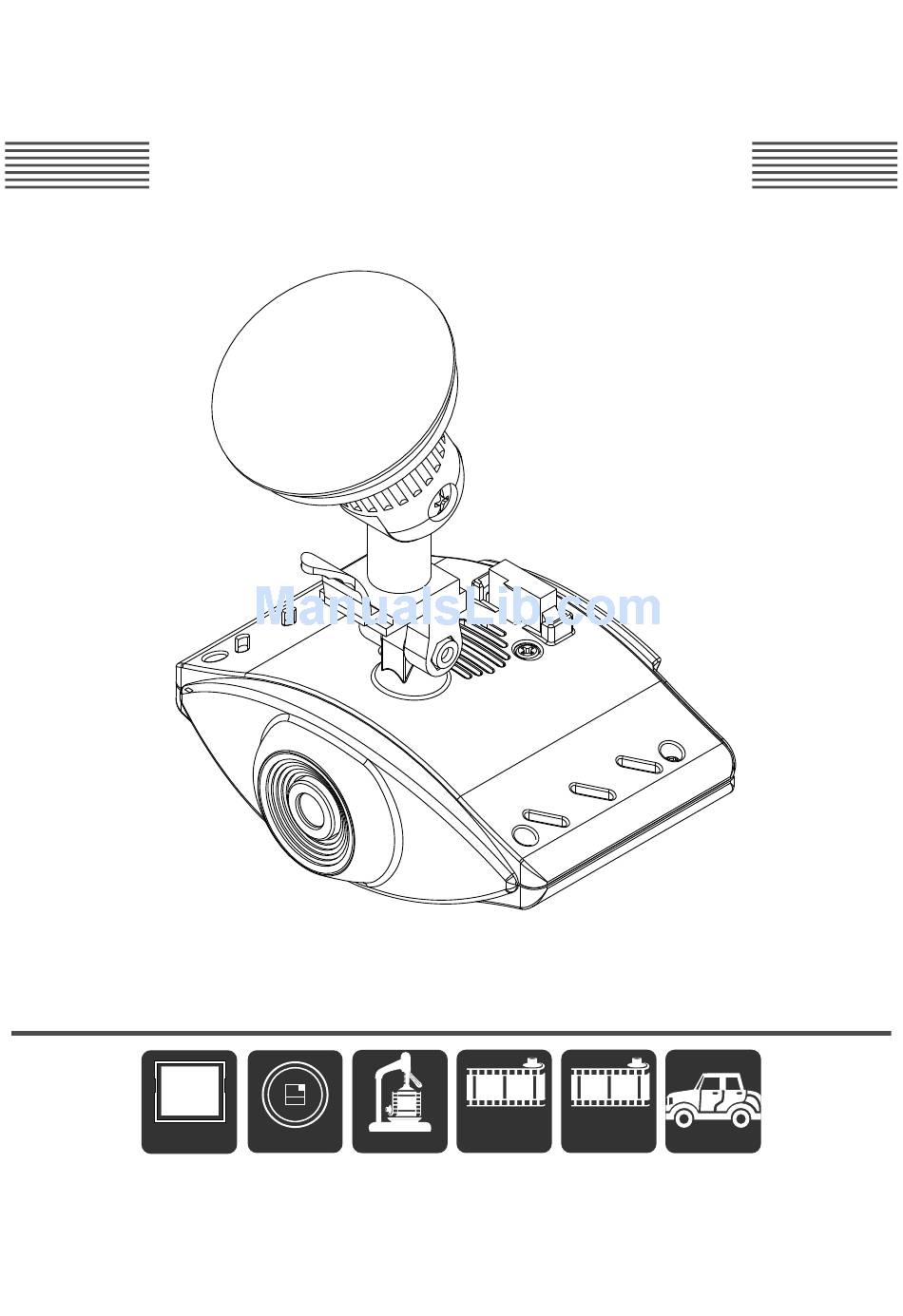

- Page 1 Vehicle Video Recorder MANUAL 2009 JAN. V1.2 30fps 25fps NTSC(D1) PAL(D1) 1/3”CCD MPEG4...
-
Page 3: Table Of Contents
CONTENTS 1.Features 2.Specifications 3.Front and Rear Panel 4.View angle 5.Installation diagram 6.Dimension 7.Example of Installation Example for car Example for heavy motorcycle 8.Recording 9.Playback 10.CF Card Record Files Illustration 11.Format CF Card... -
Page 4: Features
1. Features Built–in 1/3'' SONY CCD & DSP element. 2.High resolution, Low lux, high -speed reaction, much more advanced than CMOS type. 3.High image quality with good performance. 4.MPEG4 compression format, minimum video file capacity. 5.Full digital signal transmission, and the least distortion. 6.High performance compression chip, providing high quality &... -
Page 5: Specifications
2. Specifications MODEL MP-F01 Lens device 1/3” Super HAD Sony CCD View angle 4 mm Left/Right more than 90 degrees / 6mm Left/Right more than 70 degrees Voltage 11V~ 14.5V Operating Temp. 0 ~ 40 degree C (vehicle inside ) Storage device CF Card Audio/Video recording... -
Page 6: Front And Rear Panel
3. Structure of product Front Panel Bracket Lens Rear Panel USB port (reserved) Power input/ video output Audio recording Microphone input switch (on/off) Green light -Power on Yellow light - Error Power/ CF CARD Switcher Red light – recording CF CARD slot ．3．... -
Page 7: View Angle
4. View angle 90° 70° left/right more than 70 degrees left/right more than 90 degrees 5. Installation diagram 6. Dimension UNIT:mm ．4．... -
Page 8: Example Of Installation
7. Example Of Installation Example for car 1. Insert CF card to recorder 2. Twist the silver knob to 3. Slide and lock the recorder on the secure lock secure the bracket on ( top side facing down) windshield. 6. Adjust view angle , 4. -
Page 9: Example For Heavy Motorcycle
Example for heavy motorcycle (This unit is not waterproof , please take care of using it) 1. Insert CF card to recorder 3. Slide and lock the recorder 2. Twist the silver knob to ( top side facing down ) on the secure lock secure the bracket. -
Page 10: Recording
8. Recording Green light -Power on Yellow light - Error Power/ CF CARD slot CF CARD Switcher Red light – recording 1. Turn on/Recording: Turn on the power; after inserting the CF card into the card slot, please turn the CF card switcher clockwise vertically, and the recorder will take approximately 1 minute to boot up. -
Page 11: Playback
9.How to read the files from CF card? 1.Take out the CF card , then insert into card reader.( Please note the top side of CF card facing up) 2.connect the CF card to PC USB port. 3. Loading all data from the CF card; or copy all data into sub-directory of PC . 4. - Page 12 5.Operation instruction [1] Event list：When each time the power on to the power off, then forms one 『event recording』 [2] Date [3] Functional button operation interface as follows： ：Play/Pause Compound key click to play from select files. When it is in playing process, the play key will be changed to pause key.
- Page 13 3>.Language：English/ Simplified Chinese / Traditional Chinese (depends on user's preference) Time Synchronization 4>.Image Path: please select the image format which you would like to store. There are four kinds of different image format that can be stored including BMP/JPEG/GIF/PNG. After select storage path and click “apply”.
- Page 14 set lower, the output size of compression file will be smaller than usual. On the other hand the output size of compression file will be bigger when the compression quality ratio is set higher. c. Backup Start Time. d. Backup End Time. e.
-
Page 15: Cf Card Record Files Illustration
10. CF Card record files illustration Transferring the files of the CF card to the PC for browsing, will present three files as illustration 1.Car Player 2.Records 3.System (1)The content of Car Player folder ● Car Player.exe , is the Video Player of PC, Double click the .exe file to choose the『event list』of Records files for playing. - Page 16 ● In the Records files(Take the 8GB-CF card as the example), the system will be divided into 15 of recording files as 『Event record』area, 00010015 The first four digits are『serial number of video clips』, the last four digits are『the sum of total video clips』, therefore 00010015 means the first video clip of total 15 video clips.
-
Page 17: Format Cf Card
11.Format CF card What do we need to format the CF card? It needs to be formatted before the recorder is going to use in different purpose of recording. For example: the user is going to use in “Long Recording Home Use” recording mode instead of “Vehicle Use” recording mode. In that case, the user must format the “system”... - Page 18 5、Click「open」to choose the location of CF card，then click「Format」 to start to format the CF card. Time Synchronization Time Synchronization 6、The system will come up the 『Are you sure to format the disk you select?』 dialogue box，please click 『Yes』to format. Time Synchronization Time Synchronization Time Synchronization Time Synchronization...
- Page 19 H11CF01001...
