  • Page 1 Ferimex Outdoor Multi-Router Outdoor Multi-Router 3-2 Outdoor Multi-Router 1-1 Outdoor Multi-Router 1-1 LITE Installation Manual Outdoor Multi-Router 3-2 Outdoor Multi-Router 1-1 and 1-1 LITE...
  • Page 2: Table Of Contents

    Ferimex Outdoor Multi-Router Table of Contents Characteristics ……………………………………………………………………………..….3 Package Contents .………………………………………………………………….………..3 Hardware Description ………………………………………………………………………..4 Hardware Installation ………………………………………………….…………………..7 Accessing the Configuration ………………………………………….…………………….8 Configuration Manual ………………………………………………….…………………..10 Warranty Information ………………………………………………….…………………….10 Technical Parameters ………………………………………………………………….. …11 Manufacturer …………………………………………………………………………………13...
  • Page 3: Characteristics

    2,4 GHz and 5~6 GHz. Outdoor Multi-Router 3-2 has three 10/100 Mbps Ethernet ports and two dual-band IEEE 802.11 a/b/g wireless ports. It is powered using the IEEE 802.3af Power Over Ethernet standard which allows a long powering Ethernet cable.
  • Page 4: Hardware Description

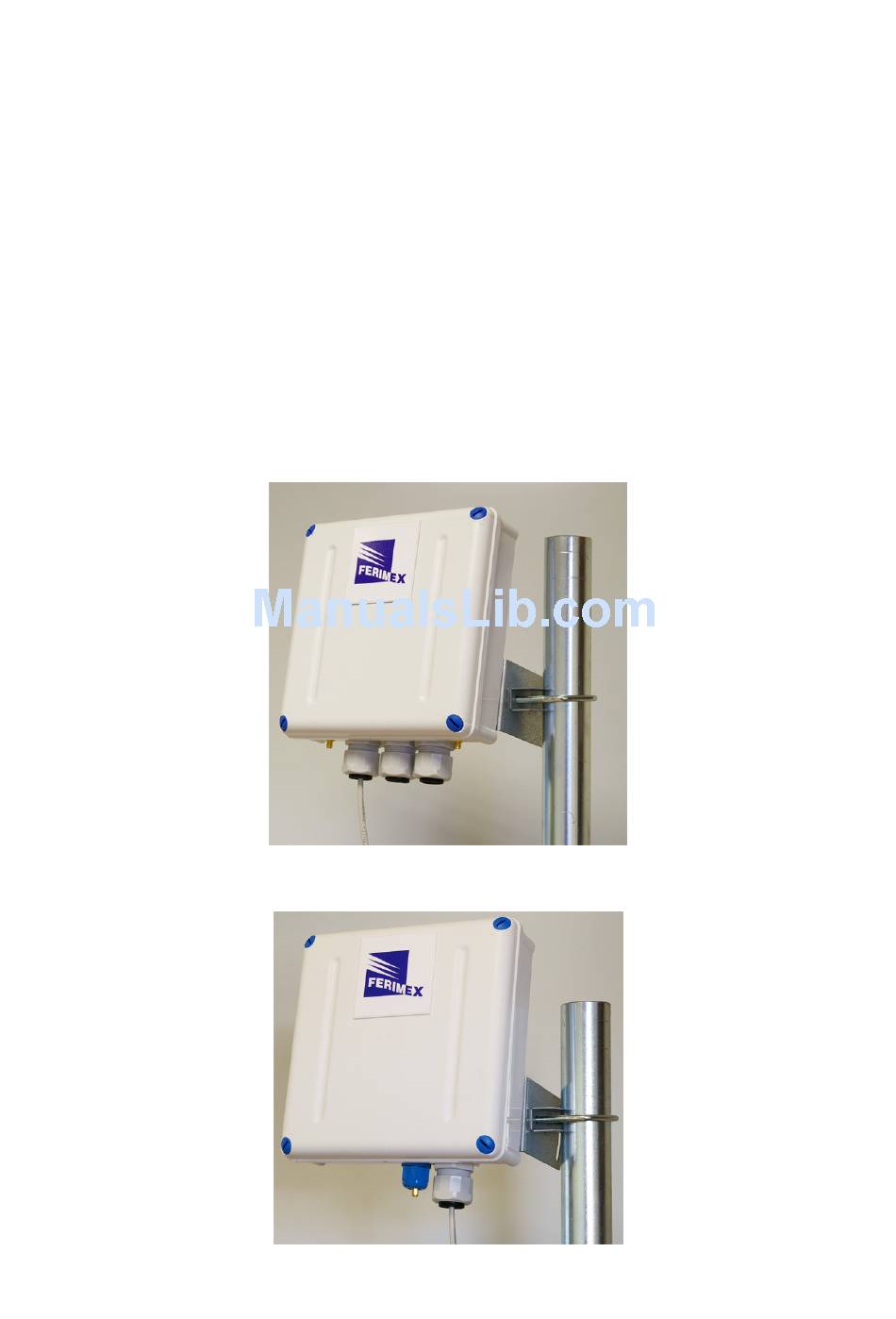

    Ferimex Outdoor Multi-Router Package does not contain Ethernet cables. You should prepare Ethernet cables by yourself in the lengths you need. Ferimex can sell you Ethernet cables separately. Hardware Description a) Outdoor Multi-Router 3-2 1. ETH 1 + POE IN 2.
  • Page 5 Ferimex Outdoor Multi-Router b) Outdoor Multi-Router 1-1 1. ETH 1 + POE IN 4. WLAN 1 6. PoE OUT (to outdoor device) 7. Power Input 8. Lan IN 9. Mounting bracket (numbers 2,3 and 5 are unused)
  • Page 6 Ferimex Outdoor Multi-Router c) Outdoor Multi-Router 1-1 LITE 1. ETH 1 + POE IN 4. WLAN 1 6. PoE OUT (to outdoor device) 7. Power Input DC jack 8. Lan IN 9. Mounting bracket (numbers 2,3 and 5 are unused)
  • Page 7: Hardware Installation

    PoE Injector is guaranteed only in indoor environment. 7. Connect PoE Injector to your computer or network using the LAN IN port of PoE (8) 8a. Outdoor Multi-Router 3-2 and Outdoor Multi-Router 1-1: Connect the PoE Injector to electrical power using the included power cord.
  • Page 8: Accessing The Configuration

    Ferimex Outdoor Multi-Router Caution: Always install the outdoor unit with the arrow mark pointing UP. At the bottom of device there is small aperture. Always keep this aperture facing down so condensate moisture can leak out from the device. Otherwise the water may leak into the device during the rain and damage the device.
  • Page 9 Ferimex Outdoor Multi-Router Searching MikroTik devices in your network To assign the IP address to the device in the menu click “IP -> Addresses”. Then click “+”, fill IP address to the “Address” field and select the interface to which the...
  • Page 10: Configuration Manual

    CD attached to this product. Warranty Information Device is covered by 2 year manufacturer warranty. Ferimex repairs or replaces at no charge any defective items that do not function because of Ferimex production flaws. Ferimex does not replace items with customer damage or customer misuse, or damage by lightning, electricity, power surges, mechanical damage from dropping or misuse, etc.
  • Page 11: Technical Parameters

    Ferimex Outdoor Multi-Router Technical Parameters a) Outdoor Multi-Router 3-2 Manufacturer Ferimex IT Purpose multi-function router Software MikroTik RouterOS™ Processor 680MHz MIPS Ethernet LAN 3x 10/100Base-T Wireless port 2x 2,4 Ghz/5Ghz 802.11a+b+g Chipset Atheros AR5414 Output Power/ Receive Sensitivity IEEE 802.11a:...
  • Page 12 Ferimex Outdoor Multi-Router b) Outdoor Multi-Router 1-1 Manufacturer Ferimex IT Purpose multi-function router Software MikroTik RouterOS™ Processor 300MHz MIPS Ethernet LAN 0x 10/100Base-T Wireless port 1x 2,4 Ghz/5Ghz 802.11a+b+g Chipset Atheros AR5414 Output Power/ Receive Sensitivity IEEE 802.11a: 17dBm/-88dBm @ 6Mbps 13dBm/-71dBm @ 54Mbps IEEE 802.11b:...
  • Page 13: Manufacturer

    Passive Power Over Ethernet Injector Type Passive PoE Injector DC Input Voltage 10 V ~ 28 V DC Input Current 1,3 A MAX Manufacturer Ferimex IT spol s r.o. Továrenská 32 Stará Ľubovňa 064 01 Slovakia www.ferimex.com +421 524321613 End of manual.
