Summary of Contents for ARETE POP

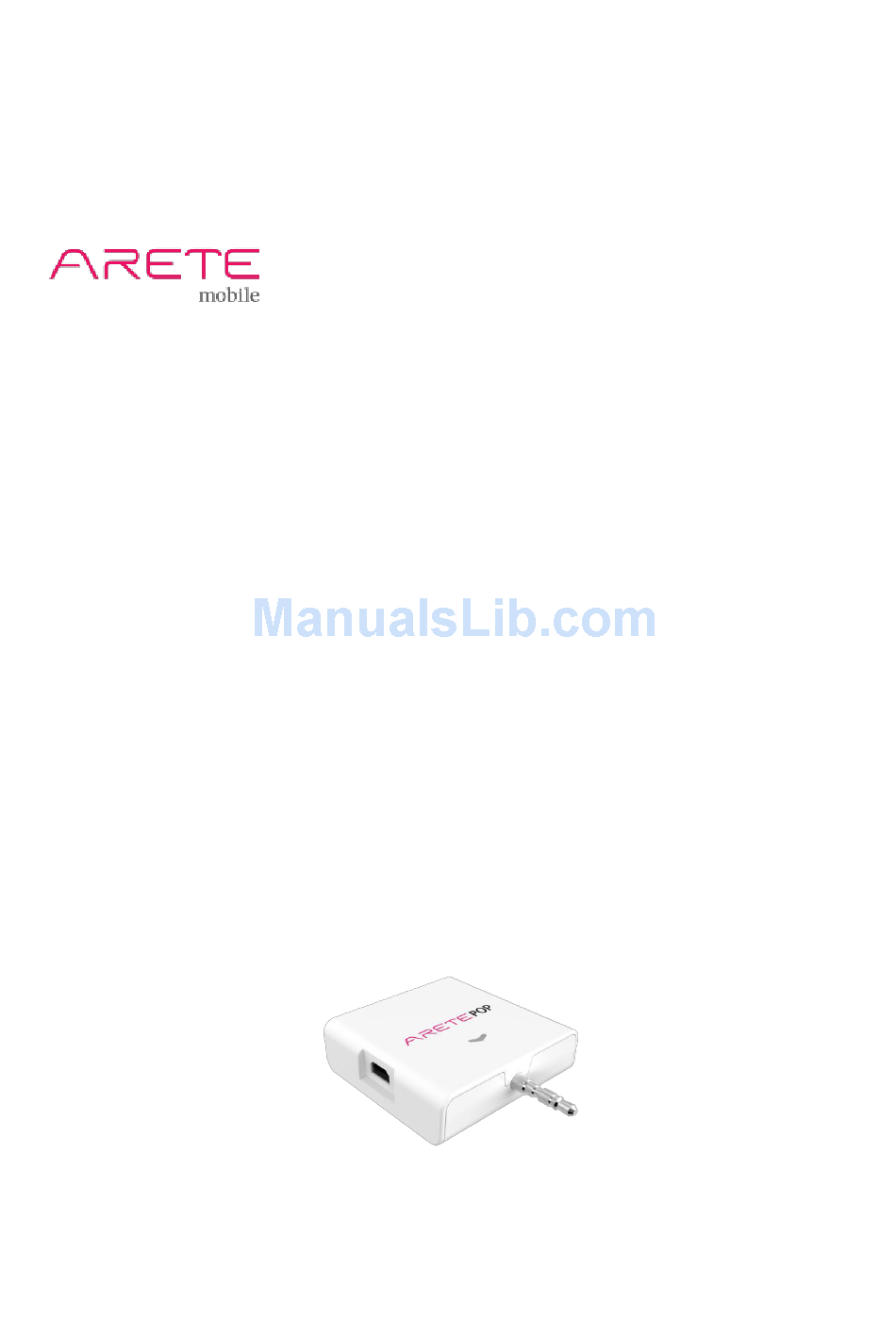

- Page 1 User Guide ARETE POP Smart RFID Dongle Reader...
- Page 2 ARETE POP User Guide Notice Registered Trademark ARETE mobile is launched by PHYCHIPS Inc. for mobile device and currently registered worldwide with its ARETE mobile trade mark legally protected by law. © 2013 PHYCHIPS Inc. All rights reserved. This User Guide is produced by PHYCHIPS Inc. and protected by Copyright Laws.
-
Page 3: Table Of Contents
ARETE POP User Guide Contents Understanding ARETE POP ................4 ARETE POP at a Glance ................. 4 Accessories ....................4 Specifications ....................5 Basics ....................... 6 Activating ......................6 Battery Charging .................... 6 How to use application ..................7 How to install application in your iPhone ............. 7 How to install application in your Android Phone ........ -
Page 4: Understanding Arete Pop
ARETE POP User Guide Understanding ARETE POP 1.1 ARETE POP at a Glance 1.2 Accessories 4 / 22... -
Page 5: Specifications
ARETE POP User Guide 1.3 Specifications PHYSICAL Dimension(WxLxH) 51 x 50 x 15 mm (without plug), 51 x 67.5 x 15 mm (with plug) Weight Indication Power on LED(Blue), Charging LED(Red), Tagging LED(Blinking Blue) Battery 360mAh Continuous Time About 2.0 hours... -
Page 6: Basics
4. LED indicator will be turned on in blue color. 2.2 Battery Charging 1. Plug the plug of USB cable into the USB connector of ARETE POP. Plug the other end of USB cable into a USB hub. 2. Battery will be charged by Micro B USB connector. It is compatible with general Micro B USB connector. -
Page 7: How To Use Application
ARETE POP User Guide How to use application 3.1 How to install application in your iPhone 1. Select App Store 2. Search ARETE POP application and install it. 7 / 22... -
Page 8: How To Install Application In Your Android Phone
ARETE POP User Guide 3.2 How to install application in your Android Phone 1. Connect your phone to Google Play Store. 2. Search “ARETE POP” and touch install. 8 / 22... -
Page 9: Main Display
3.4 Status Bar The number of tags displayed ARETE POP Status - Unplugged: ARETE POP is not inserted into headset jack. - Plugged: ARETE POP is inserted into headset jack. - Connected: ARETE POP is connected to app. Battery gauge... -
Page 10: Inventory
ARETE POP User Guide 3.5 Inventory 1. Switch the button to "On" 2. Touch Read button to inventory tag continuously PC + EPC will appear. 3. Touch Stop button to finish inventory tag 4. Touch Clear button to clear the list of tags. -
Page 11: Read Tag Memory
ARETE POP User Guide 3.6 Read Tag Memory 1. Choose the target tag 2. Choose Read 3. Configure parameters Target Tag: EPC will appear automatically. Give 8 bytes Access Password in hexadecimal. C. Give word-aligned Start Address in decimal. D. Give word-aligned Length Word in decimal. Set to 0 to read whole memory bank (Up to 64 words). -
Page 12: Write Tag Memory
ARETE POP User Guide 3.7 Write Tag Memory 1. Choose the target tag 2. Choose Write 3. Perform Read Tag Memory described in previous section. 4. Choose Write 5. Configure parameters Target Tag: EPC will appear automatically. Give 8-byte Access Password in hexadecimal. -
Page 13: Lock Tag Memory
ARETE POP User Guide 3.8 Lock Tag Memory 1. Choose the target tag 2. Choose Lock 3. Configure parameters Target Tag: EPC will appear automatically. Give 8-byte Access Password in hexadecimal. Access password is all zeros, which is the factory default. -
Page 14: Kill Tag Memory
ARETE POP User Guide 3.9 Kill Tag Memory 1. Choose the target tag 2. Choose Kill 3. Configure parameters Target Tag: EPC will appear automatically. Give 8-byte Kill Password in hexadecimal. Kill password is all zeros, which is the factory default. -
Page 15: Output Power Setting
ARETE POP User Guide 3.10 Output Power Setting 1. Touch Settings button 2. Choose Pop settings 3. Choose Output Power. 4. Choose target output power and touch Done button to change output power. 15 / 22... -
Page 16: On/Off Time Setting
ARETE POP User Guide 3.11 On/Off Time Setting 1. Touch Settings button 2. Choose Pop settings 3. Choose On/Off Time 4. Configure On/Off Time 5. Touch Done button. 4, 5 16 / 22... -
Page 17: Stop Condition Setting
3.12 Stop Condition Setting 1. Touch Settings button 2. Choose Pop settings 3. Choose Stop Conditions. ARETE POP will stop reading after reading done. 4. Configure stop parameters Tag Count (0~100): How many tags to read. Elapsed Time (0~250): How long have ARETE POP read tags in second. -
Page 18: Beep Setting
ARETE POP User Guide 3.13 Beep Setting 1. Touch Settings button 2. Choose Pop settings 3. Switch Beep to turn beep on/off. 18 / 22... -
Page 19: About
ARETE POP User Guide 3.14 About 1. Touch Settings button. 2. Choose About to get ARETE POP information. 3. Touch Diagnostic when audio communication is not working properly. (Android Only) 4. Test Log will be generated at sdcard/AudioTest in your android smart phone. -
Page 20: Information
4. Please avoid high/low temperature and high humidity. 5. Please turn ARETE POP off in explosive area as there may be danger due to electric wave. 6. Please use medical device(pacemaker, hearing aid etc) which is blocked from RF energy. -
Page 21: Troubleshooting
Send generated files in yourPhone/sdcard/AUDIOTEST folder to sales@phychips.com. 4.5 Disposal and Recycling You must dispose of ARETE POP properly according to your local laws and regulations. Because electronic components and a battery are included in the ARETE POP 21 / 22... -
Page 22: Customer Service
ARETE POP User Guide Customer Service ARETE mobile Customer Service Phone: + 82 42 864 2402 Fax: + 82 42 864 2403 Email: sales@phychips.com Address PHYCHIPS Inc. #205 Migun Technoworld 1, 533 Yongsan-dong, Yuseong-gu, Daejeon, Korea, 305-500 Working Day and time...
