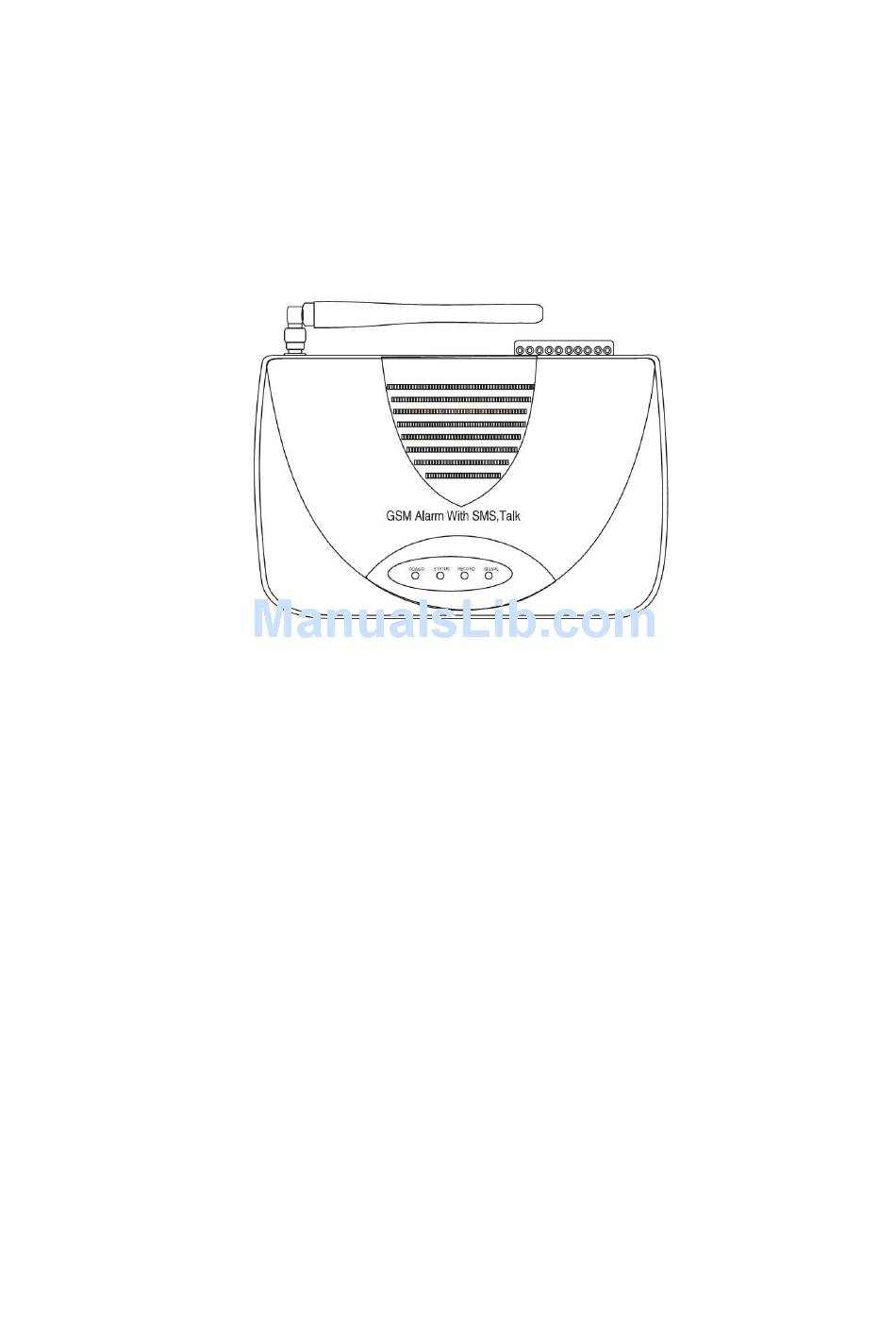

- Page 1 Business/Home GSM Alarm systems Installation and User Manual Profile For a better understanding of this product, please read this user manual thoroughly before using it.
- Page 2 Business/Home GSM alarm system is widely used in the security devices, data surveillance and long-distance monitor system of the home, residential area, electric power, traffic, petroleum, coal, railroad, citizen, police and some other organizations. I. The basic functions of the host ⒈Adopts tri-band GSM/GPRS industrial communicator, SMS alarm function.
- Page 3 ⒈ 10-pin ports : GND; SIREN; RELAY1; RELAY2; SPEAKER; The first port is educed end of ground, The second port is educed end of siren, connect sourced siren directly, the other end of siren connect GND; The third and fourth port is the educed end of relay, it is normally open and will keep close for three minutes (this function can be closed)when alarming, it can link the power and video when working;...
- Page 4 Sending a SMS: 123456#14#13905950004#，represents storing NO.5 number to receive SMS. Sending a SMS: 123456#15#13905950005#，represents storing NO.1number to receive alarm. Sending a SMS: 123456#16#13905950006#，represents storing NO.2 number to receive alarm. Sending a SMS: 123456#17#13905950007#，represents storing NO.3number to receive alarm. Sending a SMS: 123456#18#13905950008#，represents storing NO.4number to receive alarm. Sending a SMS: 123456#19#13905950009#，represents storing NO.5number to receive alarm.
- Page 5 0: disarm Wireless activated(01) 1 :arm (default) 51#--#--# (the time to alarm) 2 : 24-hours arm The same as above … ..0: disarm Wireless activated(15) 65#--#--# 1: arm (default) (the time to alarm) 2: 24-hours arm Setting of wired zone Zone status Message content Default message...
- Page 6 How to add new sensors. If needs to add sensors as PIR detector, wireless door sensor, remote controller and so on : 1) The detectors of external zones: Powered the host, press the RESET key for 2 seconds, the light becomes red. Then trigger the sensors, the wireless signal of the host will flash one time for confirm.
- Page 7 wireless sensors or wired ports trigger alarm(only the wireless detectors of Home Arm function effective, Out Arm detectors are ineffective), then dial out phone or send message, the light STATUS becomes red flashing. When press Disarm, the light STATUS becomes green, wireless detectors or wired ports won’t trigger alarm.
- Page 8 Technical parameter ⒈ Static Current ：50 mA ⒉ Power Supply ：9-12 V ⒊ Working Temperature ：-10 ℃ ~ +55℃ ⒋ Receive Coding ：ASK ⒌ Receive Frequency ：315/433MHz ⒍ Remote Control Distance ：No obstacle 100m ⒎ Detectors ：16...
