taiyo TF-711 User Manual

Synthesized thermal weather facsimile receiver
Hide thumbs

Advertisement

Quick Links

Download this manual
USER S MANUAL
OF
SYNTHESIZED THERMAL
WEATHER FACSIMILE RECEIVER
T F - 7 1 1
No.: MPP0446
May 2003
Version No.: 1.3

Advertisement

loading
Need help?

Need help?

Do you have a question about the TF-711 and is the answer not in the manual?

Questions and answers

Summary of Contents for taiyo TF-711

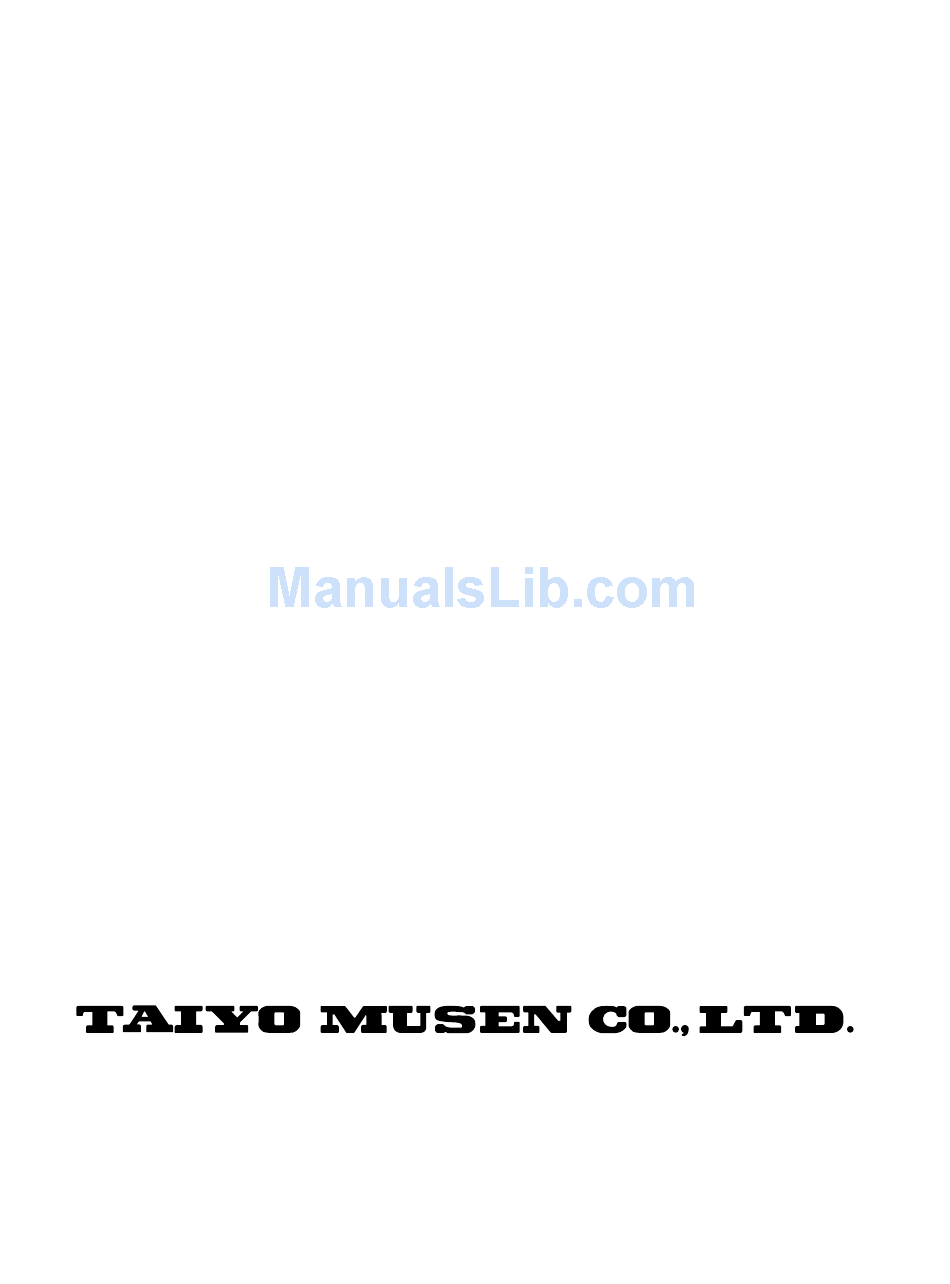

  • Page 1 USER S MANUAL SYNTHESIZED THERMAL WEATHER FACSIMILE RECEIVER T F - 7 1 1 No.: MPP0446 May 2003 Version No.: 1.3...
  • Page 2 Do not use organic solvent such as thinner or alcohol to clean the main unit. Use soft cloth soaked in neutral detergent solution and well squeezed. Use the genuine recording paper (Taiyo Thermal paper, 257mmx60m), and install it to the main unit in accordance with the procedure indicated in the section 2.6 of the User's Guide.
  • Page 3 3.3.1 Channel setting 3.3.2 Fine-adjustment of frequency, and selection of a desired frequency 3.3.3 Start and stop of recording 3.3.4 3.3.5 3.3.6 3.3.7 Timer release and release of keylock in the timer mode 3.4.1 Switching of receiver (audio) 3.4.2 3.4.3 3.4.4 3.4.5 Time setting 3.4.6...

  • Page 4: Specifications

    1. SPECIFICATIONS 1.1 Receiver Reception : Synthesized double superheterodyne Frequency range : LF 80.0 ~ 159.9 kHz MF/HF 2.0000 ~ 24.99999 MHz Mode : F3C Selectivity : 3.0 kHz at –6 dB Number of channels : 396 channels Sensitivity : LF 10µV at 20 dB SINAD MF/HF 2µV at 20 dB SINAD Channel selection : Automatic or manual, digital with ten-key pad...

  • Page 5: Installation

    2. INSTALLATION 2.1 Main unit Install the TF-711 main unit on a plane desk or a solid and plane wall with 4 pcs. of screws and washers. Caution: A print may become blurred if the installation place is uneven. In that case, put some washers or suitable attachment to adjust the flatness as following figure.
  • Page 6 2.2 Wiring of power supply cable There are 2 kinds of power supply cable, DC power supply cable (2P), or AC power supply cable (3P). 2.2.1 DC power supply cable Use DC power supply cable when the main unit is DC power supply (DC 10 V – 40 V) type.
  • Page 7 2.3 Terminal board Use terminal board on the rear panel of the main unit for the connection between BK, external receiver or decoder. Insert a connection wire in a terminal in the following ways. Note: Use connection wire with single core 0.4~1.0mmØ or standard twist core 0.3mm ~0.7mm 2.4 Grounding...
  • Page 8 2.5 Receiving antenna Following antennas are suitable to use as the receiving antenna for the TF-711. A) Antenna coupler TFM-01 + 2 m whip antenna (supplied by us as option) B) Whip antenna (6 m ~ 8 m) C) Wire antenna (Reverse-L or T type) Note: Generally, whip antenna is suitable for reception over 6 MHz, and wire antenna is suitable for reception under 6 MHz.
  • Page 9 2.6 Exchange of a recording paper (1) Remove the front cover, up the paper cutting plate, slide the paper feed lever in the direction of rear. (Ref. Fig.1) (2) Set the roll paper to the holder by pressing a paper guide to left side. (Ref.
  • Page 10 (4) Pull down ahead the paper feed lever, pulling the end of paper a little ahead. (Ref. Fig.4) (5) Return the paper cutting plate to the original position. (6) Install the front cover. At that time, place the end of paper above the front cover.

  • Page 11: Operation

    3. OPERATION The unit, with antenna(s) and power supply, receives and records signal automatically by the control of APSS when desired channels have been set. 3.1 Description of key Program key : For preparation to mode setting. One of following modes can be selected by pressing key and next, a key.
  • Page 12 Dimmer key : For adjusting a backlight brightness of the LCD indicator, 4 levels selectable. Speed key : For selection of SPD (speed). IOC key : For selection of IOC. Up key : Channel up in the channel mode or frequency up in the frequency mode.
  • Page 13 Channel key : For selection of channel mode from frequency mode, and for shift to the channel setting in the channel mode. For setting a channel, press key and enter channel number with three keys. The channel covers 000 443 (existent frequency) and 450 724 (new frequency).
  • Page 14 3.2 Contrast and brightness Contrast of LCD display depends on the visual angle and the temperature and hence, be sure to adjust it with the contrast knob (see Fig. 1) for optimum result at the time of installation. The backlight brightness of the LDC can be adjusted in four stages by pressing the key.
  • Page 15 3.3.3 Start and stop of recording (1) Start Recording starts automatically (Start/Stop, Phase, Speed, IOC) by receiving the APSS signal. To start halfway of the received picture, press key once and automatic speed setting and auto-phasing mode are set. Then, recording starts upon phasing is completed.
  • Page 16 3.3.6 Selection of reception mode The reception mode refers IOC, speed, and normal/reverse printing and modes. The former two (IOC and speed) are automatically selected by receiving the APSS signal and phase signal. For the latter two modes, desired ones should be selected manually. (1) Speed and IOC When incorrect speed or IOC is selected in manual recording or when auto-recording has...
  • Page 17 3.3.7 Timer release and release of keylock in the timer mode When the timer is in operation (except sleep timer), function of each key (except key) is locked to keep set values and hence, ordinary keying is inhibited. To release this timer or keylock in the timer mode, follow the procedure below. (1) In the timer standby mode (time for the next recording is displayed): Press...
  • Page 18 3.4.1 Switching of receiver (audio) Switching of the internal or external receiver is set by the following procedure. Press key. Then the receiver switching mode is set and message on the right appears. IN : INT The displayed number 1 is for internal receiver, 2 1-INT 2-EXT is for external receiver.
  • Page 19 (3) Re-calling (readout of the booking data) Press key. Select a booking number to RECALL TIMER REG be confirmed by pressing key. NO. 0 Then, contents of the booking data is displayed. (4) Entry booking Press key. STORE TIMER REG Select a timer number for booking by pressing key.
  • Page 20 3.4.3 Sleep timer setting The sleep timer indicates the sleep mode after a specified time for reception has passed and its setting is made as following. SLEEP MODE : OFF Press key. Then the message is shown on the right. The displayed numbers refer to the 1-OFF 2-ON...
  • Page 21 Available frequency for setting are within 80.0 159.9kHz or 2000.0 24999.9kHz. Press key to fix the registration. To correct the entry halfway, use key for resetting. Further, the speed, IOC, reverse and decoder can be set in sequence. SPEED 120-60 REVERSE DECODER 576/288...
  • Page 22 3.4.6 Setting of ISB frequency Signals from multiplex-communication station are easily received by setting an ISB (Independent side band) width as shown in the following. Pressing key sets the ISB setting mode and +0.0KHz the message on the right is shown. displayed numbers correspond...
  • Page 23 3.4.7 RAM clearance function The unit has RAM to memorize the frequency data of the FAX transmitting stations in the world and to retrieve such data. Therefore, when a part or all of RAM data is deleted in error so that the initial data in ROM (data at the time of delivery) has to be retrieved, the following procedure is needed to clear the RAM data.
  • Page 24 3.5 Operation with external receiver (1) External receiver When an external receiver is used, it should have a local oscillator with very good frequency stability. The A1 detected beat, a low-frequency output, can be monitored with the unit when the signal is supplied through receiver jack of the external receiver. If the signal is supplied from the speaker terminal, it is suggested to use a dummy resistor and supply signal from both ends of the dummy resistor.
  • Page 25 3.6 Connection of a decoder The terminal board (AF OUT/IN) is provided so that a decoder of secrecy broadcasts, such as Kyodo News (JJC), can be used. Turn ON the DIP-switch S2 (marked “DEC”) on BK board (inside the unit, attached to the terminal board) . Turn the power switch OFF and ON again after connection and S2 switch-ON.

  • Page 26: Maintenance

    4. Maintenance 4.1 Back-up battery This device uses a manganese lithium battery as a back-up battery. Please exchange to new one after using for 1~2 years. This battery is located on the CPU PCA. Please be careful about polarity when exchanging it. 4.2 Lubrication and Cleaning (1) Lubrication Lubricate a paper sending gear with 1-2 drops of lubricating oil at every 2-3 months.
  • Page 27 TABLE OF FACSIMILE STATION Table of pre-programmed frequencies and area map This unit has a ROM (read only memory) which is pre-programmed 443 existing frequencies of facsimile transmitting stations. Stations and frequencies are shown in the map and table respectively. This table is reference data and is subject to change without previous notice.
  • Page 28 TF-711 FACSIMILE STATION TABLE CHANNEL NO. CALL SIGN STATION FREQUENCY [kHz] CHANNEL NO. CALL SIGN STATION FREQUENCY [kHz] JAPAN 3622.5 SEOUL 5857.5 JAPAN 7305.0 SEOUL 7433.5 JAPAN 9970.0 SEOUL 9165.0 JAPAN 13597.0 JAPAN 18220.0 BEIJING 5526.4 JAPAN 23522.9 BEIJING 8122.0 BEIJING 10117.0...
  • Page 29 CHANNEL NO. CALL SIGN STATION CHANNEL NO. CALL SIGN STATION FREQUENCY [kHz] FREQUENCY [kHz] ZKLF AUCKLAND 5807.0 NAIROBI 7464.4 ZKLF AUCKLAND 9459.0 NAIROBI 9045.0 ZKLF AUCKLAND 13550.5 NAIROBI 12315.0 ZKLF AUCKLAND 16340.1 NAIROBI 16186.9 NAIROBI 17445.6 MELBOURNE 2628.0 NAIROBI 22867.0 MELBOURNE 5100.0 MELBOURNE...
  • Page 30 CHANNEL NO. CALL SIGN STATION CHANNEL NO. CALL SIGN STATION FREQUENCY [kHz] FREQUENCY [kHz] HALIFAX 4271.0 TBILISE 3745.0 HALIFAX 6496.4 TBILISE 7495.0 HALIFAX 10536.0 HALIFAX 13510.0 TASHKENT 3690.0 HALIFAX 122.5 TASHKENT 4365.0 TASHKENT 5890.0 ROTA 7595.0 TASHKENT 7570.0 ROTA 9050.0 TASHKENT 9340.0 ROTA...
  • Page 31 CHANNEL NO. CALL SIGN STATION CHANNEL NO. CALL SIGN STATION FREQUENCY [kHz] FREQUENCY [kHz] HAMBURG 3855.0 HONOLULU 9982.5 HAMBURG 7880.0 HONOLULU 11090.0 HAMBURG 13882.5 HONOLULU 16135.0 HONOLULU 23331.5 5850.0 COPENHAGEN 9360.0 COPENHAGEN 13855.0 COPENHAGEN 17510.0 COPENHAGEN PRIV CH45 72 5 IQALUIT&...

  • Page 32: Layout Diagram

    M205-P CAUTION Grounding wire 1. Turn ON the switch S1 on the PCA BK inside the TF-711 main unit when the antenna coupler AF IN AF OUT TFM-01 is used. AF OUT 2. Turn ON the switch S2 on the PCA BK when a DECODER decoder is connected.
  • Page 33 Base Cabinet...
  • Page 34 FOR SERVICE REQUIREMENT For any inquiry of service, please contact to a dealer where you purchased this equipment. When the dealer's contact address is uncertain, please contact to following address. 2-11-18, Higashi-Kojiya, Ota-ku, Tokyo 144-0033 JAPAN Overseas Trading Dept. TEL: 81-3-5735-1247 FAX: 81-3-5735-1683...
