Summary of Contents for A.O.M. K1

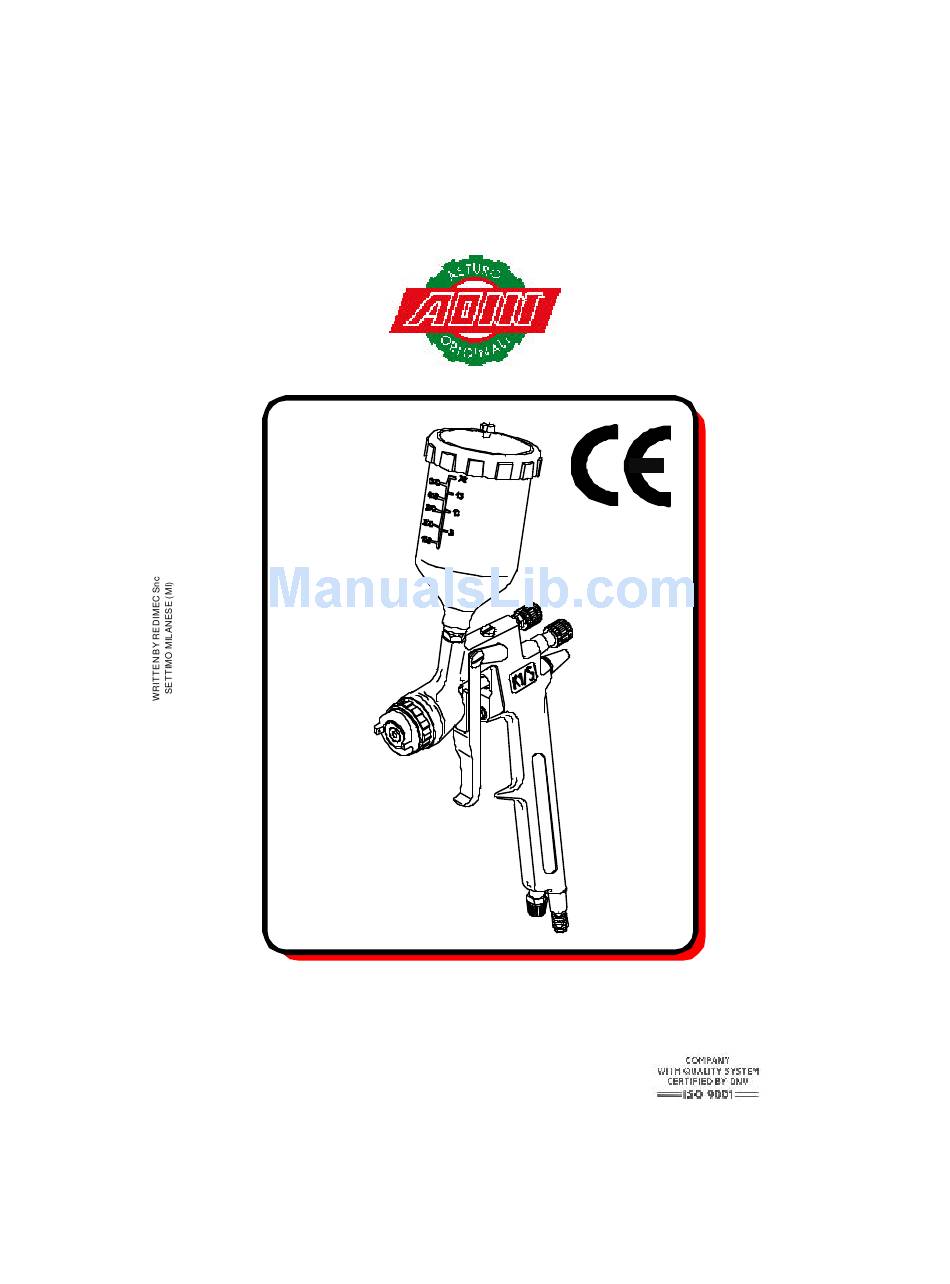

- Page 1 USE AND MAINTENANCE MANUAL ® K1/S GRAVITY SPRAY GUN (Rev. 3 - 12/04/02) A.O.M.- AMERICA, LLC USA - K1/S - 1.0 54 S. Commerce Way, Suite 180 Bethlehem, PA 18017 USA Cert. -04985-99-AQ-MIL-SINCERT...
-
Page 2: Declaration Of Conformity
® Via Cascina Venina, 20 B/C Assago (MI) Italy 20090 39-02-89305416 Fax: 39-02-89305497 E-Mail: export@asturooriginlai.com MODEL: K1/S SERIAL NUMBER YEAR OF MANUFACTURE ACCESSORIES SUPPLIED A.O.M. spa DECLARES on its own responsibility that the machine to which this declaration refers, conforms with the prescriptions in the following directives:... - Page 3 Dear Customer, Thank you for choosing one of the A.O.M.- AMERICA products. A.O.M.- AMERICA is a division of a leading manufacturer in the field of painting systems and machinery. The name ASTURO ORIGINALI MAVES Spa has always meant reliability and safety, a fact which has been supported by over 80 years of experience and by our Customer satisfaction.
-
Page 4: Table Of Contents
® USE AND MAINTENANCE MANUAL GENERAL CONTENTS HOW TO USE THE MANUAL.......................4 SYMBOLS USED..........................4 INFORMATION LETTER.......................5 PACKAGING ......................6 IDENTIFICATION DATA...................6 SPRAY GUN DESCRIPTION..................7 TECHCAL FEATURES.....................8 STANDARD AND OPTIONAL COMPONENTS............8 PAINTS, FLUIDS AND OTHER PRODUCTS............9 DIMENSIONS......................9 INSPECTION OF PURCHASED PRODUCT............10 INSTALLATION CONDITIONS................10 HOW TO USE THE SPRA Y GUN................10 EQUIPMENT AND CONDITIONS NEEDED TO WORK........11 SAFETY PROCEDURES DURING USE..............11... -
Page 5: Information Letter
® USE AND MAINTENANCE MANUAL INFORMATION LETTER The following maintenance and instruction manual is an integral part of the machine and must always be available to the personnel in charge of using and maintaining it. The operator and the personnel in charge of handling the machine must have knowledge of the contents of the manual. -
Page 6: Packaging
USE AND MAINTENANCE MANUAL 1.1 PACKAGING The K1/S spray gun is packaged in a cardboard box. All optional components are placed with the gun inside the same box. When transporting and storing the equipment make sure the surrounding temperature remains between -15 and 40 °C (5°F and 104°F). If transportation or storage operations last 24 hours or less do not exceed 50°C (122°F) otherwise the spray... -
Page 7: Spray Gun Description
USE AND MAINTENANCE MANUAL 2.2 SPRAY GUN DESCRIPTION This medium pressure K1/S gravity spray gun is designed for atomization. It is possible to obtain smooth and even surfaces thanks to a micro-atomizing system and reduced overspray. This spray gun is equipped with a 600 cc (18 fl.oz.) or 1000 cc (32 fl.oz.) gravity cup with filter. -
Page 8: Techcal Features
® USE AND MAINTENANCE MANUAL TECHNICAL FEATURES The painting spray gun must be used with a compressor of 5 bar (71 psi) at least. Its design improves the distribution of the air supplied from the internal holes at very low working pressures. -
Page 9: Paints, Fluids And Other Products
USE AND MAINTENANCE MANUAL 2.5 PAINTS, FLUIDS AND OTHER PRODUCTS The K1/S spray guns are designed for painting on metal, wood and plastic material. The materials which can be used in this spray gun are: monocomponent varnishes and enamels, liquid inks, double coated metal stains, pastel colors, heavy lacquers and monocomponents, bi-component inks and water-based paints in general. -
Page 10: Inspection Of Purchased Product
® USE AND MAINTENANCE MANUAL 3.1 INSPECTION OF PURCHASED PRODUCT Inspect the spray gun before its use to check for damages caused by transportation or improper storage. Make sure that all standard and optional components have been delivered. 3.2 INSTALLATION CONDITIONS It is advisable to use dry compressed air to obtain the best painting results. -
Page 11: Equipment And Conditions Needed To Work
® USE AND MAINTENANCE MANUAL 3.4 EQUIPMENT AND CONDITIONS NEEDED TO WORK Painting operations MUST be carried out in an appropriate spray booth equipped with a filtering system. Do not use the spray gun if the filtering system is not activated. Always wear protection gloves, goggles, breathing filters with active carbon and adequate clothing for the protection of the entire body. -
Page 12: Pressure Discharge Opera Tions
3) Clean as described in the following paragraph. 4.2 ROUTINE MAINTENANCE The routine maintenance of the K1/S spray gun is simple and does not require special operations because its components do not need to be lubricated. Clean the spray gun daily or at the end of each working session so that product residue will not dry out on its walls, thus guaranteeing long term efficiency. -
Page 13: Troubleshooting
® USE AND MAINTENANCE MANUAL 4.3 TROUBLESHOOTING This chapter describes how to solve the most common problems which could affect the unit. The problem is indicated by the following symbol: (6) The possible cause is indicated by the following symbol: (ß) The possible solution is indicated by the following symbol: (l) THE SPRAY GUN SPRAYS INTERMITTENTLY ? ß... -
Page 14: Warranty
WARRANTY All ASTURO ORIGINALI MAVES Spa appliances are guaranteed for a period of 12 months from the date written on the invoice, unless otherwise stated in writing. The warranty covers all manufacturing faults and material defect. Replacements and repair operations are covered only if carried out by our company and at our servicing shops. -
Page 15: Spray Gun Assembling Drawing
® USE AND MAINTENANCE MANUAL SPRAY GUN ASSEMBLY DRAWING K1/S Rev. 3... - Page 16 Zinc gravity spray gun holder 24097R Nylon cleaning brush 238XX Needle-nozzle-cap kit (replace xx with nozzle sizes) (Pos. 3-4a-5-15) 25089R K1 packing and spring kit (Pos. 5-18-19-23x2-21X2-22X2-27-28-25-26-6) 304117 700 mesh 10 filter kit (67 ME) (Pos. 11x10) K1/S Rev. 3...
