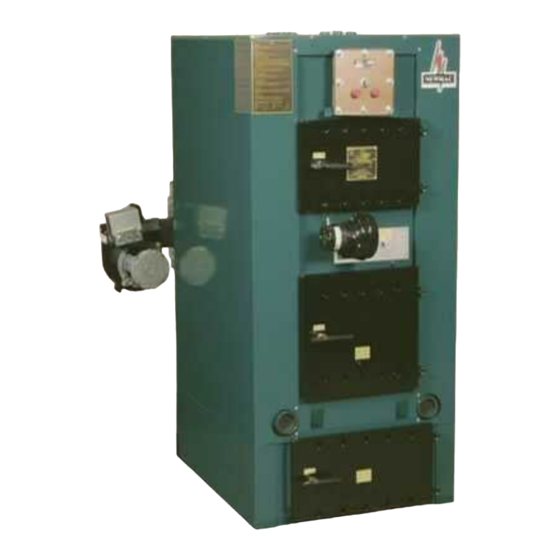

SERVICE MANUAL
NEWMAC SOLID FUEL BOILER
MODEL BC 160
NEWMAC BOILER OIL SECTION
O-95, 115, 140, 155, 170
902-662-3840
NOTICE TO HOMEOWNER:
READ THESE INSTRUCTIONS
SAVE THESE INSTRUCTIONS
and
Newmac Mfg. Inc.
430 SPRINGBANK AVE., SOUTH
WOODSTOCK, ONTARIO
TEL:
FAX: 519-539-0048
HOMEPAGE: newmacfurnaces.com
2210042 NOVEMBER 2012
Printed: __ __ ________________
WAREHOUSE
N4V 1B2
519-539-6147
CSA B415.1
156156
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Summary of Contents for Newmac BC 160
- Page 1 INSTALLATION, OPERATING SERVICE MANUAL NEWMAC SOLID FUEL BOILER MODEL BC 160 NEWMAC BOILER OIL SECTION O-95, 115, 140, 155, 170 ALL INSTALLATIONS MUST BE MADE IN ACCORDANCE WITH LOCAL & STATE CODES WHICH MAY DIFFER FROM THE MANUAL. HEAD OFFICE...
- Page 2 GENERAL INSTRUCTIONS It is the responsibility of the consignee of the unit to examine the package for damage and, if found, to note the same on the carriers bill of lading. Package Description Included With Water Jacket c/w Doors #1 - (P/N 5020001C/LCor A/LC) Draft Regulator #2 –...
- Page 3 BOILER IDENTIFICATION BC – Boiler, Wood – Coal or Pellets O-95,-115,-140,-155,-170 following the letters designates the approximate output of the unit in 1,000’s of B.T.U.’s on the oil section. BTUH BTUH Nozzle Pump Insertion Model Oil Burner Output Input (Monarch) p.s.i.
- Page 4 BOILER INSTALLATION THIS BOILER MUST BE INSTALLED BY A QUALIFIED INSTALLER. To insure the boiler is on a level foundation and above any possible dampness, a concrete pad is recommended. The ash pit and boiler are then set on this pad. We recommend a layer of split firebrick be placed in the bottom as shown in diagram 1.
- Page 5 WOOD (COAL) When starting a wood fire in the Newmac Boiler, turn toggle switch 5 to the OFF or wood only position. The dual aquastat 2, set at 180ºF, will cause the draft fan to operate. When the boiler water temperature reaches 180ºF it will shut the draft fan off.
- Page 6 draft regulator. A flue-gas analysis should be made and the unit adjusted so that between a 8% and 10% is registered. TYPES OF COMBUSTION AIR FOR WOOD HEATING Unlike older airtight box heating appliances, low emission furnaces have more than one location and control for supplying combustion air into the firebox.
- Page 7 For safe operating procedures for solid fuel operation, refer to the notice label on the furnace. The furnace room must have adequate air for combustion. If the unit is in a confined space, one square inch of free air access for every 1,000 BTU must be provided. ...
- Page 8 BURNER TROUBLE SHOOTING Noise Smoke Noise High oil Odors Insufficient (combustion. and Soot (mechanical) consumption Puffback domestic pulsations) hot water Insufficient air for Oil leaks Fan noise Insufficient draft at Delayed ignition Too much excess Aquastat set too low combustion Oil spilled Loose air shutter breeching or over...
- Page 9 COAL BURNING TIPS Burn ONLY anthracite (hard) coal of the “chestnut” size. Bituminous (soft) coal is not recommended because it has a high ash and sulphur content which means more cleaning and greater pollution. Also bituminous coal produces excessive smoke and an excessive amount of dirt and ash which will plug the heating unit and the flue pipe possibly causing smoke damage or danger of carbon monoxide poisoning.
- Page 10 Clinker formation can occur from a number of different causes or a combination of causes. Some of these are as follows: Too hot a fire (too much draft); Too shallow a bed of coals; Too deep a bed of coals; Excess shaking;...
- Page 11 Runaway Fire This can be caused by too high a flue draft or excessive fuelling. Close all sources of air to the boiler. Be sure draft fan is turned off. Set the barometric draft regulator wide open to reduce draft. PREPARATION OF WOOD ONCE I HAVE MY WOOD AT HOME, HOW DO I PREPARE IT FOR BURNING? The wood must be cut to length to suit the firebox of the stove, furnace, or fireplace in which it is to be...
- Page 12 required for evaporation, these gases are cooler and more likely to condense than would be the case with dry wood. Charcoal may be found more readily if the unit is overcharged particularly in milder weather. With overcharging (too much wood in unit) the draft fan will be off a greater percentage of time, coals will be formed which will become covered with ash in turn will smother the coals to form charcoal.
- Page 13 insulated, pre-fabricated metal chimney has the least serious creosote problems; its insulation helps maintain higher temperatures on its inner surface, and its low heat capacity allows it to warm up very quickly after a fire is started. Masonry chimneys frequently accumulate deposits at the beginnings of fires and their interior surfaces take a longer time to warm because the construction is so massive.
- Page 14 THE NEWMAC COMBINATION OIL AND WOOD FURNACE toasts the wood to charcoal and the charcoal burns to dust leaving a minute amount of residue. From the above heat values, it can be seen that a cord of Hickory wood is equivalent to $248.22 (@ $0.30 per litre) worth of oil, over twice as much as you would pay for a cord of wood.
- Page 15 Diagram #1 BOILER INSTALLATION ON NON-COMBUSTIBLE FLOOR In order for unit to operate at peak efficiency, seal between boiler and ashpit with a material such as refractory cement Note: In order to increase firebox capacity for burning wood, do not use the grates. Place 5 pcs 2 ½”...
- Page 16 Diagram #2 NON-COMBUSTIBLE BASE Note: This unit is designed and approved to be placed on a non-combustible floor. This diagram shows how such a typical base can be made if the boiler room has a combustible floor. Consult also CMHC Bulletin NHA 5178 78/08, Heating with Wood Safely. Also consult local authorities before installing units in rooms with combustible floors.
- Page 17 Diagram #3 STACK AND OIL CHAMBER INSTALLATION INSTALLATION PROCEDURE 1. Install gasket between rear boiler wall and retainer. If unit is BCO series cut a hole 9 ½ x 9 ½” in gasket to provide passage from oil chamber to boiler (use opening in boiler as a guide). 2.
- Page 18 HEAT SHIELD INSTALLATION Step 1: Slide heat shield on over oil section Step 2: Secure in place at burner side with angle bracket and two screws Step 3: Secure opposite end using hook bracket and two screws...
- Page 19 The WMO-1 switch is required on new Newmac oil-fired and combination furnaces or boilers installed in Canada. It must be installed by a qualified installer in accordance with the manufacturer's installation instructions.
- Page 20 3. Remove the two mounting screws holding the control box (4) to the heat transfer tube assembly (5). 4. Using a suitable soft brush or cloth carefully clean any soot from the surface of the thermodisc sensor and the inside of the heat transfer tube assembly (5). 6.
- Page 21 DIAGRAM #4 SECONDARY AIR OPENINGS & LOW WATER CUT-OFF FITTING...
- Page 22 Diagram #5 CASING INSTALLATION PROCEDURE INSTALLATION PROCEDURE Place 30 x 110 piece of insulation over top of boiler and down sides. Place bottom rear panel (1) in place with inlets through holes in panel. Rear extension (8) is placed below (1). (1) and (8) may be shipped in one piece.
- Page 23 DIAGRAM #6 GENERAL ASSEMBLY...
- Page 24 Diagram #7 FLUE PIPE CONNECTION Diagram #8 MINIMUM INSTALLATION CLEARANCES...
- Page 25 Diagram #9 CONTROL PANEL...
- Page 26 Diagram #10A FIELD WIRING...
- Page 27 Diagram #10B FIELD WIRING WITH LOW WATER CUT-OFF...
- Page 28 Diagram #11...
- Page 29 Diagram #13A...
- Page 30 Diagram #13B...
- Page 31 Diagram #14 WOOD ADD-ON WIRING...
- Page 32 Diagram #15A...
- Page 33 Diagram #15B...
- Page 34 Diagram #16A TYPICAL PIPING - ZONING WITH CIRCULATORS...
- Page 35 Diagram #16B TYPICAL PIPING - ZONING WITH ZONE VALVES...
- Page 36 Diagram #17 Diagram #18...
- Page 37 Diagram #19 Diagram #20...
- Page 38 Diagram #21 SHAKER GRATE INSTALLATION PROCEDURE...
- Page 39 Diagram #22 GRATE INSTALLATION PROCEDURE Diagram #23 CASTING INSTALLATION...
- Page 40 BAFFLE RETAINER AND BAFFLE INSTALLATION STEP 1: Position first cast baffle in boiler on supports as shown STEP 2: Put baffle retainers in place by sliding one along each edge of the baffle BAFFLE RETAINER STEP 3: Once one baffle and baffle supports are in place slide second cast baffle into place STEP 4: Inserting stainless steel baffle.
- Page 41 Diagram #24 SECONDARY AIR SYSTEM GENERAL ASSEMBLY...
- Page 42 Diagram #25 SECONDARY AIR SYSTEM INSTALLATION...
- Page 43 AERO F-AFC BURNER PARTS LIST Item Part Number Item Part Number Part Name & Description Part Name & Description Aero Newmac Aero Newmac F housing 65000 Knurled lock nut 65018 Blast tube, 8" (2001 & later) 2090006 8" Electrode assembly (11 to 17) 2090001 Blast tube, 7"...
-
Page 44: Parts List
BECKETT AFG BURNER PARTS LIST PART NUMBER ITEM DESCRIPTION BECKETT NEWMAC 5877 2090024 Burner Housing Assembly 3709 Air Shutter 3492 Air Band 3493 Escutcheon Plate 21844U 2060012 Pump Clean Cut A2EA - 6520 51843U Strainer & Gasket 21755U 2090065 Valve Coil (Suntec Part No. 3713824) - Page 45 RIELLO F5 BURNER PARTS LIST ITEM PART NUMBER DESCRIPTION RIELLO NEWMAC C7010002 2090043 O-ring - pump cover 3002279 Solenoid Coil 3007802 2060007 Pump 3005843 Motor 3002280 2010045 Photo cell C7001029 2010048 Primary control 530 SE/C 3005855 Universal mounting flange 3005856...
- Page 46 BC-160 PARTS LIST Description Newmac Part Number Airchute (After 1979) 4060118 Aquastat Well 2010049 Aquastat, Dual (2 required) 2010011 Aquastat, Single 2010014 Ash Pit Complete 5020005 Boiler Brush 2170010 Boiler Brush Handle 2170011 Brick, Cut 1 ¼" x 4 ½" x 3" #5 Box 5110015 Brick, Full 2 ½"...
- Page 47 Door Assembly New Style Old Style ITEM Metal Gasket Inside Spacer Outer & Inner Panel Chute Liner Gasket Assembly New style 2080049 3160433 & 3160434 Welded Firedoor 4060118 3160323 2080003 Old style 2080002 3160366 3160318 & 3160325 Welded New style 3160437 2080049 2080021...
- Page 48 IMPORTANT HOMEOWNER INSTRUCTIONS 1. AN EMERGENCY POWER SWITCH IS REQUIRED TO BE INSTALLED IN A CONVENIENT LOCATION AT A SAFE DISTANCE FROM THE BURNER. THIS SWITCH INTERRUPTS THE ELECTRICAL SUPPLY CIRCUIT TO THE APPLIANCE. MAKE SURE YOU ARE AWARE OF ITS LOCATION AND THE OFF POSITION IS CLEARLY MARKED.
- Page 49 INSTALLER INFORMATION NAME: COMPANY: INSTALLATION DATE: THE HOMEOWNER SHOULD TELEPHONE ( FOR SERVICE OR ADDITIONAL INFORMATION. MODEL: APPLIANCE INITIAL TEST AND SERVICE INFORMATION FUEL INPUT (USGPH) FUEL PRESSURE (PSIG) FLUE PRESSURE (INCHES W.C.) OVERFIRE PRESSURE (INCHES W.C.) NOZZLE ANGLE / PATTERN PERCENT BURNER MODEL FLUE GAS TEMPERTURE (F...
- Page 50 3 years. On the date of original installation Newmac warrants for a period of ten (10) years to the original purchaser that the pressure vessel will be free from defects in material and workmanship provided however, this limited warranty shall apply only to the original installation in a single dwelling unit used without interruption by the purchaser as his or her principal residence. This limited warranty is subject to the conditions and exceptions of warranty listed below.
Need help?
Do you have a question about the BC 160 and is the answer not in the manual?
Questions and answers

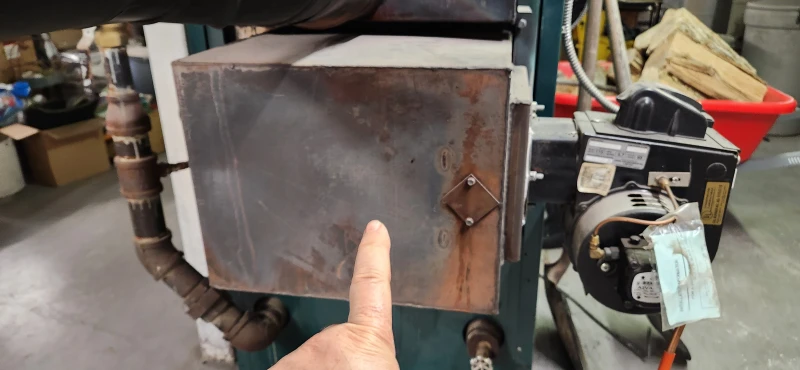

I need to replace the bax or casing the oil burning motor is attached to on my Newmacbc160 wood/oil furnace. The heat shields and case have been comprised. I don't know the name of the part or how to identify it on the parts list. Can you help please?
