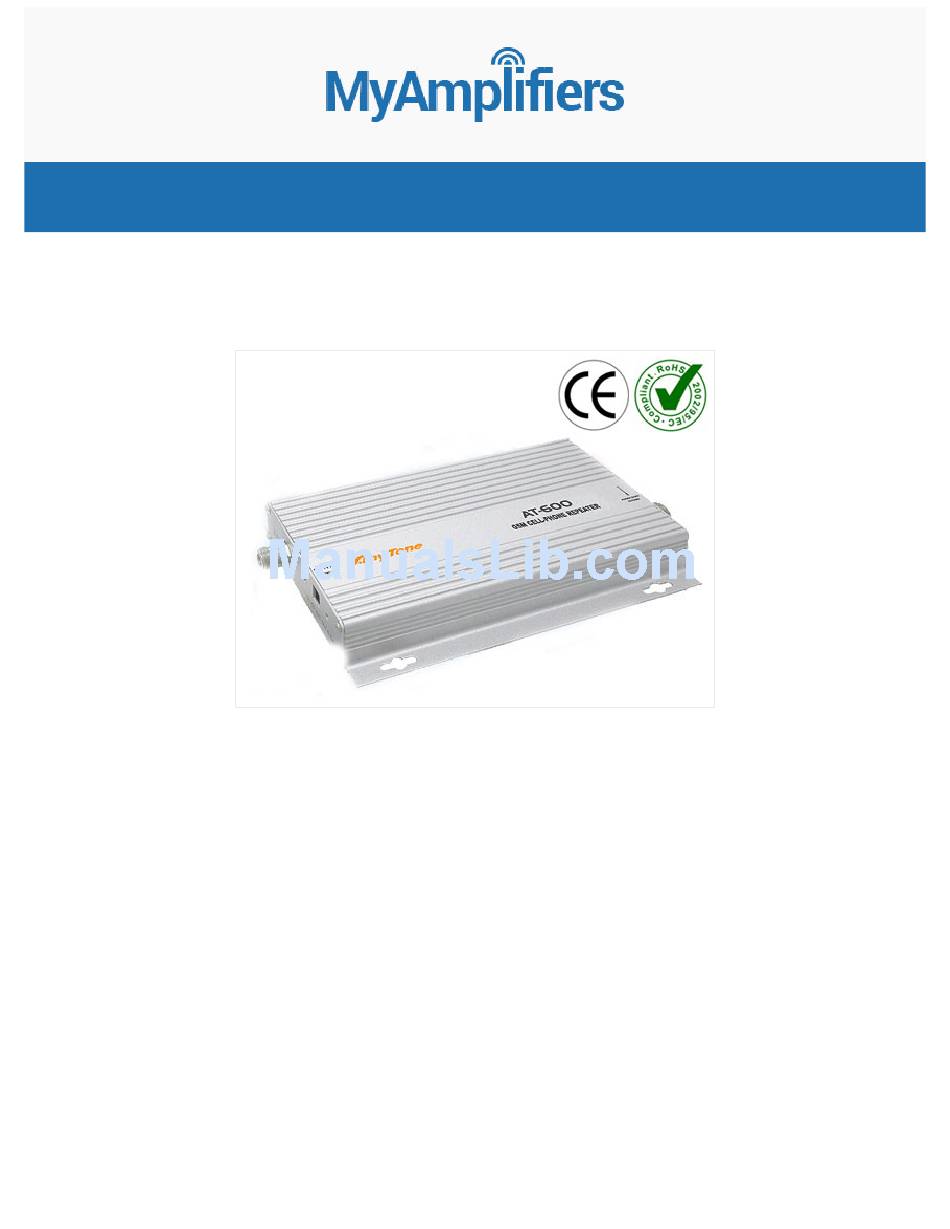

- Page 1 INSTALLATION GUIDE Mobile Signal Repeater GSM Amplifier Repeater Anytone AT600 GSM | 900MHz Coverage: 300 m...
-
Page 2: Safety Warnings
Preface This user’s manual describes the installation and maintenance of wide band consumer boosters. Please do read user manual carefully before installing and maintaining repeaters. The information in this manual is subject to change without prior notice. 1. Safety Warnings Users must follow the principles below：... - Page 3 2. Introduction and Reasons for Weak Cellular Signals Cell Phone Signal Booster is a perfect solution for providing improvement of cellular signal reception inside a house, office, restaurant, VIP Room, apartment, building or shopping mall. Generally cell phones cannot pick up or maintain a strong cellular signal due to one of the two following reasons: 1.
-
Page 4: Model Description

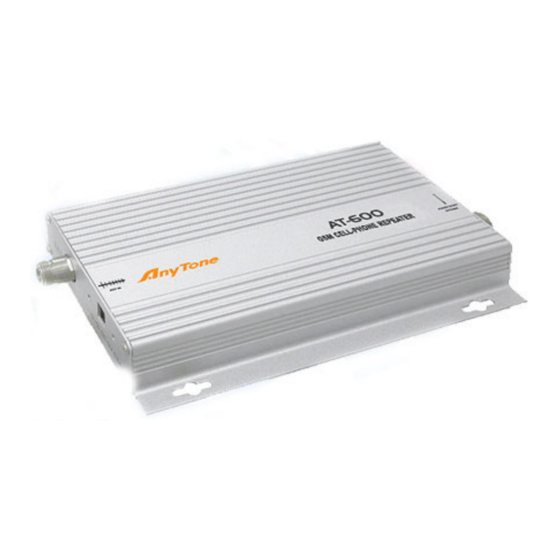

AnyTone AT600 stabilizes mobile phone communication and provides stable access to both GPRS and EDGE networks. AnyTone AT600 corresponds to the latest technical standards which is proved by the international CE and RoHS certifications. Order AT600 GSM amplifier repeater and there won't be any dropped and missed calls in your life! ... -
Page 5: Specification
4. Specification Indoor coverage: 300 m Up-link freq: 890-915 MHz Down-link freq: 935-960 MHz Up-link Gain: 50 dB Down-link Gain: 60 dB Power supply: AC 10V / 30mW (AC 220V/110V) Working t -25 - +55 Humidity: 5-95% Size (mm): 248x146x35 Booster Weight: 1.5 kg Package Weight:... - Page 6 5. Repeater system overview The picture below shows how simple and fast booster installation is and how effectively it works. A Yaggi or panel antenna (it depends on the booster model and its power), as donor/outdoor antenna, is installed at the top of the roof to pick up good mobile signals from the base station, and sends them through the cable to the booster where the signals get amplified significantly;...
- Page 7 Optionally: Splitters or couplers: when the building structure is too complicated or there is big loss due to thick walls or other reasons, splitters or couplers shall be used so that more antennas can be installed in separate zones to distribute the signals to each corner of the coverage area.
-
Page 8: Outdoor Antenna Installation
6. Antennas and Cables Setting Up 6.1. Outdoor antenna installation The repeater’s main function is to improve weak RF signals in an area. The formula is: Input power + Gain= Output power. The signal strength from an outdoor antenna directly affects the efficiency of the indoor coverage. It is very important to choose the correct outdoor antenna location in order to get the best signal. -
Page 9: Indoor Antenna Installation
Installation of a Yaggi antenna as an outdoor antenna 6.2. Cable layout and connector assembly 1. Keep the type, specifications, routing direction, location and curvature radius of cables in compliance with the model requirements. Place cables in correct order, bend them smoothly, and protect the surface from any damage. 2. - Page 10 Requirements to indoor antenna installation: indoor antenna should be 5 meter distance from an outdoor antenna indoor antenna should be at least 2 meters above the ground indoor antenna should be fixed vertically with the ground.
-
Page 11: Repeater Installation
7. Repeater Installation 7.1. Installation requirements 7.1.1. Installation Location Requirements 1. The repeater shall be installed indoor in a cool, dry and ventilated room without erosive gas or smoke, or on a cool and ventilated wall to ensure excellent heat dissipation. 2. - Page 12 6. Plug the power supply into the Signal Booster input (carefully, to avoid damaging the center pin) and then into a wall outlet. Note: It is recommended to plug all AC power supplies for home electronics into a Surge Protector Power Strip. 7.
- Page 13 7.4.1. Check whether the coverage is good 1. Take a test with a mobile phone or a data card (engineering mobile phone is preferred). If the signals in most areas have not been improved, please check recommendations below again: - Weak input signal leads to low output power. To increase input signal power level, change the direction of the outdoor antenna or its installation position or replace it for an antenna with higher gain. ...
- Page 14 - Secondly adjust the antennas’ directions or locations or enlarge distance between them. - Thirdly reduce the repeater’s gain by ATT DIP if the above listed methods don’t work. The following measures can also be helpful: - Use the roof of the building to enlarge isolation (Please try to place the outdoor antenna and indoor antenna on different floors).
- Page 15 8. FAQ 1. Will booster increase the RF radiation? No, it will decrease instead. Every cell phone irradiates heavily being in zones with poor mobile signal as a cell phone is constantly in searching mode. The danger is your cell phone is about 2cm to your body, which makes its usage rather harmful. And when a booster is installed, it improves the mobile signals in the coverage, and your cell phone stops irradiating strongly, thus it will reduce the RF radiation of the mobile phone tremendously.
- Page 16 9. About Anytone Brand Shenzhen Anytone Technology Co. Ltd was set up in 2000. Since then the major aim of the company has been the introduction of innovative technologies and a customer-oriented approach. For these, and many other reasons, AnyTone has quickly gained popularity on the world market and has become widely recognized and trusted.
- Page 17 +44 2037691854 (UK) · +33 975122740 (France) · +16178610605 (US) E-mail: · Skype: contact@myamplifiers.com myamplifiers www.myamplifiers.com...
