SpreadNet SN960-PENDANT Installation Instructions

®
SpreadNet
Model SN960-PENDANT
RF Personal Protection Transmitter

Installation Instructions

The SpreadNet Model SN960-PENDANT Personal Transmitter is a truly
versatile wireless RF transmitter.
Using Spread Spectrum technology, the SN960-PENDANT provides higher
power, lower noise levels, less interference, and longer range than obtain-
able with most single-frequency RF transmitters, resulting in increased
reliability.
The unit is equipped with two push buttons mounted on the sides of the
assembly. The transmitter is activated by pressing both buttons simulta-
neously.

FEATURES

• Spread Spectrum Technology
• Simple Installation
• EEPROM Memory
• 2 push buttons wired
in series
• 10 mW Transmitter Power
The SN960-PENDANT comes with an adjustable bead chain (P/N 7-700-
000-00) and a belt clip (P/N 5-532-111-00), both included. To install the
chain, open the chain and insert the end through the opening across the
top of the Pendant. (See Figure 1 below.) Remove excess chain length
by cutting off extra beads with a pair of wire cutters. This allows the Pendant
to be worn around the neck.
The Pendant also comes supplied with an optional belt clip, which may be
inserted into the back of the Pendant. (See Figure 1 below.)
Battery Compartment
Retaining Screws
Battery
Battery
Compartment
• Water resistant
• Programmable Check-In Rate
• Includes Neck Chain and Belt
clip
• Lithium Battery (Included)
• Up to 3-year Battery Life

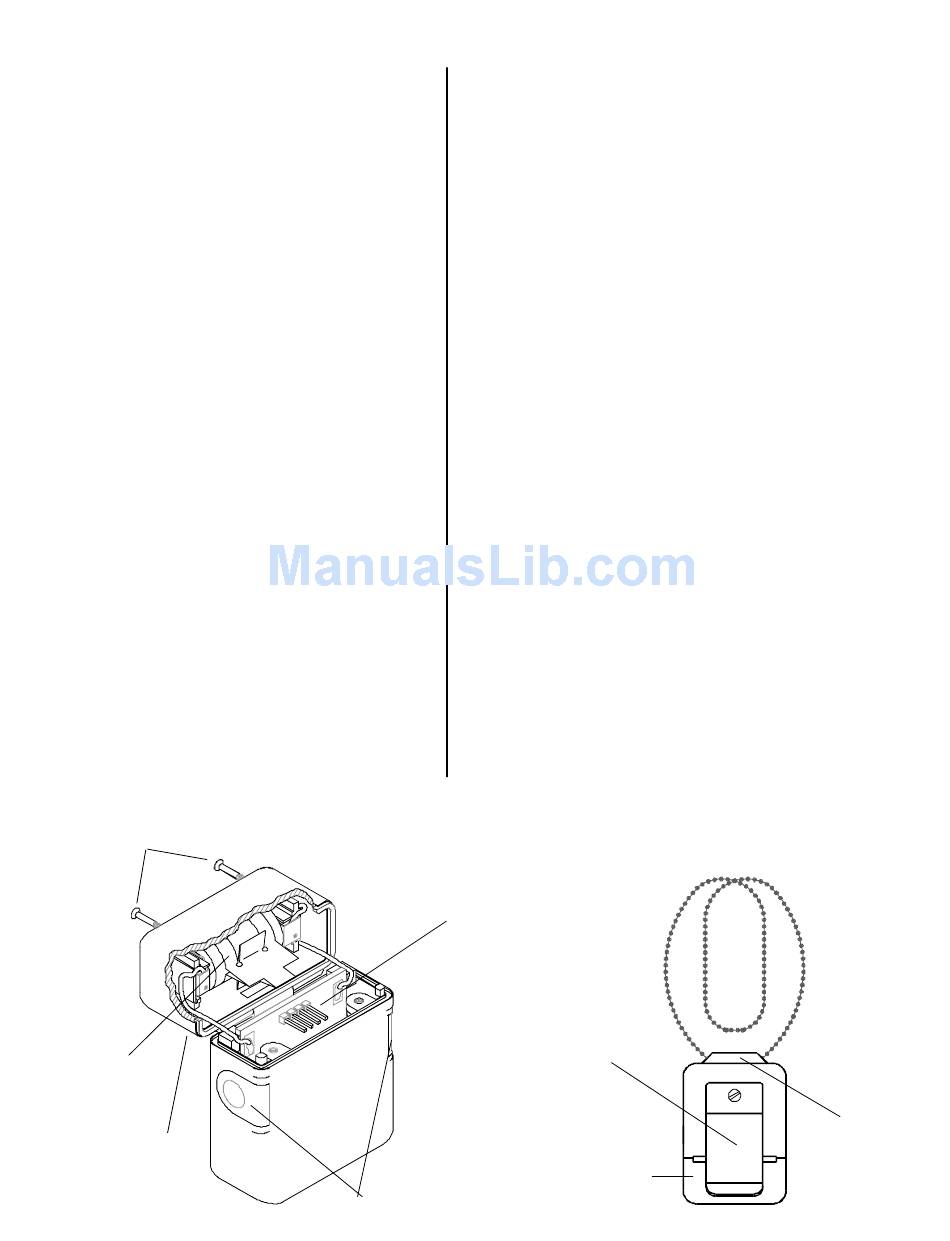

Figure 1 - Transmitter Housing
Alarm Activator
Buttons

UL COMPLIANCE

For Grade A household burglar alarm and household fire warning system
applications using the C&K System 2316 Control Panel:
Only one transmitter may be installed per zone.

PROGRAMMING THE PENDANT

To program the SN960-PENDANT, open the battery compartment and
remove the Battery Activator Tab from the positive (+) end of the battery.
Next, connect the SN900-PROG Handheld RF Programmer to the Program-
ming Connector and follow the programming instructions as outlined in the
SN900-PROG Programming Manual (P/N 5-051-136-00).

TESTING THE PENDANT

To Walk-Test the SN960-PENDANT, move about in the various areas to
be protected, activating the Pendant in each area to ensure reception at
all positions to be covered. To activate the transmitter, press both Alarm
Activator Buttons on the sides of the Pendant at the same time.
NOTE: For continued reliability, the SN960-PENDANT should be
tested at least once per year.

SPECIFICATIONS

• Dimensions:
2.75" L x 1.875" W x 0.875" D
(7 cm x 4.75 cm x 2.2 cm)
• Weight:
2 oz. (57 g)
• Operating Frequency:
902 - 928 MHz Spread Spectrum
• Input Power:
one 6 VDC 1/2AA lithium battery
• Output Power:
10 mW
transmitting period - 7.6 mSec
• Replace Batteries Only with
C&K Model # SN60L-BAT
Duracell XL PX 28L
NOTE: Batteries should be replaced
following a low battery indication or
every 3 years, whichever occurs first.
Programming
Connector
Belt Clip
Battery
Compartment
• Operating Environment:
32° to 140° F (0° to 60° C);
up to 95% relative humidity
(non-condensing)
• RF Emission Standards:
USA: FCC Part 15
CANADA: Industry Canada
• Supervisory Rate:
30 - 300 sec (30 sec intervals)
0 is unsupervised
• Neck Chain
P/N 7-700-000-00
• Belt Clip
P/N 5-532-111-00
Neck
Chain
Neck Chain
Retainer Sleeve
