- Page 1 MR5068 Free Plus Relax Armchair MR5065 Free Relax Armchair MR5066 Syncro Plus Relax Armchair MR5062 Syncro Basic Relax Armchair MR5063 Syncro Relax Armchair MR5078 Vario Free Plus Relax Armchair MR5076 Vario Syncro Plus Relax armchair Instructions for installation and use...
- Page 2 Thanks for choosing “GIVAS SRL” “GIVAS SRL” is committed to continuously improve its products and its service for a full customer satisfaction. Our service centres are at your disposal whatever installation, use or maintenance needs you may have. Copyright © 2009 GIVAS SRL The reproduction of images, texts and other parts of this manual is prohibited without prior writ- ten permission from “GIVAS SRL”.
-
Page 3: Certification
Certification ... -
Page 4: Table Of Contents
Locking wheels (MR5078 - MR5076) ..................18 How to sit down on the armchair ................... 19 How to get out of the armchair (MR5068 MR5065 MR5066 MR5063 MR5078 MR5076) ..19 How to get out of the armchair (MR5062) ................20... - Page 5 Backrest and legrest adjustment (Mod. MR5068 - MR5065 - MR 5078) ....... 20 Backrest and legrest adjustment (mod. MR5066, MR5062, MR5063, MR5076) ..... 21 Height adjustment (mod. MR5078 - MR5076) ............... 21 Footrest adjustment (mod. MR5068 - MR5066 - MR5078 - MR5076) ........21 Moving the armchair ......................
-
Page 6: Ecc Declaration Of Conformity
Givas s.r.l. Adress: Viale Veneto, 2 Z.A. 35020 Villatora di Saonara (PD) Products: MR5068 Free Plus Relax Armchair MR5065 Free Relax Armchair MR5066 Syncro Plus Relax Armchair MR5062 Syncro Basic Relax Armchair MR5063 Syncro Relax Armchair MR5078 Vario Free Plus Relax Armchair... -
Page 7: General Rules
Customer service The customer and product assistance services are important parts of “GIVAS SRL” company struc- ture. Customer service is readily available for further information on use, maintenance and service of this product. -
Page 8: Safety
Always use and carry out the maintenance procedures of the article as prescribed in this manual, and use only “GIVAS SRL” spare sparts and “GIVAS SRL” customer service centre. Keep this manual for future reference and to support personnel training. Keep this manual toge- ther with the product in the event that you sell or give the product to a new user. -
Page 9: Introduction

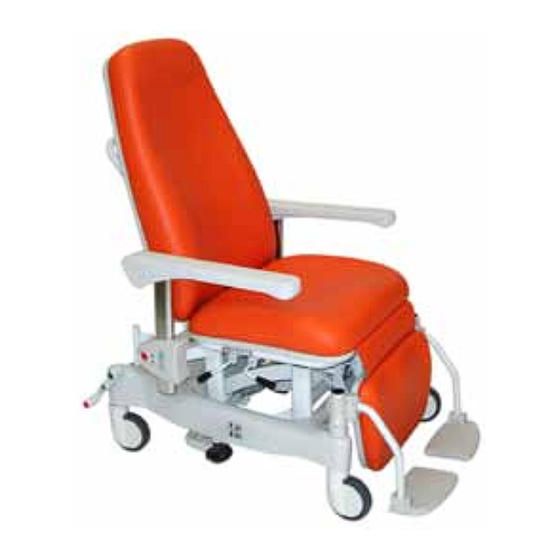

Introduction Technical presentation MR5068 FREE PLUS Relax armchair with fixed height and reclining foot rest; equipped also with separate movement of the backrest and the legrest. The separate inclination is made through two gas spring moved by laterals levers. The seat, the legrest and the backrest are padded following diffe- rent thickness and they are upholstered with simil leather which is fireproof class 1 IM, washable and disinfectable. - Page 10 MR5062 SYNCRO BASIC Blood donor armchair with compacts dimensions. It is equipped with four wheels; two of them are in the front side and are fixed, two are on the back side and they are swivelling and with brake. The frame is made of tubular steel varnished with epoxy powders; the seat is padded with different thickness and upholstered with soft fireproof leatherette;...
-
Page 11: Reference Regulations
Reference regulations The article has been designed and manufactured by “GIVAS SRL” according to the safety rules established by the EEC/93/42 directive dated 14.06.93 (class I) concerning medical equipment. Prescribed use Relax armchairs MR5068, MR5065, MR5066,MR5063, MR5062, MR5078, MR5076 must be used only like armchair in accordance with the procedures and within the limits described in the section of this manual called “Operating and Use”. -
Page 12: General Description
General description Name of the components (MR5068-MR5065) 1. Backrest; 2. Pushing knob; 3. Armrest; 4. Button for the adjustment of the armrest height; 5. Backrest adjustment lever; 6. Drip feed stand support; 7. Swivel wheels with brake; 8. Directional wheels;... -
Page 13: Name Of The Components (Mr5062)
Name of the components (MR5062) 1. Backrest; 2. Armrest; 3. Button for the adjustment of the armrest height; 4. Backrest adjustment lever; 5. Legs; 6. Legrest; 7. Seat. -
Page 14: Name Of The Components (Mr5066-Mr5063)
Name of the components (MR5066-MR5063) 1. Backrest; 2. Pushing knob; 3. Armrest; 4. Button for the adjustment of the armrest height; 5. Lever for the simultaneous adjustment of backrest and leg rest; 6. Drip feed stand support; 7. Swivel wheels with brake; 8. -
Page 15: Name Of The Components (Mr5078-Mr5076)
Name of the components (MR5078-MR5076) 1. Backrest; 2. Pushing knob; 3. Armrest; 4. Button for the adjustment of the armrest height; 5. Backrest adjustment lever (Adjustment of backrest and leg rest on model MR5076); 6. Drip feed stand support; 7. Wheels; 8. -
Page 16: Technical Features
Technical features Relax Armchair MR5068 MR5065 MR5066 MR5063 MR5062 MR5078 MR5076 Height 1270 1280 ÷ 1550 Width Length 900 ÷ 1700 950 ÷ 1770 Seat width Open chair 740 x 1700 x 730 h 750 x 1770 dimensions Closed chair... -
Page 17: Installation
▪ check if the article works correctly, with reference to the section in this manual called “Operation and Use”. ▪ If the check is positive, the article is ready for use, otherwise call the “ GIVAS SRL” customer ser- vice centre immediately. -
Page 18: Operation And Use
Before using the chair, always disinfect it following the instructions in chapter DISIN- FECTION. Locking wheels (MR5068 - MR5065 MR5066 - MR5063) For the models provided with wheels, block the wheels pushing on the wheel brake with your foot. To unblock the wheels, push on the top part of the brake pedal. -
Page 19: How To Sit Down On The Armchair
▪ take the armrest back to initial position: keep the button (4) pushed and, with the other hand, hold and lift the armrest completely. Once the position is reached, let go of the button. How to get out of the armchair (MR5068 MR5065 MR5066 MR5063 MR5078 MR5076) WARNING! Before getting out, lock wheels with the brake. -
Page 20: How To Get Out Of The Armchair (Mr5062)
▪ bring the armrest back to position keeping the button pushed (4) and carefully lifting the armrest. Backrest and legrest adjustment (Mod. MR5068 - MR5065 - MR 5078) The relax armchairs MR5068, MR5065 and MR5078 allow the adjustment of the backrest and leg rest position independently. WARNING! The adjustment of the backrest and of the leg rest must be performed with the help of skilled personnel. -
Page 21: Backrest And Legrest Adjustment (Mod. Mr5066, Mr5062, Mr5063, Mr5076)
▪ lift the pedal (13) and keep it lifted to lo- wer the seat. Footrest adjustment (mod. MR5068 - MR5066 - MR5078 - MR5076) The special footrest (9) enables the patient to safely stand up from MR5068, MR5066, MR5078 and MR5076 chair, with no danger of the chair tipping over. -
Page 22: Moving The Armchair
WARNING! Block the wheels and warn the patient before adjusting the chair in any way. It is possible to adjust the foot rest position in the following way: ▪ lift with a hand the anti tip-over footrest support (13) which is inserted in the frame of the chair;... -
Page 23: Disinfection
Disinfection Sanitization products ATTENTION! Sanitization agents are corrosive. Carefully observe the instructions provided by the manufacturer of the sanitization agent during use. Whenever possible, ask the manufacturer for guarantees in regards to the degree of corrosion of the cleaning agents. It is extremely important to follow the specifications regarding the concentration, temperature and reaction times. -
Page 24: Maintenance
Maintenance Ordinary maintenance The armchair has been designed and manufactured to not require special servicing during its life- time. Thus there are no specific operations to be carried out at any time. The technicians must inspect the article at least twice year; the inspection must include the search for anything that could compromise the integrity and correct operation of the article. -
Page 25: Certificate Of Warranty
Certificate of warranty This certificate must be kept until its expiry date. It must be shown every time technical assistance is deemed necessary, along with the invoice, receipt, delivery note and document containing the name of the delear who sold the product. User unable to show the proper documentation will no longer have the rights to the warranty. -
Page 26: Accessories
WARNING! The installation of this article must be performed by qualified personnel. The drip feed stand is installed on the GIVAS relax armchairs by a fixing hook (MZ5051 or MZ5063 or MZ5064) which must be mounted on the armchair. In order to install the phlebo support pole proceed as follows: ▪... -
Page 27: Mz5059 Anatomic Head-Rest For Armchairs
MZ5059 anatomic head-rest for armchairs The head-rest is padded with high density polyurethan foam and upholstered in soft plastic mate- rial (skay), fire-proof in 1M Class. Anatomic form with lateral supports. Installation In order to install the head-rest on the armchair, proceed as follows: ▪... - Page 28 NOTE:...
