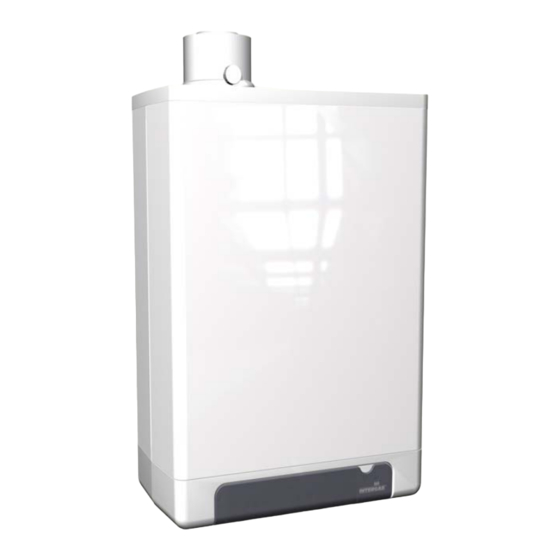

Intergas Compact HRE 18 SB Installation, Service And User Instructions Manual
Hide thumbs
Also See for Compact HRE 18 SB:
- Operating instructions (4 pages) ,
- Installation, service and user instructions manual (52 pages)
Table of Contents
Advertisement
Intergas Heating Ltd
Compact HRE
18 SB
(G.C. 41-291-01)
24 SB
(G.C. 41-291-02)
30 SB
(G.C. 41-291-03)
Installation, service
and user instructions
Please read these installation instructions carefully before installing and using
the appliance. Keep these installation instructions with the appliance.
Always act in accordance with the instructions indicated.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Intergas Compact HRE 18 SB
Summary of Contents for Intergas Compact HRE 18 SB
- Page 1 (G.C. 41-291-02) 30 SB (G.C. 41-291-03) Installation, service and user instructions Please read these installation instructions carefully before installing and using the appliance. Keep these installation instructions with the appliance. Always act in accordance with the instructions indicated. Intergas Heating Ltd...
-
Page 2: Table Of Contents
Test programs....................................13 Frost protection.....................................13 Installer handy hints Accessories Installation Overall dimensions ..................................17 Installation location ..................................18 Assembly .......................................19 Installing the appliance ..................................20 Connection Connecting CH installation ................................21 Connecting DHW storage cylinder ..............................22 Electrical connection..................................22 Gas connection....................................23 Flue System....................................24 Intergas Heating Ltd... -
Page 3: Intergas Heating Ltd
© 2009 Intergas Heating Ltd. All rights reserved. The information provided applies to the standard version of the product. Intergas Heating Ltd cannot therefore be held liable for any loss or damage arising from product specifications deviating from the standard version. The available information has been compiled with all possible care, but Intergas Heating Ltd cannot be held liable for any errors in the information or for the consequences thereof. -
Page 4: Preface
• Electromagnetic Compatibility Directive 2004/108/EC • Intergas declares that the materials used in the manufacturing of this appliance are non- hazardous and that no substances harmful to health are contained within the appliance. 1.2 Warnings Intergas accepts no responsibility for the unsatisfactory performance of the appliance or flue arising from the failure to comply with the installation and user instructions. -
Page 5: Abbreviations And Descriptions Used
1.6 Abbreviations and descriptions used Description Referred to as High efficiency Intergas Compact HRE SB wall mounted gas fired Appliance boiler Appliance plus pipe work for central heating CH installation Appliance plus pipe work for domestic hot water DHW installation 1.7 This manual... -
Page 6: Safety Regulations
The manufacturer Intergas Heating Ltd accepts no liability whatsoever for damage or injury caused by failure to adhere (strictly) to the safety regulations and instructions, or carelessness during installation of the Intergas Compact HRE SB High Efficiency wall mounted gas fired boiler and any associated accessories. -
Page 7: Approvals
Directive 90/396/EEC Directive 92/42/EEC The Intergas Compact HRE SB range of central heating boilers are manufactured from high quality materials and designed for reliability and optimum performance. Intergas is committed to the continual development of their appliances and reserves the right to make changes without notification to ensure their customers benefit from the latest advances in combustion technology and energy conservation. -
Page 8: Technical Data
Power consumption: full load Power consumption: partial load Power consumption: standby Boiler dimensions and weight Height Width Depth Weight We have a policy for continual improvement and development, therefore we reserve the right to change specifications without prior notice. Intergas Heating Ltd... -
Page 9: Components
Condensate drain pan Sensor S2 Condensate trap Heat exchanger CH pressure sensor Operating panel and read-out Mains lead 230 V AC without plug (stripped) Ionisation / Ignition electrode Manual air bleed Position of data plate Sight glass Intergas Heating Ltd... -
Page 10: General Boiler Information
The appliance can also be connected without the wall mounting frame using the robo kit. The Intergas Compact HRE SB wall mounted gas fired boiler carries the CE rating and IP20 electrical protection. The appliance is supplied as standard for natural gas (G20). For usage of propane gas (G31) the boiler can be modifed by changing the gas injector. -
Page 11: Operation
4 OPERATION 4.1 General The Intergas Compact HRE SB wall mounted, gas fired system boiler is a modulating high efficiency boiler. This means that the power is adjusted in line with the desired heat requirement. The appliance is equipped with an electronic boiler controller which, each time heat is requested from the heating supply, starts the fan, opens the gas valve, ignites the burner and continuously monitors and controls the flame, depending on the requested output. -
Page 12: Clock Function
The boiler controller is equipped with an interface for a PC, which can be connected by means of a special cable and associated Intergas Diagnostic Software (IDS). This facility allows the behaviour of the boiler controller, the appliance and the heating installation to be monitored over a longer period. -
Page 13: Test Programs
If the appliance is out of operation ( on the service display) the appliance ’s internal frost protection is still active. However, this means there will be no response to a request for heat from an (external) frost thermostat. Intergas Heating Ltd... -
Page 14: Installer Handy Hints
If you experience any problems please refer to the installation and commissioning • guidelines within the boiler instruction manual. If necessary, please contact Intergas Heating Ltd (See § 1.8). Remember it is a requirement to complete the Benchmark code of practice logbook before leaving the installation. -
Page 15: Accessories
092647 Bend 45° 084661 Bend 90° 084660 Deflector kit 082976 Weather slate (steep roof) 087910 Weather slate (flat roof) 087372 Extension L=100 incl. wall bracket 082975 Horizontal telescopic offset wall terminal 081280 Horizontal telescopic wall terminal 081281 Intergas Heating Ltd... - Page 16 Article number Vertical roof terminal 086842 Plume management kit 082974 Elbow 90° ((for Plume management kit) 081284 Elbow 60° (for Plume management kit) 081285 Extension L=100 incl. wall bracket (for Plume management kit) 081286 090000 Robo kit Intergas Heating Ltd...
-
Page 17: Installation
Appliance + mounting bracket + frame Supply CH Ø22 Return CH Ø22 ½” Condensate drain Ø25 (flexible) Drain PRV Ø15 Compact HRE SB 30 Compact HRE SB 24 Compact HRE SB 18 Flue pipe / air Ø60/100 (concentric) supply Intergas Heating Ltd... -
Page 18: Installation Location
Proceed as follows: If cover plate (A), is used, remove to the front. • Unscrew the two screws (1) behind the appliance display window. • Pull the bottom of the front panel (2) forwards. • Intergas Heating Ltd... -
Page 19: Assembly
(= straight upwards). Do not over tighten connections. Do not turn tightened valves on pipes as this weakens joints within the boiler. Compact HRE SB 30 Compact HRE SB 24 Compact HRE SB 18 Intergas Heating Ltd... -
Page 20: Installing The Appliance
32mm diameter in order to prevent the condensate from freezing. 7.4.1 Fitting the cover plate Hang the flanged upper edge of the cover plate on the washers under the base of the appliance and slide the cover plate as far as possible towards the rear. Intergas Heating Ltd... -
Page 21: Connection
G. Pressure relief valve 3 Bar H. Diverter valve I. DHW storage cylinder sensor or thermostat Note When using a DHW storage cylinder thermostat the heating demand will start with opening the thermostat and end when the thermostat closes. Intergas Heating Ltd... -
Page 22: Electrical Connection
7= room thermostat 9= 0 V DC Open Therm (OT) 11 – 12 Temperature control Connector X2 Notes Room thermostat 230 V 1 – 3 Remove linking 6 – 7 Frost thermostat 230 V 1 – 3 Intergas Heating Ltd... -
Page 23: Gas Connection
When a 24 volt thermostat is connected to contacts 6 and 7, the loop in 6 – 7 must be removed. 8.4.2 230 volt room thermostat To be connected to contacts 1 and 3 of connector X2. See electrical diagram. Warning High Voltage Isolate the appliance from the electrical supply before connecting the thermostat. Intergas Heating Ltd... -
Page 24: Flue System
Note Only use approved Intergas flue products with this boiler, which can be sourced from the supplier of your boiler or Intergas stockist. For C63 flue types all CE approved flue terminals can be used. The standard horizontal flue pipe is not supplied with the boiler and should be purchased separately from your supplier. - Page 25 Intergas stockist. Please note that the terminal is suitable for a flat or pitched roof and only approved Intergas flue products can be used with this boiler. The connection of the vertical flue system is similar to the horizontal flue connection.
-
Page 26: Commissioning The Appliance
With the boiler operating in the maximum rate condition check that the operational (working) gas pressure at the flue gas sampling point (X) complies with the requirements of § 10.7.2. Ensure that this inlet pressure can be obtained with all other gas appliances in the property working. Intergas Heating Ltd... - Page 27 The pump runs automatically for 10 seconds every 24 hours in order to prevent • seizing. This will occur at the the time of the last request for heat. To change this time the room thermostat should be turned up briefly at the desired time. Intergas Heating Ltd...
-
Page 28: Setting And Adjusting The Clock Functions
11. c-on (continuous on). The boiler will respond on every CH demand from the room thermostat without any time limit. 12. OFF The boiler will not respond on any CH demand from the room thermostat. Intergas Heating Ltd... -
Page 29: Shutting Down
(See chapter 13). Note If an (external) frost thermostat has been fittted to the installation and connected to the appliance, this will not be active when the appliance is switched off at the operating panel on service display). Intergas Heating Ltd... -
Page 30: Setting And Adjustment
Press the key until the LED at starts to flash. With the keys set the temperature between 40°C and 65°C (default value 60°C). To prevent the growth of legionella it is advised not to set the DHW temperature below 60°C. Intergas Heating Ltd... -
Page 31: Setting Via The Service Code
DHW cylinder Waiting time after a DHW demand Adjustment range 0 to 15 minutes before a CH demand is answered Anti-cycling period during CH Minimal switch-off time in CH operation operation Adjustable from 0 to 15 minutes Intergas Heating Ltd... -
Page 32: Setting Maximum Ch Power
17,8 kW 650 l/h 22,8 kW 750 l/h 26,3 kW Appliance pressure loss graph, CH side Compact HRE 18 SB Compact HRE 24 SB Compact HRE 30 SB Pump setting I Pump setting II Pump setting III Flow in l/h Pressure loss / water head in mH 10.6 Weather–... -
Page 33: Conversion To Different Gas Type
Min. start rpm (% of max) (parameter F and F . ) CAUTION Check that the Gas test point is gas-tight. No adjustment should be made to the gas valve without prior permission of Intergas Technical Services. Intergas Heating Ltd... -
Page 34: Setting Gas/Air Adjustment
It is not possible to adjust the CO level at high setting. When the level at high setting is not within the prescribed tolerance band please contact Intergas Heating. Note the measured CO value and adjust the appliance to the lowest power by... -
Page 35: Faults
Check adjustment. See gas/air adjustment. faulty. Check the wiring. Check the fuse , if necessary, replace the fan. Fan dirty. Clean the fan. Gas valve faulty. Replace the gas valve. Re-adjust the gas valve, see gas/air adjustment. Intergas Heating Ltd... - Page 36 Check the power supply. Check connector X2. Pump not running. Replace faulty pump. Burner not firing on CH: sensor S1 or S2 faulty. Replace sensor S1 or S2. See fault code. Burner does not ignite. See burner does not ignite. Intergas Heating Ltd...
- Page 37 11.2.8 Hot water does not reach temperature (only when an indirectly heated DHW storage cylinder is applied) Solution: Temperature setting for DHW storage cylinder Set the DHW storage cylinder temperature. See 10 Setting and adjustment. too low. Intergas Heating Ltd...
-
Page 38: Maintenance
Clean the underside of the heat exchanger. Clean the condensate drain pan with water. Clean the condensate trap with water (The side branch on the condensate trap may be sawn off to simplify access for a cleaning brush). Intergas Heating Ltd... -
Page 39: Assembly
§ 10.7. If the combustion reading is greater than the acceptable value and the integrity of the complete flue system and combustion circuit seals have been verified and the inlet gas pressure has been verified, proceed as in § 10.7.2. Intergas Heating Ltd... -
Page 40: Electrical Diagram
13.1 NTC resistances NTC 12kOhm T [°C] R[ohm] T [°C] R[ohm] T [°C] R[ohm] 76020 12000 2752 58880 9805 2337 45950 8055 1994 36130 6653 1707 28600 5522 1467 22800 4609 1266 18300 3863 1096 14770 3253 Intergas Heating Ltd... -
Page 41: Short Spares List
O-ring front plate Compact HRE SB 24 877927 O-ring front plate Compact HRE SB 18 876467 Seal ring condensate collector (Heat exc. conn.) 878147 O-ring Flue pipe dia 68*4 878537 Seal ring Flue pipe (outlet side) 878547 Condensate trap connection 878577 Intergas Heating Ltd... -
Page 42: Warranty Conditions
15 WARRANTY CONDITIONS A copy of these conditions will be sent to you free of charge on With due regard for the conditions indicated below, Intergas Heating request. Conditions to the contrary are expressly rejected. Ltd warrants to the authorised installer the soundness of the... -
Page 43: Gas Boiler System Commissioning Checklist
17 GAS BOILER SYSTEM COMMISSIONING CHECKLIST Intergas Heating Ltd... -
Page 44: Service Record
18 SERVICE RECORD Intergas Heating Ltd... - Page 45 __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ Intergas Heating Ltd...
- Page 46 __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ Intergas Heating Ltd...
- Page 47 __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ __________________________________________________________________________________________________________________ Intergas Heating Ltd...
- Page 48 Intergas boilers are manufactured in a Kiwa ISO 9001 certified production faccility. 88322702 Intergas Heating Ltd Intergas Heating Limited Unit 6, West Court Buntsford Park Road Bromsgrove Worcestershire B60 3DX Telephone : 01527 888000 : 01527 888001 info@intergasheating.co.uk www.intergasheating.co.uk Intergas Heating Ltd...
