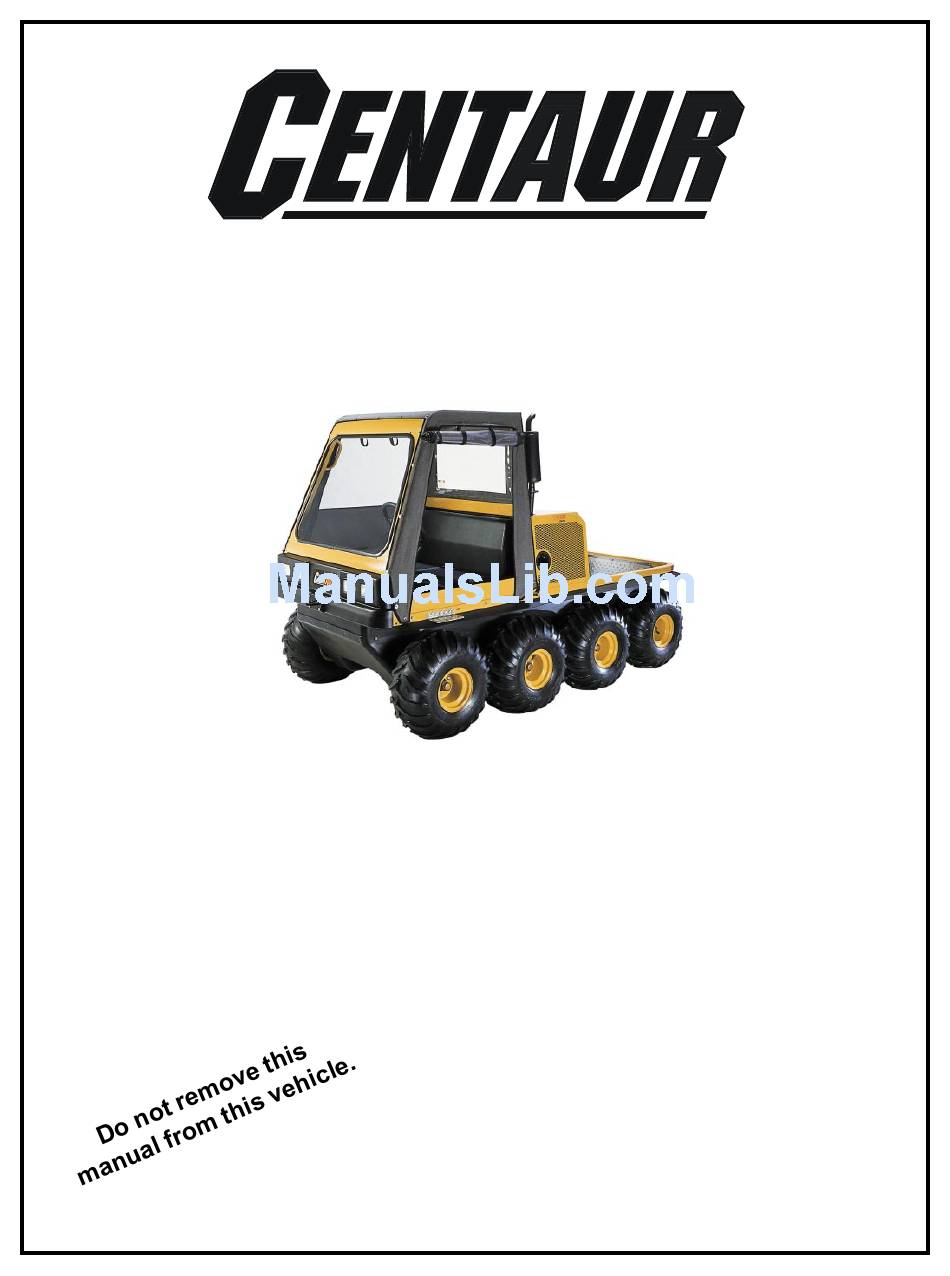

Ontario Drive & Gear Centaur V2001G Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V2001G V2001DT
OPERATOR'S
MANUAL
Ontario Drive & Gear Limited
P.O. Box 280, 220 Bergey Court
New Hamburg, Ontario N0B 2G0
Telephone: (519) 662-2840, Fax: (519) 662-2421
www.odg.com/centaur
MANUAL NO. 671-100 Rev.1
Printed in Canada
06/2002
1.5C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Centaur V2001G and is the answer not in the manual?

Questions and answers
