Summary of Contents for mdp 12V-10A

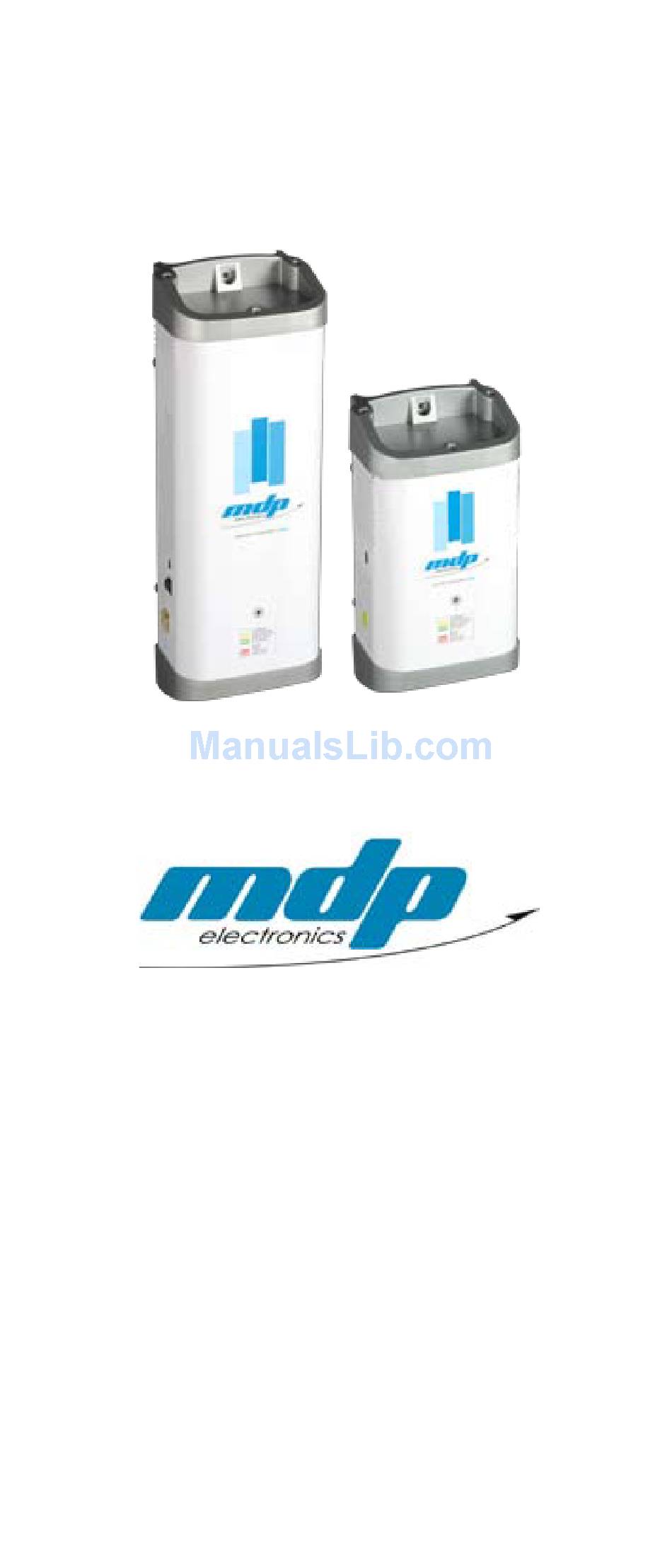

- Page 1 OPERATING AND USERS MANUAL BATTERY CHARGER FIRST 12V-10A 12V-15A 12V-25A 12V-40A 24V-20A www.mdpelectronics.fr...
- Page 2 THE OWNER SHOULD READ AND UNDERS- TAND THIS IMPORTANT DOCUMENT BEFORE OPERATING THE CHARGER. Contact mdp electronics if you do not unders- tand a statement. This device is not intended for use by persons (in- cluding children) with physical, sensory or men-...
- Page 3 FIRST-rev 01 4This system should not be exposed to water or dust. 4It is strictly forbidden to tamper with the system casing in any way. 4This device is not a toy and must be kept out of the reach of children. Connecting the Device.
- Page 4 WARNING FIRST-rev 01 Start up precautions. In order to avoid all risk of electric shock or irrever- sible damage to the device, please follow very carefully the following recommendations. 4Do not dismantle the device. The housing (pro- tection against fire) must be correctly mounted. 4This device complies with enforced standards;...
- Page 5 FIRST-rev 01 NB: Choosing the charging curve. It is extremely important to choose the correct charging curve, one which is appropriate for the battery’s technology. An incorrect choice could cause irreversible damage. 4This is particularly true for charging curves where the charging voltage is higher than the manufac- turers’...
- Page 6 WARNING FIRST-rev 01 12V 10A 12V 15A 12V 25A 12V 40A 24V 20A Battery type: Lead open Lead open battery V.boost = 14.2V = 28,4V = 26,4V V.float = 13.2V Battery type: GEL, AGM, Spiral Gel, AGM, Spiral battery V.boost = 14,2V = 28,4 V.float = 13,7V = 27,4...
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS FIRST-rev 01 12V 10A 12V 15A 12V 25A 12V 40A 24V 20A Input 230V +/- 15% 115V - 230V Tension 115V please (+/- 15%) consult us Frequency 50Hz - 60Hz (+/- 10%) Cos phi 0.6 typ 0.9 typ Efficiency 80% typ Mains consumption... -
Page 8: Led Status
OPERATING INSTRUCTIONS FIRST-rev 01 STATUS MODE The batteries are charging. Time Absorption Steady required to complete Absorption yellow mode varies depending on the initial status of the batteries, but is limited to 6 hours. The batteries are coming to the end of Equalisation Yellow the charging cycle. - Page 9 RACCORDEMENTS FIRST-rev 01 Mounting (4mm screws) Program selector 12V-10A Battery Fuse 12V-15A Program selector Night mode selector button 12V-25A Battery Fuse 12V-40A 24V-20A Recommended Recommended cable size cable size 12V10A : 2.5 mm / 12 AWG 12V10A : 3 x 0.75 mm / 18 AWG 12V15A : 2.5 mm...
-
Page 10: Wiring Diagram
CONNECTION FIRST-rev 01 Wiring diagram Dispatching Assembling the shore power connector 7STEP 1: Remove approx 2 cm of the outer sheath Remove approx 8 mm of the inner wires’ sheaths Tinplate the bare copper ends 7STEP 2: Remove the security cap using an utility knife 7STEP 3: Pull the conductor through the pre latched strain relief housing... - Page 11 DIMENSIONS FIRST-rev 01 Dimensions 12V-10A / 12V-15A. 120mm 20mm [4.74inch] [0.79inch] x2 ø5mm 95,6mm [3.76inch] Dimensions 12V-25A / 12V-40A / 24V-20A 20mm [0.79inch] x2 ø5mm 120mm 95,6mm [4.74inch] [3.76inch]...
-
Page 12: Warranty
WARRANTy FIRST-rev 01 IN ORDER TO PREVENT ALL RISKS ARISING DUE TO THE INCORRECT USE OF THIS DEVICE, PLEASE CAREFULLy READ THE LIST OF POSSIBLE SITUA- TIONS OR FAULTS THAT ARE NOT COVERED By THE WARRANTy. 4If the mechanical components of the device are not protected by the casing and fall, irreversi- ble damage of the ventilation system and certain electrical components may result. - Page 13 WARRANTy FIRST-rev 01 NB: Choosing the charging curve. It is extremely important to choose the correct charging curve one which is appropriate for the battery technology. An incorrect choice could cause irreversible damage. 4This is particularly true for charging curves where the charging voltage is higher than the manufac- turers’...
- Page 14 For further information or assistance, please contact: mdp electronics 144 route des Vernes 74370 Pringy FRANCE Tél : (33) 0 450 272 030 Fax : (33) 0 450 272 774 e-mail : contact@mdpelectronics.fr www.mdpelectronics.fr...
