Summary of Contents for Tweco qwt-120
-

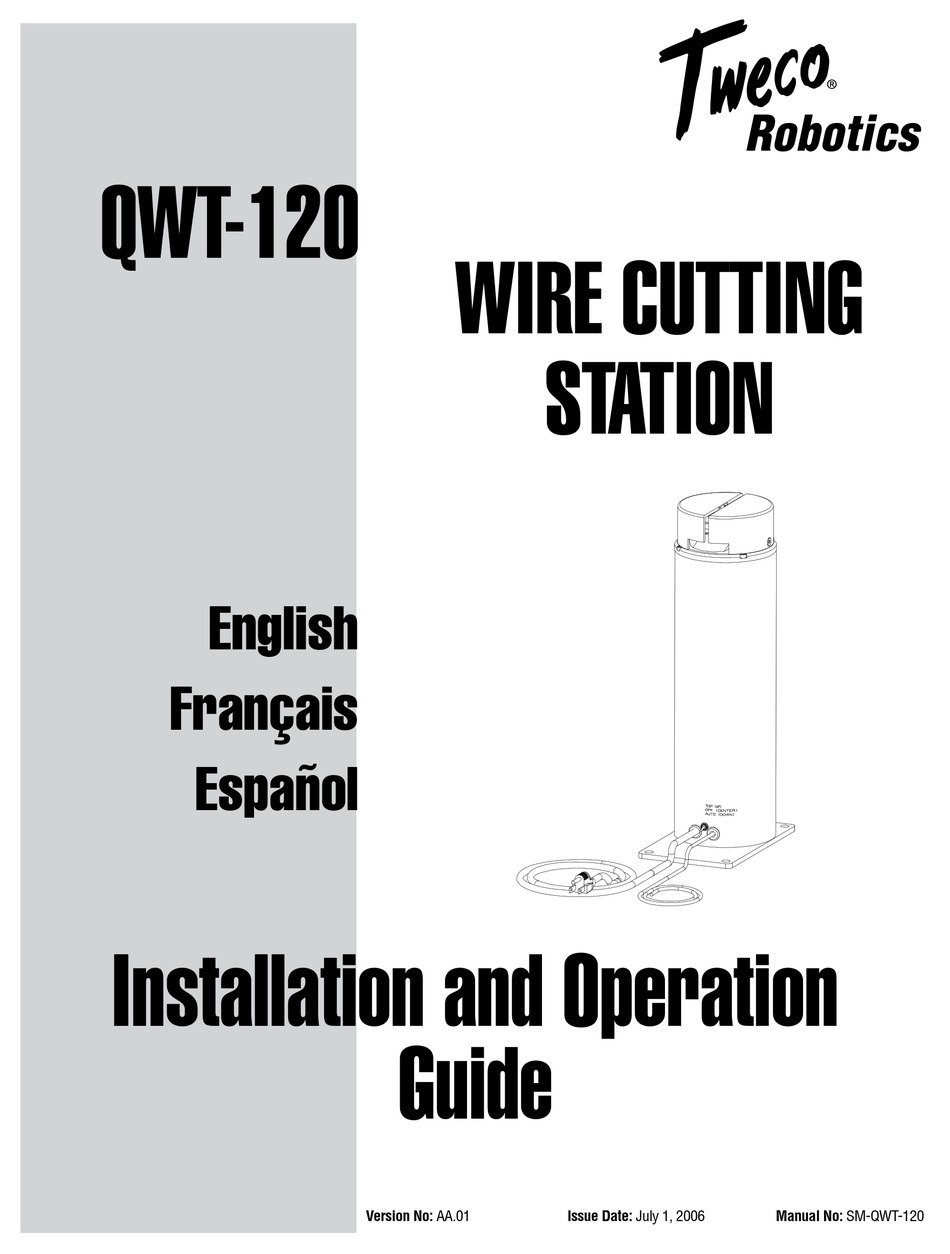

Page 1: Installation And Operation
English Français Español installation and operation guide INVERTER CC DC PHASE Version No: AA.01 Issue Date: July 1, 2006 Manual No: SM-QWT-120 SMAW GTAW... - Page 2 This Operating Manual has been designed to instruct you on the correct use and operation of your Tweco Robotics product.
- Page 3 While the infoRMation contained in this Manual RepResents the ManufactuReR’s best judgMent, the ManufactuReR assuMes no liability foR its use. Wire Cutting Station Installation and Operation Guide Instruction Manual Number SM-QWT-120 Published by: Tweco Products Inc. ®...
-
Page 4: Table Of Contents
2.04 Features ....................2-4 SECTION 3: INSTAllATION AND OPERATION ............. 3-5 SECTION 4: WIRING DIAGRAM ..............4-6 SECTION 5: REPlACEMENT PARTS ..............5-7 SECTION 6: FACTORY REPAIR CENTER ............6-8 lIMITED WARRANTY ................. 6-9 GlOBAl CUSTOMER SERVICE CONTACT INFORMATION ........6-11 SM-qWt-120... -
Page 5: Section 1: Safety Instructions And Warnings
4. Keep oxygen cylinders, chains, wire ropes, cranes, WARNING hoists, and elevators away from any part of the electrical path. sMoke, fuMes, and gases can be dangeRous to youR health. sM-qWt-120 safety instRuctions and WaRnings... - Page 6 Wear protective hearing devices to ensure leather spats. protection when noise levels exceed OSHA standards. Adequate hearing protection devices must be worn by operators and surrounding personnel to ensure personal protection against noise. SM-qWt-120 safety instRuctions and WaRnings...
-
Page 7: Principal Safety Standards
Smoke, fumes, and gases can be dangerous to your health. • Arc rays, hot slag, and sparks can injure or burn unprotected eyes and skin. • Welding sparks can cause fires and explosions. • Excessive noise can damage your hearing. sM-qWt-120 safety instRuctions and WaRnings... -
Page 8: Section 2: Introduction And Description
Include the Manual number (from page i) and CD part number: 64-2601. 2.03 Introduction 5.00” The Tweco Robotics QWT-120 Quick Wire Trimmer, is ® (126,4mm) an on-the-fly wire trimming station furnished with dual 17.00” cutting wheels as shown in Figure 1 that cleanly shear the (432,5mm) wire without deflection or bending of the welding wire. -
Page 9: Section 3: Installation And Operation
SECTION 3: INSTAllATION AND OPERATION 1. Remove the QWT-120 Wire Trimmer from the shipping carton. 2. Mount the QWT-120 unit onto a solid work table within the envelope of the robot. NOTE the cutting path should be within reach of the end of the welding wire, at the desired angle of cut. -
Page 10: Section 4: Wiring Diagram
SECTION 4: WIRING DIAGRAM Wiring Diagram SWITCH (MOMENTARY) TEST AUTO BLACK MOTOR SIGNAL CONTROL WIRE 24V DC BLUE BROWN POWER CORD 120 V AC GREEN SM-qWt-120 WiRing diagRaM... -
Page 11: Section 5: Replacement Parts
SECTION 5: REPlACEMENT PARTS Part No. QWT-120-20 (Stock No. 3500-1320) Part No. QWT-120-9 Part No. QWT-120-4 (Stock No. 3500-1309) (Stock No. 3500-1304) Part No. QWT-120-2 Part No. QWT-120-6 (Stock No. 3500-1306) (Stock No. 3500-1302) Part No. QWT-120-19 (Stock No. -
Page 12: Section 6: Factory Repair Center
• All products will be rebuilt and tested following the established test procedures and specifications for the specific product. • All repairs are done using original Tweco Robotics parts to ensure maximum product performance. ® • Our FRC has highly-trained employees utilizing the appropriate tools and test equipment. -
Page 13: Limited Warranty
STATEMENT OF WARRANTY lIMITED WARRANTY: THERMADYNE warrants that its products will be free of defects in workmanship or material. Should ® any failure to conform to this warranty appear within the time period applicable to the THERMADYNE products as stated below, THERMADYNE shall, upon notification thereof and substantiation that the product has been stored, installed, operated, and maintained in accordance with THERMADYNE’s specifications, instructions, recommendations and recognized standard industry practice, and not subject to misuse, repair, neglect, alteration, or accident, correct such defects by suitable repair or replacement,... -
Page 14: Warranty Schedule
WARRANTY SCHEDUlE The warranty is effective below for the time stated in the Warranty Schedule beginning on the date that the authorized distributor delivers the products to the purchaser. THERMADYNE reserves the right to request documented evidence of date ® of purchase. -
Page 15: Global Customer Service Contact Information
GlOBAl CUSTOMER SERVICE CONTACT INFORMATION Thermadyne USA Thermadyne Asia Sdn Bhd 2800 Airport Road Lot 151, Jalan Industri 3/5A Denton, TX 76207 USA Rawang Integrated Industrial Park - Jln Batu Arang Telephone: (1) 800-535-1888 48000 Rawang Selangor Darul Ehsan Fax: (1) 800-535-0557 West Malaysia Telephone: 603+ 6092 2988 Fax : 603+ 6092 1085... - Page 16 World Headquarters Thermadyne Holdings Corporation Suite 300, 16052 Swingley Ridge Road St. Louis, MO 63017 Telephone: (636) 728-3000 Fascimile: (636) 728-3010 www.thermadyne.com...
