Summary of Contents for Amazing PDU Monitored

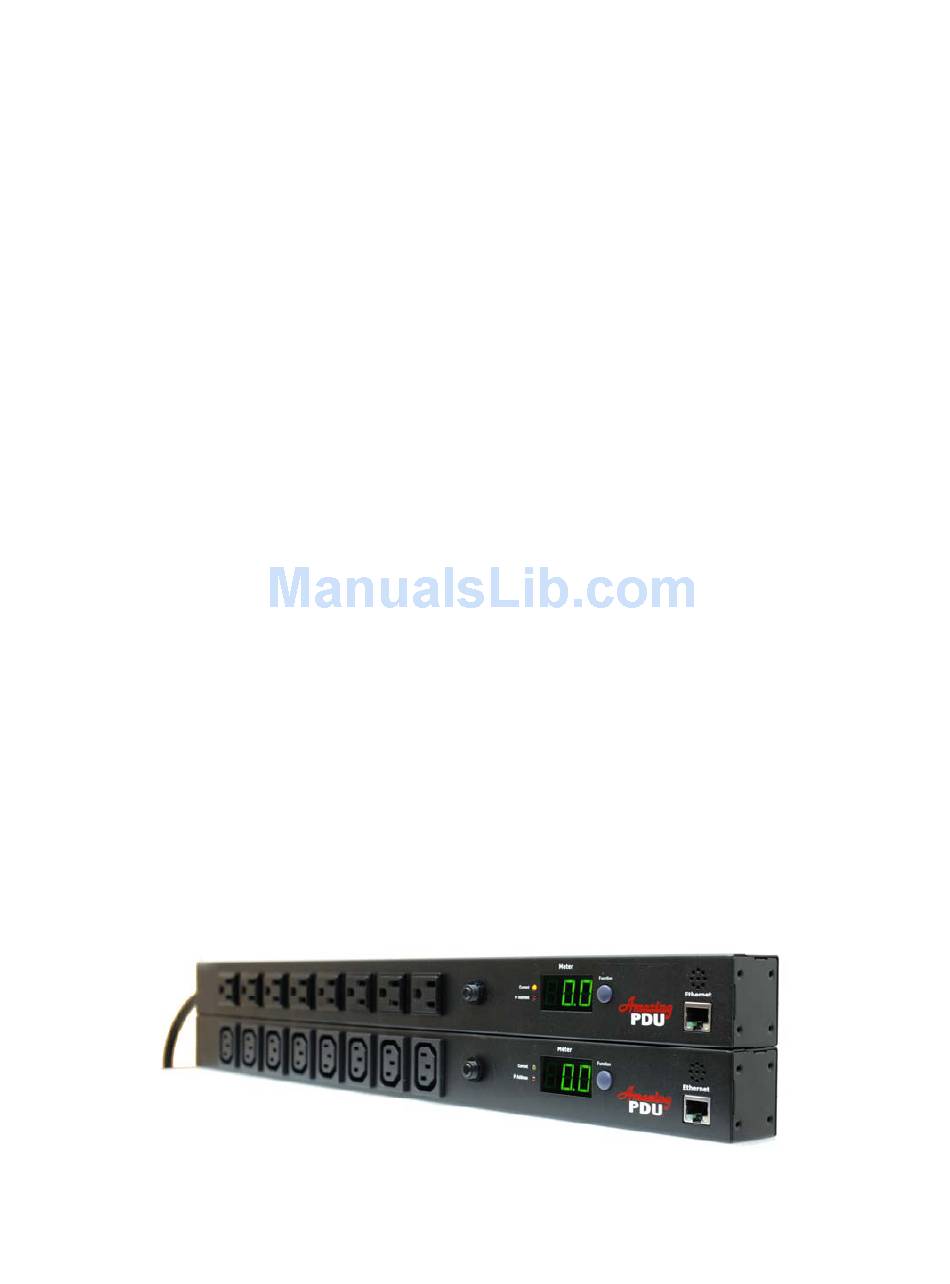

- Page 1 Amazing PDU User Manual...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction .......................... 1 2. Amazing PDU Package ...................... 2 3. Features..........................3 4. Installation..........................5 5. Web Interface........................6 7. Specification.......................... 9... -
Page 3: Introduction

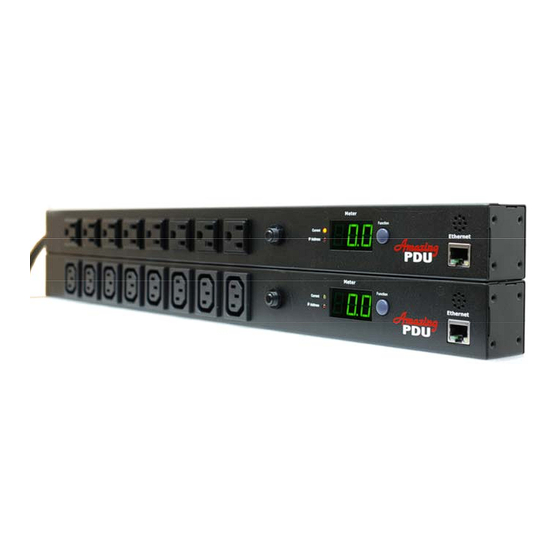

1. Introduction The Amazing PDU is an Internet ready device designed and is equipped with an intelligent current-meter (True RMS) that will indicate the total power consumption of a power strip. The Amazing PDU offers an easy set up and user-friendly communication software. This... -
Page 4: Amazing Pdu Package
2. Amazing PDU Package The standard Amazing PDU package contains a Power Distribution Unit with supporting hardware and software. The components of the package are: • Power Distribution Unit. • Rack mount Brackets. • CD-ROM, it contains: Amazing PDU User Manual. -
Page 5: Features
3. Press and hold the key after 6 beeping; it can reset the Ethernet card and will not influence the output. Note: Amazing PDU- Switched series will reboot the power in the same time for pressing and holding the key after 6 beeping. Meter Display the current or IP Address. - Page 6 Light on to indicate the current IP address. Circuit Breaker Provide protection when power overload. Output Outlet Provide various models for the outlet number. Please check the specification for the detail information. Output LED LED indicator for output power. Amazing PDU User Manual Ver. 1.0...
-
Page 7: Installation
Hardware 1. Install mounting brackets. The Amazing PDU comes with brackets for mounting in a rack. To mount the Amazing PDU into a rack performs the following procedure: Attach the mounting brackets to the unit, using the four retaining screws provided for each of the brackets. -
Page 8: Web Interface
5. Web Interface Web: Provide a quick checking interface for the status of Amazing PDU. Index: System Information Provide the General Information for the Amazing PDU, including: • Model No. • Name • Location • Contact • Version • MAC Threshold: •... - Page 9 Note: this web page only support Amazing PDU- Switched series Control : Status 1. Indicate the PDU power consumption and status. 2. Select the outlet by check box first and click the on or off button to control the PDU power output.
- Page 10 Indicate OutletA~H status in order 0 : means the power off. 1 : means the power on. Trap: Send the event trap to the specific IP to alert manager. Default ID is snmp, Password is 1234. Amazing PDU User Manual Ver. 1.0...
-
Page 11: Specification
16 ports IEC C20p IEC (14)C13r (2)C19r 1CB AMz-1623-24-1 16 ports IEC C20p IEC (20)C13r (4)C19r 1CB AMz-3223-16-2 16 ports IEC 309p IEC (12)C13r (4)C19r 2CB AMz-3223-24-2 24 ports IEC 309p IEC (20)C13r (4)C19r 2CB Amazing PDU User Manual Ver. 1.0... - Page 12 Seven Segment Warning and Overload- Meter will flash once in 1 second Operation & Environment Operating Temperature -5 - 45 degree C Relative Humidity 0 - 95% Storage Temperature -25 - 65 degree C Amazing PDU User Manual Ver. 1.0...
