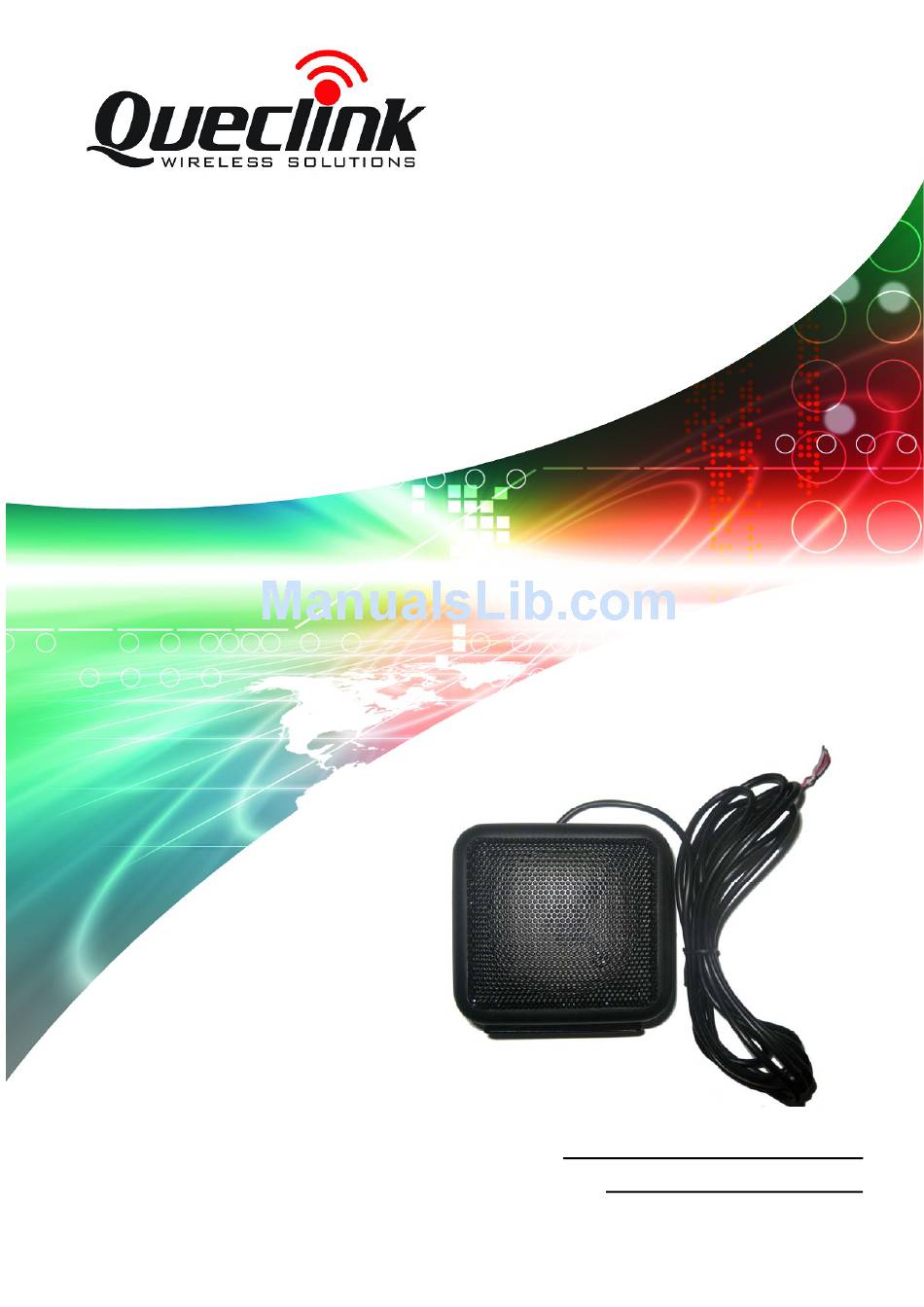

Page 1: User Guide
Active Speaker User Guide For GVXXX-Series Devices ACCEAS100UG001 Revision: 2.00 http://www.queclink.com sales@queclink.com... - Page 2 Active Speaker User Guide Document Title Active Speaker User Guide Version 2.00 Date 2012-05-21 Status Release Document Control ID ACCEAS100UG001 ACCEAS100UG001 - 1 -...
-
Page 3: Table Of Contents
Active Speaker User Guide Contents Contents ............................2 0. Revision history ..........................3 1. General Description ........................4 2. Product Specification ........................5 2.1. Basic Specification......................5 2.2. Frequency Response......................5 3. Installation.............................6 3.1. Interface Description ......................6 3.2. Installation Example......................6 4. Product Outside View ........................8 ACCEAS100UG001 - 2 -... -
Page 4: Revision History
Active Speaker User Guide 0. Revision history Revision Date Author Description of change 1.00 2012-02-14 Leo Lei Initial 2.00 2012-5-21 Leo Lei Updated “ Operating Voltage ” from 9~16V to 8~32V ACCEAS100UG001 - 3 -... -
Page 5: General Description
GVXXX-series. The Hands-free kit (include speaker and MIC) enables a Voice Call between GVXXX-series device and Control Center (or other Voice communications equipment). Used for both fleet management purposes, or for personal security (in case of kidnapping, for example, the Control Center can connect to the kit and hear what happens inside the vehicle). -
Page 6: Product Specification
Active Speaker User Guide 2. Product Specification 2.1. Basic Specification ITEM SPECIFICATION Box Size 74.5mm*68.5mm*33mm Impedance 8ohm±15% Frequency Range F0-6000Hz Operating Voltage 8V～32V Quiescent Supply Current Supply Current(f=500Hz,Vp-p=0.8V) 100mA Rated Power Max Power Sensitivity 85±3dB/W/M Resonance Frequency 450Hz±20% Operating Temperature -20℃～+60℃... -
Page 7: Installation
Active Speaker User Guide 3. Installation 3.1. Interface Description There are 4 wires on the active speaker, the description of the wires and sample connection between active speaker and GV300 are showed as follow: Active Speaker Connection GV300 Color Description ←→... - Page 8 Active Speaker User Guide Detail Description Power Supply (12V DC) GVXXX Device Ground 12V DC 11. PWR 6. GND 9. EARP 1. Power Input 2. AGND 2. Ground 3. Positive Input 4. Negative Input Active Speaker (AS100) ACCEAS100UG001 - 7 -...
-

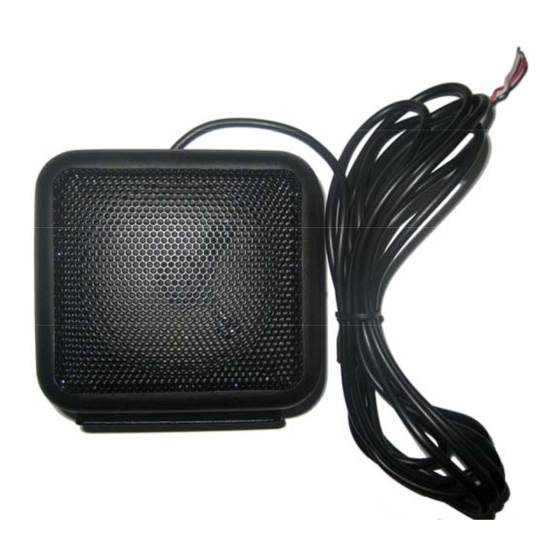

Page 9: Product Outside View
Active Speaker User Guide 4. Product Outside View ACCEAS100UG001 - 8 -...
