DUCATIHOME 8500V-Rol/ DUCATI UP 70 (CTH29E) Installation Instructions Manual

Garage door automation system 70 kg
Hide thumbs
Table of Contents

Advertisement

Quick Links

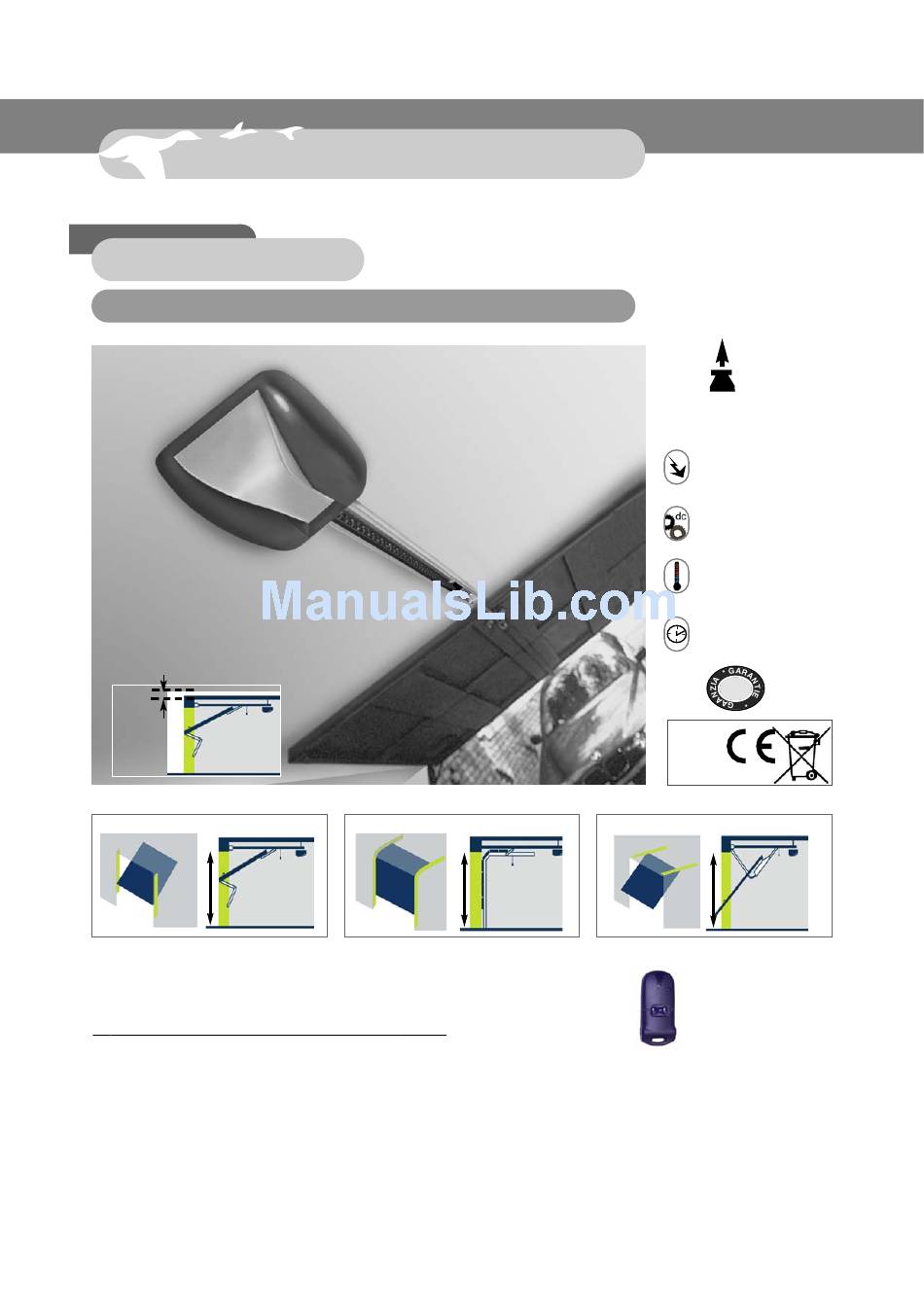

Installation instructions

8500V-Rol/ DUCATI UP 70 (CTH29E)
Garage door automation system 70 kg
Min.
5 cm
Retractable door
max.
h 2,30 m
IMPORTANT:
The door must slide smoothly and be well balanced.
Read all of these instructions carefully before commencing
installation. For any further information, please contact the
manufacturer: Allducks
Rev.06/08 ENG
MAXIMUM HEIGHT OF DOOR
Sectional door
max.
h 2,15 m
Kg
100 kg
2
max. 8 m
Power supply
230 V/ 50 Hz W60
Motor
8–24 V dc
Operating temperature
-10 °C / + 50 °C
Opening/closing time
11–18 sec.
2
Ans
RoHS
MADE IN ITALY
Canopy door
max.
h 2,15 m
DHA srl
via Agrate 99/7
20863 Concorezzo (MB) Italy
Tel. +39/039/9633200
Fax +39/039/9633219
service@ducatihome.it
www.automaticgateshop.com
Page 1
D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8500V-Rol/ DUCATI UP 70 (CTH29E) and is the answer not in the manual?

Questions and answers

Summary of Contents for DUCATIHOME 8500V-Rol/ DUCATI UP 70 (CTH29E)

  • Page 1: Installation Instructions

    IMPORTANT: The door must slide smoothly and be well balanced. 20863 Concorezzo (MB) Italy Tel. +39/039/9633200 Read all of these instructions carefully before commencing Fax +39/039/9633219 installation. For any further information, please contact the service@ducatihome.it manufacturer: Allducks www.automaticgateshop.com Page 1...

  • Page 2: Table Of Contents

    Contents Contents of kit .......page 3 Introduction Technical data .......page 3 Types of door .

  • Page 3: Contents Of Kit

    1. Contents of kit UP70 8500V-UP 70 -UP70 kit Geared motor unit 24V d.c. CTH29E circuit board 1 x 2-channels rolling code 433 MHz remote control Chain drive 270 cm “U” channel rail ( 3 x 90 cm) + 2 sleeves manual release system Nuts and bolts and preassembled accessories Installation instructions...

  • Page 4: Types Of Door

    3. Types of door 3.1 Sectional door Fig. 2 For installation on a sectional door, it is necessary to use accessory Ref. 992014, which is supplied in the kit. Install the accessory on the door fixing plate to replace one of the two preassembled Ref. 812 connecting rods for standard retractable doors.

  • Page 5: Installation Criteria

    4. Installation criteria To fix the automation system’s “U” channel rail it is necessary to have a minimum clearance of 5 cm between the ceiling and the space through which the door moves. A minimum distance of 1 cm is necessary between the position of the “U” channel rail and the space through which the door moves.

  • Page 6: Installation Diagram

    5. Installation diagram Fig. 8 Page 6...

  • Page 7: Fixing To The Door

    Mechanical end-of- travel stop Fixing the motor unit to the ceiling Fix the motor between the supplied fixing straps. The motor unit must be fixed to the ceiling so that the “U” channel rail is as horizontal as possible. Position the motor centrally with respect to the width of the garage door. Additional rail support The rail connecting sleeves Ref.

  • Page 8: Assembly Of The "U" Channel Rail

    6. Assembly instructions 6.1 Assembly of the “U” channel rail Connect the 3 pieces of “U” channel rail (Ref. 829) using the connecting sleeves Ref. 830. See Figs. 9-11 Fig. 9 Fig. 10 Fig.11 6.2 Return pulley and preassembled accessories Fig.

  • Page 9: Assembly Of The Chain

    6.3 Assembly of the chain Feed the chain Ref. 818 through the car as shown in Figs. 13-14. Pay particular attention to the direction shown in Figs. 13-14. Pass the chain around the return pulley. Connect the chain as shown in the photo. IMPORTANT: The chain anchor plate (Ref.

  • Page 10: Assembly Of The Drive Plate

    6.4 Assembly of the drive plate Insert the rail into the motor unit positioning guides and pass the chain ref. 818 around the sprocket wheel. See Fig 17-19. Fig. 17 Fig. 18 Chain pulley chain rail guides guides pulley Fig. 19 Fig.

  • Page 11: Fixing To The Door Lintel

    7. Fixing instructions 7.1 Fixing to door lintel Fixing plate 828 must be fixed to the door lintel or the wall using 2 bolts (not supplied) in a vertical position equivalent to half the width of the door. Ensure that you allow sufficient clearance so that the moving door does not come into contact with the rail.

  • Page 12: Fixing To The Door

    7.3 Fixing to the door Drill 2 holes in the door’s upper rail, if possible at its strongest point, using the wall fixing plate ref. 828 as a drilling guide. This component must be fixed in the exact horizontal centre of the door. Adjust the connecting rods ref.

  • Page 13: Manual Release

    8. Manual release An emergency manual release system is supplied for manual operation of the door. Comprising a steel cable and sleeve, it must be connected to the car and to the door handle. Pass the steel cable through the lug on the car and slide it into the sleeve (Fig. 34). Pass the cable and the sleeve through the holes in the door fixing plate (Fig.

  • Page 14: Adjusting The Mechanical End-Of-Travel Stop

    9. Adjusting the mechanical end-of-travel stop Open the door manually to the desired maximum opening position. At the car’s position on the rail, fix the mechanical end-of-travel stop as shown in the following drawings. Important: tighten securely so that the end-of-travel stop does not move. When the end-of-travel stop is correctly positioned, tighten the small central set screw (figs.

  • Page 15: Cth29E Circuit Board

    11. CTH29E circuit board This circuit board is equipped with an amperometric safety system. If an obstacle is detected, it stops movement. It automatically stops movement in opening and closing directions (amperometric detection). Connection for optional accessories: Photoelectric cells (Ref. SW7012); key-operated switch (Ref. SW5000). Hybrid receiver Fig.

  • Page 16: A) Storing The Transmission Code

    12. Ref. 6203 Rolling radio remote control The Ref. 6203 Rolling remote control incorporates 3 radio transmission channels, corresponding to: 1st channel = ON button 2nd channel = OFF button Each transmission channel, and therefore each button, transmits a unique factory-set code on radio frequency 433 MHz, using the coding system known as “rolling code”.

  • Page 17: Optional Accessories

    14. Optional accessories wide-angle set of photoelectric cells Remote control Switch mirror SW7012 SW5000 6203 rolling SW7950 counterweighted canopy door accessory 992012 Ref. SW6500 Radio Keypad go to www.automaticgateshop to purchase optional accessories or spare parts. 15. Maintenance Courtesy light Replace your circuit board courtesy light with the following model: Halogen bulb 20V 24W Remote control batteries:...

  • Page 18: Declaration Of Conformity

    ITALY...

  • Page 19: Guarantee And After-Sales Service

    Only authorised technical service centres are recognised as qualified to perform repairs DHAsrl Via Agrate,99/7 20863 Concorezzo (MB) ITALY Tel. +39/039/9633200 Fax +39/039/9633219 info@ducatihome.it Conditions of warranty 1.The guarantee is accepted only if the guarantee certificate is completed in full and accompanied by the invoice or receipt as proof of purchase;...
