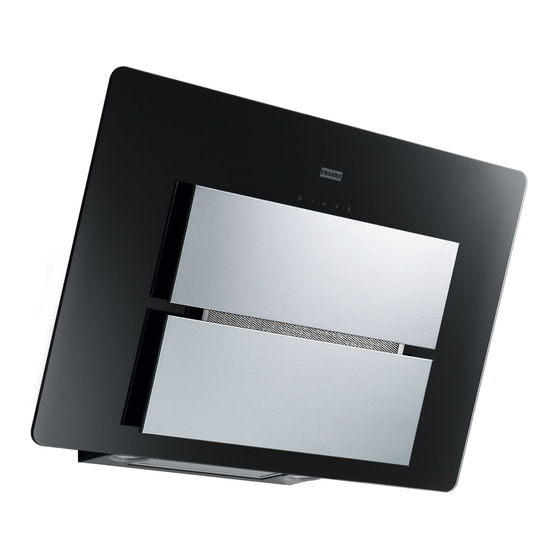

Instructions for use and installation
GB
Cooker Hood
Istruzioni per l'uso e l'installazione
IT
Cappa
Mode d'emploi et installation
FR
Hotte de Cuisine
Bedienungsanleitung und Einrichtung
DE
Dunstabzugshaube
Kullanım ve montaj talimatları
TR
Davlumbaz
Handbok för installation, användning och underhăll
SE
Spisfläkt
FMA605BK – FMA805BK - FMA905BK
FMA605WH – FMA805WH - FMA905WH
FMA605BK XS – FMA805BK XS - FMA905BK XS
FMA605WH XS – FMA805WH XS - FMA905WH XS
Advertisement
Table of Contents
Related Manuals for Franke FMA605BK
Summary of Contents for Franke FMA605BK
- Page 1 Bedienungsanleitung und Einrichtung Dunstabzugshaube Kullanım ve montaj talimatları Davlumbaz Handbok för installation, användning och underhăll Spisfläkt FMA605BK – FMA805BK - FMA905BK FMA605WH – FMA805WH - FMA905WH FMA605BK XS – FMA805BK XS - FMA905BK XS FMA605WH XS – FMA805WH XS - FMA905WH XS...
- Page 2 INDEX RECOMMENDATIONS AND SUGGESTIONS ........................3 CHARACTERISTICS ................................4 INSTALLATION..................................5 USE ......................................8 MAINTENANCE ..................................9 INDICE CONSIGLI E SUGGERIMENTI............................11 CARATTERISTICHE................................12 INSTALLAZIONE ................................. 13 USO...................................... 16 MANUTENZIONE ................................17 SOMMAIRE CONSEILS ET SUGGESTIONS............................19 CARACTERISTIQUES................................. 20 INSTALLATION..................................21 UTILISATION ..................................
-
Page 3: Recommendations And Suggestions
RECOMMENDATIONS AND SUGGESTIONS The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION • The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. - Page 4 CHARACTERISTICS Dimensions Min. Min. 450mm 450mm Components Ref. Q.ty Product Components Hood Body, complete with: Controls, Light, Blower, Filters Directional Air Outlet grille Filter cover Ref. Q.ty Installation Components Wall Plugs Wall Plugs SB 12/10 Screws 4,2 x 44,4 Screws 2,9 x 6,5 Screws 2,9 x 9,5 Q.ty Documentation Instruction Manual...
-
Page 5: Installation
INSTALLATION Wall drilling and bracket fixing 1÷2 7.2.1 164 164 As a first step, proceed with the following drawings: • a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the hood is to be fitted;... - Page 6 Fitting the hood body • Open the doors/the door (See section Open Panels). • Remove the Metal grease filters using the handles provided. • Adjust the two screws Vr, in the brackets 11a, so that they are at the start of their travel. •...
-
Page 7: Electrical Connection
ELECTRICAL CONNECTION • Connect the hood to the mains through a two-pole switch hav- ing a contact gap of at least 3 mm. • Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan. - Page 8 Control panel Button Function Turns the Motor off. Turns the motor on at speed one Buttons T1+T2 are lit. Turns the Motor on at speed two Buttons T1+T3 are lit. Press and hold for 2 seconds to activate Buttons T1+ (T2 or T3 or switch-off with a 30 minute delay (Mo- T4, respectively) flash.
-
Page 9: Maintenance
MAINTENANCE Opening Panel • Open the Panel by pulling it. • The panel can be locked in any position. • Clean the outside with a damp cloth and neutral detergent. • Clean the inside using a damp cloth and neutral detergent; do not use wet cloths or sponges, or jets of water;... -
Page 10: Replacing The Activated Charcoal Filter
Activated charcoal filter (Recirculation version) These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage. REPLACING THE ACTIVATED CHARCOAL FILTER • Open the comfort panels pulling them downwards. •... - Page 11 Franke S.p.a. Via Pignolini,2 37019 Peschiera del Garda (VR) www.franke.it 436005639_ver5...
