Wireless LED Fixture Controller

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-001 and is the answer not in the manual?

Questions and answers

Summary of Contents for giulio lighting LC-001

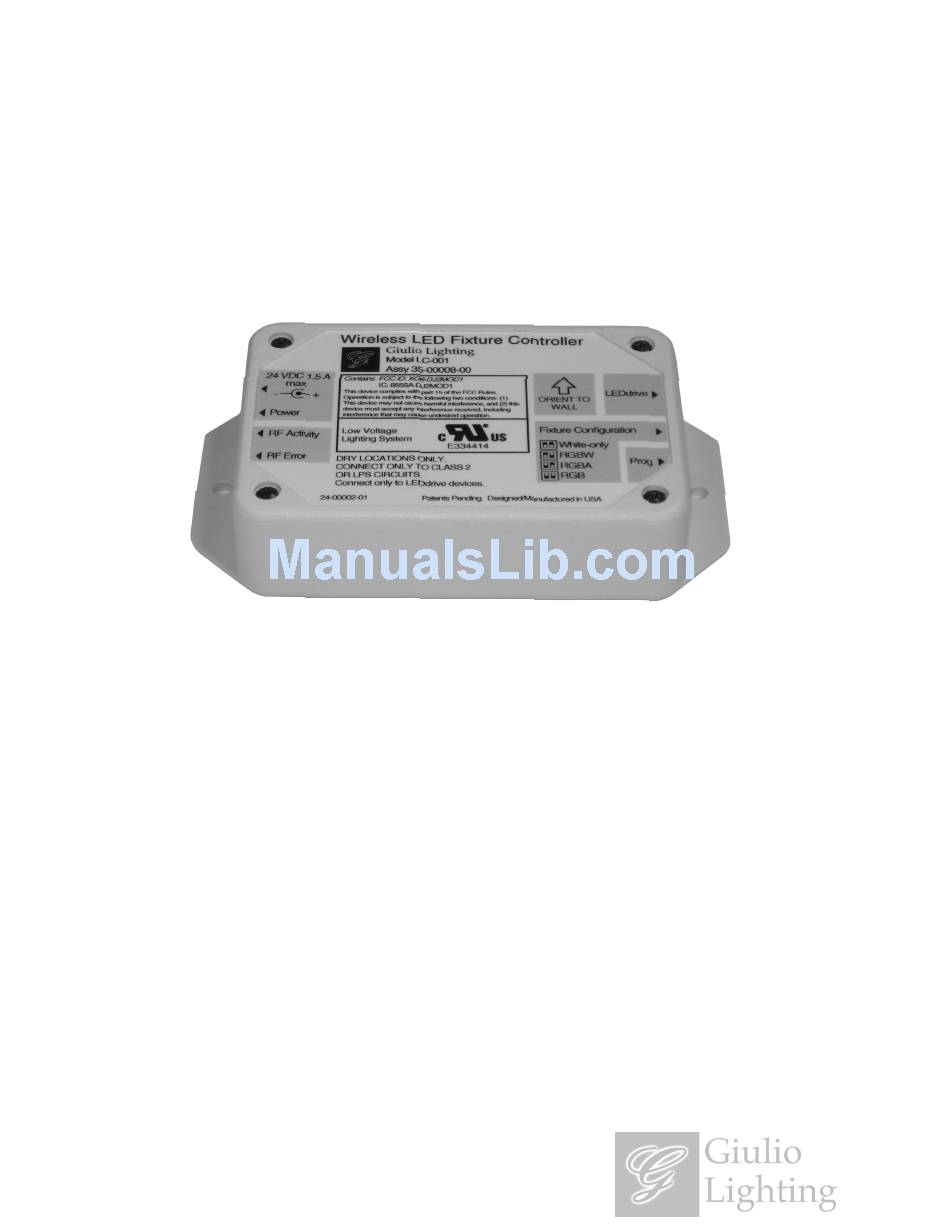

  • Page 1: User Manual

    Wireless LED Fixture Controller User Manual...
  • Page 2 Please read through these notes and the remaining instructions before installing this device. 1. Refer to local and state codes to ensure compliance when installing this device. Consult an Electrical Inspector if you have any questions. 2. Use only with a listed Class 2 or Limited Power Source external power supply.
  • Page 3 Wireless LED Fixture Controller Model LC-001 The Model LC-001 Wireless LED Fixture Controller is part of the QualColor™ family and controls one or more Giulio Lighting LED-based light fixtures connected using LEDdrive. Integrating a wireless receiver with the sophisticated Giulio Lighting LEDsmarts system, the LC-001 allows full control over a lighting system’s color and...

  • Page 4: Device Description

    Side Views Item Description Power Input Jack. Provides power for the LC-001 device and fixtures that require power from LEDdrive. Connect to a 24 volt DC Class 2 or Limited Power Source. Power Indicator. Green indicator that is lit when the LC-001 is receiving power.
  • Page 5 Item Description Prog Indicator. Red indicator that is lit when the LC-001 is put into Provisioning Mode (the Prog Button is pressed). Remains lit until an external device successfully provisions the LC-001, the Prog Button is pressed a second time or a one hour period expires.
  • Page 6 The LC-001 LEDsmarts controller includes the following capabilities. • Color fader: The LC-001 manages transitions from one color and intensity to another one automatically and independently. • Automatic programs: The LC-001 can automatically animate a color-capable fixture with one of two programs.
  • Page 7 • Sequential : The LC-001 fades the fixture(s) smoothly between all the hues in the rainbow. • Slow : 30 minutes for the complete sequence of colors. • Medium/Slow : 10 minutes for the complete sequence of colors. • Medium/Fast : 3 minutes for the complete sequence of colors.
  • Page 8 Typically this is a step described in the User Manual for the device or software being used to provision the LC-001. The LC-001 will remain in Provisioning mode for up to one hour before reverting automatically to normal operation. In Provisioning mode the Link characteristics of LEDlink are set to a known condition so that another device may communicate with it successfully over the LEDlink.
  • Page 9 LEDdrive Pinout LEDdrive cables are based around ethernet cabling technology to simplify building custom cables in the field. LEDdrive cables have the following requirements. 1. Minimum conductor size of 24 AWG. 2. Cable type of CL2 or better. A higher rated cable may be substituted (CMP, CL3P, CL2P, CMR, CL3R, CL2R, CMG, CM, PLTC, CL3).

  • Page 10: Advanced Features

    Advanced Features The LC-001 supports custom calibration parameters to enhance operation of certain fixture types. 1. White balance calibration : Adjust the amount of red, green, blue and optionally amber used when generating white light for RGB and RGBA fixture types. These calibration parameters allow the user to specify the precise white generated by a fixture that uses separate color components.

  • Page 12: Pre-Installation

    Locate the LC-001 near the provisioning device (within five feet / 2 m). Attach the external power supply to the LC-001 and plug the PSU into an outlet. Press the Prog button to put the LC-001 into Provisioning Mode. Finally follow the procedures described in the User Manual for the provisioning device or software.

  • Page 13: Installation

    Fixture Cabling A LEDdrive cable is routed from the LC-001 to the first fixture and from there, in a daisy chain method, to additional fixtures. The maximum length of the LEDdrive cabling from the LC-001 to the final fixture is 50 feet (15 m) as shown in the following illustration.

  • Page 14: Troubleshooting

    Controlling device is too far from the LC-001. Radio signals are being blocked by materials surrounding the LC-001. The LC-001 and the controlling device are not properly linked (e.g. different radio channel or Network ID). RF Error indicator flashes Controlling device is too far from the excessively LC-001.
  • Page 16 8 conductor cable Power + 4 channels LED modulation LED Modulation Modified Bit Amplitude Modulation ~122 - 3370 Hz Radio Type Giulio Lighting LEDlink proprietary digital bi-directional protocol. Interoperates with all Giulio Lighting LEDlink capable fixtures. Modulation Type GFSK Frequency Range 2.4 GHz Instrument, Scientific and...
  • Page 17 Dimensions Width 7.23 cm / 2.845” Length 13.03 cm / 5.130” Dimensions Height 2.81 cm / 1.107” Environmental Operating 0 - 50º C / 32 - 122º F 20 - 90% relative humidity, non- condensing Storage -20 - 60º C / -4 - 140º F 10 - 95% relative humidity, non- condensing Regulatory...
  • Page 18 Manufacturer warrants this product to be free from defects in material and workmanship under normal use and conditions ("manufacturing defect") for a period of one (1) year from date of original purchase (the invoice date). This warranty extends to the original buyer (Purchaser) or end-user customer of Manufacturer authorized reseller, and does not apply to fuses, batteries, equipment attached to product or any product, which, in Manufacturer's opinion, has been misused, altered, neglected or damaged by accident or abnormal conditions of...
  • Page 19 INFORMATION TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 20 QualColor is a trademark of Giulio Lighting. All other brand or product names are trademarks or registered trademarks of their respective owners.
