MMF POS 2261998USBA1-XX Instruction Manual & User Manual

USB Interface /USB-HUB Combo Interface
USB Interface / USB-HUB Combo Interface
USB Interface
P/N#2261998USBA1-XX:
USB Interface KIT (Includes Power
Supplies & USB Host Cables)
P/N# 641-2575-00:
Cash Drawer Power Supply (12V dc)
P/N# 641-25BX-00:
USB Host Cable

GETTING STARTED:

If you have purchased a USB-HUB Combo, proceed by always connecting the standard USB interface which serves as
the cash drawer's connectivity first. For both types of interfaces, please follow these steps:

Select Cash Drawer Number
The MMO POS USB Interface Board is factory defaulted to recognize the first cash drawer to be
installed as drawer number zero (0), see Figure 1.0 Dip-Switch Position (Default Setting). If user
decides to assign another drawer number, please follow the pin configuration illustrated in SWITCH
SETTINGS Table 1.0 or label attached to the interface for correct pin orientation. MMF recommends
selecting cash drawer number one (1) as your option.

Connect the Power Supply (12VDC / .8 Amp)
Plug the small plug tip to the interface power port in the back of the cash drawer interface as illustrated in
Figure 1. Plug the power adapter end into a 120 Volt AC Recepticle.
Always connect the power supply before the USB Cable. LED#2 (GREEN) and LED#5 (RED) should be ON
at this time, refer to Table 2.0 for reference.

Connect USB Cable
Plug the Type B connector e nd to the U SB Po rt of the interface as illustrated in F igure 1 and the Type A
Connector to the USB port of the Host Computer. ALL the LED except LED#4 (GREEN) should be ON at this
time. Refer to Table 2.0 for LED State.

Test Functionality of Interface
Follow the steps detailed below for 'USB Test Utility Installation'.

Install OPOS Drivers
Follow the steps detailed below for 'MMF OPOS Drivers Installation'.
NOTE: Do not assign two (2) USB interface cash drawers within the same system with the same cash drawer number.

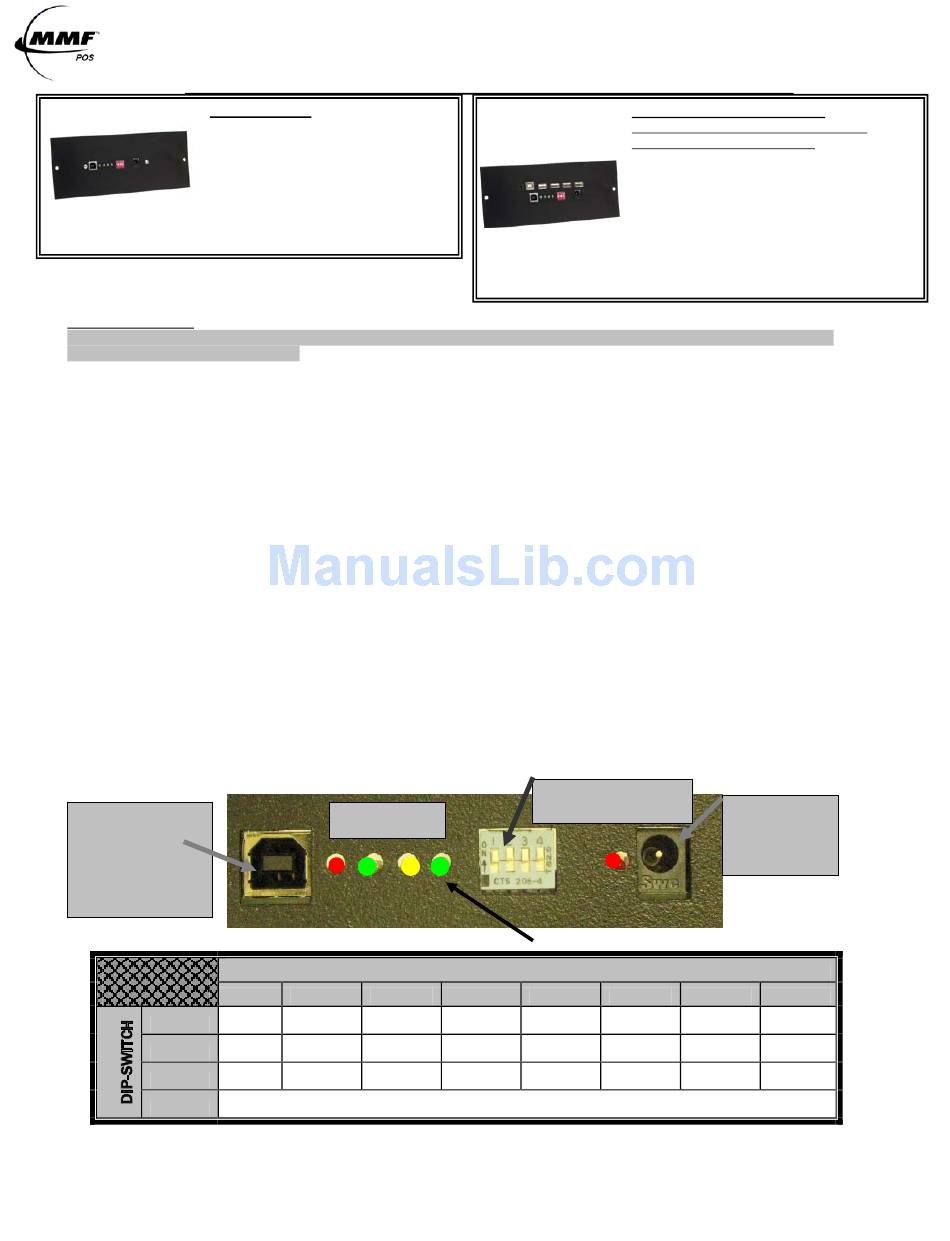

FIGURE 1.0
USB Port
Port of Cash Drawer
Interface
Connect Type B
Connector of USB
cable Here
TABLE 1.0
SWITCH
SETTINGS 0
SW1 ON
SW2 ON
SW3 ON
SW4
Note: OFF is when pins are facing down (↓). ON is when pins are facing up (↑).
Approved
LEDS
1 2 3 4
1 2 3
OFF ON OFF
ON OFF OFF
ON ON ON
Date of Revision 5/1/2010
Instruction manual / User Guide
USB-HUB Combo Interface
(A combination of our standard USB
Interface and a 4-Port HUB)
P/N# 2261998USBA1-XX:
USB-HUB Interface KIT (Includes Power
Supplies & USB Host Cables)
P/N# 641-2575-00:
Cash Drawer Power Supply (12V dc)
P/N# 641-25CE-00:
USB Hub Power Supply (5V dc)
P/N# 641-25BX-00:
USB Host Cable
DIP-SWITCH POSITION
Default Setting: Drawer 0
5
This light should not be ON at any time
DRAWER
4 5
ON OFF
ON ON
OFF OFF
RESERVED
Doc. Instruction Manual
Power Port
Connect 12V DC
Power Supply
Here
6 7
OFF
ON
OFF
OFF
OFF
OFF
P/N: 531911900
