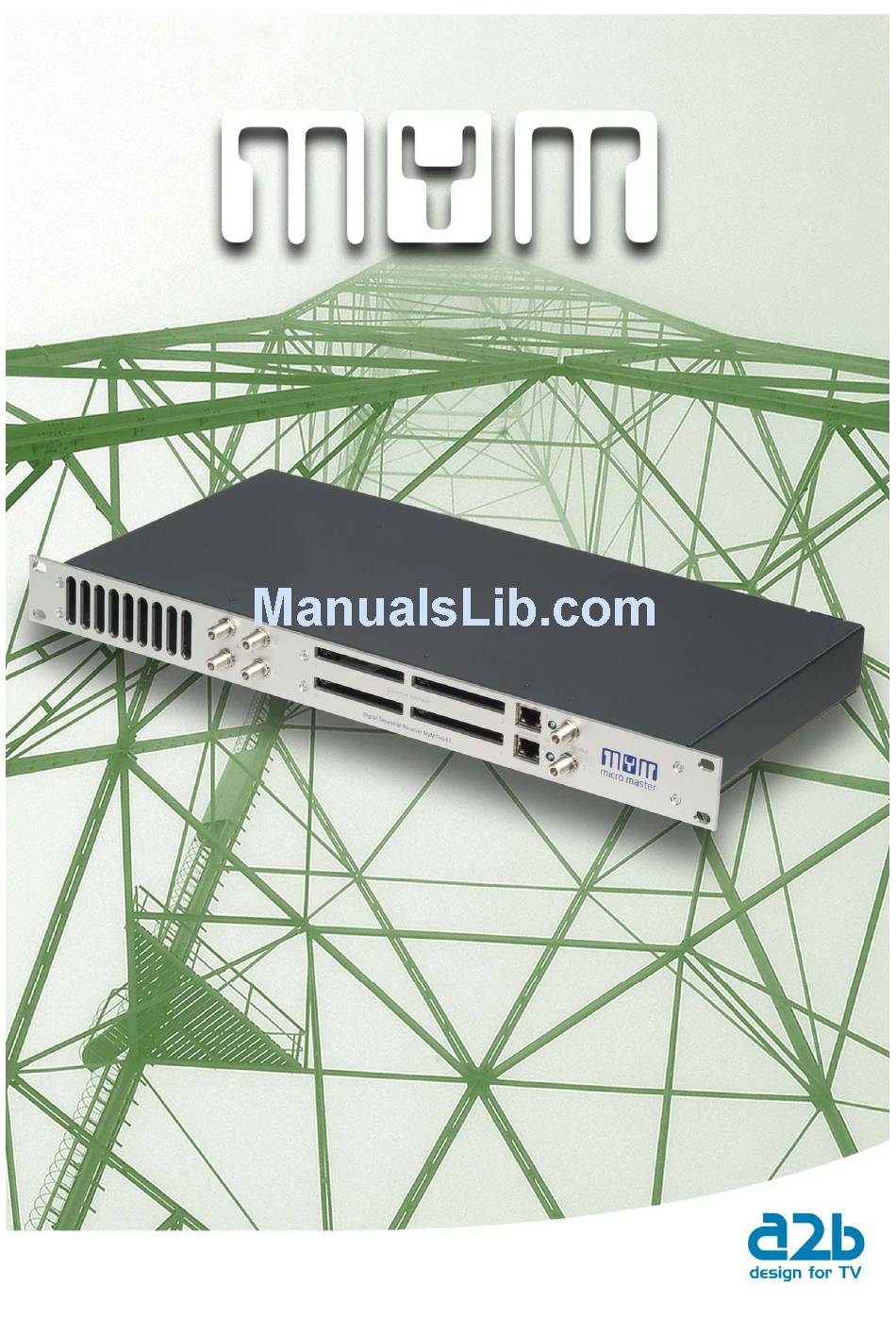

- Page 1 MyM Pro T2 Installation guide...
-
Page 2: Table Of Contents
5. Menus and settings web ui 5.1 Overview menu 5.2 Input settings 5.3 Output settings 5.4 Service management 5.5 CI menu 5.6 System options 6. Installation and Configuration examples 7. Technical specification MyM Pro T2 8. Declaration of conformity 9. Abbreviations English... -
Page 3: Introduction
1 Introduction Thank you for purchasing an A2B Electronics product. The MyM Pro T2 is a revolutionary solution for reception and modulation both from satellite or from terrestrially transmitted TV content into an analogue format suited for small SMATV networks where cost efficiency and high quality is required. -
Page 4: Unpacking The Unit
The following items are included in the package: Amount Description MyM Pro T2 Quick guide Every unit is quality controlled by us before delivery. Should any items be missing when unpacking, please contact our support service (see page 3 for contact info). -
Page 5: Connections And Indications
3 Connections and indications 1. Antenna input 1 Connect the satellite/terrestrial signal for Ch1 and Ch2 here 2. Antenna input 2 Connect the satellite/terrestrial signal for Ch3 here 3. Common Interface 1 Insert a Common Interface module into this slot (Supports decryption for Channel 1 and 2) 4. -
Page 6: Ip Settings
Internet Explorer to connect to the unit for settings and management. No controller software is needed. The MyM Pro T2 has by default static IP address(es) for connecting your PC to the unit. NOTE! MyM Pro T2 is only approved with Internet Explorer as web browser. - Page 7 Connect the MyM Pro T2 double power cords to a wall outlet. See section 6 for installation. Next connect your PC to the MyM Pro T2 with a network cable. Start your web browser 1) and write the IP address 192.168.0.20 and 192.168.0.21 for second port *)
-
Page 8: Menus And Settings Web Ui
5 Menus and settings All necessary settings can be made in the web GUI via a web browser. When first connection is made with the MyM Pro T2 following overview menu will appear. 5.1 Overview menu Current settings Contains information of current... -
Page 9: Input Settings
5 Menus and settings (continued) 5.2 Input settings As the MyM Pro T2 contains ”multituner” start by selecting either DVB-T/T2 or DVB-s/S2. After that you choose [Tuner 1] or [Tuner 2] for settings of the tuner parameters. Tuner 1 provides the service list for RF output Ch1 and Ch2. - Page 10 5 Menus and settings (continued) 5.2 Input settings cont. For receiving from satellite, start with chosing [Tuner 1] or [Tuner 2]. Tuner 1 provides the service list for RF output Ch1 and Ch2. Tuner 2 provides the service list for RF output Ch3. The tuner can also be ”Disabled”.
-
Page 11: Output Settings
5 Menus and settings (continued) 5.3 Output settings Modulation Band Start the output setup by selecting which band you want to use. You can select VHF-7, VHF-8 and UHF. VHF-7 and VHF-8 corresponds to 7 and 8 MHz bandwidth. After selection press [Set]. Frequency For each of the 3 (or 6) possible RF output channels, set the desired output... - Page 12 5 Menus and settings (continued) 5.3 Output settings continued National (continued) Auto conversion Setting this in position “On” converts subtitling to fit actual picture aspect ratio if needed. Teletext Charset Select appropriate characters for selected language. Audio/ Audio language Select which language to receive and transmit on the outgoing programs.
-
Page 13: Service Management
5 Menus and settings (continued) 5.4 Service Management The MyM Pro 3T contains 2 and for MyM Pro 6T 4 separate DVB-T tuners and totally 3 or 6 services can be selected for each of the output channels, named [CH-1], [CH-2] and [CH- 3] and for MyM Pro 6T also [CH-4], [CH-5] and [CH-6]. -
Page 14: Ci Menu
5 Menus and settings (continued) 5.5 CI menu The MyM Pro 3T contains 2 CI (Common Interface) and MyM Pro 6T contains 4 CI (Common interface). [CI-1] decrypts services for output CH-1 and CH-2. The [CI-2] decrypt services for output CH-3. -
Page 15: System Options
The procedure of downloading a new software looks as described below: 1.Download the appropriate file from our web page to your PC. 2.Browse for the file in the MyM Pro T2 user Interface. 3.Press [Upload] 4.Wait until message shows up, “Upload completed”. - Page 16 6 Installation and configuration The MyM Pro T2 can be installed either as a stand alone unit directly on the wall by the use of a dedicated MyM Pro T2 Wall Mount brackets (part number 702800.10) or in an 19 inch cabinet.
-
Page 17: Technical Specification Mym Pro T2
Double side band from 160 – 862 MHz. Output level Min. 80 dBμV, fixed RF output connector Type F female, 75 Ω Example of MyM Pro T2 Web GUI Decryption Decryption Interface 2/4 x Common Interface (PMCIA 5VDC) Decryption type Single or Multidecryption CAM’s supported... -
Page 18: Declaration Of Conformity
8 Declaration of Conformity The document for Declaration of Conformity is available for download from www.a2b.se. Further information at www.a2b.se. English... -
Page 19: Abbreviations
9 Abbreviations Digital Video Broadcasting (Standardization body) MPEG-2 Compression format for digital TV MPEG-4 Compression format for digital TV (SD and HD) Double Side Band (RF modulation occupying 2 channels) NICAM Digital sound format for analogue TV transmission Internet Protocol (defines how data is packetized for Internet broadcast) DVB-S Modulation format (QPSK) for satellite transmission of digital TV DVB-S2... - Page 20 A2B Electronics AB P.O. Box 14 • SE-591 21 Motala • Sweden Phone +46 141 229100 • Fax +46 141 229101 E-mail market@a2b.se www.a2b.se 655312.01 Rev F FW 2.1SR4 651453.01 rev A FW 1.0...
