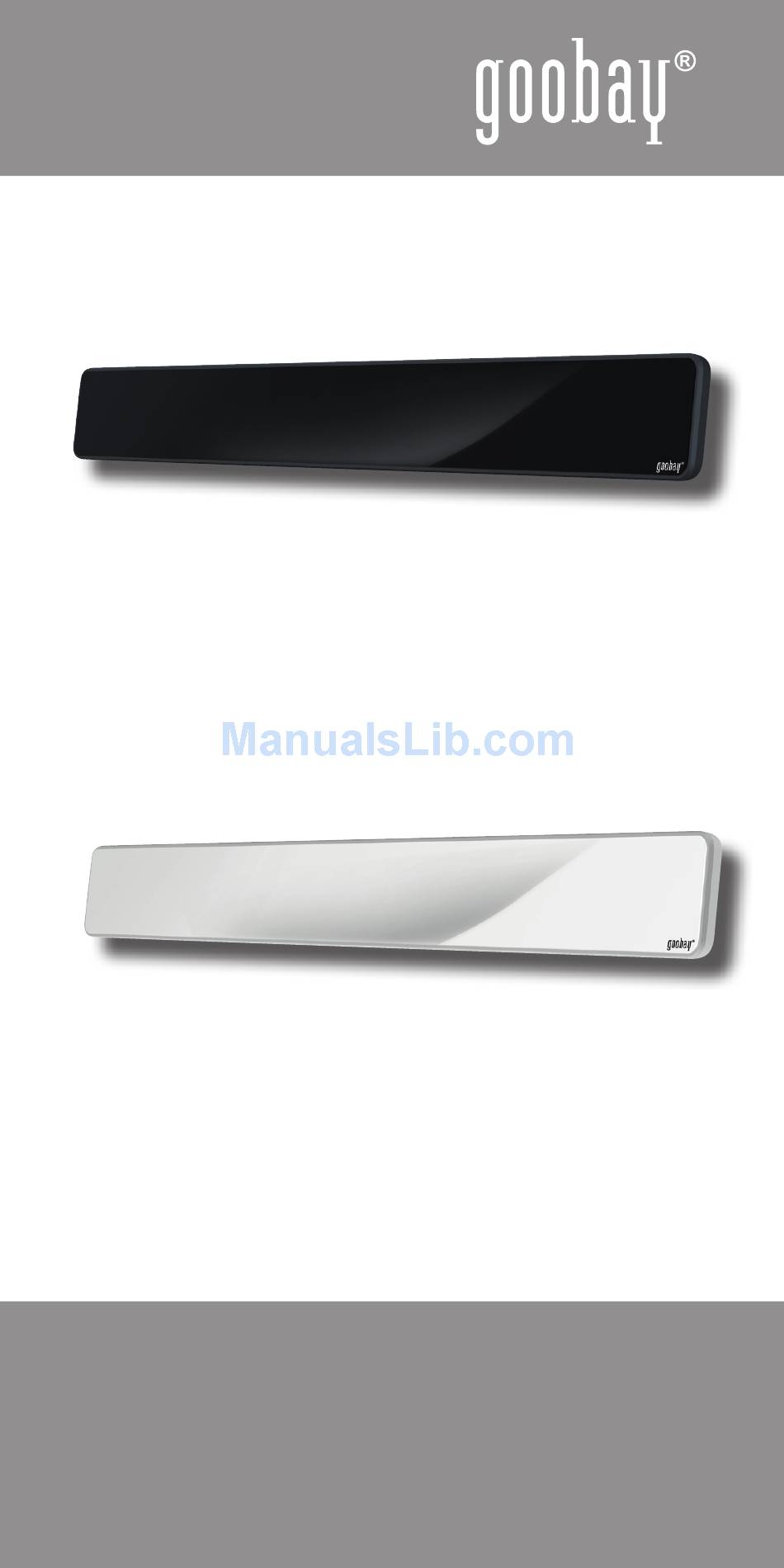

DVB-T DIA 35 PS BAR black
Aktive Full HD DVB-T Zimmerantenne inkl.Netzteil
Artikelnummer:
DVB-T DIA 35 PS BAR BlAck
active Full HD DVB-T indoor antenna incl. power supply
Article number:
DVB-T DIA 35 PS BAR wHITe
Aktive Full HD DVB-T Zimmerantenne inkl.Netzteil
Artikelnummer:
DVB-T DIA 35 PS BAR wHITe
active Full HD DVB-T indoor antenna incl. power supply
Article number:
67181
67181
67182
67182
Betriebsanleitung
User's Manual

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVB-T DIA 35 PS BAR black and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Goobay DVB-T DIA 35 PS BAR black

  • Page 1 DVB-T DIA 35 PS BAR black Aktive Full HD DVB-T Zimmerantenne inkl.Netzteil Artikelnummer: 67181 DVB-T DIA 35 PS BAR BlAck active Full HD DVB-T indoor antenna incl. power supply Article number: 67181 DVB-T DIA 35 PS BAR wHITe Aktive Full HD DVB-T Zimmerantenne inkl.Netzteil...
  • Page 2: Table Of Contents

    Betriebsanleitung DVB-T DIA 35 PS - Aktive Full HD DVB-T Zimmerantenne inkl. Netzteil ACHTUNG! Lesen Sie die Betriebsanleitung vollstän- dig und sorgfältig durch. Sie ist Bestandteil des Produktes und enthält wichtige Hinweise zur korrekten Installation und Benutzung. Bewahren Sie sie auf, damit Sie diese bei Unsicher heiten und weitergabe des Produktes parat haben.
  • Page 3: Beschreibung Und Funktion

    geistigen und motorischen Beeinträchtigungen dürfen dieses Produkt aus Sicherheitsgründen nicht allein benutzen, • Installieren und lagern Sie das Produkt und dessen Zubehör so, dass keine Personen oder Sachen z.B. durch Herabstürzen oder Stolpern verletzt oder beschädigt werden können. • Lassen Sie Verpackungsmaterial nicht einfach liegen, da sich spielende Kinder daran schneiden können.
  • Page 4: Lieferumfang

    Betriebsanleitung 4 Lieferumfang: 1 x DVB-T-Antenne 1 x Tischfuß 1 x Antennenverstärker (6 V DC) 1 x Netzteil (230 V~) 1 x Betriebsanleitung 5 Grafische Darstellung: Abbildung ohne Standfuß 67181 67182 6 Anschluss und Bedienung: 1. Kontrollieren Sie den Packungsinhalt mithilfe des Lieferumfangs auf Vollständigkeit.
  • Page 5: Montage

    Bedienung des Antennenverstärkers: 1. Schalten Sie den Antennenverstärker (3) auf ON. Die Betriebs-LED leuchtet. Die Gerätekombination ist jetzt betriebsbereit. Betriebs-LED | AN/AUS-Schalter | 6 V DC-Anschluss 2. Schalten Sie den Antennenverstärker (3) nach Benutzung auf (OFF). Die Betriebs-LED erlischt. Ausrichten der DVB-T-Antenne: •...
  • Page 6: Wartung, Pflege, Lagerung Und Transport

    Betriebsanleitung wandmontage: 1. Vergewissern Sie sich, dass keine Leitungen/Rohre in der Wand hinter der Montagestelle verlegt sind. 2. Benutzen Sie geeignetes Montagematerial, wie z.B. unterschidliche Dübel und Schrauben für Beton-/ Stein- und Holzwände. Informieren Sie sich hierzu im Fachhandel. 3. Der Lochabstand für die Wandbefestigung beträgt 360 mm.
  • Page 7: Problembehebung

    9 Problembehebung: Problem Abhilfe Antenne funktioniert • Achten Sie auf die richtige nicht Montgereihenfolge. • Achten Sie darauf, dass die Antenne entweder über Netzteil oder Fernseher mit Strom versorgt wird. schlechter Empfang • Richten Sie die Position der Antenne aus oder wechseln Sie den Standort.
  • Page 8: Technische Daten

    , eine registrierte Mar- ® ke der Wentronic GmbH, dass das Produkt die grundlegen- den Anforderungen und Richtlinien der europäischen Bestim-mungen erfüllt. Diese können online auf www. goobay.de angefordert werden. Alle Handelsmarken und registrierten Marken sind das Eigentum ihrer jeweiligen Inhaber.
  • Page 10: Safety Instructions

    User‘s Manual DVB-T DIA 35 PS - active Full HD DVB-T indoor antenna incl. power supply ATTeNTION! Read the user`s manual completely and carefully. It is part of the pro duct and includes important information for proper installation and use. Keep this user‘s manual for clarification and only pass it on together with the product.
  • Page 11: Description And Function

    damaged for example by dropping or stumbling. • Remove or store the packing materials well, because children may cut themselves on them while playing. Furthermore, there is a risk of swallowing and inhalating of incidentals and insulating material. • A defective device may not be put into operation, but must be disconnected from mains and protected against further use.
  • Page 12: Graphic Diagram

    User‘s Manual 5 Graphic Diagram: Figure without stand 67181 67182 6 Connecting and Operating: 1. Check the packing content by comparing it to the scope of delivery. 2. Compare the specifications of all used products to make sure they are compatible to each other. Connecting (aktive - with amplifier): 1.
  • Page 13: Installing

    2. Switch OFF the amplifier (3) after use. The Indication LED ceases. Adjust the DVB-T antenna: • Change position and place of the DVB-T antenna, if the signal quality is too bad. • Perform the channel scan of your DVB-T Receiver/TV. 7 Installing: BEFORE Installing to a wall, make sure the installation place offers a good signal quality.
  • Page 14: Care, Maintenance, Storage, And Transport

    User‘s Manual 8 Maintenance, care, storage, and transport: ATTENTION! Risk of fire by short-circuit and overheating! Mind adequate ventilation and use fire-resistant and solid surfaces! ATTeNTION! Risk of injury by stumbling! Attend to safe cable installation! • The device is maintenance-free. •...
  • Page 15: Specifications

    contact your dealer and provide your sales slip or invoice as evidence of the purchase, if necessary. Your dealer will repair the fault either on site, or send the device to the manufacturer. You make the work of our technicians considerably easier, describing possible faults in detail –...
  • Page 16: Ce Declaration

    , a registered trademark of the ® Wentronic GmbH ensures, that the product is conformed to the basic standards and directives. These standards can be requested online on www.goobay.de. All trademarks and re- gistered brands are the property of their respective owners.
  • Page 18 User‘s Manual...
  • Page 20 Revision Date 2012-04-12 Version 1 Goobay ® Pillmannstraße 12 38112 Braunschweig Germany Made in China. Hotline: +49 (0180) 5005882 E-Mail: info@goobay.de Web: www.goobay.de...
