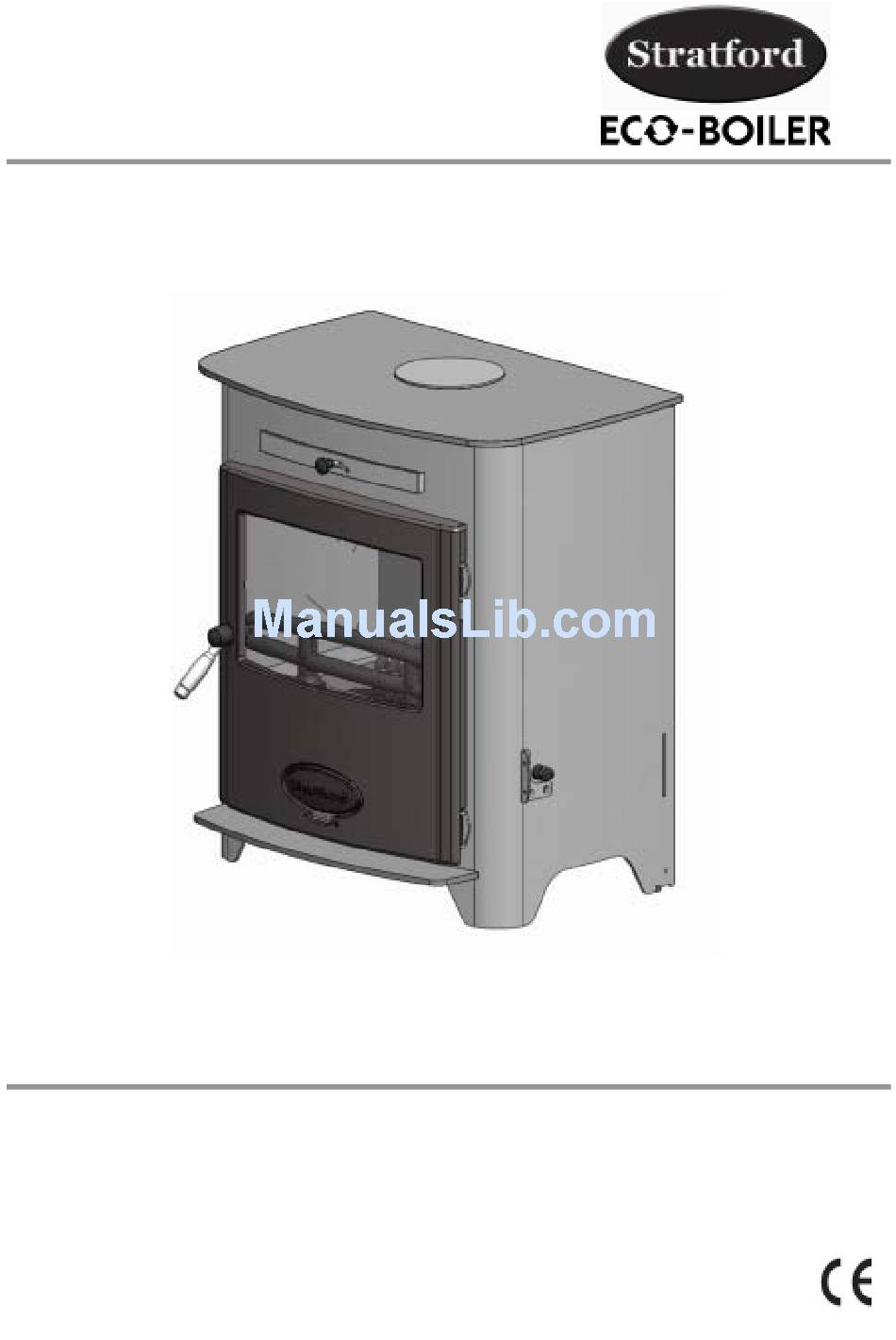

Operating & Installation Manual
Stratford EcoBoiler Stove
PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE
BK068
Rev 03
June 2008
Part No. AFS1362
EN 13240:2001
08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoBoiler BK068 and is the answer not in the manual?

Questions and answers

Summary of Contents for Stratford EcoBoiler BK068

  • Page 1 Operating & Installation Manual Stratford EcoBoiler Stove PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE BK068 Rev 03 June 2008 Part No. AFS1362 EN 13240:2001...
  • Page 2 Should you have any questions about our Stratford Stoves that are not covered buy our manual set, please contact the Stratford dealer in your area, or call our technical support department on 01308 427234 Copyright 2008 Arada Ltd...
  • Page 3: Table Of Contents

    Ash removal Typical installation examples for boilers 19-20 Optional Extra / Accessories Boiler tapping positions SPARE PARTS LIST 38-40 Water connections GUARANTEE Hot water system check list ADDITIONAL NOTES 42-43 Final installation check list FACTORY CHECK LIST Stratford EcoBoiler Stove...
  • Page 4: Important Fuel Notice

    MUST NOT BE BURNED IN THIS APPLIANCE BITUMINOUS HOUSE COAL SHOULD NEVER BE USED IN YOUR STOVE TO USE OTHER FUELS WILL INVALIDATE THE APPLIANCE GUARANTEE IF IN DOUBT CONTACT THE SOLID FUEL ASSOCIATION TELEPHONE NUMBER 0845 601 4460 www.solidfuel.co.uk Stratford EcoBoiler Stoves...
  • Page 5: Introduction

    THE PRINCILE OF THE STOVE SAFETY A fireguard conforming to BS 8423:2002 should be Your Stratford stove is built to the highest standard used in the presence of children and old or infirm of craftsmanship using the best materials and the people.
  • Page 6: Check List A: (Stove Body )

    1, ( 5" ) 1, ( 6" ) 1, ( 6" ) 6. Ash pan 7. Operating tool 8. Fire bed supports 9. Fire door handle 10. Instruction manual 11. Top insulation mats 12. Heat resistant mitten Stratford EcoBoiler Stove...
  • Page 7: Check List B: (Canopy)

    The canopy option selected should comprise of the following parts: Part Description & Visual Aid (not to scale) Slab top Rolled top Raised top 1. Main canopy component 2. Top hot plate cover 3. Rear flue, Top blanking plate 4. Top flue, Raised canopy kit Stratford EcoBoiler Stove...
  • Page 8: Technical Data / Data Plate

    The data given is that regis- tered on the HETAS website on the output and performance of the stove. The CE mark indicates that the stove performance has been independently certified by a competent body. Stratford EcoBoiler Stove...
  • Page 9: Installation

    To make movement easier internal fitting, fuel retainers, grate, firebox liners, flue outlets hot plate, throat plate, etc., can be removed. Care should be taken to make sure that the hinges are not damaged during installation. Stratford EcoBoiler Stove...
  • Page 10: Multi Fuel Grate And Grate Bars

    INSTALLATION MULTIFUEL GRATE The grate in the Stratford EcoBoiler multi fuel unit comprises of a series of reciprocating cast iron bars seated on a pivoted comb. All bars in the grate are identical, but every other bar is turned though 180 degrees, with the ends of the bars marked ‘H’...
  • Page 11: Feds Inspection & Fitting

    INSTALLATION FEDS Inspection & Fitting The Stratford EcoBoiler is not fitted with a traditional throat plate as found in most integrated boiler stoves, instead a highly efficient Flue Exhaust Diverter System is incorporated. This allows far more heat to be absorbed by the boiler jacket, and reduces the overall amount of heat wasted by slowing the flue gasses passage up the chimney.
  • Page 12: Fitting The Canopy

    C, The raised top canopy is held in place by 2 off M6 wing nuts located on the under- side of the blanking plate, see fig. D Stratford EcoBoiler Stove...
  • Page 13 The back section of the fillet kit is held in place by 2 x M5 wing nuts on the under side of the fillet section. Fig. E Front section Back section Warning: The stove CANNOT be lifted by the canopy once fitted. Stratford EcoBoiler Stove...
  • Page 14: Flue Outlet And Hotplate

    CONDENSATION ETC. RUNNING DOWN THE BS6461: part1. FLUE. Factory made insulated chimney complying with BS 4543: part2 (often called ‘Class1 prefabricated metal chimney’) and installed in accordance with Building regulations and BS 7566: parts 1 to 4. Stratford EcoBoiler Stove...
  • Page 15 HETAS (Official Body to Solid Fuel Domestic Heating Appliances): Telephone 0845 634 Details on the relevant Building Regulations and BS 5626 British Standards are given in the ‘General Precau- Web address: www.hetas.co.uk tions’ section of this manual. Stratford EcoBoiler Stove...
  • Page 16 INSTALLATION NOTE: Under no circumstances should this appliance be connected to a shared flue system, that serves any other heating appliance. Minimum 150mm (6”) Diameter Flue Maximum 100mm (4”) Typical Rear Flue Outlet (As Per BS 8303-1) Stratford EcoBoiler Stove...
  • Page 17 To be installed to the chimney manufacturers instructions in compliance with Building Regulations and BS7566 Pts 1 to 4 Typical Top Flue Outlet (AS Per BS 8303-1) PLAN VIEW OF REGISTER PLATE AND CLEARANCES FOR NON INSULATED FLUES Steel register plate 1.5mm thick minimum Stratford EcoBoiler Stove...
  • Page 18: Integral Boilers

    Warning: If a pipe-stat is not fitted to control the radiator circulation pump then cold water corrosion can occur FAILURE TO COMPLY WITH THESE REQUIREMENTS WILL INVALIDATE THE GUARANTEE. Stratford EcoBoiler Stove...
  • Page 19: Typical Installation Examples For Boilers

    Central Heating and Domestic Hot water System Using Four Boiler Tapings Central Heating Without Domestic Hot water System Using Four Boiler Tapings Note: Diagrammatic representation only. Design and calculations for individual systems should always be carried out by a qualified heating engineer Stratford EcoBoiler Stove...
  • Page 20 Central Heating and Domestic Hot water System Using Three Boiler Tapings Central Heating Without Domestic Hot water System Using Three Boiler Tapings Note: Diagrammatic representation only. Design and calculations for individual systems should always be carried out by a qualified heating engineer Stratford EcoBoiler Stove...
  • Page 21: Boiler Tapping Positions

    INSTALLATION Boiler Tapping Positions Dimensions (mm) SEB15 SEB20 SEB30 SEB40 Output Tapings Return Tapings Stratford EcoBoiler Stove...
  • Page 22: Water Connections

    This circuit consists of a cold feed pipe and a separate expansion pipe, and expansion tank. The Stratford EcoBoiler stoves are NOT suit- The possibility that water in the stove boiler may able for connecting to Direct domestic hot water boil can never be completely ruled out, and it is systems.
  • Page 23: Hot Water System Check List

    Is the pump thermostatically controlled YES/NO by a pipe stat? • Balance the radiators. • Re-vent and ensure there are no air locks What is the height and distance of the hot water tank above the stove? Stratford EcoBoiler Stove...
  • Page 24: Final Installation Check List

    I/We the undersigned confirm that the above details are correct. In my opinion, these works comply with the relevant requirements in part J of Schedule 1 of the Building regulations. Print name and title…………………………………………………………………..Profession………………………………….. Capacity……………………………………………………………………………...Telephone No. …………………………….. Address………………………………………………………………………………………………..Postcode………………….. Signed………………………………………………………………………………..Date………………………………………... Registered member of. (e.g. CORGI, OFTEC, HETAS, NACE, NACS)…………………………………………………………. Stratford EcoBoiler Stove...
  • Page 25: Service & Maintenance

    Use only genuine Arada Ltd spray paint as For removal of the FEDS for sweeping through, some paints interact and spoil the stove finish follow the procedure detailed on page 11 and invalidate the guarantee. Stratford EcoBoiler Stove...
  • Page 26: Adjustment Of Thermostat Damper

    10mm spanner for the damper boss and an 8mm for the damper lock nut. Fig. 3 Copper capillary tube Turned fully clockwise 10mm & 8mm locking nuts Set gap to 18mm +/- 1mm 8mm Spacer block Stratford EcoBoiler Stove...
  • Page 27: Removal Of Air Wash

    Fig. 7 Fig. 5 NOTE: There is no adjustment to the door lock, however periodically check the tightness of the retaining screw on the end of the door handle shaft (See Fig. 8) Fig. 8 Fig. 6 Stratford EcoBoiler Stove...
  • Page 28: Fire Door Rope Replacement

    (See Fig. 9) • Just before the final end, cut the rope seal to length and glue into position • Allow at least 30 minutes before refitting the door to the appliance Fig. 9 Stratford EcoBoiler Stove...
  • Page 29: Fire Door Glass Replacement

    The pictures detailed in Fig. 10 to 12 are designed for illustration purposes only, and may differ slightly in ap- pearance from your stove. However the procedure de- tailed is the same for all the Stratford SEB range of boiler stoves Stratford EcoBoiler Stove...
  • Page 30: Cleaning Around Thermostat Damper

    (See Fig. 14) • Vacuum out any lose material • Repeat this operation until all ash is removed Fig. 13 Fig. 14 Remove any ash build up here Ash Removal Slot Stratford EcoBoiler Stove...
  • Page 31: Service Record

    Company Work Carried Out Signature Should you have any questions about your Stratford EcoBoiler stove that are not covered in this manual please contact your Arada dealer Please keep all repair receipts safely. Please ensure you have this manual available when an engineer visits so they can complete the service...
  • Page 32: Operating Instructions

    (See Fig. 15) AIR INLET CONTROLS Sliding the control to the left, (towards the - Stratford EcoBoiler stoves have two air inlets symbol) will shut off the air wash inlet. (See Fig. 16) • The air wash system (so called because pre-...
  • Page 33: Operating Tool

    OPERATING INSTRUCTIONS MULTI PURPOSE OPERATING TOOL RIDDLING Your STRATFORD stove comes with a multi- Use the operating tool to set the grate bars in the purpose operating tool (Fig. 17) which is used for correct position for burning. The grate bars...
  • Page 34: Fuel Types

    To do so will damage the stove and invalidate the appliance guarantee. WARNING: Do not light the fire if it is suspected that any See page 4. part of the water system (pipe work, boiler etc) Could be frozen Stratford EcoBoiler Stove...
  • Page 35: Solid Fuel & Longer Burning Periods

    Ensure the area is well ventilated during this required time. Seek expert advice from your HETAS registered engineer. Do not attempt to re-light the stove until the cause of the fume emission has been identified and corrected. See page 15 for details. Stratford EcoBoiler Stove...
  • Page 36: Over Firing, Chimney Fires

    This work should only be carried out by a HETAS registered engineer. See page 15 for details. Stratford EcoBoiler Stove...
  • Page 37: Optional Extra /Accessories

    STAND SEB20- Gothic Tracery TRACEG SEB20- Lattice Tracery TRACEL SEB20- Raised Canopy CANOPY SEB20- Slab Canopy SLAB SEB20- Roll Canopy ROLL Floor Fixing Kit AFS1135 AFS1135 AFS1135 AFS1135 Touch-up paint AFS101A AFS101A AFS101A AFS101A ( aerosol ) Stratford EcoBoiler Stove...
  • Page 38: Spare Parts List

    (not to scale) SEB15 SEB 20 SEB30 SEB 40 Fuel Retainer AFS1378 FEDS Lower Plate AFS1334 Grate Bar AFS001 Hot Plate AFS010 Operating Tool AFS008 AFS008 AFS008 AFS008 Ashpan AFS1337 Flue Spigot AFS009 Airwash Assembly AFS1377 Glass Replacement AFS1386 Stratford EcoBoiler Stove...
  • Page 39 Door Assembly AFS1384 Fire Door Locking AFS1385 AFS1385 AFS1385 AFS1385 Assembly Thermostat assembly, Damper AFS1383 AFS1383 AFS1383 AFS1383 & Knob Knob AFS1379 AFS1379 AFS1379 AFS1379 Damper AFS1382 AFS1382 AFS1382 AFS1382 Fire Bed Surround AFS1380 AFS1380 AFS1380 AFS1380 Stratford EcoBoiler Stove...
  • Page 40: Spare Parts List

    Instruction Manual Thermostat Access AFS1321 AFS1321 AFS1321 AFS1321 Cover Mitten AFS1285 AFS1285 AFS1285 AFS1285 Canopy Cover for AFS1387 AFS1387 Slab & Roll Top Top Flue Kit for AFS1388 Raised Canopy Rear Flue Kit for AFS1389 Raised canopy Stratford EcoBoiler Stove...
  • Page 41: Guarantee

    Once again we would like to thank you for buying a Stratford EcoBoiler stove. When you buy a STRATFORD stove, you are not only buying a first class appliance you are buying a commitment from us to look after you and your appliance for as long as you want.
  • Page 42: Additional Notes

    ADDITIONAL NOTES Stratford EcoBoiler Stove...
  • Page 43: Additional Notes

    ADDITIONAL NOTES Stratford EcoBoiler Stove...
  • Page 44: Factory Check List

    Factory Check list Stove Model …………………….……..………………………………. Serial No Quality I’ve checked it Finish and its O.K Flue Outlet Hot Plate Fuel Retainer Grate Bars Assembled By………………………. Rear Fire Bed Supports Checked by…………………………. FEDS Cover Air Wash Door Catch Ash Pan Operating Tool Thermostat...
