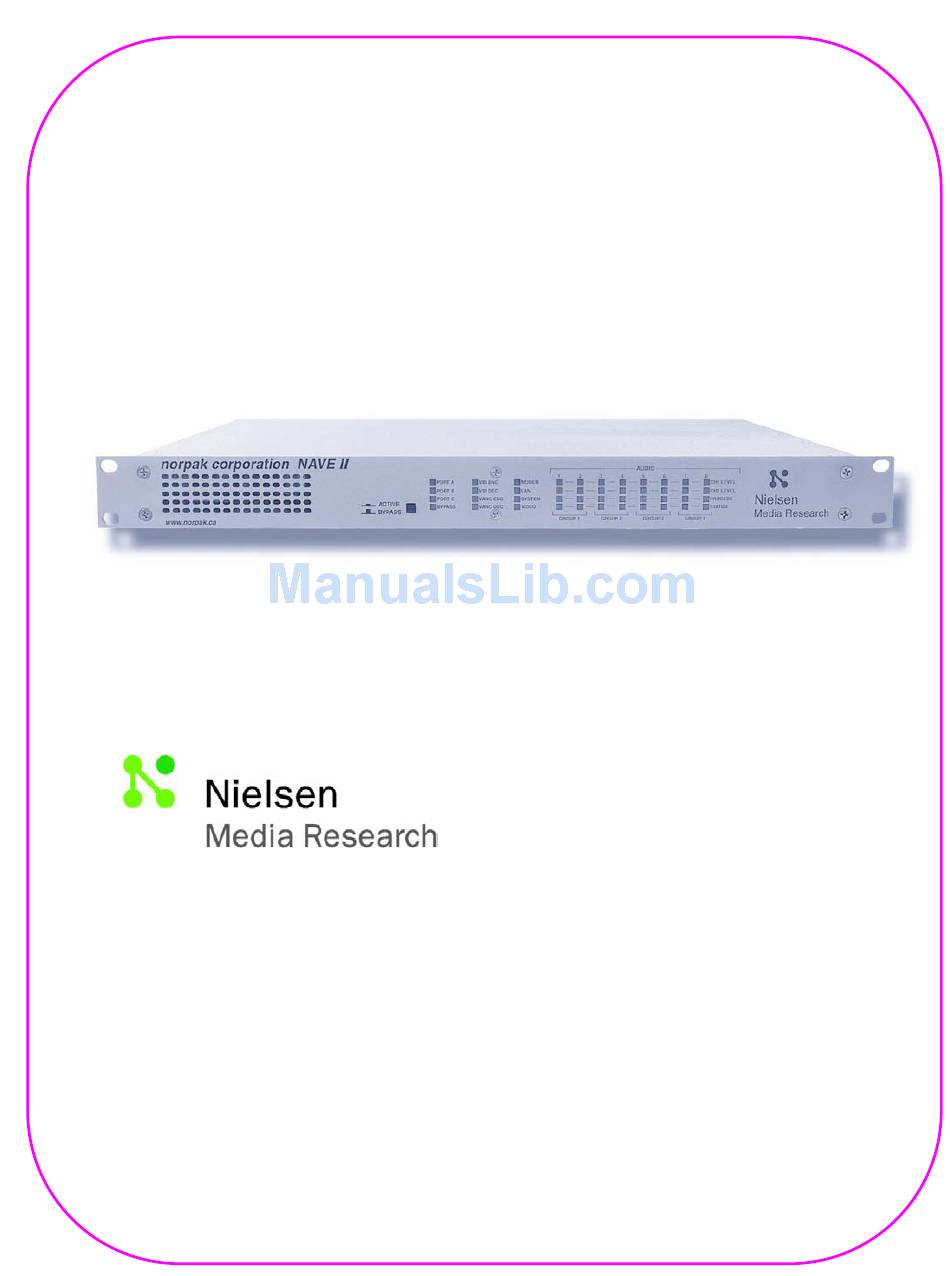

- Page 1 Nielsen Audio Video Encoder (NAVE II) Quick Installation Guide norpak corporation Document # 85-10410-01 Revision A...
-
Page 3: Package Contents
The NAVE II is designed to work with serial digital video (SMPTE 259M or 292M) and with embedded or discrete digital audio (AES). Package Contents Check to verify that your NAVE II product contains all of the items listed below. • The NAVE II unit – part number 93-10321-01 • Power Cord •... -
Page 4: Installation
• Video format • Type of audio interface (AES or SDI embedded) • Audio groupings (5.1, stereo, or mono), referred to as clusters in the NAVE II • Assignment of clusters to AES Audio pairs (Discrete AES or SDI embedded... -
Page 5: Communications Setup
Port A LED, verify that the RS232 cable is attached to Port A on the back of the NAVE II unit and/or replace the cable with a serial communication cable with null modem configuration. To access the main menu, type “NAVE2”... - Page 6 AES/SDI/DARS Inputs to make the correct changes. Then move to option 3 – Manage Audio Clusters for proper configurations. 4 For detailed configuration instructions refer to the NAVE II User Manual. Verify System Configurations 1 Return to sub menu 1 – Configure the Encoder 2 Select 5 –...
-
Page 7: Verify Operation
ON. For a complete description of all LED functions, refer to the NAVE II User Manual. Indicator Name Indicator Status System: Green (Once unit has completed system boot-up) Video: Green VBI Enc: Green Questions? Contact Nielsen Media Research Encoder Support at 1-800-537-4872 option 2 85-10410-01... -
Page 8: Support Contacts
501 Brooker Creek Blvd. Oldsmar, Florida, USA 34677 Phone: (800) 537-4872 Email: AMOL@nielsenmedia.com Norpak Corporation 10 Hearst Way Kanata, Ontario, Canada K2L 2P4 Phone: (613) 592-4164 Fax: (613) 592-6560 Email: sales@norpak.ca Questions? Contact Nielsen Media Research Encoder Support at 1-800-537-4872 option 2 85-10410-01...
