Chroma-Q™
Magic Box™
EthernetSwitch 7™
User Manual
Version 1.2 September 2012
PN: 156-0500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magic Box EtherSwitch 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chroma Magic Box EtherSwitch 7

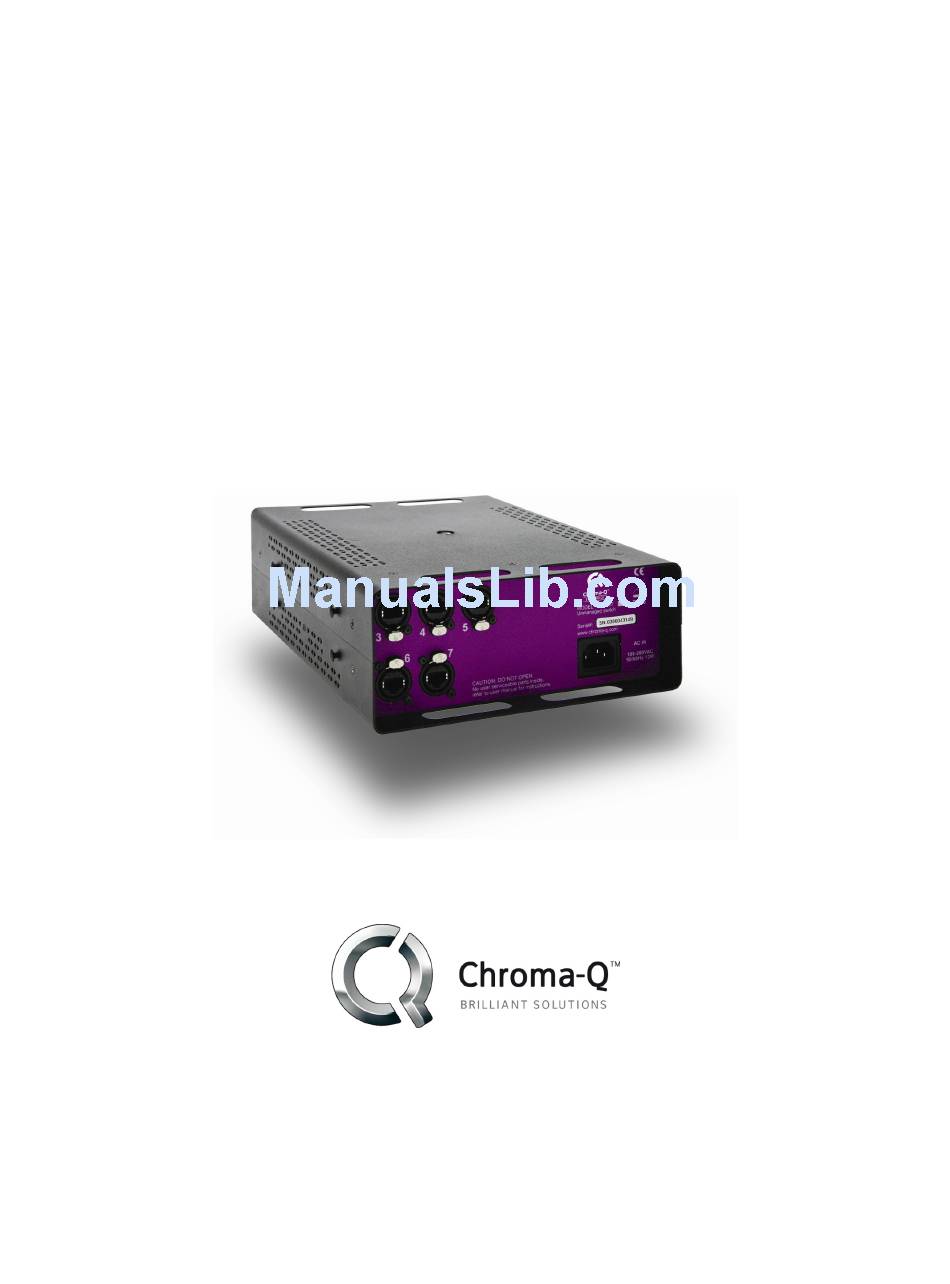

  • Page 1 Chroma-Q™ Magic Box™ EthernetSwitch 7™ User Manual Version 1.2 September 2012 PN: 156-0500...
  • Page 2: Warranty Statement

    (c) by operation outside the specifications contained in the user documentation; (d) by the use of spare parts not manufactured or sold by Chroma-Q or by the connection or integration of other equipment or software not approved by Chroma-Q unless the Customer provides acceptable proof to Chroma-Q that the defect or damage was not caused by the above;...
  • Page 3 Chroma-Q products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the sales specifications in effect at the time of shipment.
  • Page 4: Table Of Contents

    ………………….………………………………………. 4 RJ45 Ethercon Ports …………………………………………………….……. 4 LED Indicators …………………………………………………….……. 5 Installation …………………………………………………….……. 6 Troubleshooting ………...……………………………………….………... 6 Specification ………...……………………………………….………... 6 Technical specification ...………..….……………………………………………. 6 Drawings ...………..….……………………………………………. 7 Maintenance ………...……………………………………….………... 8 www.chroma-q.com Magic Box EtherSwitch 7 User Manual V1.2 September 2012...
  • Page 5: Product Overview

    Send and receive data (all IEEE 802.3 protocol) to and from an external source through any of the seven shielded RJ45 Ethercon ports. There are 2 ports at the front panel and 5 ports at the rear panel. www.chroma-q.com Magic Box EtherSwitch 7 User Manual V1.2 September 2012...
  • Page 6: Led Indicators

    The Speed LED indicator will light up green when the port is connected to a 1000Mbps Ethernet station, and amber when connected to a 100Mbps Ethernet device. The indicator will remain off when the port is connected to a 10Mbps Ethernet device. www.chroma-q.com Magic Box EtherSwitch 7 User Manual V1.2 September 2012...
  • Page 7: Installation

    100 Mbps : 148,81pps 1000 Mbps : 1488,1pps Port Connection: Speed and Activity LED indicators Power: Power LED Max Cat5e cable run: 90m / 295ft Colour: Black Approvals : CISPR 22:2006/EN55022:2006 www.chroma-q.com Magic Box EtherSwitch 7 User Manual V1.2 September 2012...
  • Page 8: Drawings

    1000 Green Activity MODEL: CHES07 RoHS Unmanaged switch Serial#: www.chroma-q.com AC IN 100-260VAC 50/60Hz 12W CAUTION: DO NOT OPEN. No user serviceable parts inside, refer to user manual for instructions. www.chroma-q.com Magic Box EtherSwitch 7 User Manual V1.2 September 2012...
  • Page 9: Maintenance

    Maintenance With care, the Chroma-Q Magic Box EtherSwitch 7 will require little maintenance. However, as the unit is likely to be used in a stage environment we recommend periodical internal inspection and cleaning of any resulting dust and cracked oil residue.
