FSM Colibri Grande PRO User Manual

Grm series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Colibri Grande PRO
User's manual
09.05.2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Colibri Grande PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for FSM Colibri Grande PRO

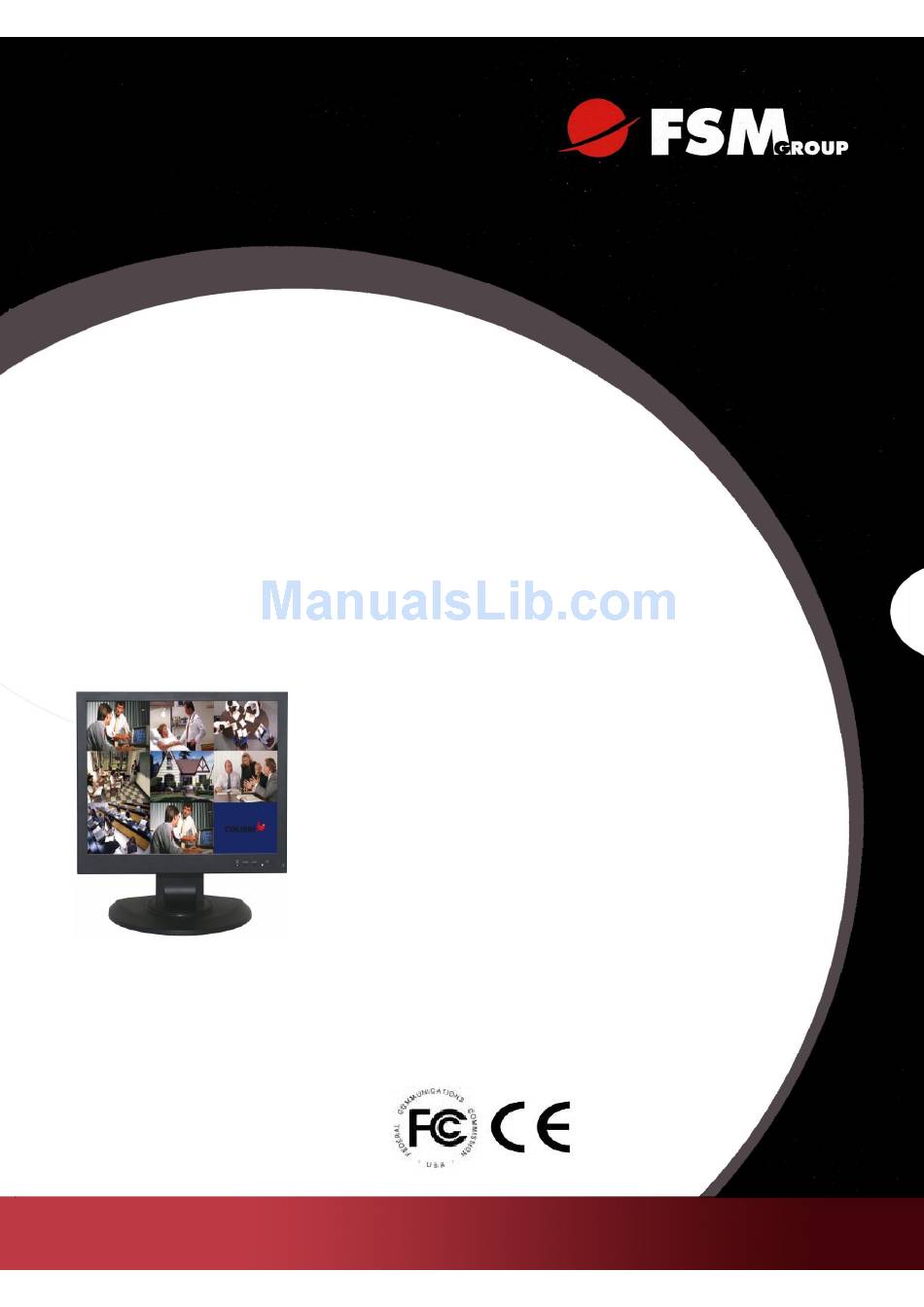

  • Page 1 Colibri Grande PRO User's manual 09.05.2011...
  • Page 2 OVERVIEW FEATURES These DVR adapt H.264 video encoding for 4 or 8 channel inputs and G.723 audio encoding in order to store and replay. ● User friendly GUI and easy to install ● Various recording modes (Motion, sensor, scheduled recording) ●...
  • Page 3 Specifications – GRM Series Specification 8Channel 4Channel Inch / Resolution 17” / SXGA, 22” / WSXGA+ 17” / SXGA Main display Live Speed NTSC : 240fps, PAL : 200fps NTSC : 120fps, PAL : 100fps Video In No. of Channel 8 X RJ-45, 8 X BNC 4 X RJ-45, 4 X BNC Monitor out...
  • Page 4 Before operating the DVR Instructions Thank you for buying GRM DVR series This is the user manual for GRM DVR series. Before installing or operating this product, please familiarize yourself with this user manual. We retain the copyright on this manual. Therefore, with the exception of copying for general use within the copyright law, copying and reprinting the user manual, either partially or in its entirety, or translating it into another language without our prior written approval.
  • Page 5 Before operating the DVR Safety Precautions - Warnings The symbol is intended alert to know in order to prevent serious injury or death and Warnings are described below. ※ Before the installation • Various experience and technical is needed for installation of this product. All installation operations should be performed by the agency you purchased this product from.

  • Page 6: During Installation

    Before operating the DVR Safety Precautions - Cautions The symbol is intended alert to know in order to prevent minor injury or product damages and cautions are described below. ※ During installation • Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

  • Page 7: Fcc Compliance Statement

    Before operating the DVR FCC Compliance Statement Caution : Any changes or modifications in construction of this device which are net expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 8: Index

    INDEX OVERVIEW FEATURES Specifications Before Operating the DVR Instructions Safety Precautions - Warnings Safety Precautions - Cautions FCC Compliance Statement INDEX Package Contents Package Contents Optional Cable Adapter Optional accessories Remote Controller Parts name and Functions 8 Channel - Front, Back and Bottom Product exterior 4 Channel - Front, Back, and Bottom Exterior Names and Functions...
  • Page 9 INDEX SYSTEM Setting System ID System configuration Time / Date Change Firmware Update Hardware / IP / MAC Address etc Setting the Record RECORD Setting the event Motion Detection Recording Schedule Camera Setting CAMERA PTZ Camera Setting REPLAY Search Event Search Replay EVENT LOG Event Log...

  • Page 10: Package Contents

    Package Contents Please unwrap the product, and place the product on a flat place or in the place to be installed. Please check the following contents are included in addition to the main unit. Remote Controller Mouse (USB) Power Cord DC Power Adapter Battery AAA x 2 Users Manual...

  • Page 11: Optional Accessories

    Optional Accessories Optional Cable Adapter RJ45(M) to GC-C10 BNC(F) RJ45(M) to GC-C20 BNC(F) / RCA(F) RJ45(M) to GC-C30 BNC(F) / PWR(F) RJ45(M) to GC-C40 BNC(F) / RCA(F) / PWR(F) RJ45(F) to GC-N40 BNC(M) /RCA(M) /PWR(M) RJ45(F) to GC-N50 BNC(M) /RCA(M) /RS485 - 10 -...

  • Page 12: Remote Controller

    Remote Controller Parts name and Functions 1. POWER : System power On/Off. 2. REC : Start or Stop emergency recording. 3. Split Screen 4. OSD : On or Off OSD of screen 5. SEARCH : Display search menu. 6. MENU : Display main menu. 7.

  • Page 13: Product Exterior

    Product exterior 8 Channel – Front, Back and Bottom Front RECORD ALARM Back D- RS-485 CVBS SPOT SENSOR RELAY Bottom - 12 -...
  • Page 14 Product exterior 4 Channel – Front, Back and Bottom Front RECORD ALARM Back D- RS-485 CVBS SPOT SENSOR RELAY Bottom - 13 -...

  • Page 15: Exterior Names And Functions

    Exterior Names and Functions Name Function Receiver Receive remote control operation Record Lighting during recording Alarm Lighting occurred event. Red : Power off Power Orange: Screen off Green : Operation USB port (for data backup and FW update) CVBS out Out port composite.

  • Page 16: Connecting To Other Devices

    Connecting to other devices Connecting to the Bottom for 8 channel NETWORK Power Adaptor RJ-45 Monitor eSATA DC 12V Camera In X 8 Devices Connecting to the Back CVBS / Spot out D- RS-485 Composite CVBS SPOT SENSOR RELAY Camera Input X 8 - 15 -...
  • Page 17 Connecting to other devices Connecting to the Bottom for 4 channel NETWORK Power Adaptor RJ-45 eSATA DC 12V Camera In X 4 Devices Connecting to the Back CVBS / Spot out D- RS-485 Composite CVBS SPOT SENSOR RELAY Camera Input X 4 - 16 -...
  • Page 18 Connecting with the other devices Connecting the 8Channel Sensor in / Relay out / RS-485 RS-485 RS-485 SENSOR IN (ALARM IN) SENSOR IN RELAY OUT ALARM OUT : 0.5A 125VDC / 1.0A 24VDC Connecting the 4Channel Sensor in / Relay out / RS-485 RS-485 RS-485 SENSOR IN...

  • Page 19: Port Layout

    RJ-45 Port Layout Cam Input Pin Assignment ⑧⑦⑥⑤④③②① ⑧⑦⑥⑤④③②① CAM IN PLUG (DVR side) (CAM side) NAME FUNCTION RS-485 D+ ① RS-485 D- ② DC 12V DC 12V OUTPUT (under 300㎃) ③ AUDIO IN AUDIO INPUT ④ ⑤ ⑥ VIDEO IN VIDEO INPUT ⑦...
  • Page 20 Installation the HDD Managing the HDD The HDD is very sensitive device, please ensure that the HDD free from shock. We are not liable for any damage to the HDD incurred by the user’s carelessness and miss use. The HDD may be damaged if the DVR is moved or impacted during the HDD operation. Please backup data as often as possible to minimize the risk of data loss from a damaged HDD.

  • Page 21: Getting Started

    Getting Started Starting the System 1.Connet the power cable of the DVR to the wall inlet. 2. Press the Power button on the front panel or remote control. 3. You will see the initialization screen. The initialization process will last about 3 minutes. 4.
  • Page 22 Getting Started Started Login To access a DVR or restricted menu, you should have logged in to the DVR. 1. In live mode, right-click of mouse. You will see the context sensitive menu as in the right figure. 2. The login dialog will also appear if you press a menu button on the remote control or mouse when the corresponding menu requires logging in.

  • Page 23: Live Mode

    Live Mode Icons on the Live Screen You can check the status or operation of the DVR with the icons on the live screen. Press <CH1> and <CH1>, drag and drop <CH1> to <CH4> and right click of the mouse. You can learn the operation of the live screen after pressing the bar of the bottom.

  • Page 24: Setting The Menu

    Setting the Menu Main Menu icons You can access a desired menu by right clicking or <MENU> of the remote control in live screen. Some menus are protected depending on the user right that assigned by “ADMIN”. You can return to the live screen by the right clicking quickly. ※...

  • Page 25: Menu Explanation

    MAIN MENU Menu Explanation Back Power Off See System setting mode <25~29 page> See Record setting mode <30~35 page> See Camera setting mode <36~37 page> See Replay setting mode <38~39 page> See Event setting mode <40 page> See Display setting mode <41 page> See Sound setting mode <42 page>...

  • Page 26: Setting The System Name

    1. SYSTEM You can setup the system properties, devices, and options for recording, event, backup and network. 1.1 Setting the System Name You can set and change DVR name and this name is important to access MAC NAME SERVER without entering IP address.
  • Page 27 1. SYSTEM 1.2 Password ADMIN can set permissions of each user over the DVR's specific function and settings. Setting Permission Manager can set restricted access for all general users. • Checked ( ) : Accessible • Not checked : Restricted Setting the user’s Name and Password Manager can set or change manager’s and user’s password including name.

  • Page 28: System Configuration

    1. SYSTEM 1.3 Setting System ID If there are many DVRs at near place, they are able to operate simultaneously when press remote controller. But One DVR make controllable by designated ID Number Of System ID number. Select ID numbers and Pressing over 3 Sec. The system ID of DVR and ID of the Remote Controller should be same to control.
  • Page 29 1. SYSTEM 1.5 Time / Date Change You can setup the current Date / Time. • DATE/TIME : Sets the date and the time • DATE FORMAT : Select the date format • TIME FORMAT : Select the time format •...

  • Page 30: Firmware Update

    1. SYSTEM 1.6 Firmware Update • Connect a device storing the software to be updated. Upgradeable device is USB memory. (It may take several seconds to recognize the device.) • Select <UPDATE> from [SYSTEM] menu. • Choice F/W version and click <UPDATE>. While updating, it shows the progress bar.

  • Page 31: Setting The Record

    2. RECORD 2.1 Setting the Record You can setup scheduled recording, event recording and other recording related settings. You can set each channel’s resolution, quality and frame for event recordings. Using the mouse in [RECORD] window to move to [SIZE], [F/S], [QUALITY] and Choice conditions you want size, F/S and quality.

  • Page 32: Setting The Event

    2. RECORD 2.2 Setting the event You can set recording options for sensor, Relay and Motion. Sensor Detection You can set the sensor’s operating condition. Using the mouse may help easy setup. • SENSOR : Sets the operation mode of sensors.

  • Page 33: Motion Detection

    2. RECORD 2.3 Motion Detection You can set detection region and motion sensitivity as well as the alarm signal output. When the motion detection region is set, it detects motion within the area. • Sensitivity setting the sensitivity and high is more sensitive.
  • Page 34 2. RECORD Setting display of the Motion Area - 33 -...

  • Page 35: Recording Schedule

    2. RECORD 2.4 Recording Schedule You can setup scheduled recording, event recording and other recording related settings. RECORDING SCHEDULE Make your reservation on a date and time to schedule the recording on specified time and channel. If selected <ALL>, “All Channels and time” are selected. Event Recording You can set the beginning and ending point of a recording on an event.
  • Page 36 2. RECORD Setting the recording - 35 -...

  • Page 37: Camera Setting

    3. CAMERA 3.1 Camera Setting You can set CHANNEL NAME, COLOR, COVERT, RELAY and PTZ of a camera. • CHANNEL NAME : Using Virtual Keyboard you can input channel name. • COLOR : The video appeared on the screen may vary depending on the channel’s camera, configure the DVR display to your preferences.

  • Page 38: Ptz Camera Setting

    3. CAMERA 3.2 PTZ Camera Setting You can set CHANNEL NAME, COLOR, COVERT, RELAY and PTZ of a camera. Set the values of each communication setup of the remote device. To use Camera’s PTZ functions, ID and protocols of each camera and DVR should be matched.
  • Page 39 4. REPLAY 4.1 Search You can perform the search for recorded data by the time or by the search criteria such as an event. You can choice one of the storage media HDD, USB and eSATA. You can search for recorded data of a desired time.

  • Page 40: Event Search

    4. REPLAY 4.2 Event Search You can specify a time period and search all channels, some channels, all events, motion detection or sensors. There are Timer, Motion, Sensor Event Search. - Time Search : Enter a desired date and time and select search to go to the video at the specified date and time.

  • Page 41: Event Log

    5. EVENT LOG Event Log You can browse logs on the system and events. Event log shows recorded events on system which system log shows log and timestamp on every system startup, system shutdown, and changes on system record, camera, motion, sensor and remote detections.
  • Page 42 6. DISPLAY Display You can configure information to be displayed and its format for spot out monitor. • CAMERA NAME : Display camera name in live screen. • EVENT ICON : Display event icon in live screen. • ALARM POP UP : Pop up display time of the CH after event occurs.
  • Page 43 7 SOUND Sound Each channel can be set to sound and buzzer can be set related items. • AUDIO IN : You can control the sound corresponding to the channel in Live mode. (Option) • BUZZER : Buzzer can be set followings. - REMOTE CONTROL : Buzzer will beep when pressing Remote control.
  • Page 44 8. BACKUP You can check the backup device and set the backup schedule by channel and by time. 1. Backup • RECORD START : the start time of the Record. • RECORD END : the end time of the Record •...

  • Page 45: Network Configuration

    9. NETWORK 9.1 Network Configuration It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with events. You can configure the network environment and method. • IP MODE : You can select Static IP or Dynamic IP - STATIC IP : You can directly input IP address, Gateway, Subnet Mask.

  • Page 46: Ddns (Dynamic Domain Name System)

    9. NETWORK 9.2 DDNS (Dynamic Domain Name System) You can set the DDNS site for a remote user’s network connection DDNS is a short form of Dynamic Domain Naming System. DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters (ex: www.google.com) to an IP address consisting of numbers (64.233.189.104).

  • Page 47: Email Notification

    9.NETWORK 9.3 E-Mail Notification You can send an e-mail to a DVR-registered user at a specific time interval or if an event occurs. • EVENT You can set the type of the event that will be sent to the user. Using the mouse may help easy setup.

  • Page 48: Setting Hdd

    10. HDD Setting HDD You can check information for the HDD. • OVERWRITE - YES : Overwriting new recoding data from the first area of the HDD after the hard disk was full. - NO : New recoding will be stop after the hard disk is full.

  • Page 49: Ptz Control

    11. PTZ CONTROL Controlling a PTZ device CHANNEL PRESET PAN/TILT ZOOM/FOCUS/IRIS EXIT The PTZ is activated after setting the camera as PTZ at “CAMERA” setting menu. You can use one camera to perform all functions of PAN, TILT and ZOOM for monitoring multiple places and set the preset to your preference in a desired mode.
  • Page 50 12. HELP - 49 -...

  • Page 51: Remote Control

    13. REMOTE CONTROL Installing the SMART VIEWER Execute “SmartViewer.exe” of the CD that packed with DVR set, then below screen will be displayed on your monitor of the PC. Explanation The screen of connected DVR. Displays current time and date Terminal mode, Live mode, Backup, Replay, Event Log, DVR Setup (Menu) Connect/Disconnect, DVR List Changes full screen or spilt screen...
  • Page 52 13. REMOTE CONTROL DVR LIST SETUP 1. Open your DVR SETUP menu ( ) and input the IP/URL, name of DVR . 2. Set the ADMIN ID and password same to those of the DVR ADMIN. For users, enter the DVR user ID and password. Name Explanation DVR List...

  • Page 53: Live Screen

    13. REMOTE CONTROL • Live Screen This is a live screen that connected a DVR. If you select one channel, the channel will be pop up as full screen. • Connecting the Smart Viewer 1. Click <DVR Setup> and make DVR list after input DVR information.

  • Page 54: Controlling Ptz Camera

    13. REMOTE CONTROL • Controlling PTZ camera You can control the PTZ camera with the same method as DVR. You can zoom in or out the image by using “-” and “+”. You can adjust the focus by using “-” and “+”. You can adjust the entering light amount by using “-”...

  • Page 55: Terminal Mode

    13. REMOTE CONTROL • Function ① ③ ⑤ ① Terminal mode ② Live mode ③ Backup ④ Replay ⑤ Event Log ⑥ Menu ② ④ ⑥ ① Terminal mode You can control all function of the DVR in this mode (Terminal mode) via SmartViewer. ②...
  • Page 56 13. REMOTE CONTROL • Function ④ Replay Explanation The screen of replay Search bar : Search & indicate camera recording situation by time bar Replay time & date Replay controller Calendar : Controls volume Controls screen mode 1. Click ‘REPLAY’( ) button, SmartViewer changes to ‘REPLAY’...
  • Page 57 13. REMOTE CONTROL • Function ⑤ Event Log 1. Click ‘EVENT LOG’( ) button, ‘Event Log Search’ window appears. 2. Set Start and End time for search. 3. Select event for search. 4. Click ‘Search’ button, event log is displayed. 5.

  • Page 58: What Is Web Viewer

    13. REMOTE CONTROL What is Web Viewer? Web Viewer allows remote access to your DVR. You can access to live video, archived video, PTZ control etc. DVR FEATURES • Remote access from a standard browser Example: Explorer, Opera, Chrome, Firefox, Safari, etc •...
  • Page 59 13. REMOTE CONTROL Connecting the Smartphone • The connection method is same as web browser. 1. Open the web browser and input DVR IP to address window, then Enter. The login screen displays on the web browser. 2. Input DVR’s ID and Password, then click <LOGIN> button. The DVR screen will be displayed on the web browser.
