Superlux PS518 User Manual

Gooseneck mic base multi-function switch
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

PS518
Gooseneck Mic Base
Multi-function switch

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS518 and is the answer not in the manual?

Questions and answers

Summary of Contents for Superlux PS518

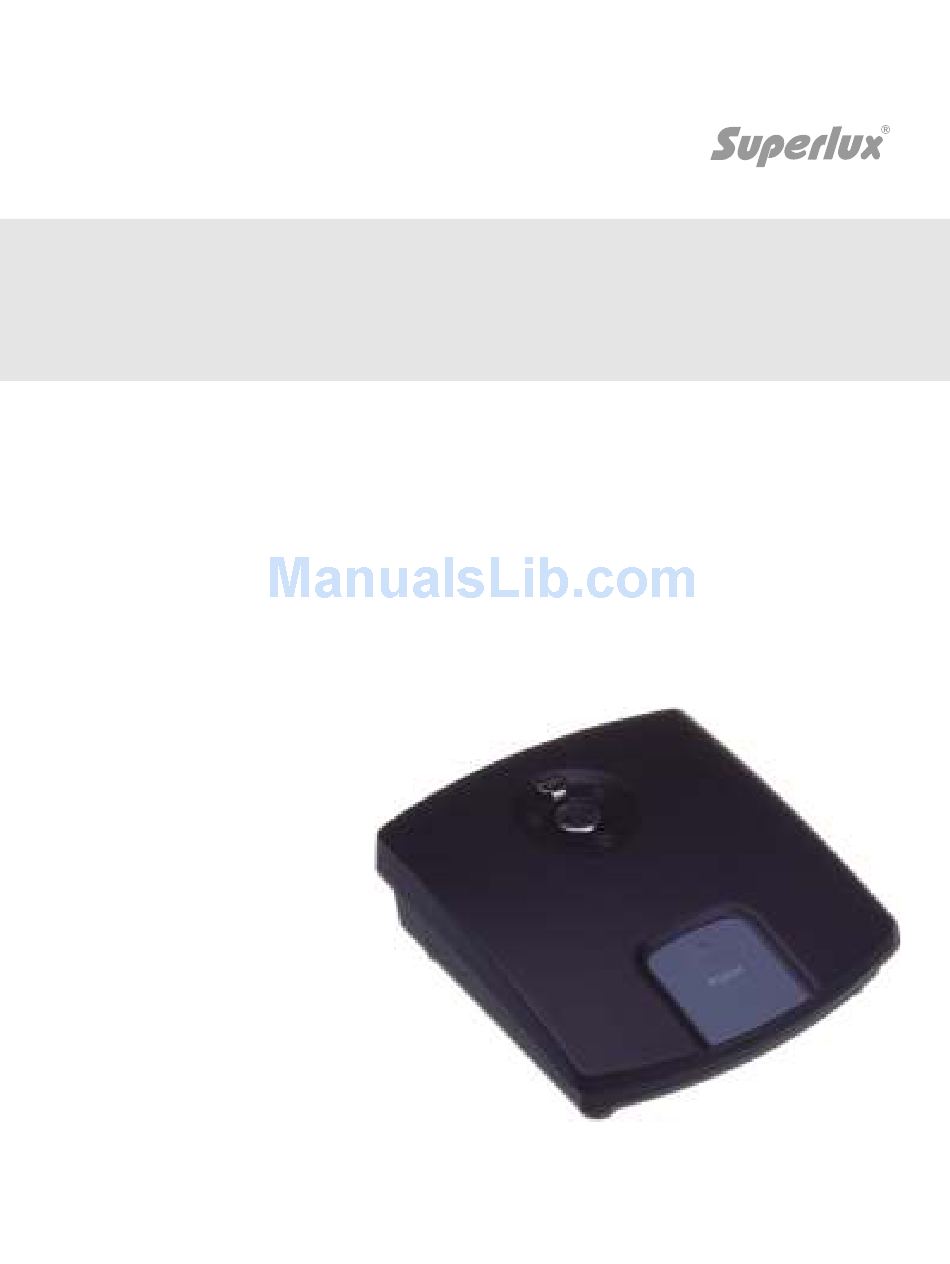

  • Page 1 PS518 Gooseneck Mic Base Multi-function switch...
  • Page 2 PS518 bases. The LED illuminates when the microphone is active. The PS518 is supplied with a rugged 32.8 foot ( 1 0 meters) cable terminated with a professional three pin male XLR type connector for balanced audio. The cable can be led out through the back panel or base plate for versatile application.
  • Page 3 As soon as the operator stops holding the soft touch button, the microphone will again turn on. 3. Toggle / Power Up ON: As soon as phantom power is applied to the PS518 base, the microphone is on. Momentarily pressing the soft touch button will mute the microphone.
  • Page 4 4. Toggle / Power Up OFF (Muted): As soon as phantom power is applied to the PS518 base, the microphone is muted. Momentarily pressing the soft touch button will turn the microphone on. Momentarily pressing the soft touch button again will mute the microphone. This operation will repeat indefinitely.
  • Page 5 The base in construction of die cast zinc. The dimensions of the base are 123mm(4.84”) wide x 143mm (5.63”) long x 44.6mm (1.76") high. The weight of the base with cable is 1.1 kg (2.42 lbs.) The base is finished with a high-quality matte-black paint. Operation and Maintenance To clean the base, use a cloth dampened with isopropyl alcohol.

  • Page 6: Specifications

    Specifications: Power Consumption: ¡Õ 2.5mA Minimum load impedance: 1000 ohm Frequency Response: 20-20,000Hz Power Requirement: 48V phantom power Connector: 3-pin male XLR Switches: Two dip switches on the bottom of base configure push button for push-to-talk, push-to-mute, Power up ON, or Power up Off Finish: Extremely durable, matte-black, urethane paint Dimensions:...
  • Page 7 Superlux product on which the serial number has been defaced, modified or removed. Service and repairs of Superlux products are to be performed only at a factory-authorized facility or authorized distributors or dealers. Unauthorized service, repairs, or modification will void this warranty.
