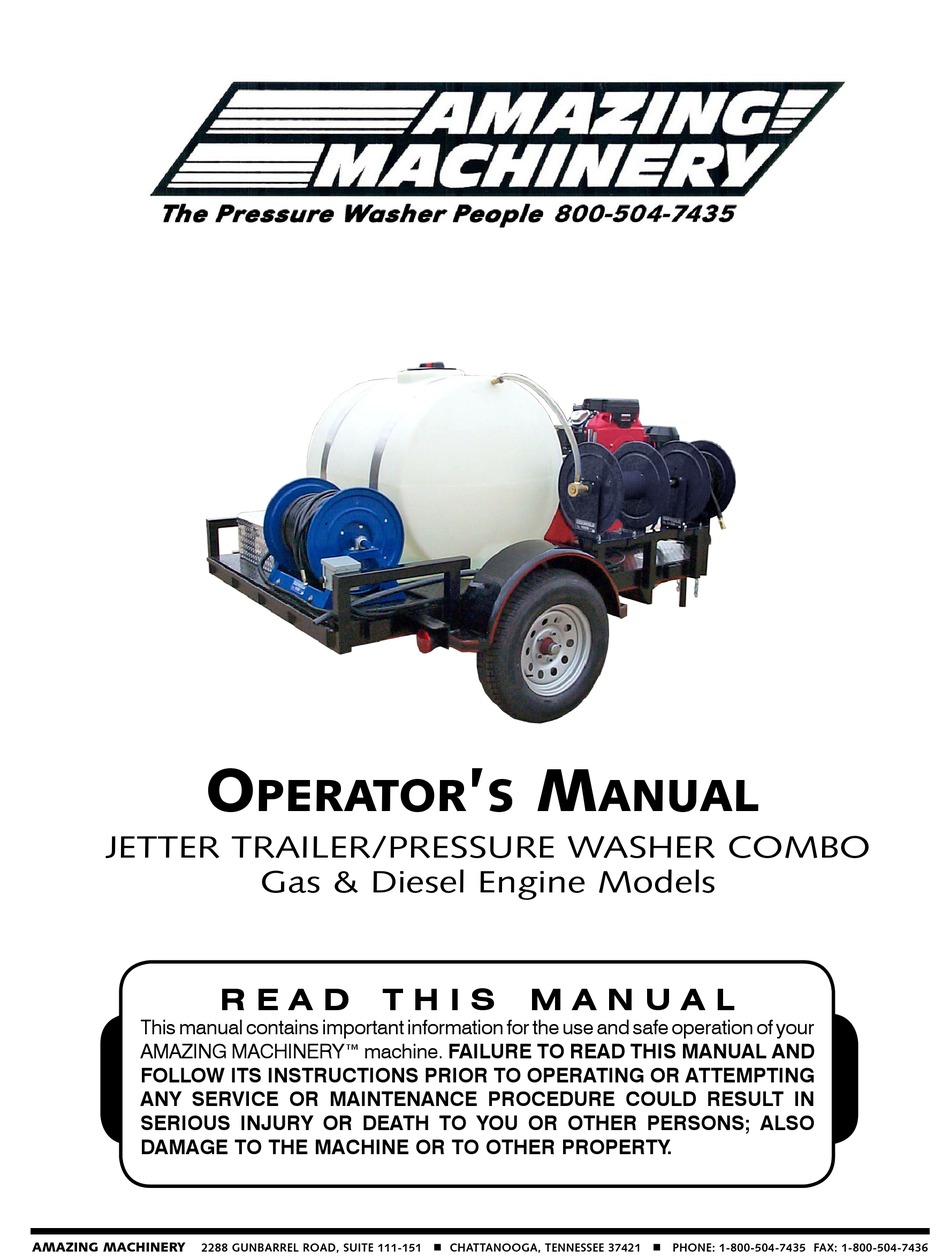

O
'
M
perator
s
anual
JETTER TRAILER/PRESSURE WASHER COMBO
Gas & Diesel Engine Models
R E A D
T H I S
M A N U A L
This manual contains important information for the use and safe operation of your
AMAZING MACHINERY™ machine. FAILURE TO READ THIS MANUAL AND
FOLLOW ITS INSTRUCTIONS PRIOR TO OPERATING OR ATTEMPTING
ANY SERVICE OR MAINTENANCE PROCEDURE COULD RESULT IN
SERIOUS INJURY OR DEATH TO YOU OR OTHER PERSONS; ALSO
DAMAGE TO THE MACHINE OR TO OTHER PROPERTY.
AMAZING MACHINERY
2288 Gunbarrel road, Suite 111-151 ChattanooGa, tenneSSee 37421 Phone: 1-800-504-7435 Fax: 1-800-504-7436
Advertisement
Table of Contents
Related Manuals for Amazing Machinery JETTER TRAILER/PRESSURE WASHER COMBO
Summary of Contents for Amazing Machinery JETTER TRAILER/PRESSURE WASHER COMBO
- Page 1 M A N U A L This manual contains important information for the use and safe operation of your AMAZING MACHINERY™ machine. FAILURE TO READ THIS MANUAL AND FOLLOW ITS INSTRUCTIONS PRIOR TO OPERATING OR ATTEMPTING ANY SERVICE OR MAINTENANCE PROCEDURE COULD RESULT IN SERIOUS INJURY OR DEATH TO YOU OR OTHER PERSONS;...
-
Page 2: Table Of Contents
’ peratOr anual table of Contents ’ ection perator anual ..............2 npacking ......3 afety nStrUctionS and arningS ...........4 aintenance nStrUctionS ection artS and ervice anual ..........5 perating nStrUctionS ..........6 Mportant nforMation ..............7 etter etUp ..........8 ... -
Page 3: S Ection 1 O Perator
’ peratOr anual Safety Guidelines � reaD tHIs FIrst! FAIluRE tO REAd ANd ObsERvE All WARNING stAtEMENts COuld REsult IN sEvERE bOdIlY INjuRY OR dEAtH, POssIblE INjuRY tO OtHER PERsONs, W ARNING dAMAGE tO MACHINE OR OtHER PROPERtY. DO NOT operate this machine in areas where open flames are not permitted. DO NOT store or use combustible materials on or near this machine. Use this equipment only in well ventilated areas. Failure to follow this warning may cause carbon monoxide build up, fire or explosion, and possible injury or death. DO NOT fill gasoline tank while engine is running. Allow engine to cool before refueling. Should gasoline be spilled, move the machine away from the area of the spill. Do not attempt to restart the machine until the gasoline has fully evaporated. DO NOT operate engine if air cleaner or cover directly over the carburetor air intake is removed. DO NOT touch hot mufflers, cylinders or fins, as contact may cause burns DO NOT operate this machine while under the influence of alcohol, drugs or while fatigued. DO NOT direct discharge stream at yourself or others. Risk of injection or injury may occur. Never put your hand or fingers over the spray tip. Do not try to stop or deflect leaks with your hand or body. Always face nozzle and wand to the ground when testing. DO NOT operate this machine wITHOUT wearing protective Eye wear. Gloves, Hard Hat, Mask, Ear Plugs & Steel Toe work Boots are also recommended, DO NOT wear loose clothing. Keep your body and clothing clear of the engine and discharge stream when the machine is running. DO NOT tie back or block trigger gun in OPEN position. Never leave the pressure washer unattended once you have started it. If you leave, shut down machine completely. -
Page 4: Maintenance Instructions
’ peratOr anual Maintenance instructions MOVING, STORAGE Place machine in covered area when not in use to protect from elements.Protect machine from freezing in cold temperatures by storing in a heated location. TRAILER MAINTENANCE Daily: Check wheel bearings. Add grease if necessary. Daily: Check tires for proper inflation. Daily: Check trailer for loose equipment. Tighten if necessary. ENGINE MAINTENANCE Every time (before start): Check oil level. First 8 hours: Change oil with SAE 30W High-Detergent Oil. Every 25 hours: Change oil if operating under heavy load or high ambient temperature. Service air cleaner pre-cleaner. Every 50 hours: Change oil. Clean and inspect spark arrester if equipped. Every 100 hours: Service air cleaner cartridge, replace oil filter (if equipped), Clean oil cooler (if equipped), Clean cooling system. -
Page 5: Operating Instructions
’ peratOr anual operating instructions LOCATION GUIDELINES Locate the machine on a solid and level surface so that engine and pump crankcase oil lubricate components properly. Avoid areas where water can build up in the working area. Possible injury can occur caused by the surface becoming slippery from water build up. Locate the machine in a well-ventilated area and away from flammable materials or fumes. Be sure ventilation warnings are observed. Keep pressure washer at least 18” away from flamable materials. Locate the machine so the operator has easy access to the jetter/pressure washer and its controls. Locate the machine so that it is protected from external damage. To prevent damage and excessive hose wear, locate the unit so that the hose does not cross traffic areas. STARTING THE MACHINE Following the steps below will insure successful operation: Read this manual completely before attempting to start the machine. Check the fuel tank and fill with a good grade of gasoline (87 octane minimum) for gas engines and a high quality diesel fuel for diesel engines. Check the engine oil level and fill with SAE 30 weight high-detergent oil. Check the pump oil level and fill with SAE 30w non-detergent oil if needed. Check water tank to ensure adequate level of water required for the job. ... -
Page 6: Mportant I Nformation
’ peratOr anual iMPortant inForMation Special Techniques The jetter nozzles are designed to draw the sewer hose into the line. However in some cases you will need to rotate or move the hose in and out to get it through and around clogs or around corners. There is a little art to this, you will understand after jetting a few times. It is best to jetter from the low end of the line so the water can drain out as you go. If you are jetting from the high end of the line you may have to stop occasionally to allow the accumulated water to drain past the jetter nozzle. Pulse Control The pulse control handle is located on the face of the pump, by turning the handle to the left you get a steady stream of water to be used with the pressure washer gun and tips or the Laser sewer nozzle. By turning the handle to the right, you get a pulse water flow to be used with the Ram sewer nozzle. Sewer hose to line size is important. Use the proper size hose in relationship to size of the line you are cleaning so that the hose will feed and go around corners properly without doubling back on you. 3/8” hose should be used with 4” to 16” lines Sewer Nozzles – What They Do It’s important to use the correct nozzle to get the job done properly. Ram Nozzle – used with pulse water to beat out blockage. Laser Nozzle – used with constant water to cut out blockage. Septic tank and Man Hole Entrances To help reach line entrances in septic tanks and man holes, you can use a piece of 2” PVC pipe with a 45 angle on the end. Make it long enough to put the 45 into the line entrance while you stand on top. Then run the jetter hose through the PVC and into the clogged line. -
Page 7: Jetter Setup
’ peratOr anual Jetter SetuP STARTING THE MACHINE Following the steps below will insure successful operation: Turn the optional tank dump ball valve (BV#3) to the " CLOSED " position. Connect customer supplied garden hose to water supply and fill tank. Turn the pressure washer hose reel ball valve (LV#2) to the " CLOSED " position. Make sure antifreeze ball valve (BV#1) is in the " CLOSED " position. Turn the main water supply ball valve (BV#2) into the " OPEN " position. ... -
Page 8: Pressure Washer Setup
’ peratOr anual PreSSure waSher SetuP STARTING THE MACHINE Following the steps below will insure successful operation: Turn the (optional) tank dump ball valve (BV#3) to the " CLOSED " position. Connect customer supplied garden hose to water supply and fill tank. Turn the pressure washer to hose reel lever valve (LV#3) to the " OPEN " position Make sure antifreeze ball valve (BV#1) is in the " CLOSED " position. Turn the pulsation valve lever to the constant flow position Turn the jetter hose reel lever valve (LV#1) to the " CLOSED " position. ... -
Page 9: Winterizing Machinery
’ peratOr anual winterizinG MaChinery WINTERIZING WITHOUT OPTIONAL ANTIFREEZE KIT Run the machine to run all the water out of the tank. Ensure tank is empty. Pour antifreeze mixture into water tank. Make sure all other valves are open. Start engine. Flow antifreeze thru pump, all lines, and all hose reels, ensuring there is no water left in the system. WINTERIZING WITH OPTIONAL ANTIFREEZE KIT Turn the tank dump ball valve (BV#3) to the " OPEN " position and drain tank. After draining, turn ball valves water supply ball valve (BV#2) to the " CLOSED " position Ensure there is antifreeze mixture in antifreeze tank. ... -
Page 10: Plumbing Diagrams
’ peratOr anual Plumbing diagrams AMAZING MACHINERY 2288 Gunbarrel road, Suite 111-151 ChattanooGa, tenneSSee 37421 Phone: 1-800-504-7435 Fax: 1-800-504-7436... -
Page 11: Hose, Wand & Gun
’ peratOr anual hose, wand & Gun ref.# Part # description Qty. 270-00011-01 Nozzle, Water #5.5 0º 270-00011-02 Nozzle, Water #5.5 15º 270-00011-03 Nozzle, Water #5.5 25º 270-00011-04 Nozzle, Water #5.5 40º 265-00001-01 36” Wand, Insulated 275-00001-01 ST1500 Trigger Gun 552-00003-03 3/8”... -
Page 12: W Iring D Iagram
’ peratOr anual BURNER MODULE “Small” BLK BLOWER “Big” RED IGNITOR XFMR yellow White Orange FUEL SOLENOID N.O. DROP- TIMER yellow yellow Photocell “Small” RED CONTROL PANEL BURNER SW TYPICAL SCHEMATIC THERMOSTAT FLOW SW or PRESSURE SW STARTER SOLENOID BATTERY ALTERNATOR 12 VOLT GAS ENGINE... -
Page 13: Troubleshooting
’ peratOr anual troubleshooting problem cause action Low water Pressure Insufficient water source Check hose size/water source Old or incorrect nozzle Replace nozzle Plumbing or hose leak Tighten, repair or replace leak Obstruction in spray nozzle Clean or replace nozzle Chemical valve open Close valve or submerge hose Unloader valve worn Replace unloader Pump valves dirty or worn Clean or replace packing/valves No Chemical Flow Detergent valve closed Open detergent valve Low detergent level Fill detergent container Chemical screen dirty Clean detergent screen... -
Page 14: Warranty
LIMITATION OF LIABILITY Amazing Machinery and Equipment Manufacturer liability for special, incidental, or consequential damages is expressly disclaimed. In no event shall any liability exceed the purchase price of the product in question.The warranty contained herein is in lieu of all other warranties express or implied, including any implied warranty of fitness for particular purpose.
