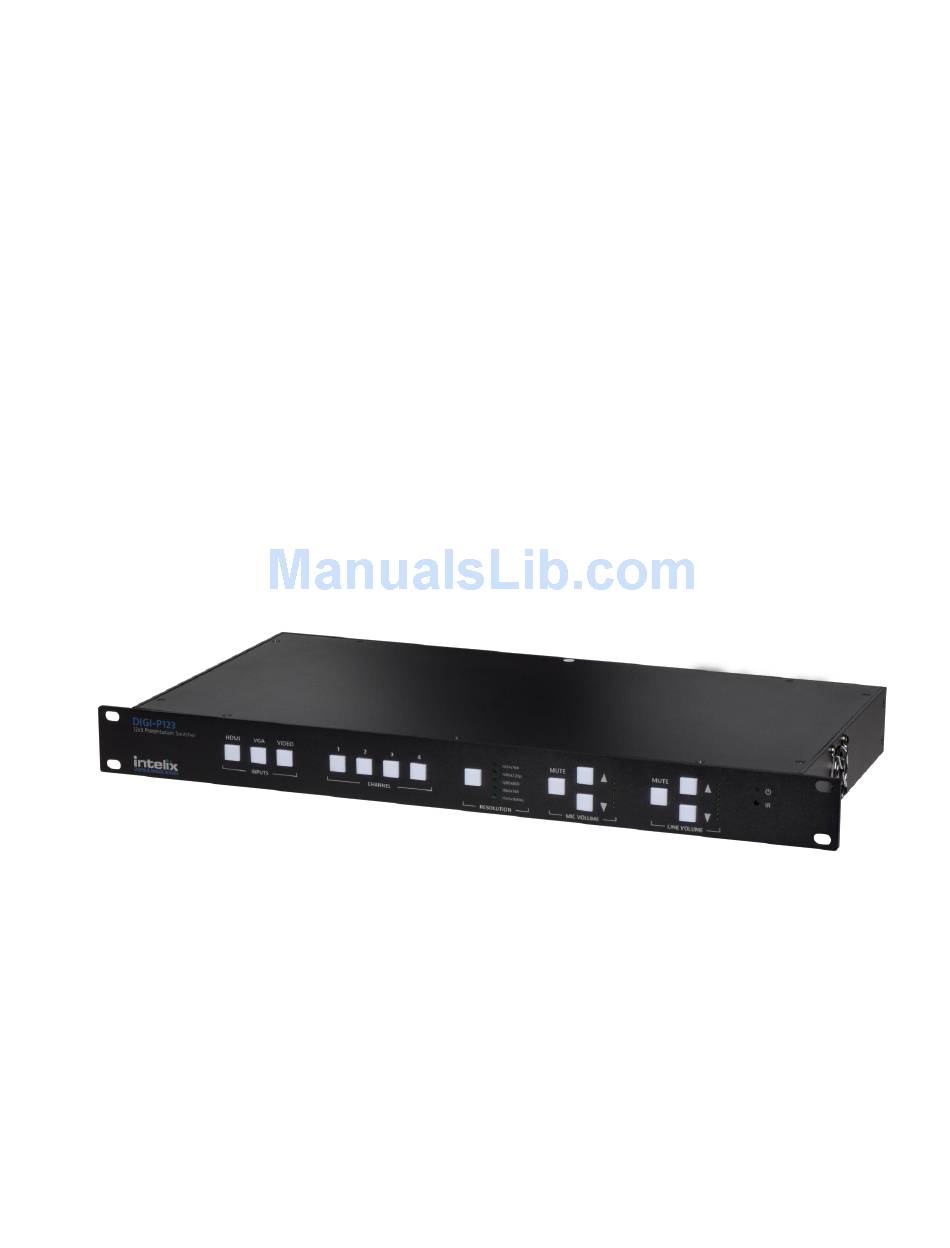

- Page 1 DIGI-P122/P123 Installation and Operation Guide Rev 131113 8001 Terrace Ave Phone: 608-831-0880 Suite 201 Toll-Free: 866-462-8649 Middleton, WI 53562 Fax: 608-831-1833...
-
Page 2: Important Safety Instructions
Do not block the air ventilation openings. Only mount the equipment per Intelix’s instructions. Use only with the cart, stand, table, or rack specified by Intelix or sold with the equipment. When/if a cart is used, use caution when moving the cart/equipment combination to avoid injury from tip-over. -
Page 3: Table Of Contents
DIGI-P122 / DIGI-P123 Installation Guide Table of Contents Important Safety Instructions ......................2 Overview ............................5 Package Contents ........................ 5 Front Panel .......................... 7 Rear Panel ........................... 8 IR Remote ..........................9 Installation Instructions ........................9 Shelf Mounting Instructions ....................9 Rack Mounting Instructions .................... - Page 4 DIGI-P122 / DIGI-P123 Installation Guide Audio Commands ......................19 Menu/System Commands ....................19 OSD (On Screen Display) Commands ................20 Firmware Update .......................... 21 Troubleshooting ..........................22 Unit does not power on ....................22 Unit does not respond to front panel buttons ..............22 No video from VGA output ....................
-
Page 5: Overview
DIGI-P122 / DIGI-P123 Installation Guide Overview The Intelix DIGI-P122/P123 allows the integration of multiple analog and digital devices into a high-definition environment. The DIGI-P122/P123 allows selection of twelve different sources, and will simultaneously scale the selected video to HDMI, VGA, and HDBaseT outputs. The unit features four HDCP compliant HDMI inputs, four VGA inputs, and four analog video inputs. - Page 6 DIGI-P122 / DIGI-P123 Installation Guide 1 ea Intelix Pocket Screwdriver...
-
Page 7: Front Panel
DIGI-P122 / DIGI-P123 Installation Guide Front Panel Resolution Selector Power LED/ IR Button and Receiver Indicator Integrated Input Type Input Channel Mic Volume and Line Volume and Rack Ears Selector Buttons Selector Buttons Mute Button / Mute Button / Indicators Indicators Resolution Selector Button and Indicator –... -
Page 8: Rear Panel
DIGI-P122 / DIGI-P123 Installation Guide Rear Panel Video RS232 TCP/IP Speaker Line Level Inputs Inputs Port Port Outputs Output Output HDBaseT HDMI HDMI VGA Audio Microphone 110-240 VAC Inputs Audio Input Output (DIGI- Output Inputs Port Input P123 only) Line Level Output – Always-on stereo line level output (mix of Mic and selected Source audio) VGA Output –... -
Page 9: Ir Remote
Attach the supplied rubber feet to the bottom of the unit. Rack Mounting Instructions The DIGI-P122/123 requires one rack unit (1 RU) of space. At least 2 inches of free air space is required on both sides of the DIGI-P122/123 for proper side ventilation. Avoid mounting the unit near a power amplifier or any other source of significant heat. -
Page 10: Front Panel And Ir Remote Operation
To select an input from the IR remote: 1. Point the IR remote at the IR window on the front panel of the DIGI-P122/123 2. Press the Source Select button on the remote that corresponds to the input you wish to select. - Page 11 To change the volume of the MIC or LINE audio from the IR remote: 1. Point the IR remote at the IR window on the front panel of the DIGI-P122/123. 2. Press the + or - buttons to raise or lower the volume, respectively. To make a large change, you can press and hold the button until it reaches an appropriate level.
-
Page 12: Edid Management
The HDMI inputs are HDCP compliant, which will allow you to use encrypted content like a Blu- Ray player. The DIGI-P122/123 will only consume one HDCP “key”, regardless of what is ... -
Page 13: Tcp/Ip Setup And Control
1. Configure the computer to use the same network prefix as the IP address assigned to the DIGI-P122/123. For example, the IP address of the DIGI-P122/123 is 192.168.0.178. Set the computer to use a static IP address within the same network range, such as 192.168.0.42. - Page 14 DIGI-P122 / DIGI-P123 Installation Guide 6. Click the “Setup” button to enter the configuration menu. 7. Select the “Network” tab 8. Enter the new settings provided by your network administrator: a. Enter the new IP address.
-
Page 15: Access The Web Browser With Defined Ip Address
DIGI-P122 / DIGI-P123 Installation Guide Access the Web Browser with Defined IP Address 1. Remove the crossover cable between the computer and the DIGI-P122/123. 2. Restore the computer to the previous network settings. 3. Connect the computer and the DIGI-P122/123 to the network. -
Page 16: Rs232 Connection
RS232 Connection The RS232 control port requires a standard straight-through serial cable for operation. This diagram shows the connections for the DIGI-P122/123 as you look at the connector. The default settings for the RS232 port are: 9600 baud... -
Page 17: Rs232 And Tcp/Ip Commands
DIGI-P122 / DIGI-P123 Installation Guide RS232 and TCP/IP Commands RS232 Settings: 9600 baud, 8 Data bits, 1 Stop bit, Parity = None TCP/IP Settings: User defined IP address, port 4001 <CR> = Carriage return (Hex 0D) <LF> = Line Feed (Hex 0A) - Page 18 DIGI-P122 / DIGI-P123 Installation Guide Description Command Response Aspect Mode – Output 16:9 0662% Ratio: 16:9<CR><LF> Aspect Mode – Output 4:3 0663% Ratio: 4:3<CR><LF> 0608% Aspect Ratio: Aspect Mode – Set zoom mode (cycle) [xxxxxxx]<CR><LF> [xxxxxxx] can be: Full Wide Screen...
-
Page 19: Audio Commands
DIGI-P122 / DIGI-P123 Installation Guide Audio Commands Description Command Response Mute LINE 0600% LINE Mute On<CR><LF> Unmute LINE 0601% LINE Mute Off<CR><LF> , [xx] ranges at 00~100 LINE volume up 0602% LINE Volume: [xx]<CR><LF> , [xx] ranges at 00~100 LINE volume down 0603% LINE Volume: [xx]<CR><LF>... -
Page 20: Osd (On Screen Display) Commands
DIGI-P122 / DIGI-P123 Installation Guide OSD (On Screen Display) Commands Description Command Response Volume Bar display enable 0646% Volume Bar: Display<CR><LF> Volume Bar display disable 0647% Volume Bar: No Display<CR><LF> Volume Bar: Display<CR><LF> Get Volume Bar display status 0651% Volume Bar: No Display<CR><LF>... -
Page 21: Firmware Update
Intelix engineering department) 4. Insert the USB thumb drive into the USB port on the DIGI-P122/123 5. Press the HDMI button on the front panel of the DIGI-P122/123 for 6 seconds OR send the RS232 command 0698% 6. Press the “OK” button on the IR remote OR send the RS232 command 0609% to confirm the update procedure. -
Page 22: Troubleshooting
If using a line level source, be sure that it is connected to the line level input of the MIC. No microphone audio Be sure the microphone is connected to the mic level input of the MIC. Check the microphone – if it is a condenser (electrostatic), it may require phantom power. The DIGI-P122/123 does not supply phantom power. -
Page 23: Stereo Input Sounds Strange (No Vocals, Etc.)
The line level connector of the MIC input is balanced. If you are trying to input a stereo source, both the Left (+) and Right (+) must be connected to the (+) terminal on the DIGI-P122/123, while the ground should be connected to the (-) and the ground. Better still – use a summing adapter (RDL TX-J2 comes to mind). -
Page 24: Technical Specifications
DIGI-P122 / DIGI-P123 Installation Guide Technical Specifications DIGI-P122 Technical Specifications Input Connections HDMI Inputs Four (4) HDMI type A VGA Inputs Four (4) HD15-F, Four (4) 3.5mm TRS-F Composite Video 1 One (1) RCA-F (video), Two (2) RCA-F (stereo audio shared with S-Video 3) - Page 25 **VGA Output will turn off when encrypted content is selected. Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straight-through cabling with standard-grade Cat 5e unless noted otherwise.
-
Page 26: Digi-P123
DIGI-P122 / DIGI-P123 Installation Guide DIGI-P123 Technical Specifications Input Connections HDMI Inputs Four (4) HDMI type A VGA Inputs Four (4) HD15-F, Four (4) 3.5mm TRS-F Composite Video 1 One (1) RCA-F (video), Two (2) RCA-F (stereo audio shared with S-Video 3) - Page 27 **VGA Output will turn off when encrypted content is selected. Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straight-through cabling with standard-grade Cat 5e unless noted otherwise.
