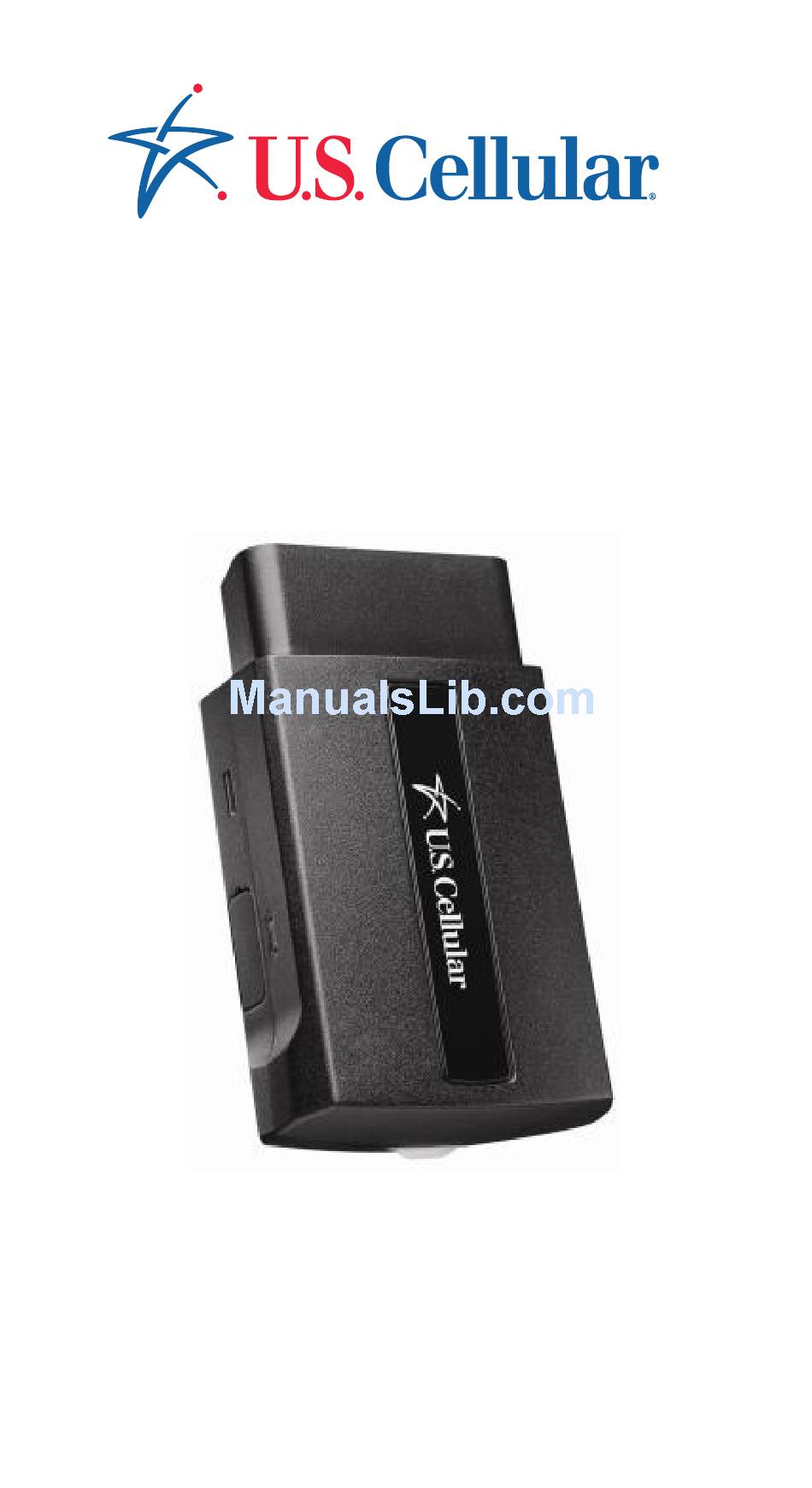

Page 1 Vehicle Monitoring Quick Reference Guide Powered by Delphi...
Page 3 Welcome You’re about to experience a powerful device that will deliver a new level of convenience and peace of mind with your vehicle. When combined with the Delphi Connect smartphone app or website, you can: • Track your vehicle’s location in real-time, and create virtual geo-fence boundaries.
Page 4 What Vehicle Does It Work With? The Vehicle Monitoring system works with most 1996 and newer vehicles (cars, light trucks, SUVs and minivans) sold in the United States including domestic, Asian and European imports. Before you start installation, please visit delphiconnect.com/fitment...
Page 5: Package Contents
The Vehicle Monitoring Module Quick Reference Guide Product Safety and Warranty Guide If anything is missing, please ® contact U.S. Cellular Customer Service at 1(888) 944-9400 or by dialing from your mobile phone. My Vehicle Monitoring mobile number (found on your receipt):...
Page 6: Equipment Overview
Equipment Overview OBD connector (plugs into vehicle ’s OBD port) Function button Status LED Service connector (manufacturer use only) Label, showing product information...
Page 7: System Requirements
System Requirements The Delphi Connect app works on: • Android 2.2 and later • Apple iOS 5.0 and later The Delphi Connect website at uscc.delphiconnect.com works with: • Internet Explorer 7 and later • Google Chrome • Apple Safari • Firefox...
Page 8: Installation Requirements
A supported vehicle identified in the fitment guide located at delphiconnect.com/fitment. • Relocation Kit* if required. • An activated Vehicle Monitoring with a qualified ® U.S. Cellular wireless service plan. If you do not have a U.S. Cellular service plan or...
Page 9: Smartphone Setup
Smartphone Setup Step 1: Download Delphi Connect Smartphone App • Launch your smartphone’s app store - either Google Play Store for Android or App Store for iPhone. • Search for the Delphi Connect app and download it to your smartphone. If the app is not available for your phone, please use the website at uscc.delphiconnect.com.
Page 10 Step 2: Sign In to your Delphi Account Launch the Delphi Connect app. • In the Username field, enter the Registration Key exactly as it is printed on the module label – including the dash. • In the Password field, enter the MEID Dec exactly as it is printed on the module label.
Page 11 Step 3: Find Your Vehicle’s OBD Connector Port It’s usually on or under the dash, on the driver’s side. Other possible locations are the center console area or inside the glove compartment. Need help finding your vehicles OBD port? Use the OBD Locator in the app to see a picture of where the OBD port is in your vehicle.
Page 12: Step 4: Install Your Module
Step 4: Install Your Module ® Use your U.S. Cellular smartphone to check that you have a strong signal where your vehicle is parked. • Make sure your vehicle is parked outside in a safe location and the engine is turned off.
Page 13 Cellular® network, it will perform a one-time network setup which will take several minutes. NOTE: To avoid any unnecessary drain on the vehicle battery, it is recommended not to leave the Vehicle Monitoring in the solid blue state for more than 24 hours.
Page 14 Step 6: Verify Module Setup • Start the engine and let it run for at least 30 seconds. • Stop the engine and wait at least 20 seconds. You are now ready to access your vehicle information using the Delphi Connect app. Finish Setup Using the Delphi Connect App •...
Page 15 OBD port needs to be accessible, it is recommended that you remove the Vehicle Monitoring from your OBD port. In order to repair your module with your vehicle, please refer to page 11 and follow steps 5 and 6.
Page 16 However, your vehicle may become compatible at a later date. Your Vehicle Monitoring system allows you to program up to two key fobs into the module. NOTE: It is necessary to perform this step in your vehicle because you may be prompted at times to turn your ignition key and press specific vehicle buttons.
Page 17 Key Fob Setup Pair Key Fob with Your Vehicle Monitorings • Select Menu by tapping the Delphi icon in the Delphi Connect app. Tap the Key Fob menu option. • When prompted to configure the key fob, tap YES and follow the prompts. Following successful pairing of your module’s key fob feature, you should be able to use your Delphi Connect app to send key fob commands over the...
Page 18 Android or the menu icon on an iPhone. • Tap Settings followed by Vehicle Settings. • Tap the vehicle in which the Vehicle Monitoring is currently installed. • Tap Bluetooth Settings. • Tap Discover to activate Bluetooth pairing.
Page 19 • Follow the procedures for turning on your ® smartphone’s Bluetooth feature. • Tap Search for Devices if your phone doesn’t begin scanning automatically. • When ACT212USCC appears as an available device select it. • The device ACT212USCC should now show as paired.
Page 20 • Observe the LED on the Vehicle Monitoring and wait until it returns to flashing blue every 10 seconds. • Tap the Key Fob menu item and test the buttons. Congratulations, Setup is complete! ® NOTE: The Bluetooth discovery mode will last for 60 seconds. You must complete the pairing within this time.
Page 21: Application & Service Features
Application & Service Features Once you have activated and paired your Vehicle Monitoring module, you can enjoy many product features which include: Dashboard Website...
Page 22 Key Fob Use your smartphone as a key. Website NOTE: Compatible vehicles only.
Page 23: Find My Car
Find My Car No more wandering. Use this map feature to find where you’ve parked your vehicle. Website...
Page 24 Geo-Fence Boundaries Set up a virtual geo-fence. If your vehicle is driven in or out of the fenced-in area, you’ll be alerted. Website...
Page 25: Live Tracking
Live Tracking Want to see where your child is driving? Track the vehicle on a map in real time. On the smartphone app, you can also speed dial 911. Website...
Page 26 Alerts Receive alerts for vehicle issues and driving conditions, such as low battery voltage, geo-fence crossings, excessive speed and high RPM. Alerts can also be sent to email addresses and as text messages (SMS) to mobile phones. Website...
Page 27 Vehicle Health Does your vehicle have health issues? If so, what do they mean? Find the details here. Website...
Page 28: Recent Trips
Recent Trips Get a summary of your trips. Includes dates and times and shows the route on a map. Website...
Page 29: Customer Information
Customer Information Your Wireless Device and Third Party Services ® U.S. Cellular Corporation is the mobile carrier associated with this wireless product. However, many services and features offered through the product are provided by Delphi alone or in conjunction with third parties. U.S. Cellular is not responsible for your use of your wireless device, including any damage resulting from your installation of the device and is not responsible...
Page 30: Status Led And Troubleshooting
Status LED and Troubleshooting Understanding the Status LED Status LED Status (Engine On) Status (Engine Off) No vehicle power to Module will enter illumination for device or Device failure Deep Sleep after more than 1 typically 5-10 days minute of no vehicle activity.
Page 31 Engine Off – Light Blinking Blue Bluetooth® Pairing in Progress CAUTION: sleep (blinking DO NOT UNPLUG once every 10 (blinking once per seconds) second for one Bluetooth® Pairing minute) in Progress CAUTION: DO NOT UNPLUG (blinking once per second for one minute) Blinking White Activation or firmware...
Page 32: Troubleshooting
Troubleshooting Issue Likely Cause(s) Corrective Action(s) Can’t login to Incorrect Username First Time: Enter my account or Password entry Registration Key from this guide or module label exactly as shown (e.g. 1a2b-3c4d) in Username field. (lowercase or UPPERCASE) Enter MEID Dec from this guide or module label exactly as shown.
Page 33 (remains on phone or 1(888) 944-9400. If OBD Locator not, follow Troubleshooting page) according to Status LED table Engine start wasn’t No green Turn off ignition, wait 10 LED with detected seconds and restart engine. engine Wait up to 10 seconds to see running, LED if green LED appears.
Page 34 vehicle No internet Check internet connection to keyless entry connection to smartphone or computer. system smartphone, Start engine and watch for computer or module green or yellow LED activity. If LED remains red, the module has no cellular connection OEM vehicle Check if the OEM key fob restriction can perform the same...
