Summary of Contents for SolaStat SolaStat-Plus
-

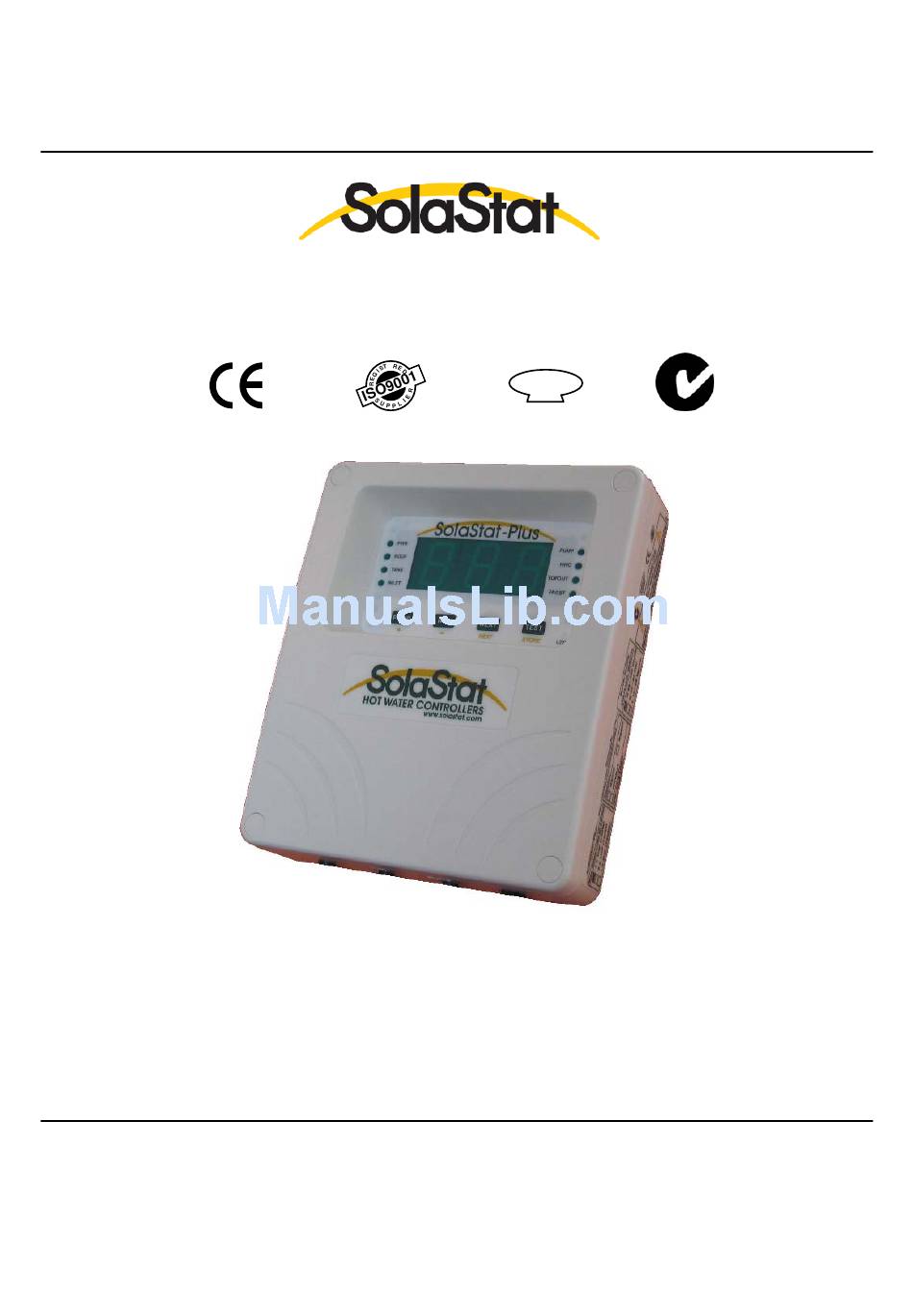

Page 1: Installation Guide
SolaStat-Plus TECHNOLOGY & QUALITY Z495 Installation Guide. 19.01-1... -
Page 2: Table Of Contents
10 SolaStat-Plus Programming. SolaStat-Plus Programming. page 10 SolaStat-Plus Programming Table. page 12 SolaStat-Plus Pump ON / Pump OFF Adjustable Range. page 12 Notes on SolaStat-Plus Programming. page 12 SolaStat-Plus-2 HWC Control Flow Chart. page 13 Examples and Explanation of the HWC 4 Modes of Operation. -
Page 3: Features
Introduction. SolaStat-Plus is Easy to Use with the advanced generation of smart, microprocessor based Differential Solar Hot Water Controllers. The SolaStat-Plus is easy to install, easy to use, easy to programme and visually appealing. SolaStat-Plus has Advanced Functions and takes the basics of differential control, frost protection, topout... -
Page 4: Solastat-Plus Users Guide
The SolaStat-Plus-2 (with the addition of the SolaStat-Rly) allows intelligent control of the electric element used in the hot water tank (HWC control). The SolaStat-Plus-2 can prevent the electric element coming on for a programmed time interval when Solar Hot Water is already being transferred into the hot water tank (Holdoff Timer). -
Page 5: Hwc Override
Test: Briefly pressing this button will cause all the lights to flash on for 3 seconds then display for 3 · seconds the number of times the SolaStat-Plus has operated the pump. This count will reset and start again after ‘999’. -
Page 6: Solastat-Plus System Adjustable Values
SolaStat-Plus System Adjustable Values. Installer to fill in at installation time or after any change in program Adjustable Values l a t t a l f f o f f o f f o f f o f f o *Functional with SolaStat-Plus-2 only. -
Page 7: Solastat-Plus Safety Instructions
Do not allow the sensor cables to come within 10mm of the high voltage connectors or components inside the enclosure. The HWC output must be used in conjunction with a SolaStat-Rly. This is due to the high power levels used by hot water electric elements, and completely isolates the SolaStat-Plus from the HWC circuit. -
Page 8: Solastat Plus Mounting
The ‘TANK’ sensor is best fitted into a metal immersion ‘pocket’ in the upper region of the HWC. For the SolaStat-Plus-2 the position of the Tank sensor will vary the amount of water in the HWC that will be controlled at the required temperature. As an example for a 300l vertical tank mounting the sensor 1/3 of the way down from the top of the HWC will give about 100l of water that is heated within the control parameters. -
Page 9: Solastat-Plus Operation
Connect the Pump. Plug in the pump to the ‘PUMP’ socket on the SolaStat-Plus. This should be the correct type of pump for domestic solar hot water circulation and not exceed the horse power (hp) rating as specified on the label on the side of the enclosure. -
Page 10: Power Up
Note on BioSafe After Power-up. When the SolaStat-Plus is turned on either for the first time or after a power failure the BioSafe 24 hour timer starts from power up (unless the temperature in the tank is greater than the BioSafe Temperature) and the Holdoff Timer will start from the next pump activation. - Page 11 The ‘FROST’ can be adjusted using the ‘+’ and ‘-‘. All the values are now entered. The values can be checked by simply pressing ‘NEXT’ to cycle through all the values noting which light is on and what value is displayed (as per SolaStat-Plus Programming Table).
-
Page 12: Solastat-Plus Programming Table
. e l < . e l > . e l *Functional with Dual Relay version only. Set to ‘OFF’ for Single Relay Version. SolaStat-Plus Pump ON / Pump OFF Adjustable Range. Roof Sensor Solar Collector Temperature Pump ON Pump ON Temperature... -
Page 13: Solastat-Plus-2 Hwc Control Flow Chart
SolaStat-Plus HWC Mode. SolaStat-Plus-2 HWC Control Flow Chart. The SolaStat-Plus-2 with HWC output Start SolaStat takes full control of the hot water tank HWC Control electric element for greater energy efficiency yet maintains hot water comfort Algorithm. and safety levels. -
Page 14: Examples And Explanation Of The Hwc 4 Modes Of Operation
Refer ‘Example of Holdoff, Reheat and BioSafe Mode’. Below 1 hour the SolaStat-Plus operates in Thermostat Mode, (‘thr’ on display.) Above 23 hours the SolaStat-Plus operates in Reheat Mode, (‘OFF’ on display.) - Page 15 BioSafe Adjustment Value. This is safeguard against tepid water creating a health hazard*. The SolaStat-Plus monitors the water temperature in the hot water tank. BioSafe must always be enabled for Potable water installations. If the water does not reach a preset temperature called ‘BioSafe’ (Adjustable from 50~70C) within 24 hours at the ‘Tank’...
-
Page 16: Solastat-Plus Sensor Maintenance
12. Reconnect the SolaStat-Plus and turn on the power. 13. Check sensor is reading correctly and check SolaStat-Plus operation as per “What You Should See” section of this manual. The table below has the correct resistance values of the sensor at different temperatures. The sensor must be removed from the SolaStat-Plus to measure these values correctly. -
Page 17: Solastat-Plus Specifications And Limit Of Liability
SolaStat-Plus Specifications. Power Supply. Supply Voltage. 85~264Vac/dc (standard model) 22~85Vdc. (Must be specified at time of ordering.) 10~28Vac/dc. (Must be specified at time of ordering.) Max power usage. 5VA + external loads. Relay Outputs. -Three Options can be ordered. (All ratings at 240Vac.) 1 x 1hp motor. -
Page 18: Solastat-Plus Trouble-Shooting Guide
SolaStat-Plus Trouble-shooting Guide. This is intended as an initial guide to minimise service calls. g i l e l i g i l t i n y t l t i n t i n . r i . f f . -
Page 19: Solastat-Plus Plumbing Issues
SolaStat-Plus Plumbing Issues. Disclaimer. For full information on compliance and safety standards for solar hot water systems the appropriate local standards must be referred to. All plumbing to be carried out by qualified plumbers only. We provide the following information as a guideline only to help obtain the greatest efficiency from the system. - Page 20 Convert the system to mains pressure. The SolaStat-Plus controllers have an optional factory setting called ‘Pump Timer’ to assist in pump cavita- tion recovery. After the pump has run continuously for approximately ten minutes, it will turn off for one minute.
Need help?
Do you have a question about the SolaStat-Plus and is the answer not in the manual?
Questions and answers
how do i acsess the program mode
To access the program mode on the SolaStat-Plus:
1. Enter the installer programming access code (available from distributors).
2. Every 10 seconds, the display will flash "PRG" to indicate programming mode is active.
This answer is automatically generated
@Mr. Anderson Clearly what I need is the access code and how to input that code.
how can i acsess frost protection values
To access the frost protection values on the SolaStat-Plus:
1. Enter programming mode.
2. Press ‘NEXT’ until the ‘FROST’ light turns on continuously—this indicates the frost value is being displayed.
3. Use the ‘+’ and ‘–’ buttons to adjust the value.
4. Press ‘STORE’ to save the value to permanent memory.
If no key is pressed for a minute, values are automatically saved and the unit exits programming mode.
This answer is automatically generated
solastat -2-3 can i change code to re program controle values. My colector has frozen twice.
Yes, you can reprogram control values on the SolaStat-Plus to help prevent your collector from freezing. The ‘FROST’ value can be adjusted using the ‘+’ and ‘–’ buttons when the ‘FROST’ light is on. Once set, press ‘STORE’ to save the values and exit programming mode.
This answer is automatically generated
@Mr. Anderson how do I accsess program mode
