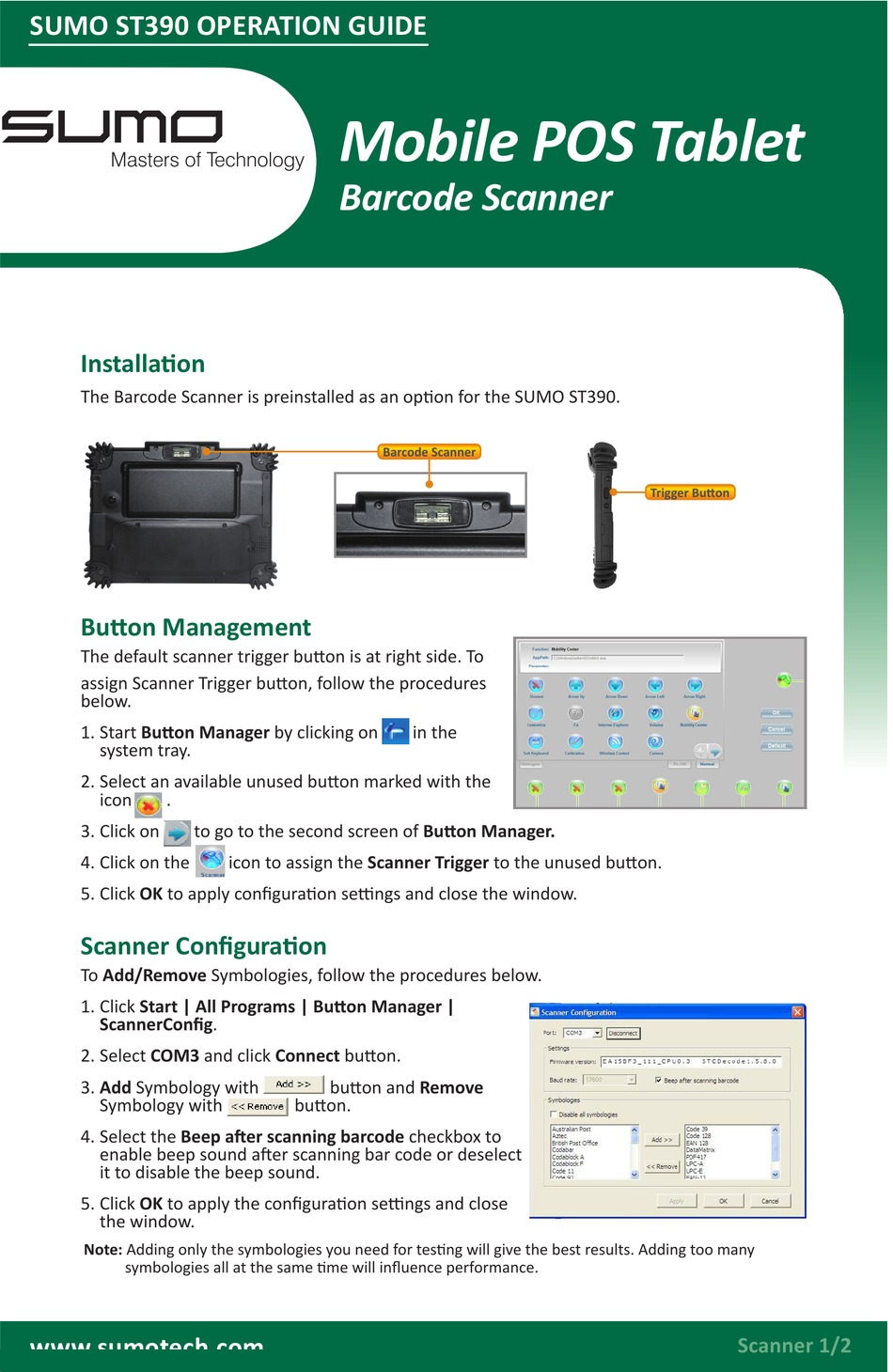

SUMO ST390 OPERATION GUIDE
D
Installation
The Barcode Scanner is preinstalled as an option for the SUMO ST390.

Button Management

The default scanner trigger button is at right side. To
assign Scanner Trigger button, follow the procedures
below.
1. Start Button Manager by clicking on
system tray.
2. Select an available unused button marked with the
icon .
3. Click on
4. Click on the
5. Click OK to apply configuration settings and close the window.

Scanner Configuration

To Add/Remove Symbologies, follow the procedures below.
1. Click Start | All Programs | Button Manager |
ScannerConfig.
2. Select COM3 and click Connect button.
3. Add Symbology with
Symbology with
4. Select the Beep after scanning barcode checkbox to
enable beep sound after scanning bar code or deselect
it to disable the beep sound.
5. Click OK to apply the configuration settings and close
the window.
Note: Adding only the symbologies you need for testing will give the best results. Adding too many
symbologies all at the same time will influence performance.
www.sumotech.com
Mobile POS Tablet

Barcode Scanner

to go to the second screen of Button Manager.
icon to assign the Scanner Trigger to the unused button.
button and Remove
button.
WebDT Mobile Tablet Barcode Scanner Operation Guide
Barcode Scanner
in the
Trigger Button
Scanner 1/2
