Summary of Contents for Boston A7200

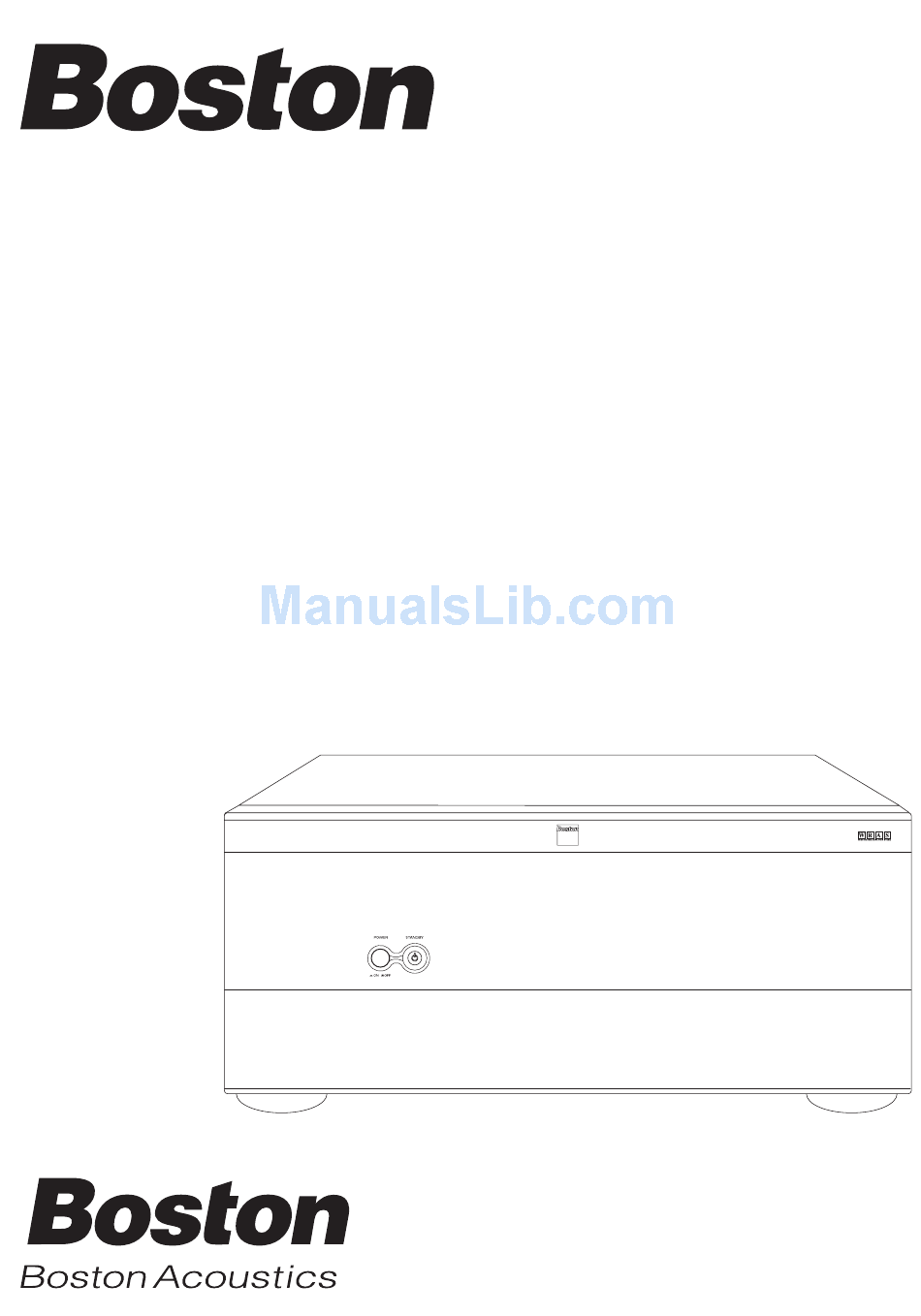

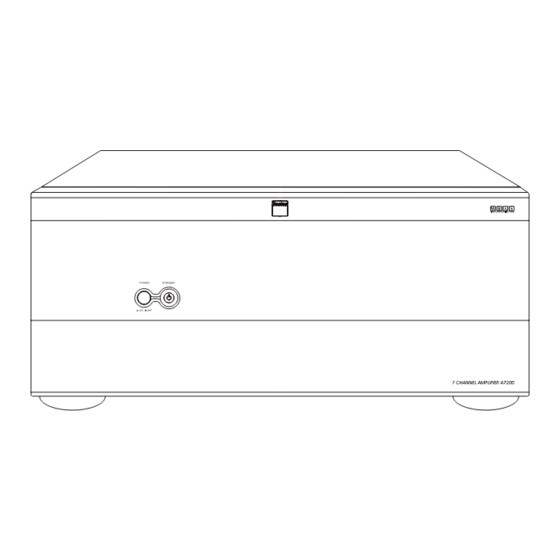

- Page 1 A7200 7 Channel Amplifier 7 CHANNEL AMPLIFIER A7200...
-
Page 2: Important Safety Instructions
Important Safety Instructions Read this before operating your unit. This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT... - Page 3 Important Safety Instructions (cont.) 1. Read Instructions - All the safety and operating instructions should connection to grounding electrodes, and requirements for the be read before the product is operated. grounding electrode. See Figure 1. 2. Retain instructions - The safety and operating instructions should be retained for future reference.
-
Page 4: Table Of Contents
Contents Important Safety Instructions READ THIS BEFORE OPERATING YOUR UNIT ___________________________________________ 1 Important Safety Instructions _____________________________________________________________ 2 System Connections _____________________________________________________ CONNECTING SPEAKERS _____________________________________________________________ 7 SPEAKER PLACEMENT _______________________________________________________________ 8 Front Panel Controls _____________________________________________________ Operations _____________________________________________________________ Troubleshooting Guide ___________________________________________________ Specifications __________________________________________________________... -
Page 5: System Connections
• Be sure to observe the color coding when connecting the preamplifier and speakers to this unit. • Make connections firmly and correctly. Poor connections can cause loss of sound, noise or damage to the unit. • For connections between this unit and the Boston Acoustics compatible preamplifier such as AVP7, refer to the AVP7's manual. - Page 6 • Connect either the surround back left speaker or both of surround back speakers when using 6.1 or 7.1 channel surround playback. • To emphasize the deep bass sounds, connect a powered subwoofer to the preamplifier such as the Boston Acoustics AVP7, not to this power amplifier. (For details, refer to the operating instructions of the preamplifier.) •...
-
Page 7: Connecting Speakers
CONNECTING SPEAKERS General connection using bare wire Connection using spade connectors 1. Carefully strip about 3/8˝ (10mm) of insulation and 1. Loosen the knob and insert the spade connector. twist the wire tip. 2. Loosen the knob and insert the wire. 2. -
Page 8: Speaker Placement
SPEAKER PLACEMENT Ideal speaker placement varies depending on the size of your room and the wall coverings, etc. The typical example of speaker placement and recommendations are as follows: ■Front left, right speakers, and center speaker • Place the front speakers with their front surfaces as flush with the TV or the monitor screen as possible. -
Page 9: Front Panel Controls
■Note on system power control standby mode. If the DC TRIGGER connection is made between this unit and the Boston Acoustics AVP7, this unit will be switched between the standby mode and the operating mode automatically each time the AVP7 is switched between these modes. -
Page 10: Troubleshooting Guide
TROUBLESHOOTING GUIDE If a problem occurs, run through the table below before sending your unit in for repair. If the fault persists, attempt to solve it by switching the unit off and on again. If this fails to resolve the situation, consult your dealer. -
Page 11: Specifications
SPECIFICATIONS Amplifier Section ■ Power output, stereo mode, 8Ω, THD 0.05%, 1kHz | 2 x 130W 4Ω, THD 0.05%, 1kHz | 2 x 220W 7-CH mode (full channel driven), 8Ω, THD 0.05 %, 20Hz-20kHz | 7 x 100W 4Ω, THD 0.05 %, 20Hz-20kHz | 7 x 150W 7-CH mode (only channel driven), 8Ω, THD 0.05 %, 20Hz-20kHz | 140 W/CH 4Ω, THD 0.05 %, 20Hz-20kHz | 240 W/CH Total harmonic distortion, 8Ω, -6dB, 1kHz | 0.005 %... - Page 13 Boston Acoustics, Inc. Boston, Boston Acoustics, and the Boston Acoustics 300 Jubilee Drive logo are registered trademarks of Boston Acoustics, Inc. Peabody, MA 01960 USA © 2005 Boston Acoustics, Inc. All rights reserved. www.bostonacoustics.com Specifications subject to change without notice...
